Pinpoint Test D: The Headlamp On Reminder Chime Does Not Operate Correctly
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

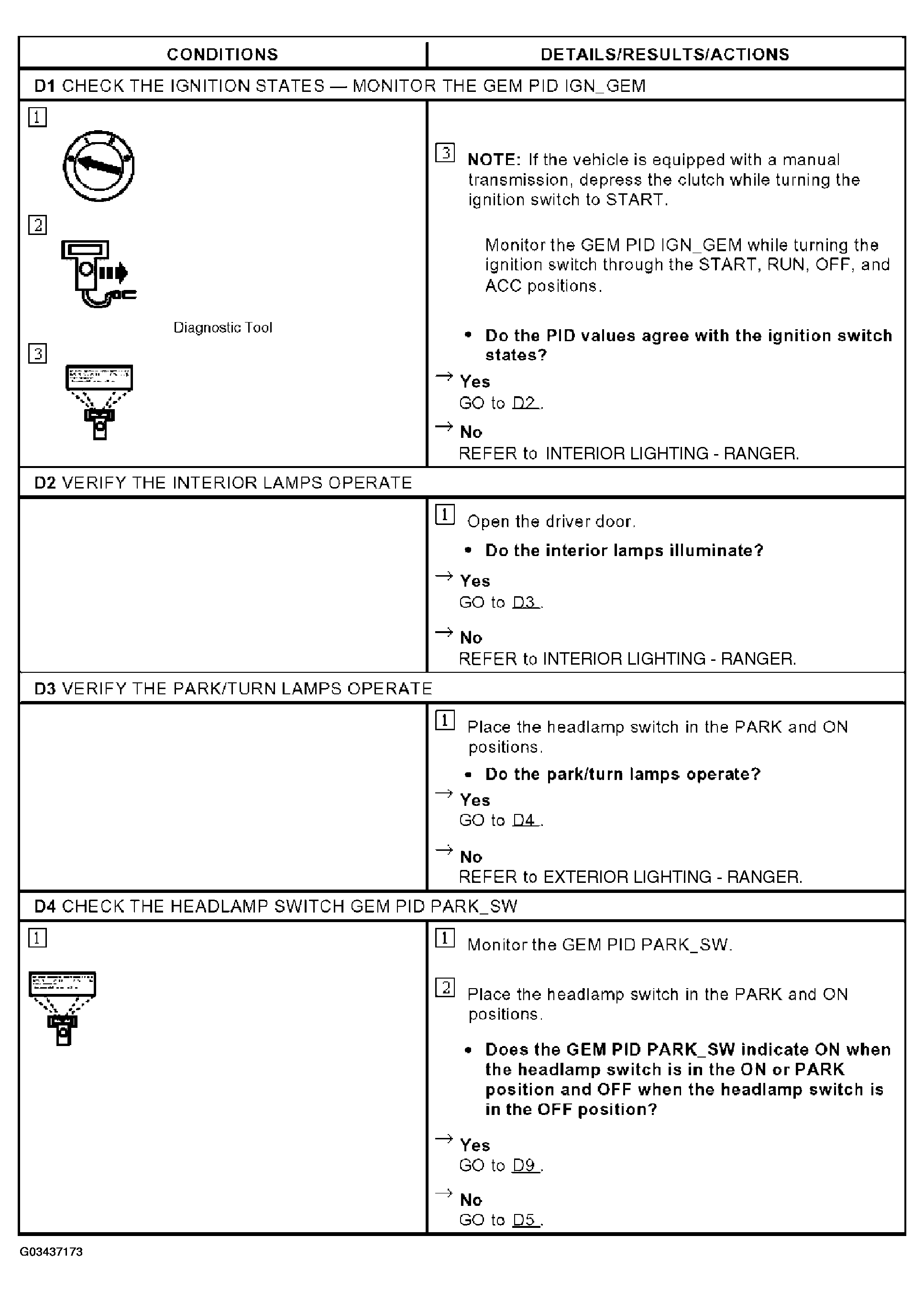

Fig 1: Pinpoint Test D: The Headlamp On Reminder Chime Does Not Operate Correctly (D1-D4)
Courtesy of FORD MOTOR CO.

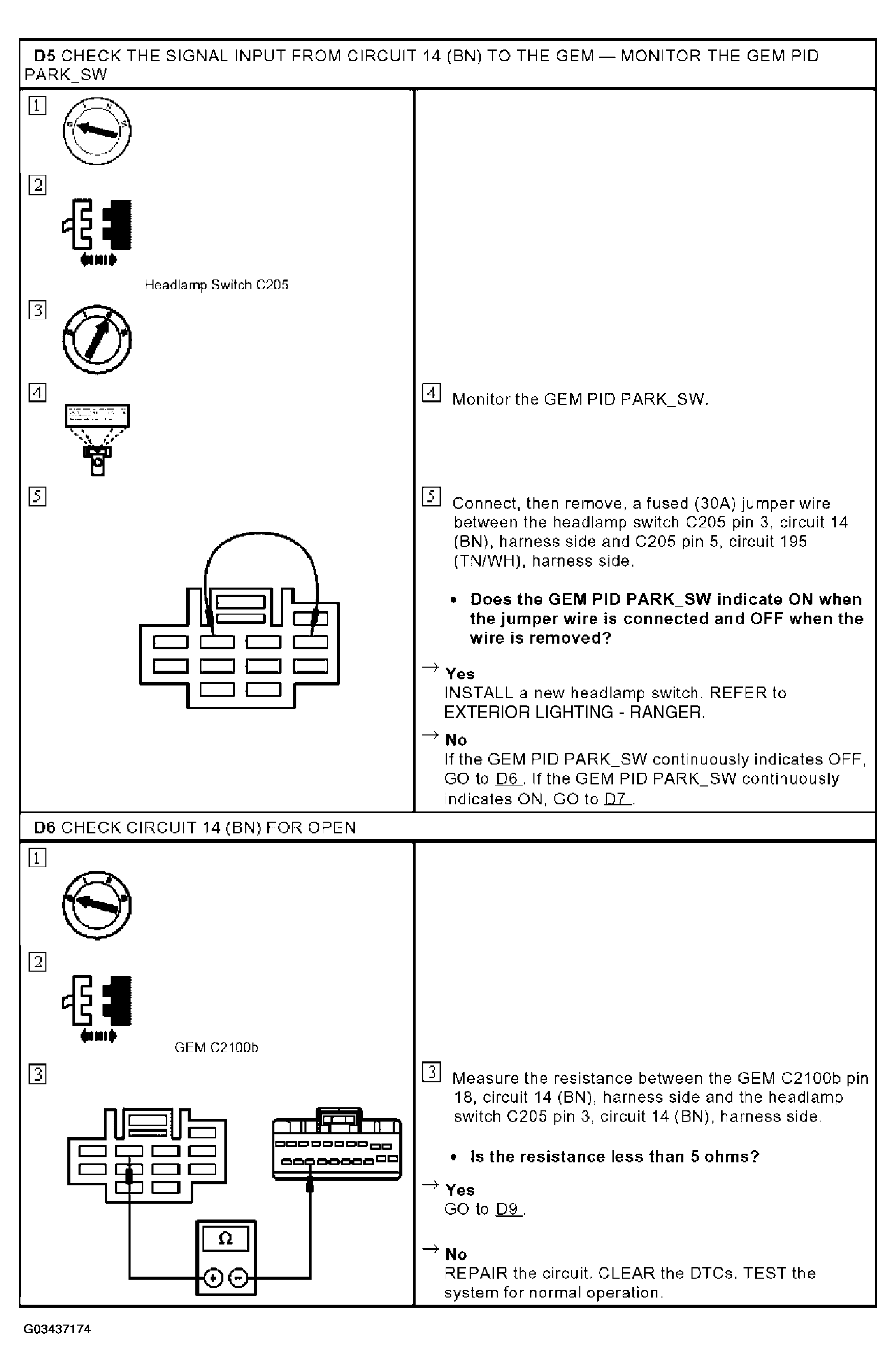

Fig 2: Pinpoint Test D: The Headlamp On Reminder Chime Does Not Operate Correctly (D5-D6)
Courtesy of FORD MOTOR CO.

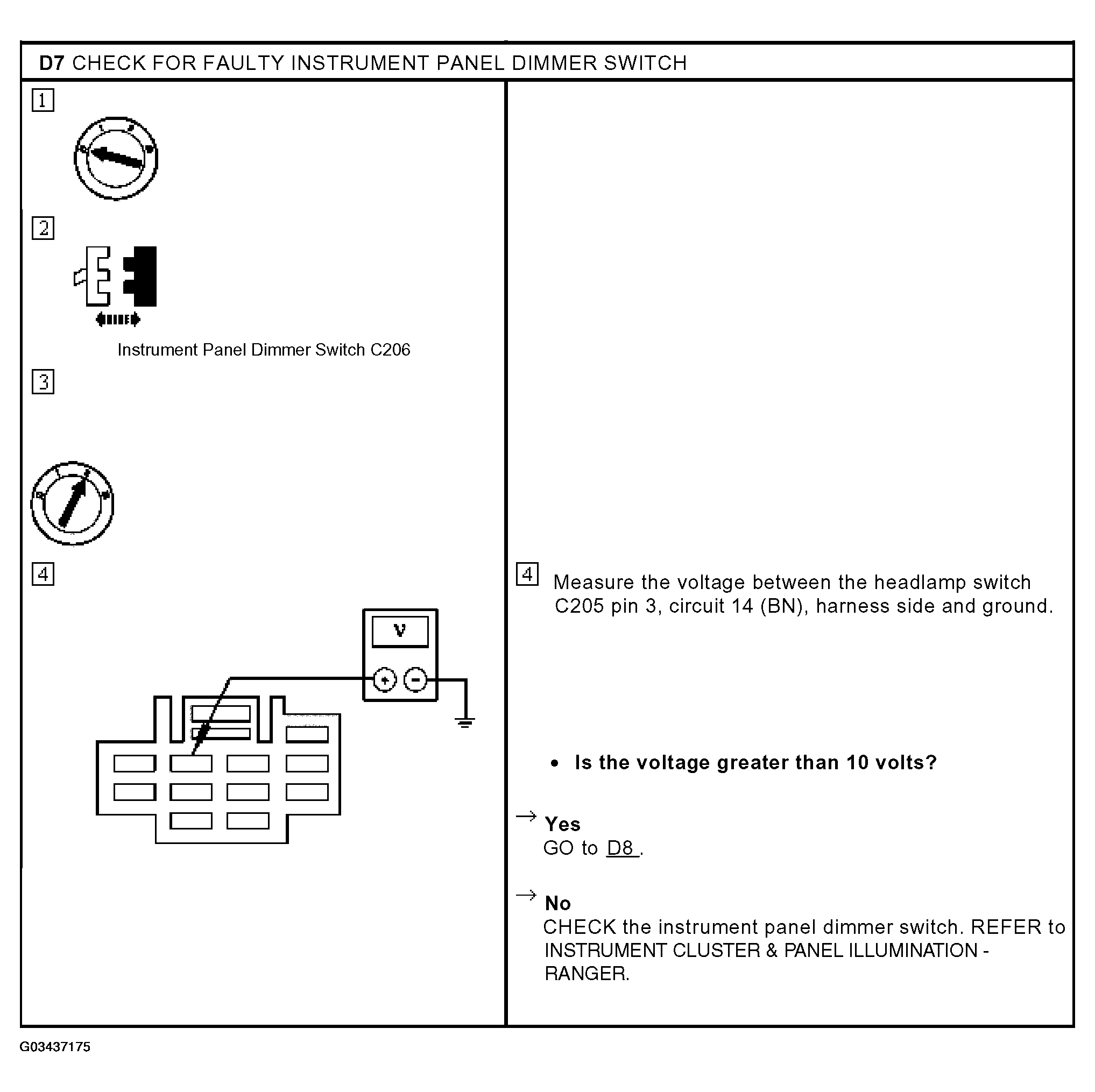

Fig 3: Pinpoint Test D: The Headlamp On Reminder Chime Does Not Operate Correctly (D7)
Courtesy of FORD MOTOR CO.

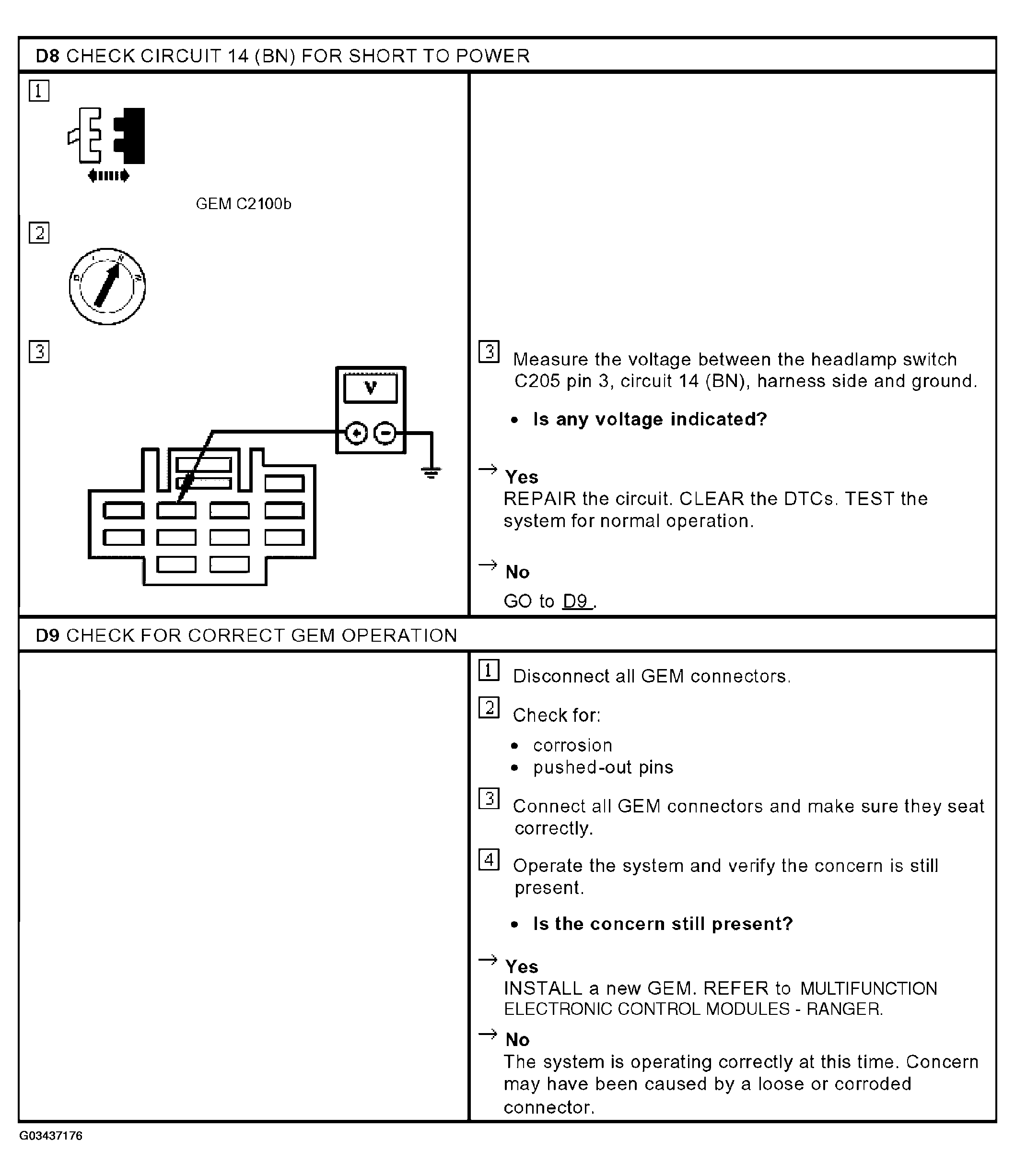

Fig 4: Pinpoint Test D: The Headlamp On Reminder Chime Does Not Operate Correctly (D8-D9)
