Pinpoint Test A: The Safety Belt Warning Chime Does Not Operate Correctly

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Verify the belt minder is activated before diagnosis.

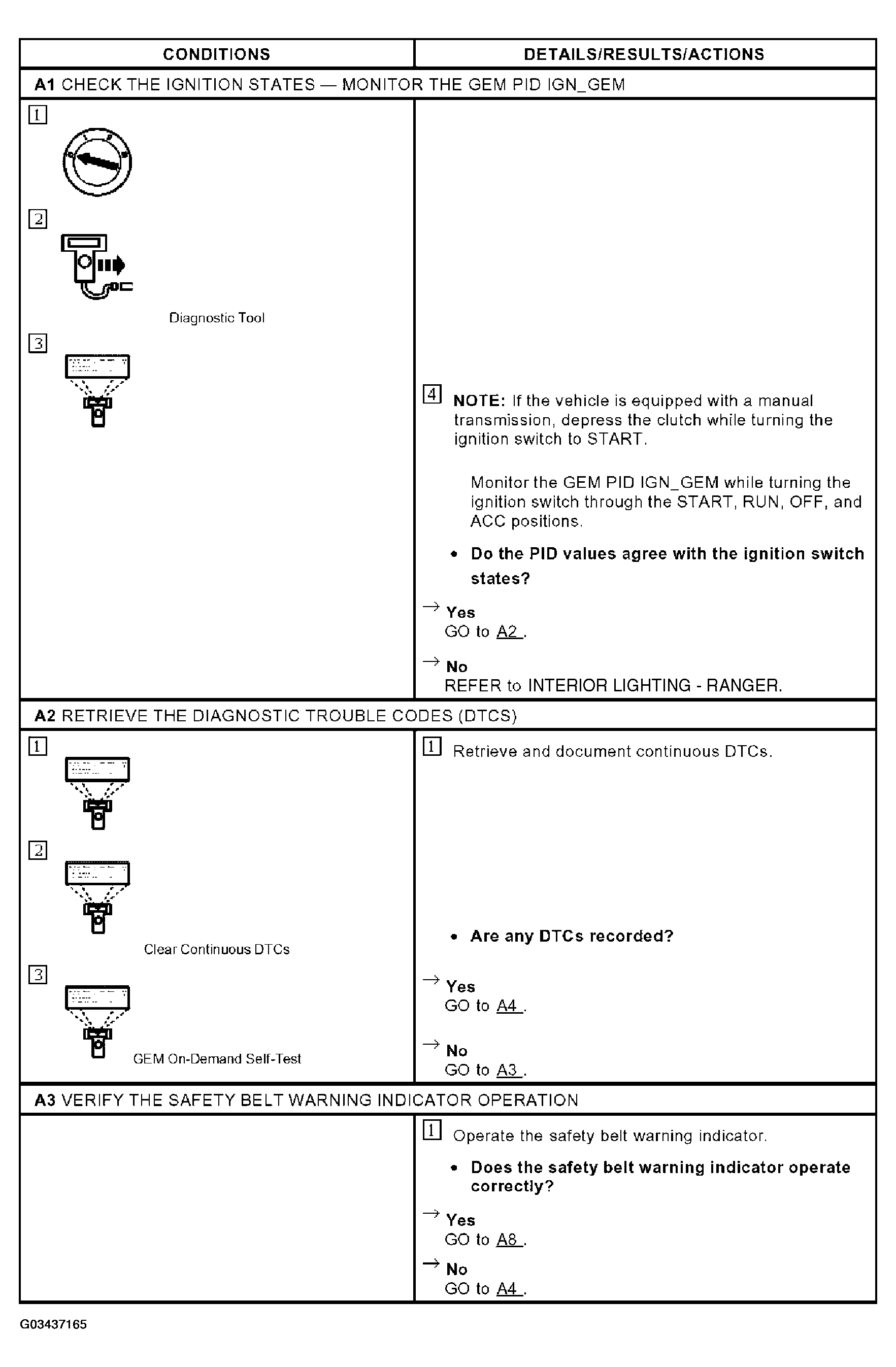

Fig 1: Pinpoint Test A: The Safety Belt Warning Chime Does Not Operate Correctly (A1-A3)

Courtesy of FORD MOTOR CO.

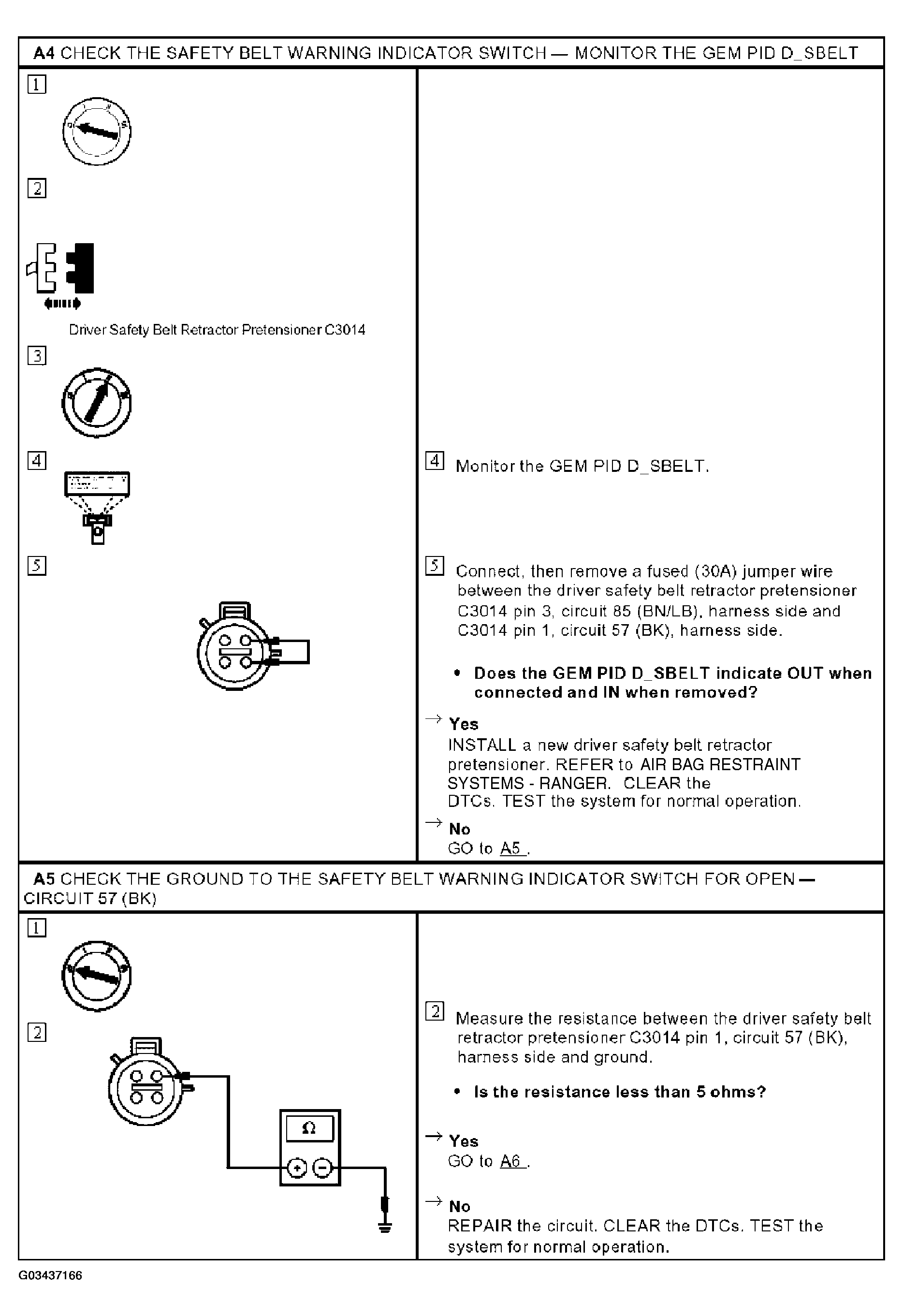

Fig 2: Pinpoint Test A: The Safety Belt Warning Chime Does Not Operate Correctly (A4-A5)

Courtesy of FORD MOTOR CO.

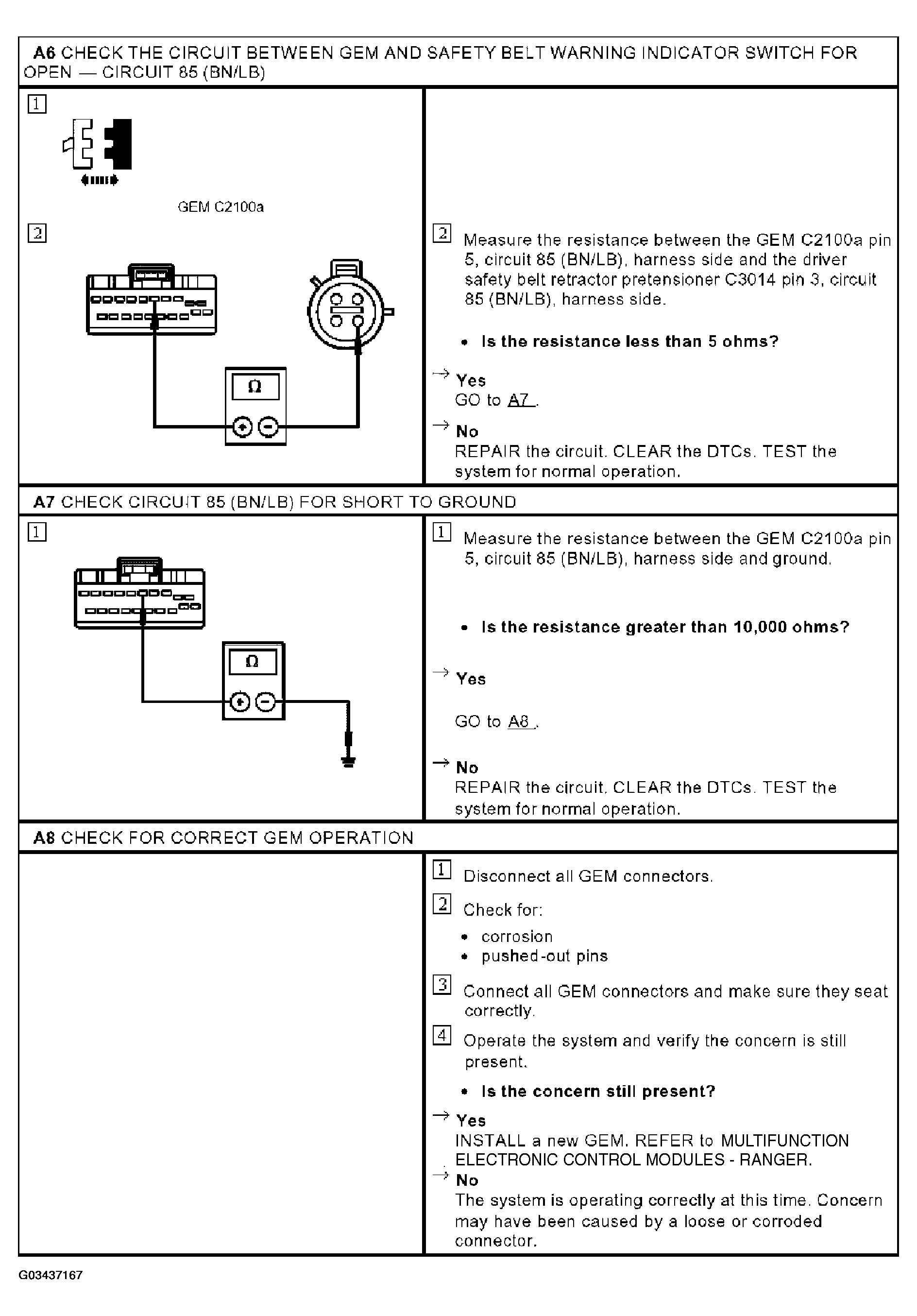

Fig 3: Pinpoint Test A: The Safety Belt Warning Chime Does Not Operate Correctly (A6-A8)

Courtesy of FORD MOTOR CO.
