Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 12 .

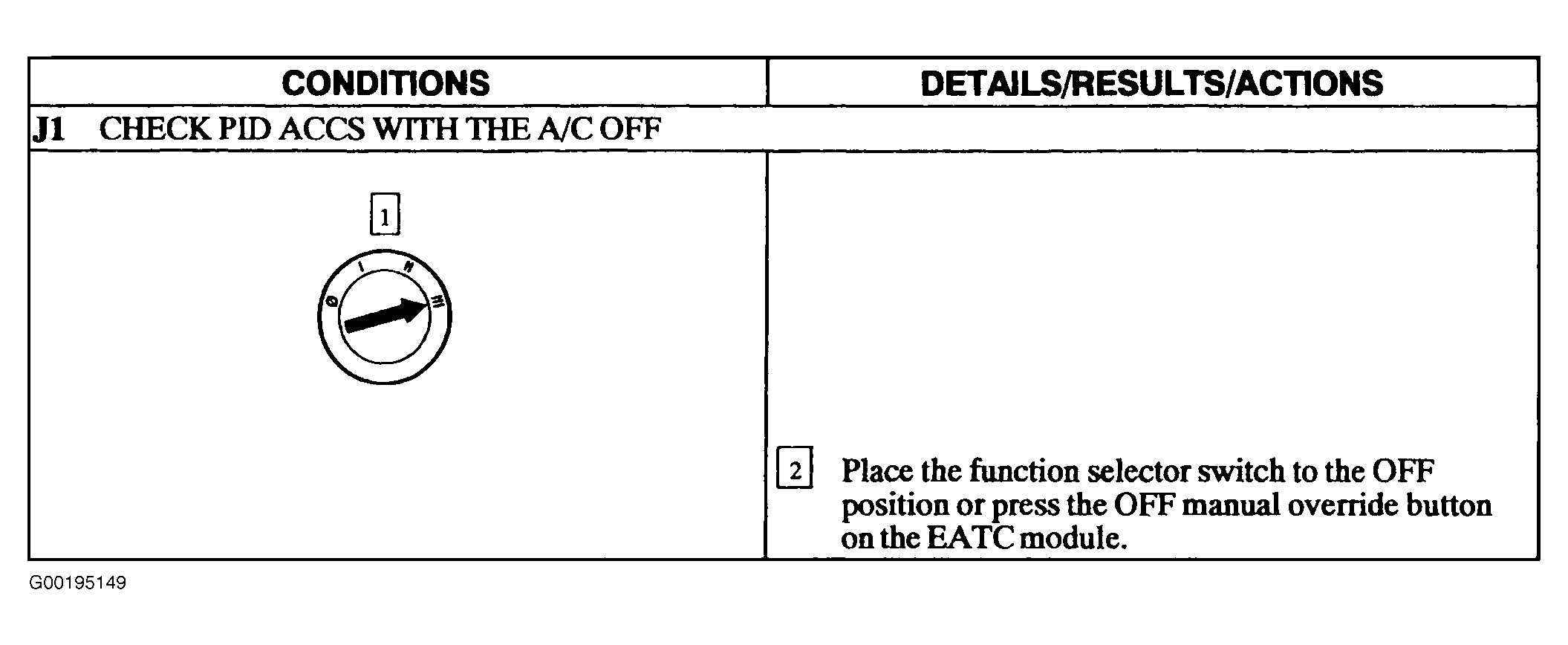

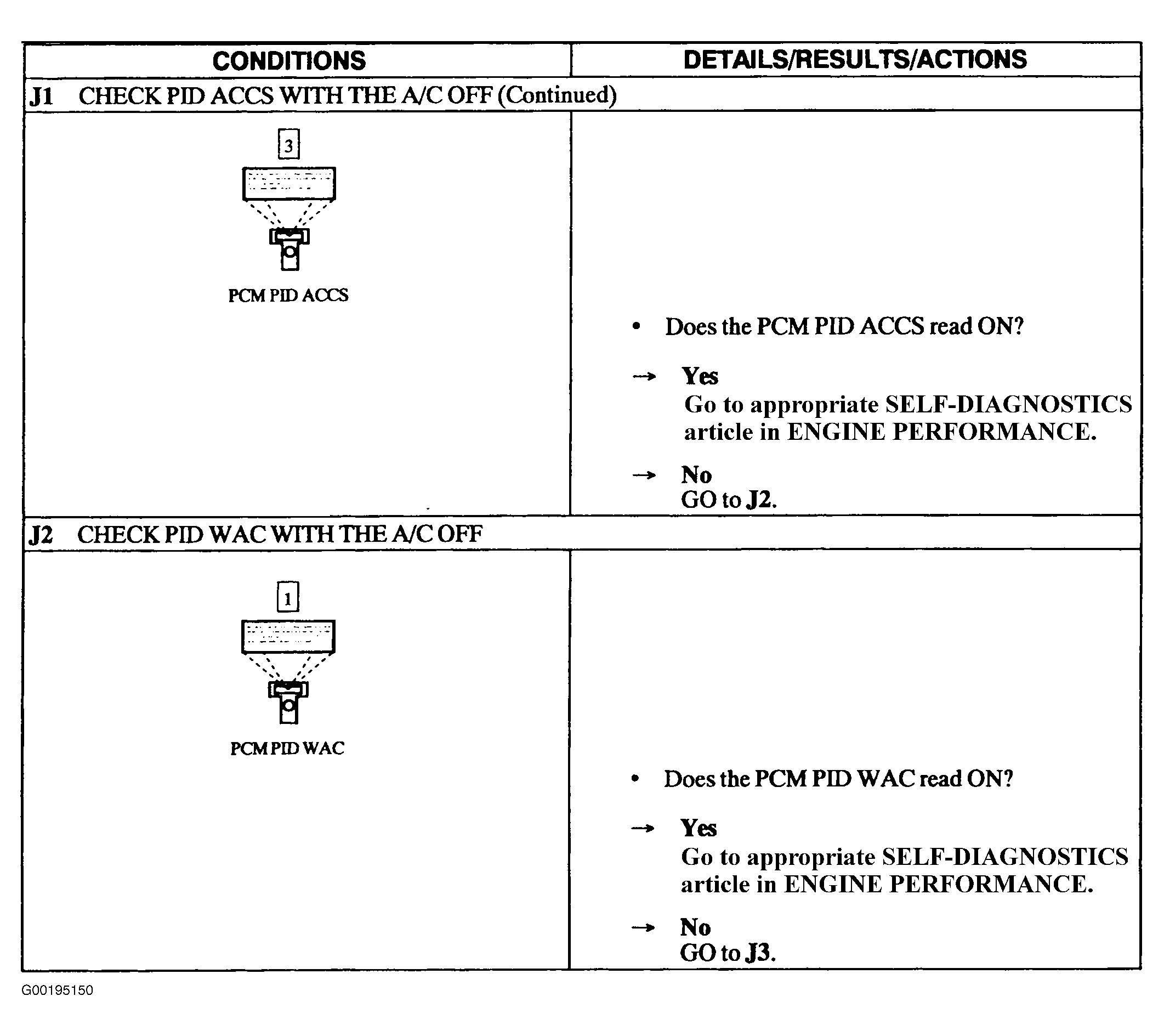

Fig 1: Test J (1 Of 12 - Step J1)

Courtesy of FORD MOTOR CO.

Fig 2: Test J (2 Of 12 - Steps J1 Cont.-J2)

Courtesy of FORD MOTOR CO.

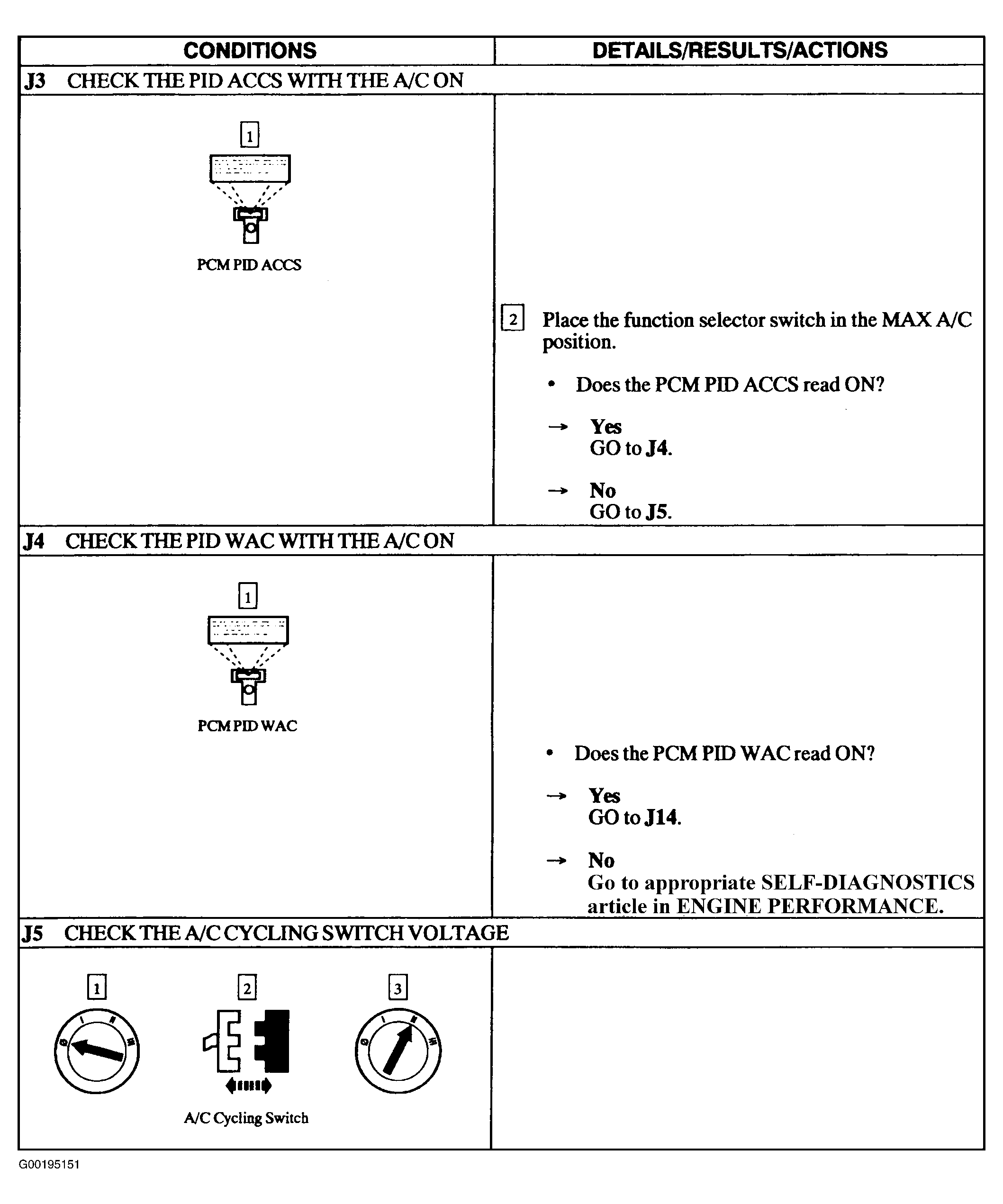

Fig 3: Test J (3 Of 12 - Steps J3-J5)

Courtesy of FORD MOTOR CO.

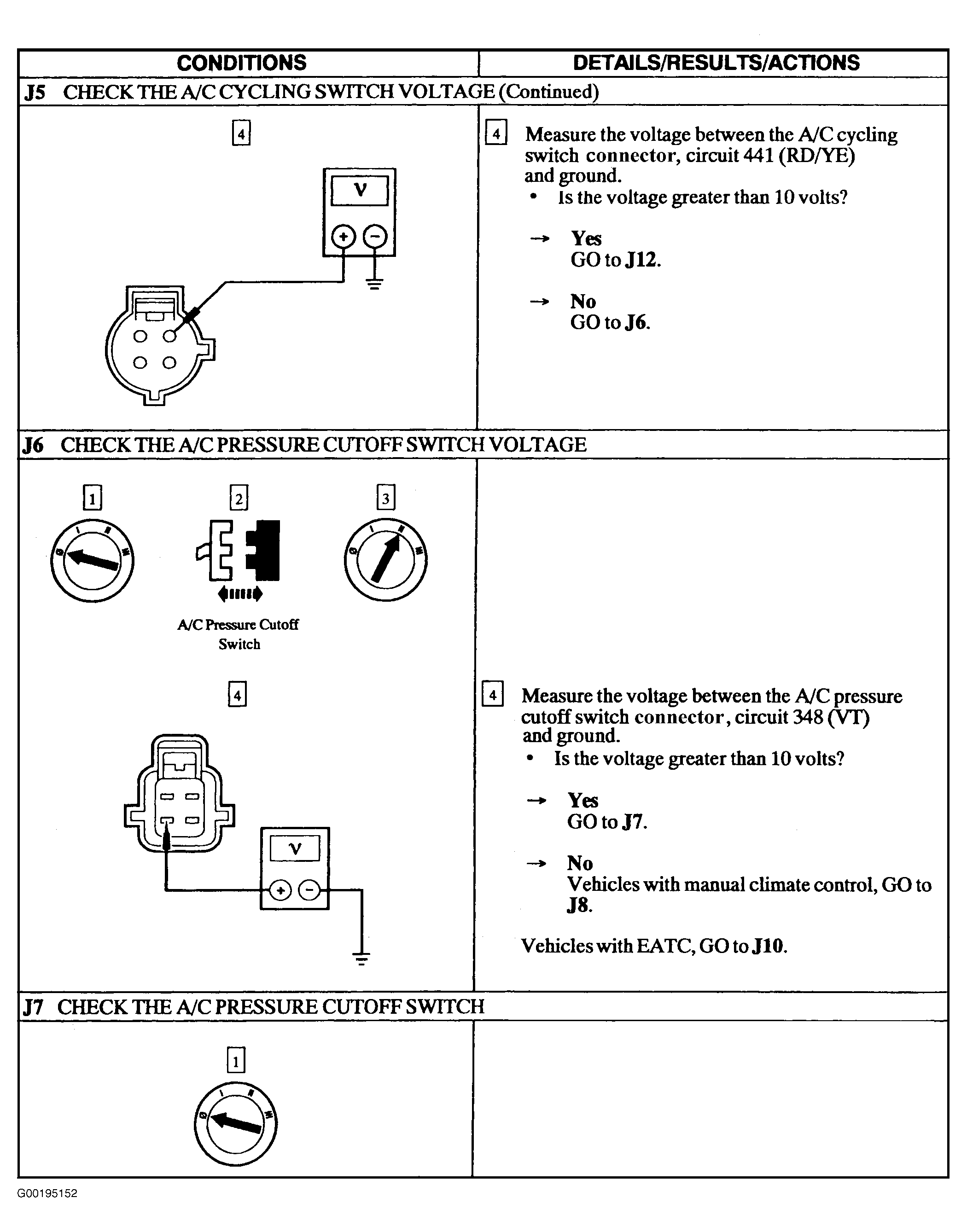

Fig 4: Test J (4 Of 12 - Steps J5 Cont.-J7)

Courtesy of FORD MOTOR CO.

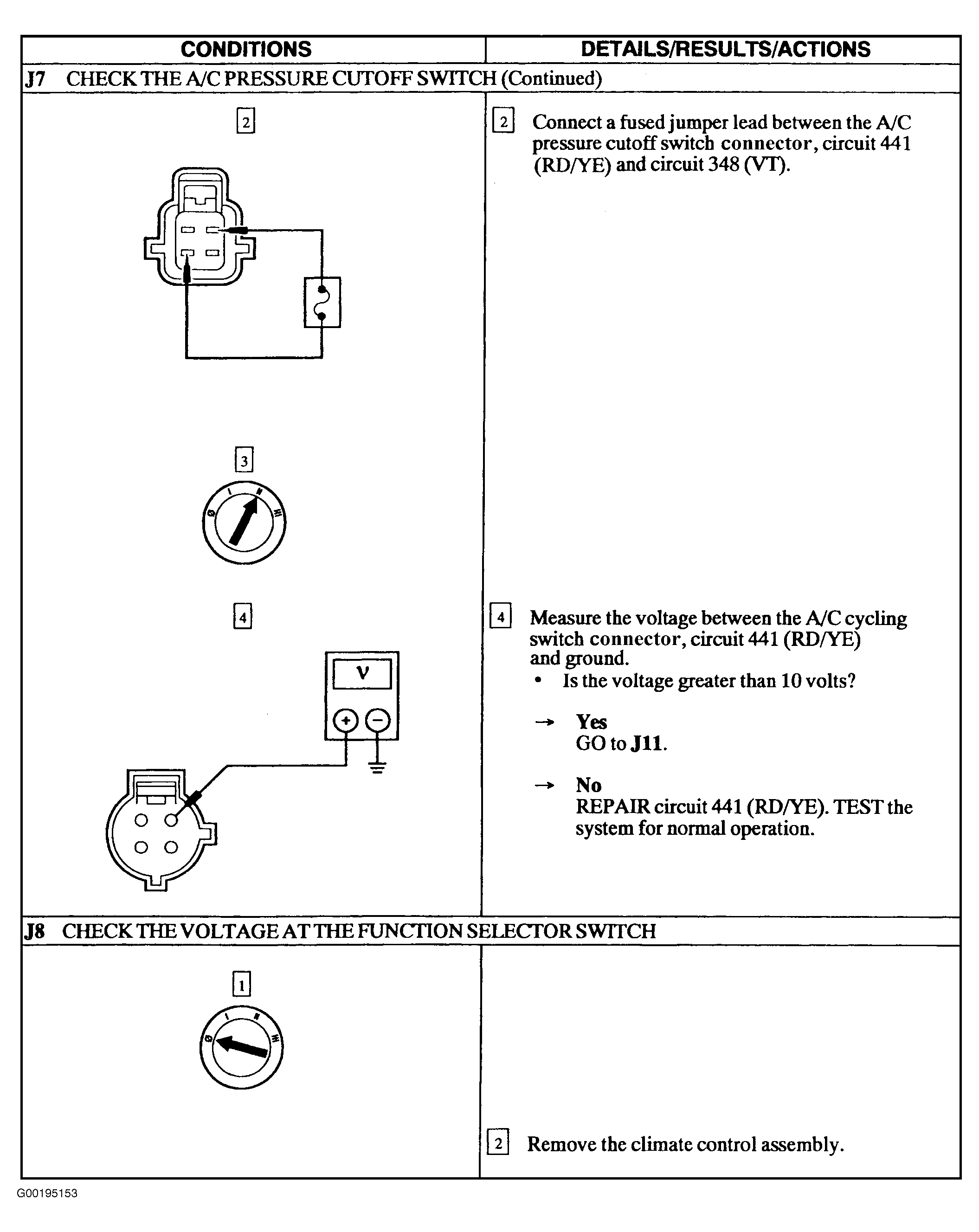

Fig 5: Test J (5 Of 12 - Steps J7 Cont.-J8)

Courtesy of FORD MOTOR CO.

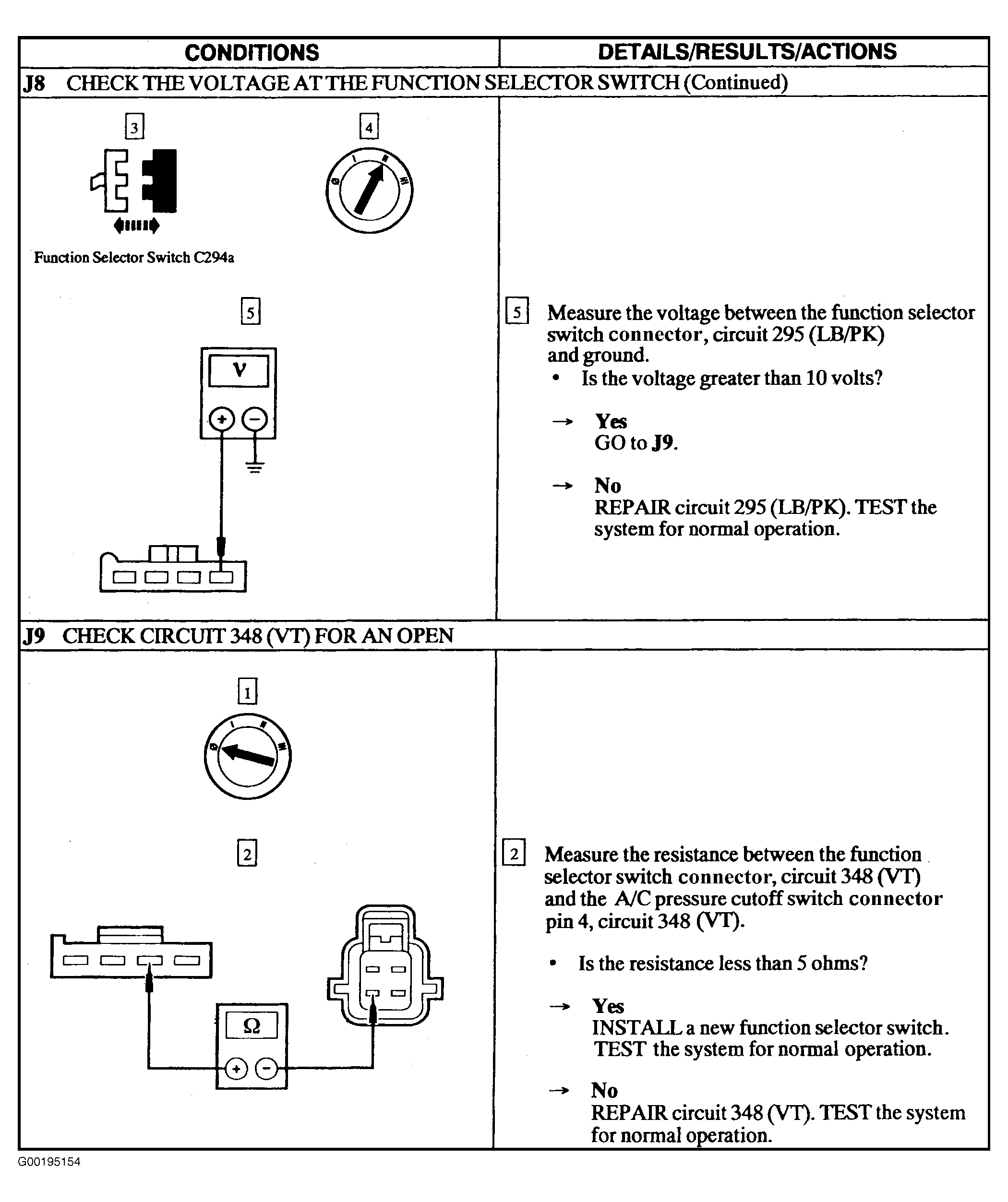

Fig 6: Test J (6 Of 12 - Steps J8 Cont.-J9)

Courtesy of FORD MOTOR CO.

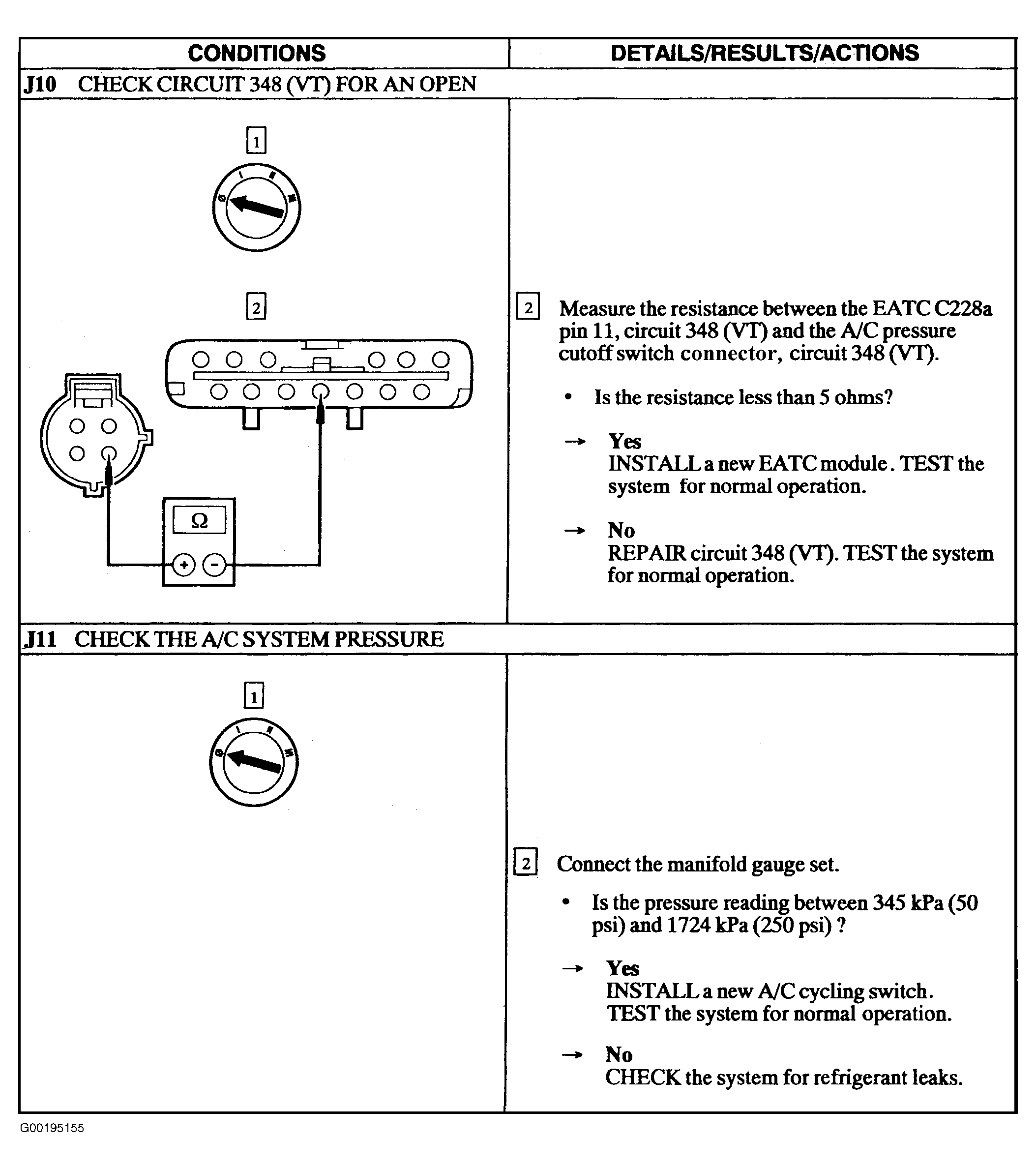

Fig 7: Test J (7 Of 12 - Steps J10-J11)

Courtesy of FORD MOTOR CO.

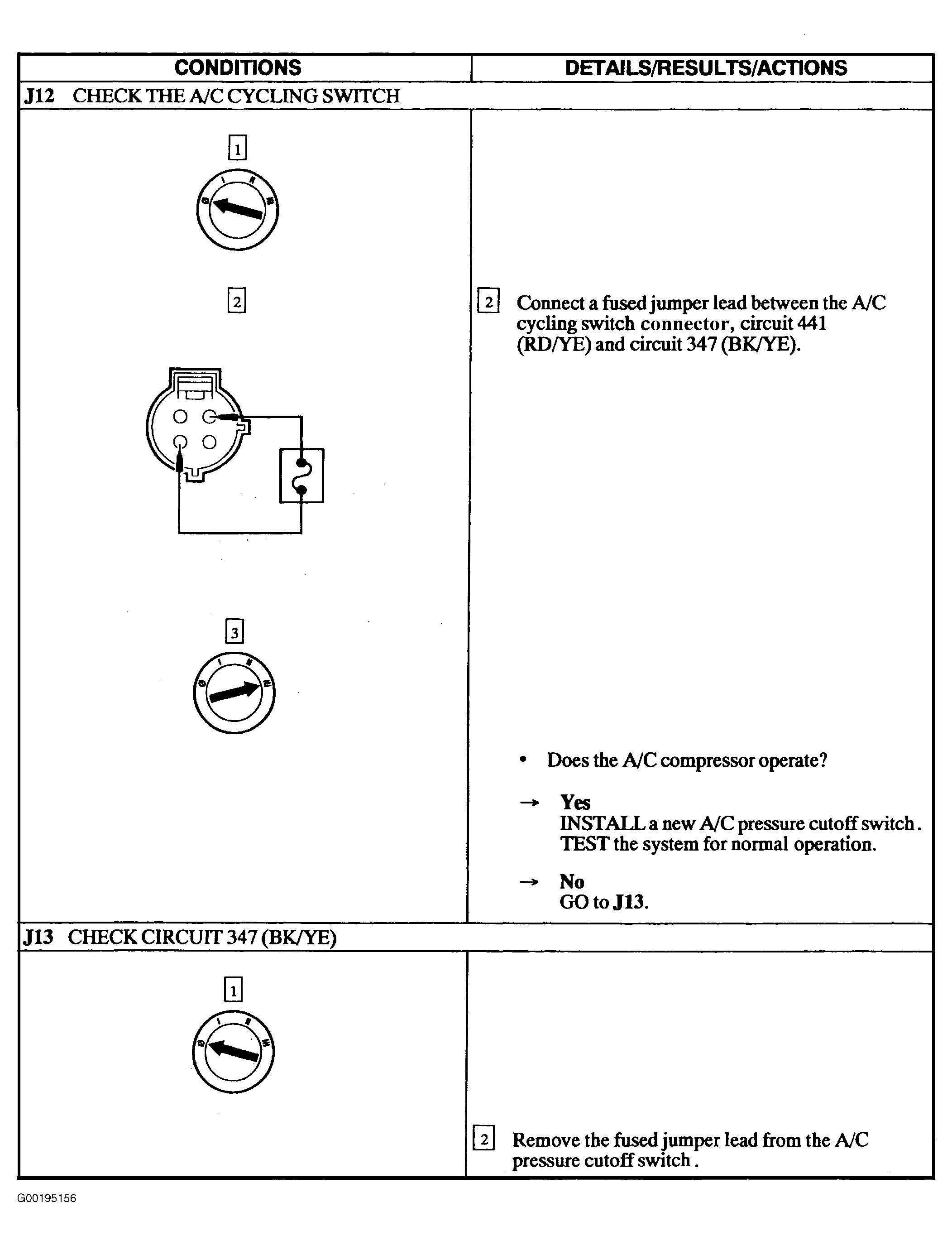

Fig 8: Test J (8 Of 12 - Steps J12-J13)

Courtesy of FORD MOTOR CO.

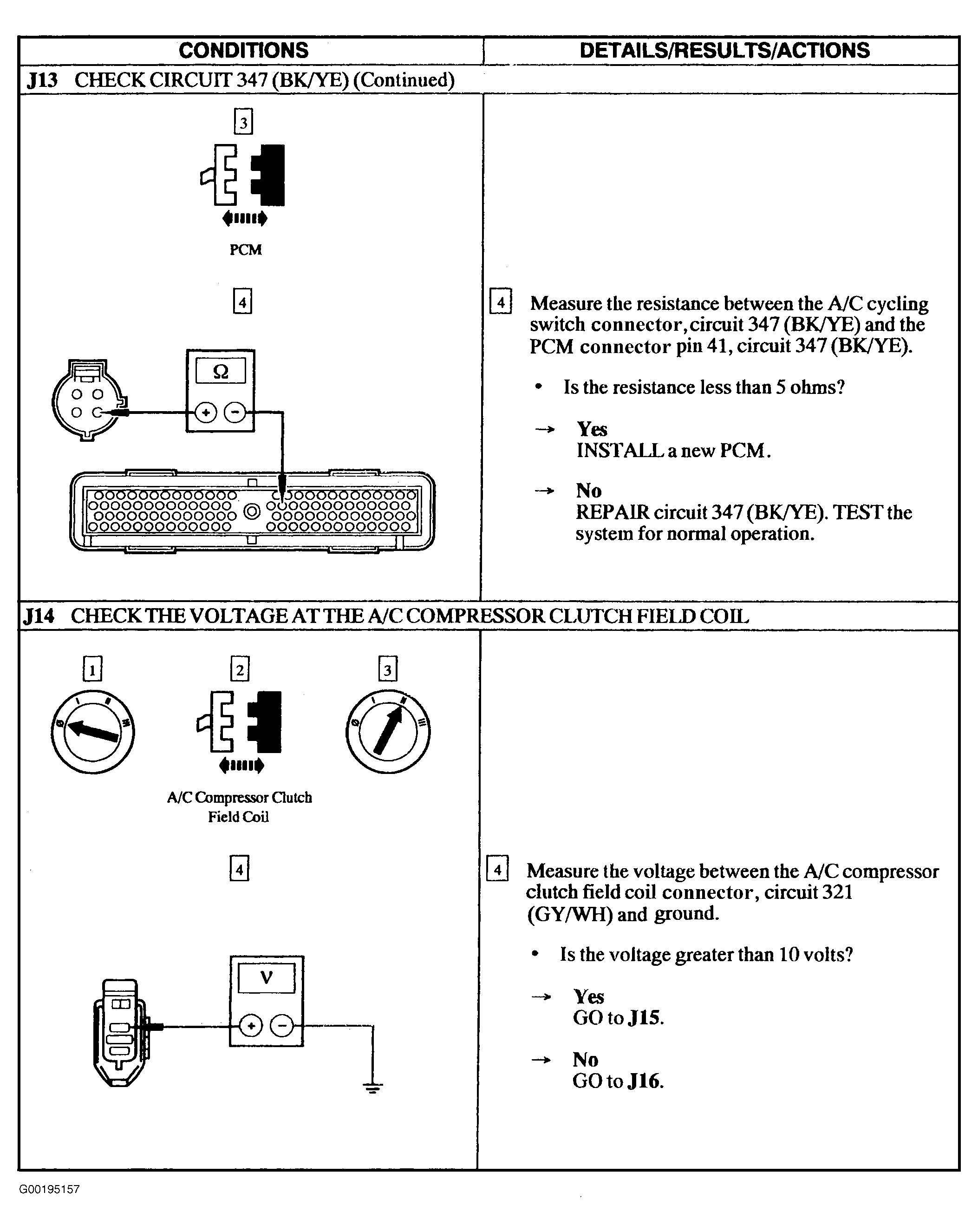

Fig 9: Test J (9 Of 12 - Steps J13 Cont.-J14)

Courtesy of FORD MOTOR CO.

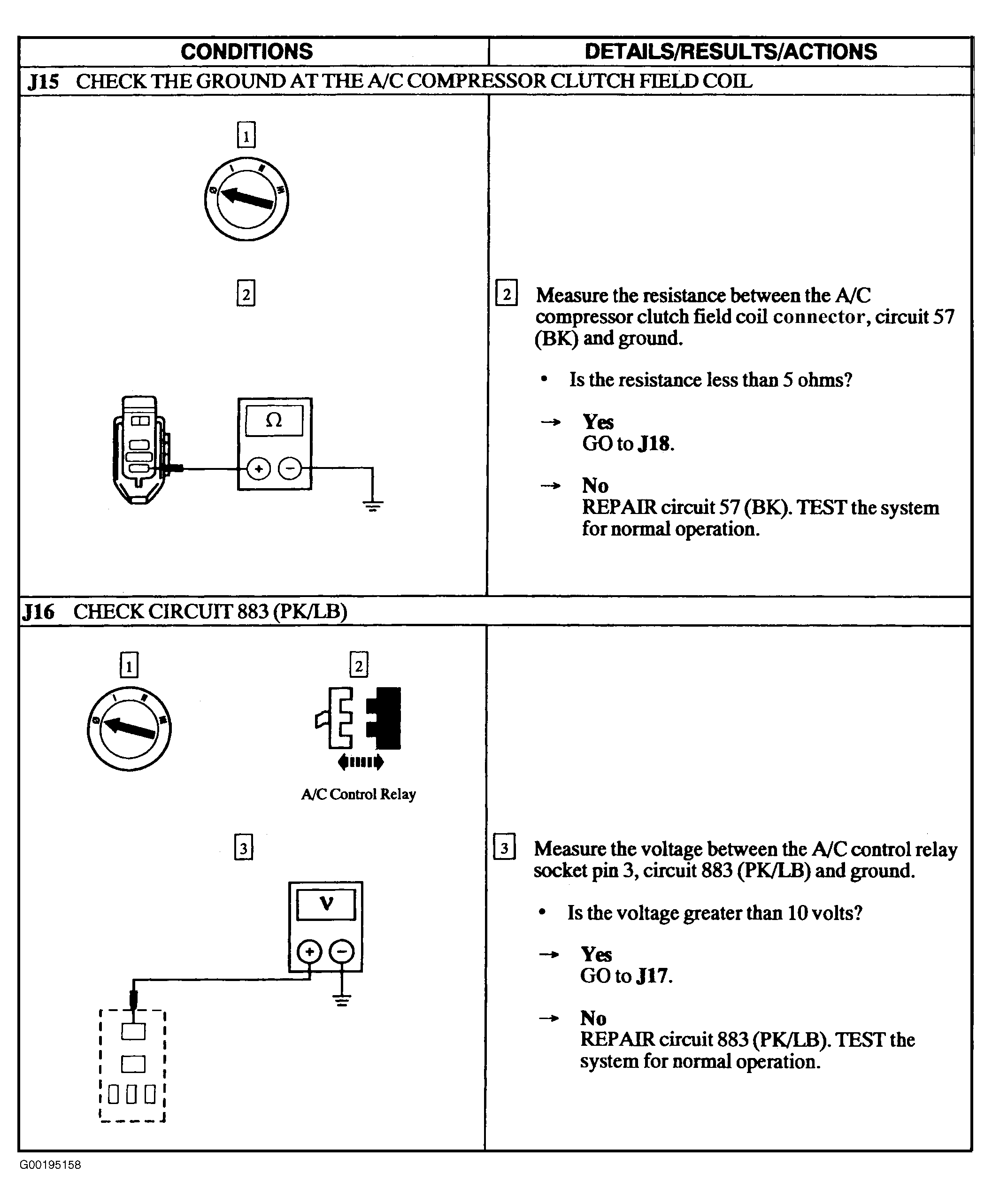

Fig 10: Test J (10 Of 12 - Steps J15-J16)

Courtesy of FORD MOTOR CO.

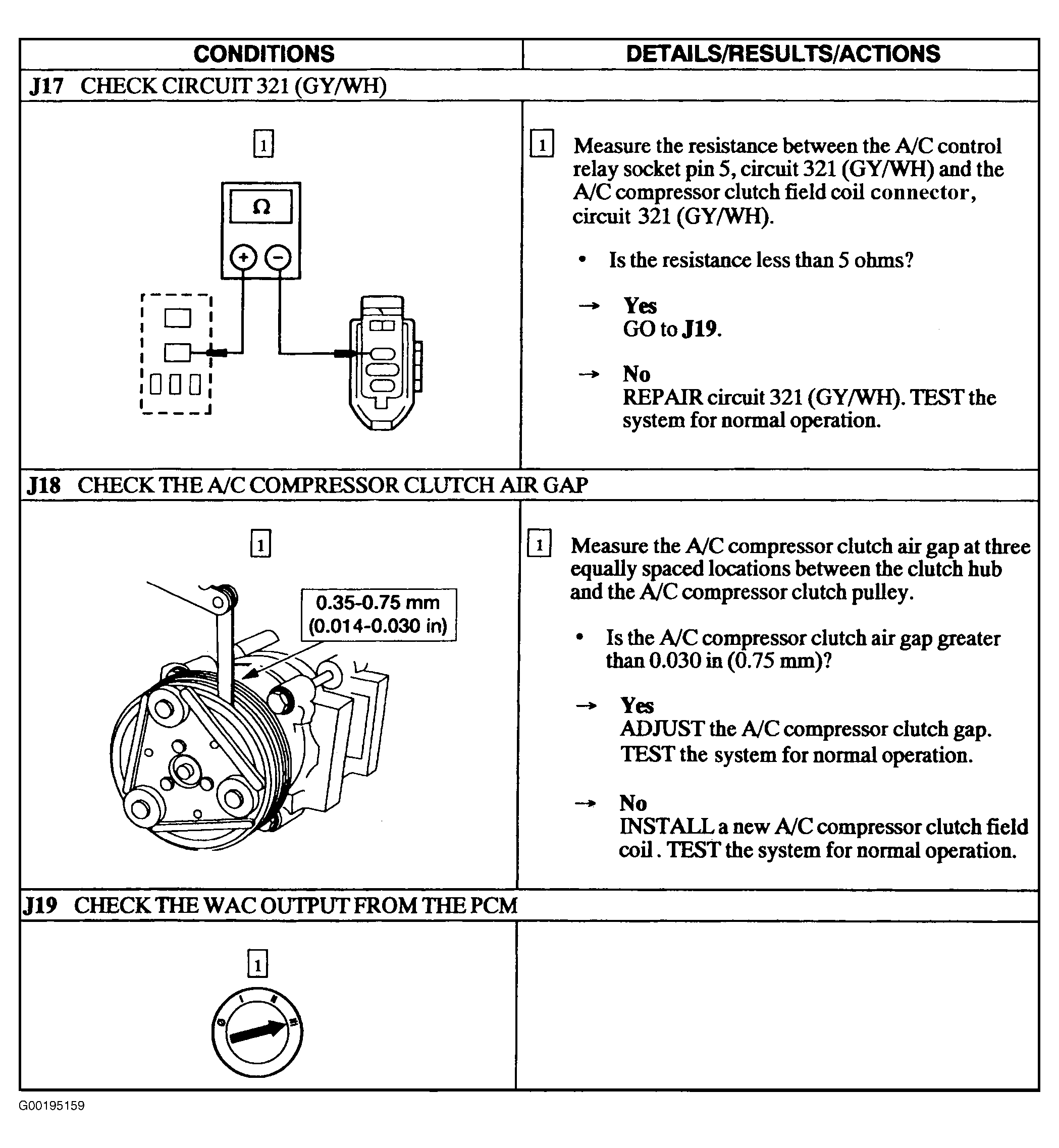

Fig 11: Test J (11 Of 12 - Steps J17-J19)

Courtesy of FORD MOTOR CO.

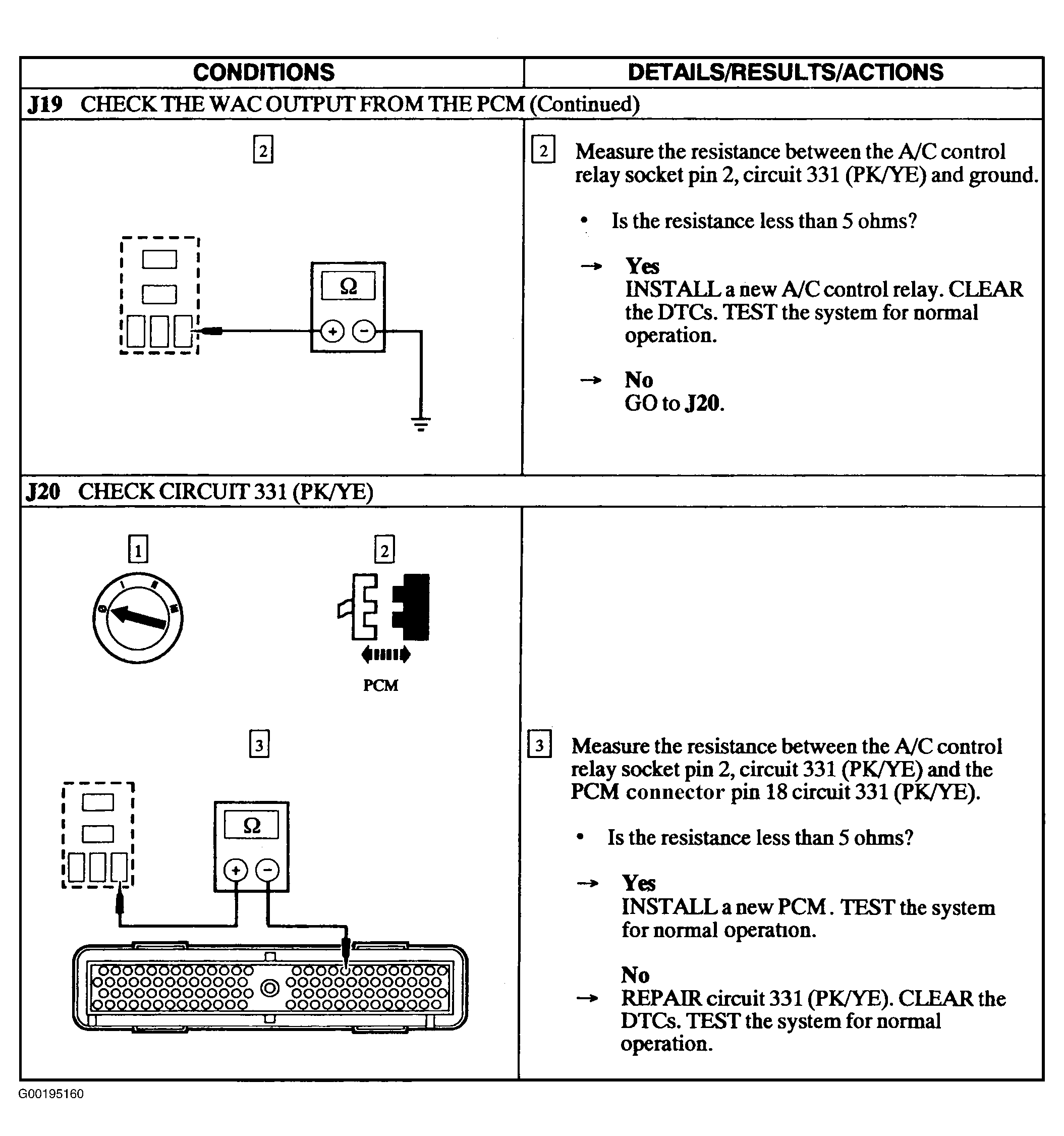

Fig 12: Test A (12 Of 12 - Steps J19 Cont.-J20)

Courtesy of FORD MOTOR CO.
