Pinpoint Test Q: The Brake Warning Indicator Is Inoperative
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

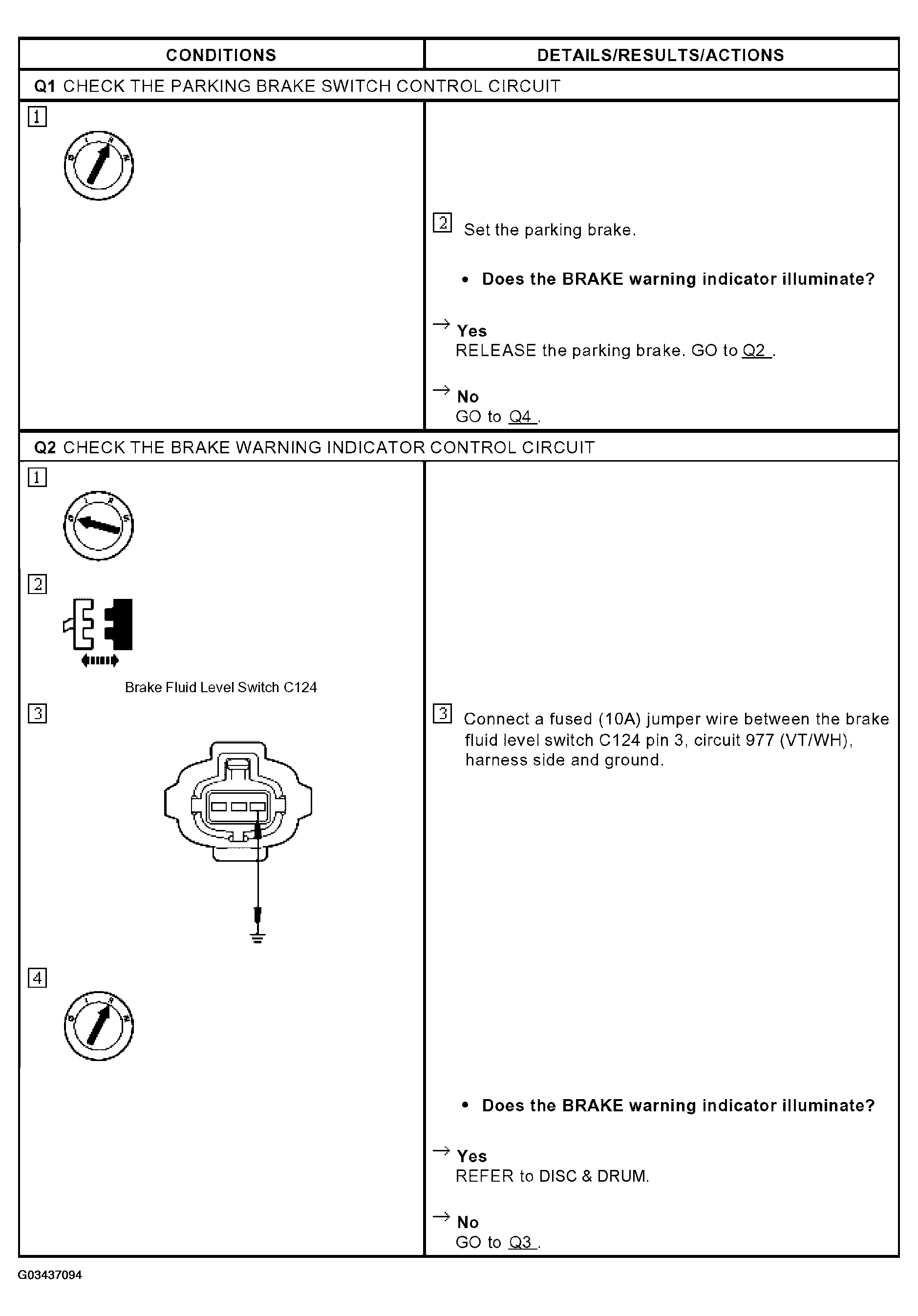

Fig 1: Pinpoint Test Q: Brake Warning Indicator Is Inoperative (Q1-Q2)
Courtesy of FORD MOTOR CO.

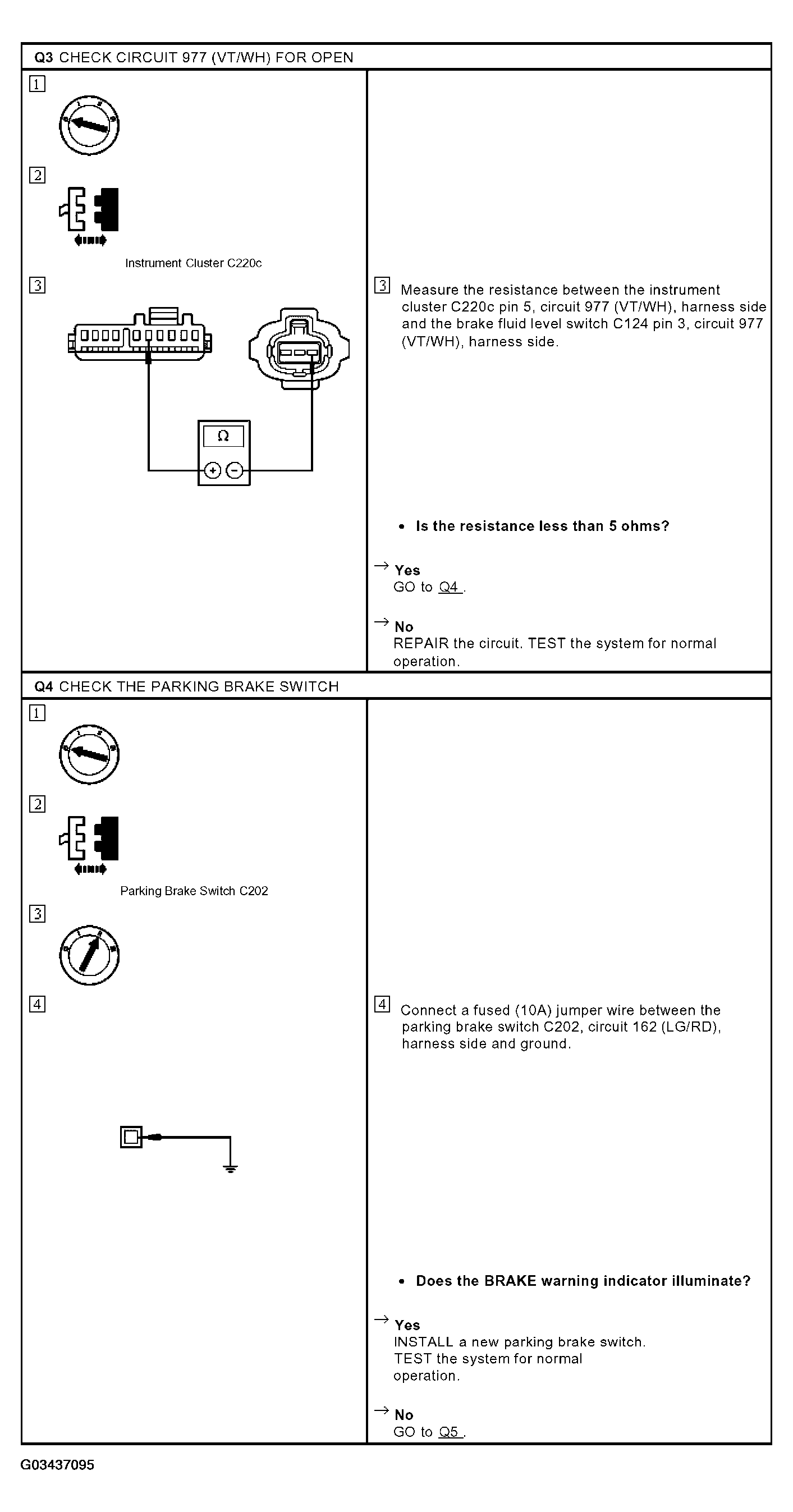

Fig 2: Pinpoint Test Q: Brake Warning Indicator Is Inoperative (Q3-Q4)
Courtesy of FORD MOTOR CO.

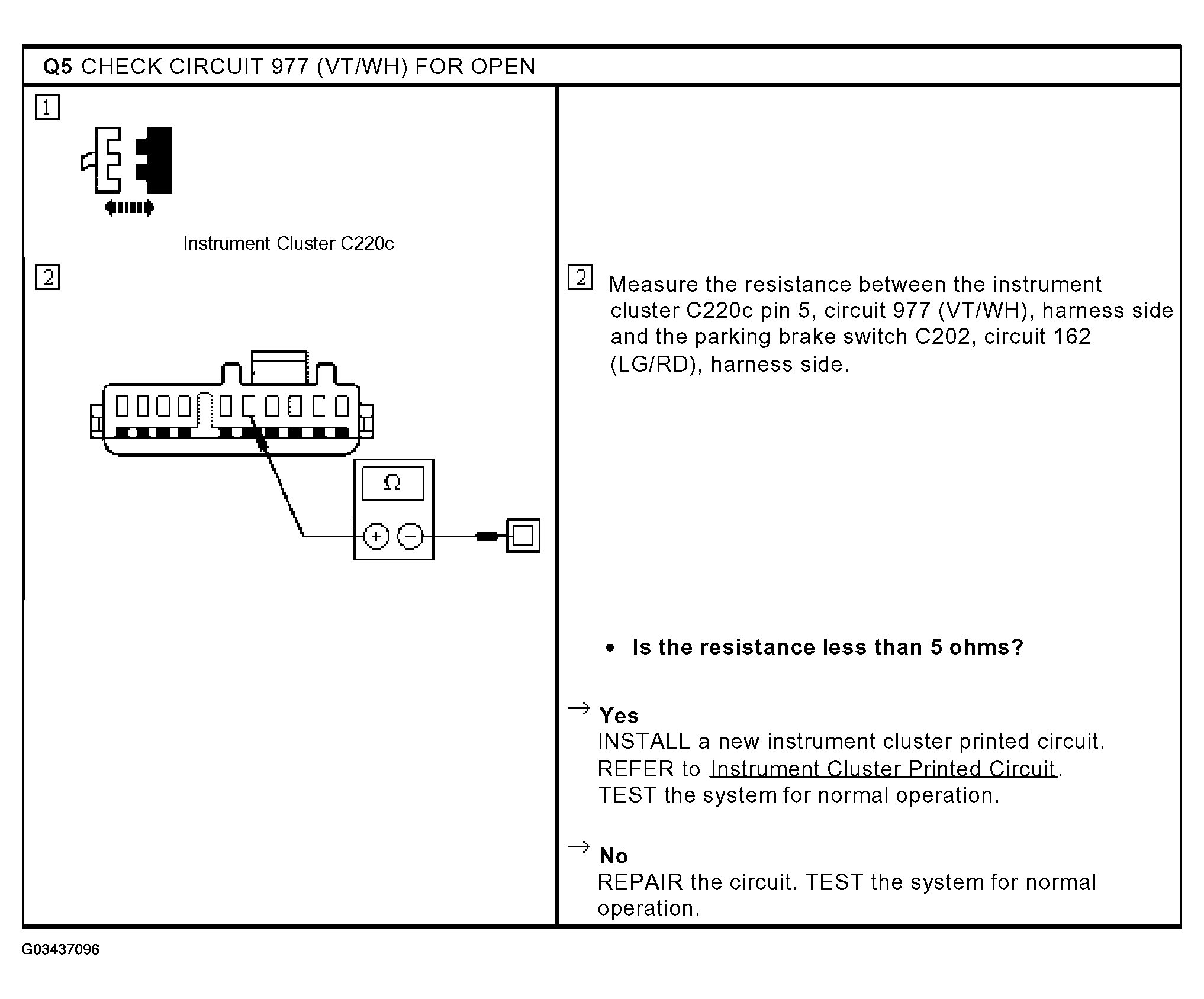

Fig 3: Pinpoint Test Q: Brake Warning Indicator Is Inoperative (Q5)
