Pinpoint Test P: The Speed Control Indicator Is Never On

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

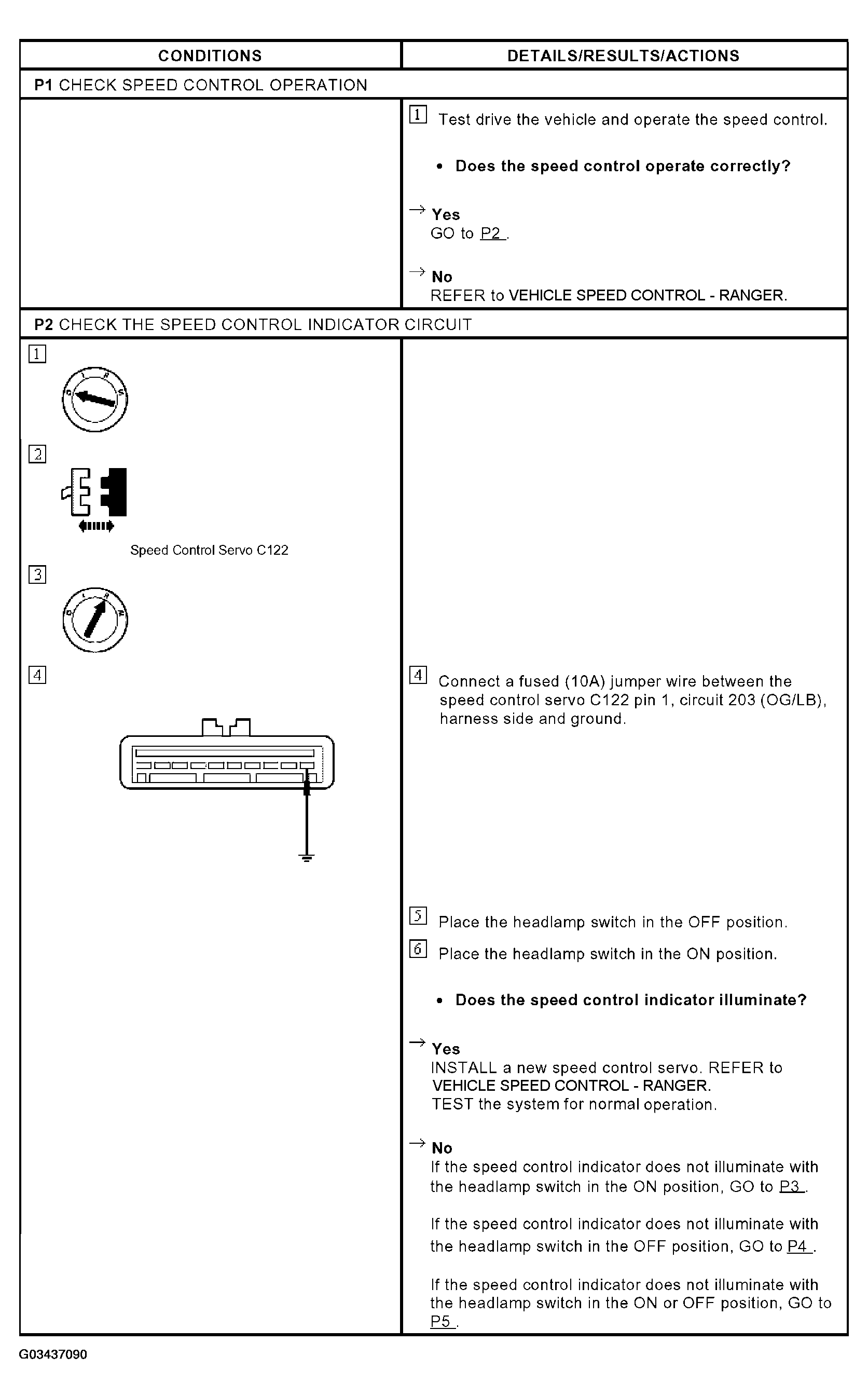

Fig 1: Pinpoint Test P: Speed Control Indicator Is Never On (P1-P2)

Courtesy of FORD MOTOR CO.

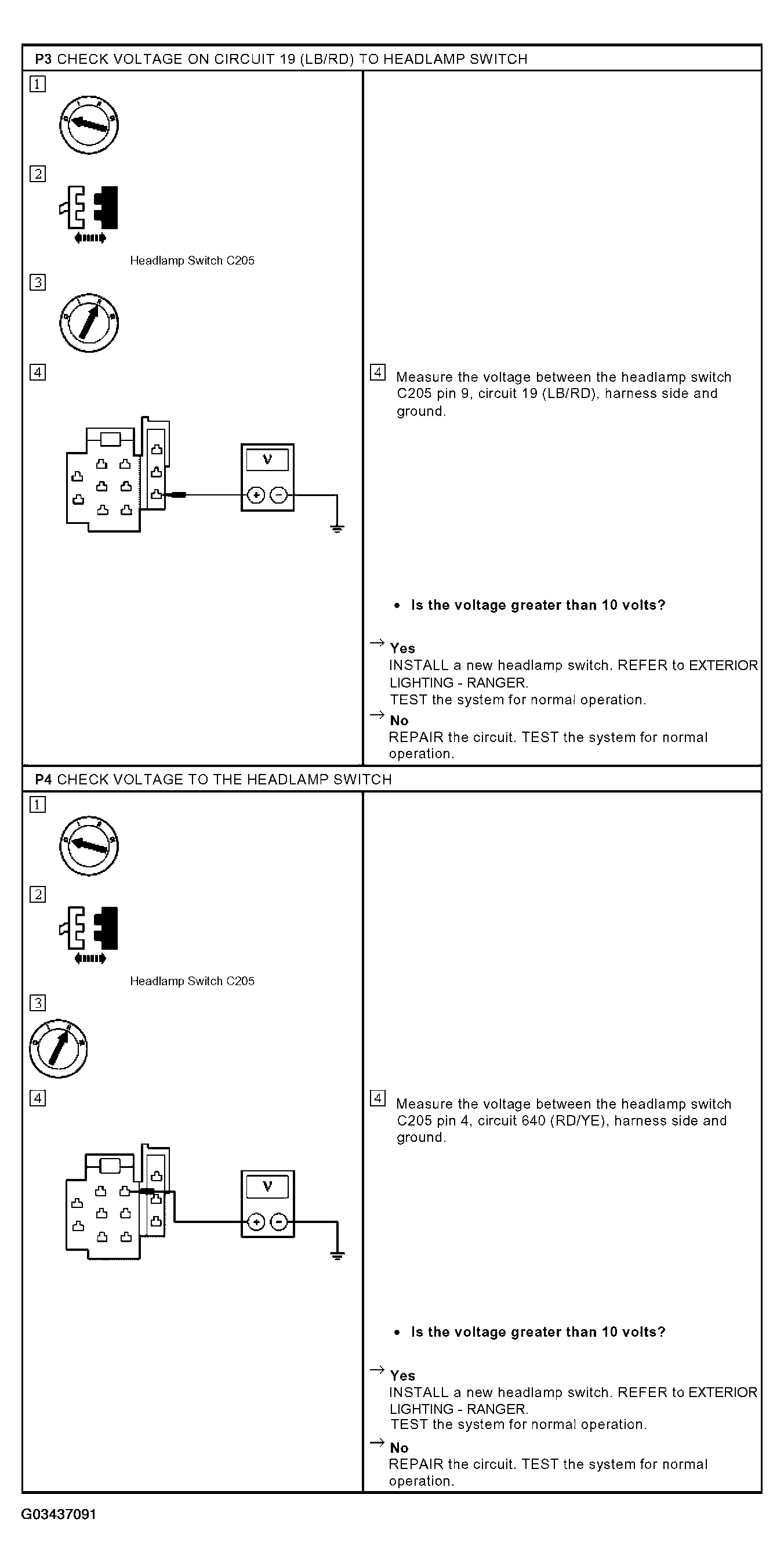

Fig 2: Pinpoint Test P: Speed Control Indicator Is Never On (P3-P4)

Courtesy of FORD MOTOR CO.

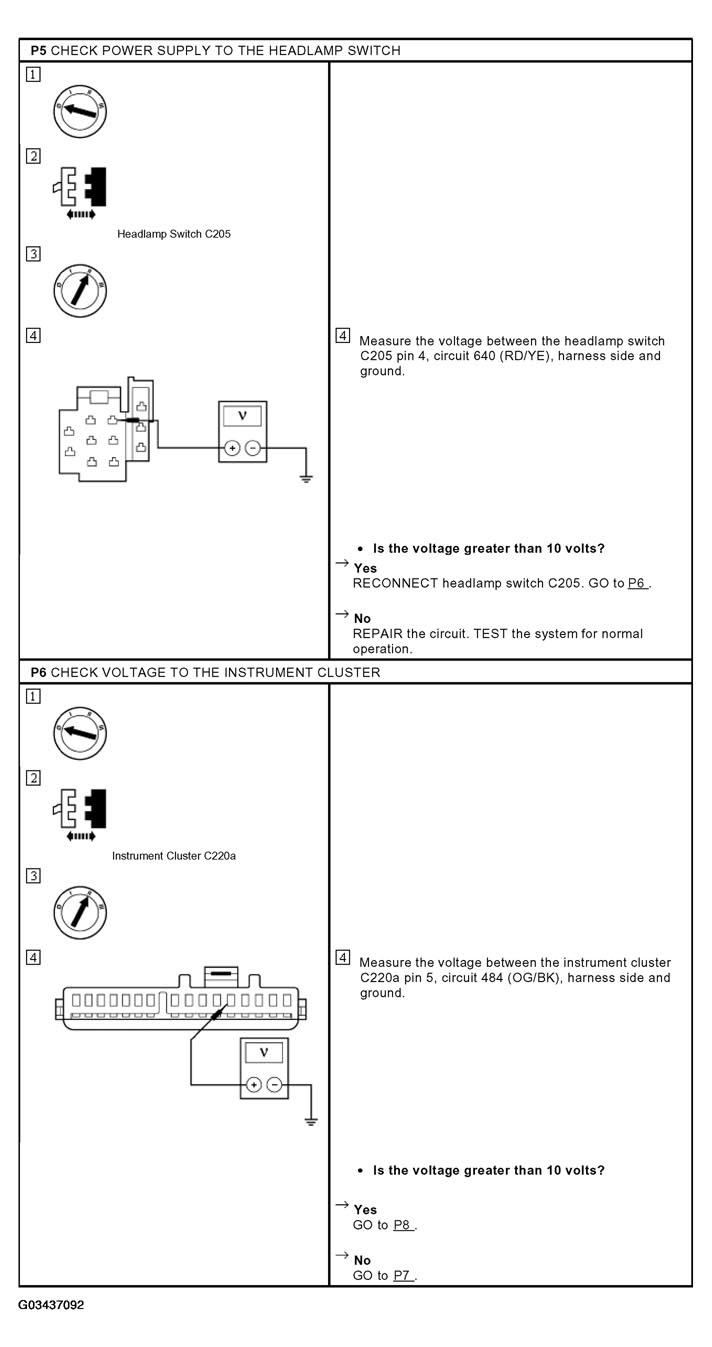

Fig 3: Pinpoint Test P: Speed Control Indicator Is Never On (P5-P6)

Courtesy of FORD MOTOR CO.

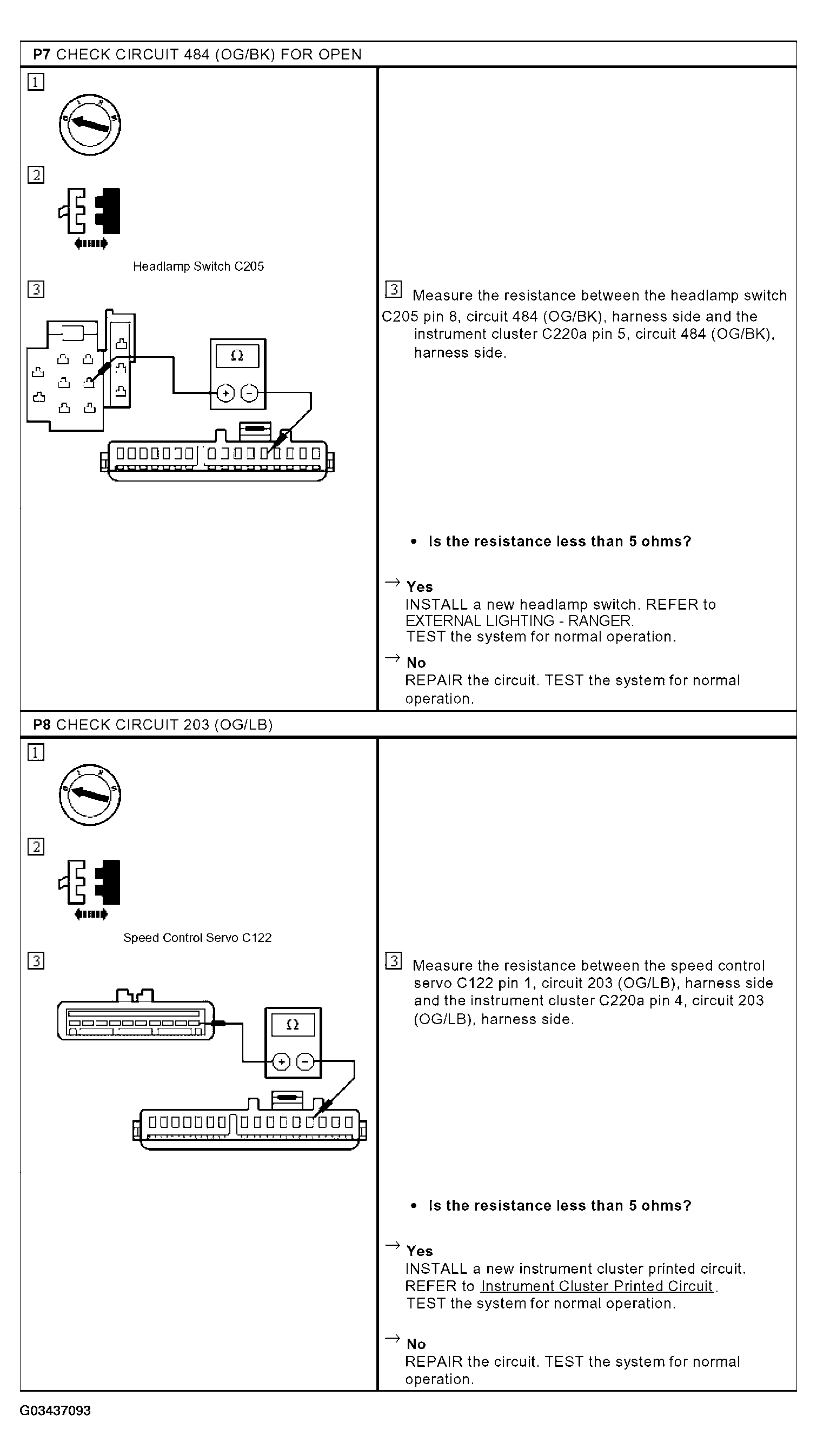

Fig 4: Pinpoint Test P: Speed Control Indicator Is Never On (P7-P8)

Courtesy of FORD MOTOR CO.
