Pinpoint Test O: The O/D Off Indicator Is Inoperative

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

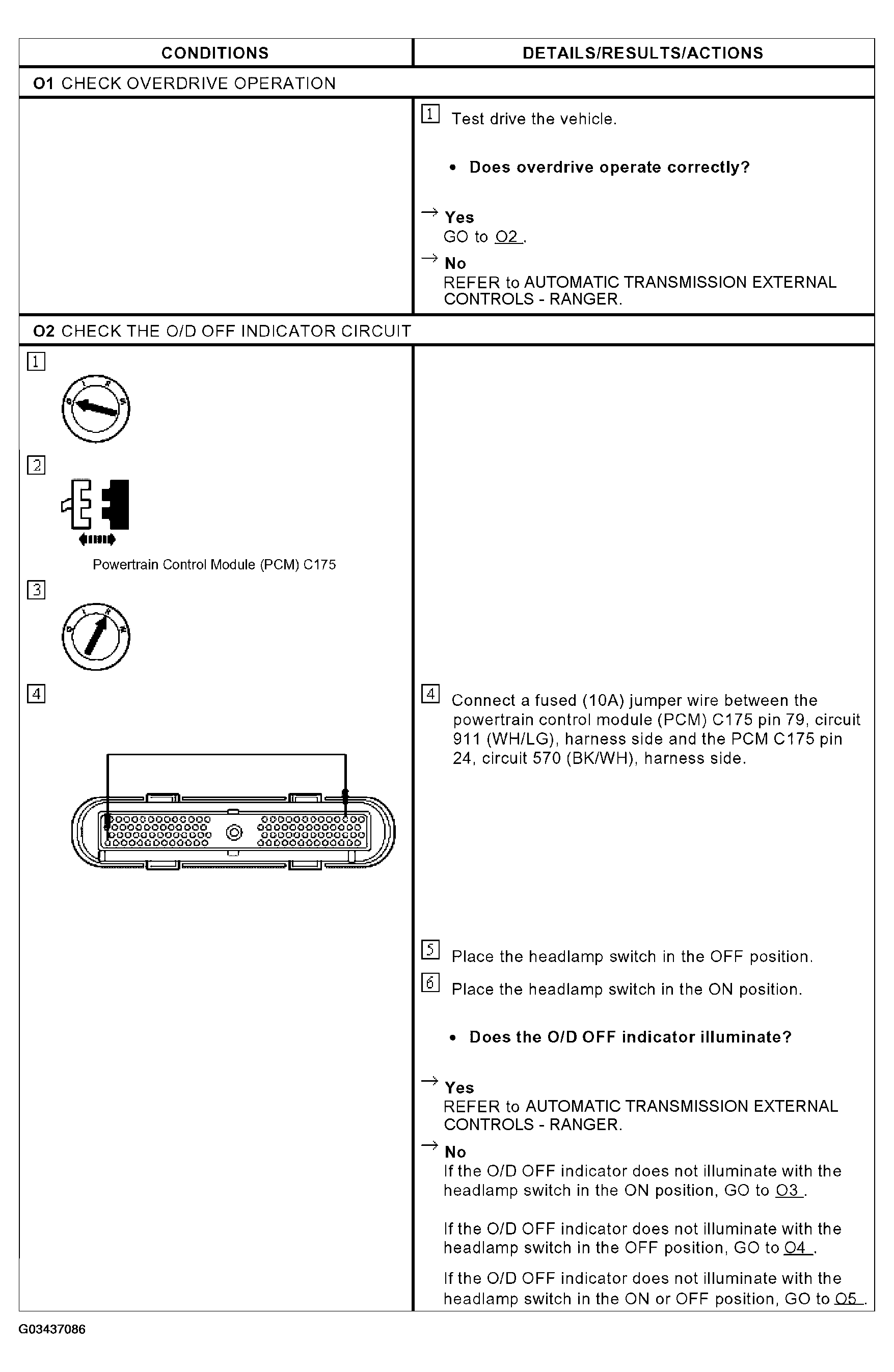

Fig 1: Pinpoint Test O: O/D Off Indicator Is Inoperative (O1-O2)

Courtesy of FORD MOTOR CO.

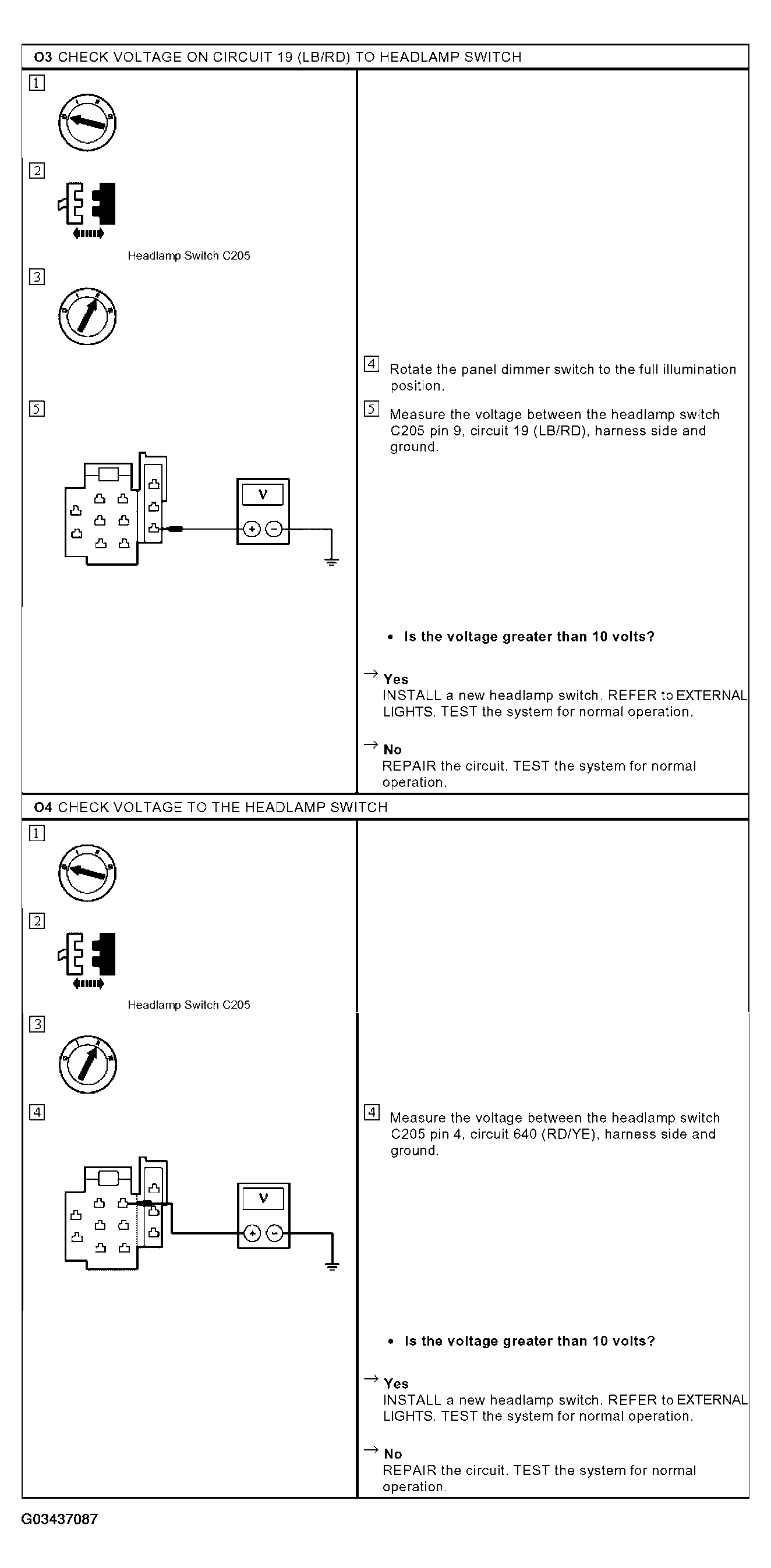

Fig 2: Pinpoint Test O: O/D Off Indicator Is Inoperative (O3-O4)

Courtesy of FORD MOTOR CO.

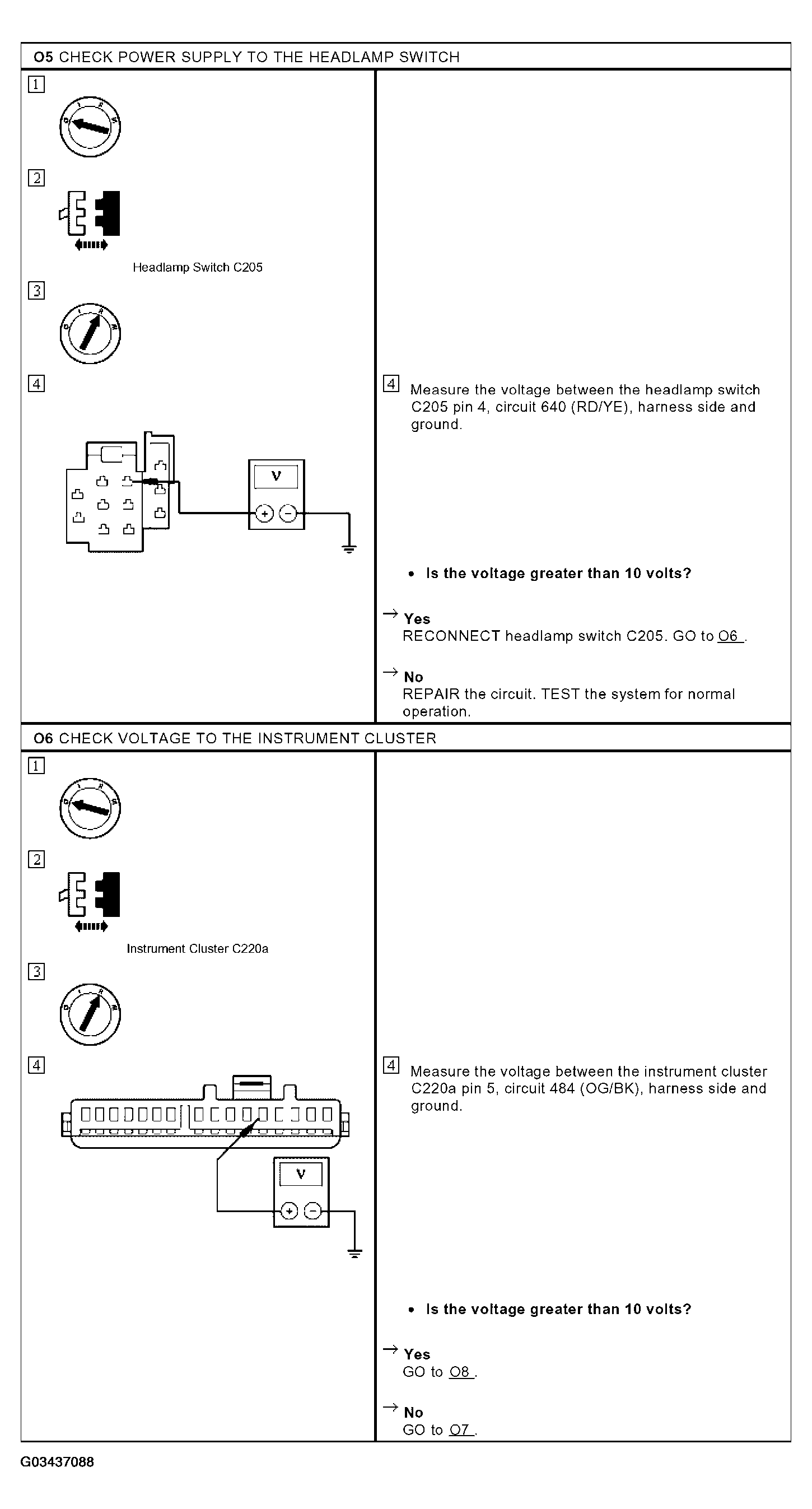

Fig 3: Pinpoint Test O: O/D Off Indicator Is Inoperative (O5-O6)

Courtesy of FORD MOTOR CO.

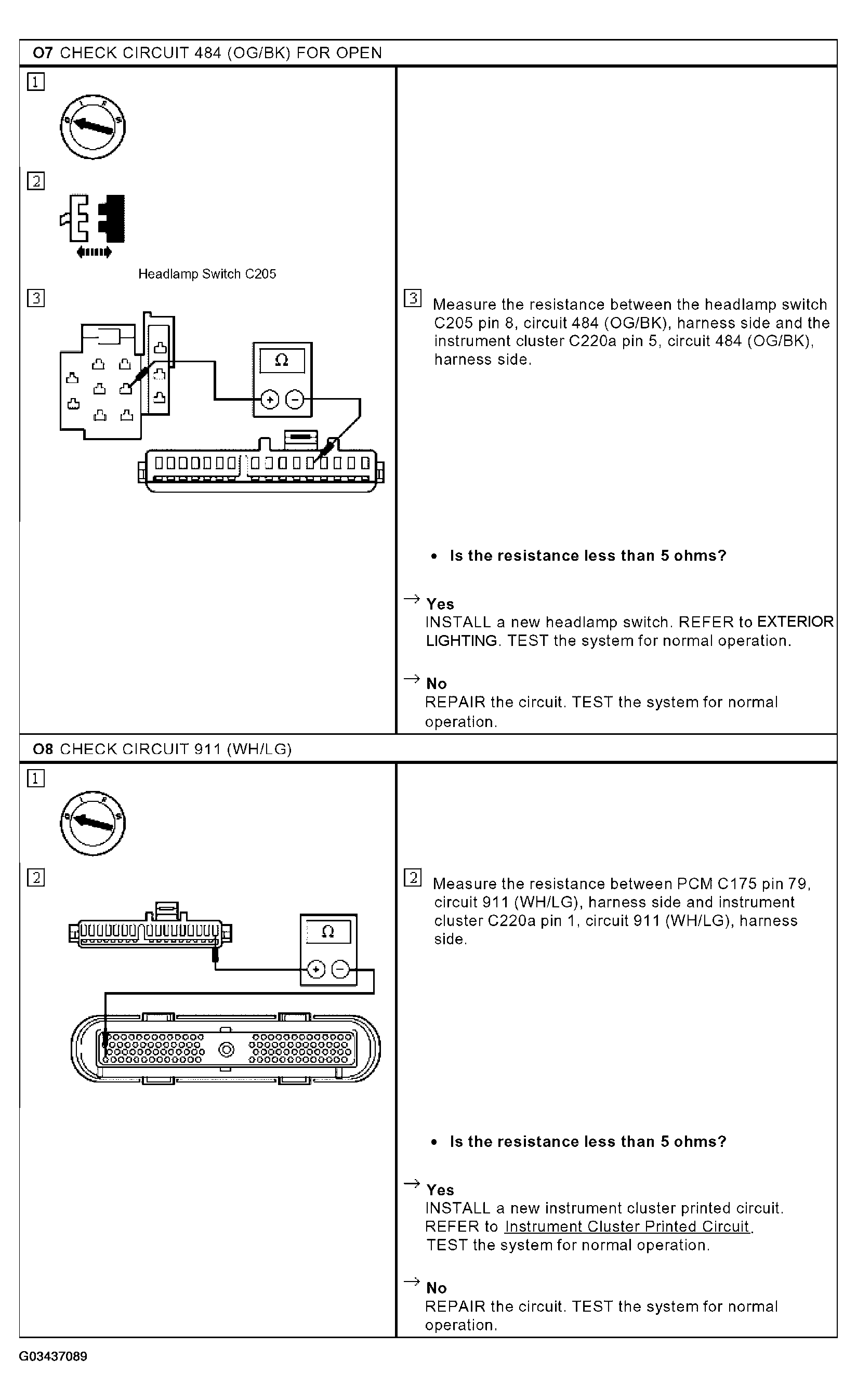

Fig 4: Pinpoint Test O: O/D Off Indicator Is Inoperative (O7-O8)

Courtesy of FORD MOTOR CO.
