Pinpoint Test M: The LH Turn Signal Indicator Is Inoperative

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

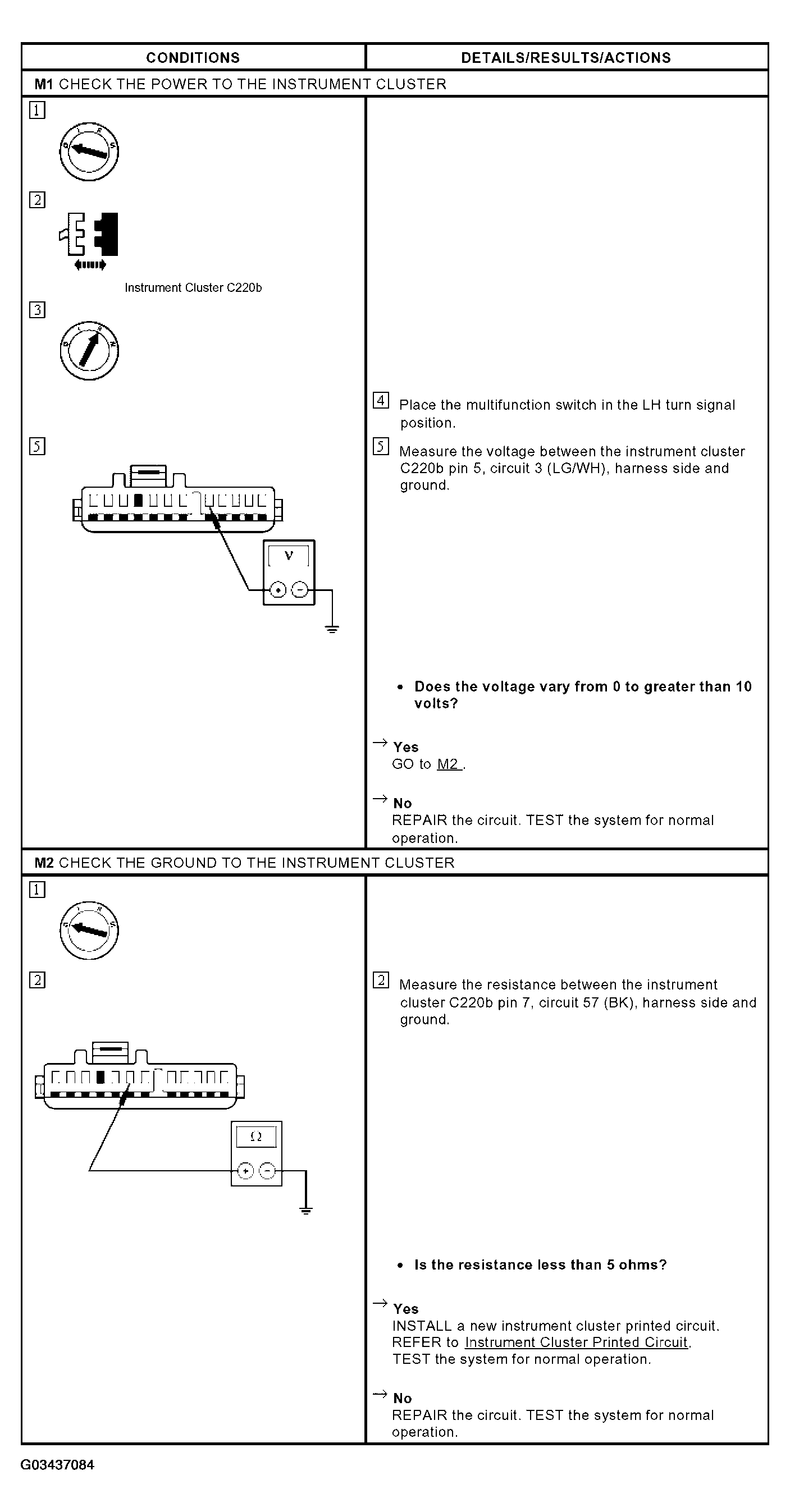

Fig 1: Pinpoint Test M: LH Turn Signal Indicator Is Inoperative
G03437084Courtesy of FORD MOTOR CO.
