Pinpoint Test H: The Charge System Warning Indicator Is Never On
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

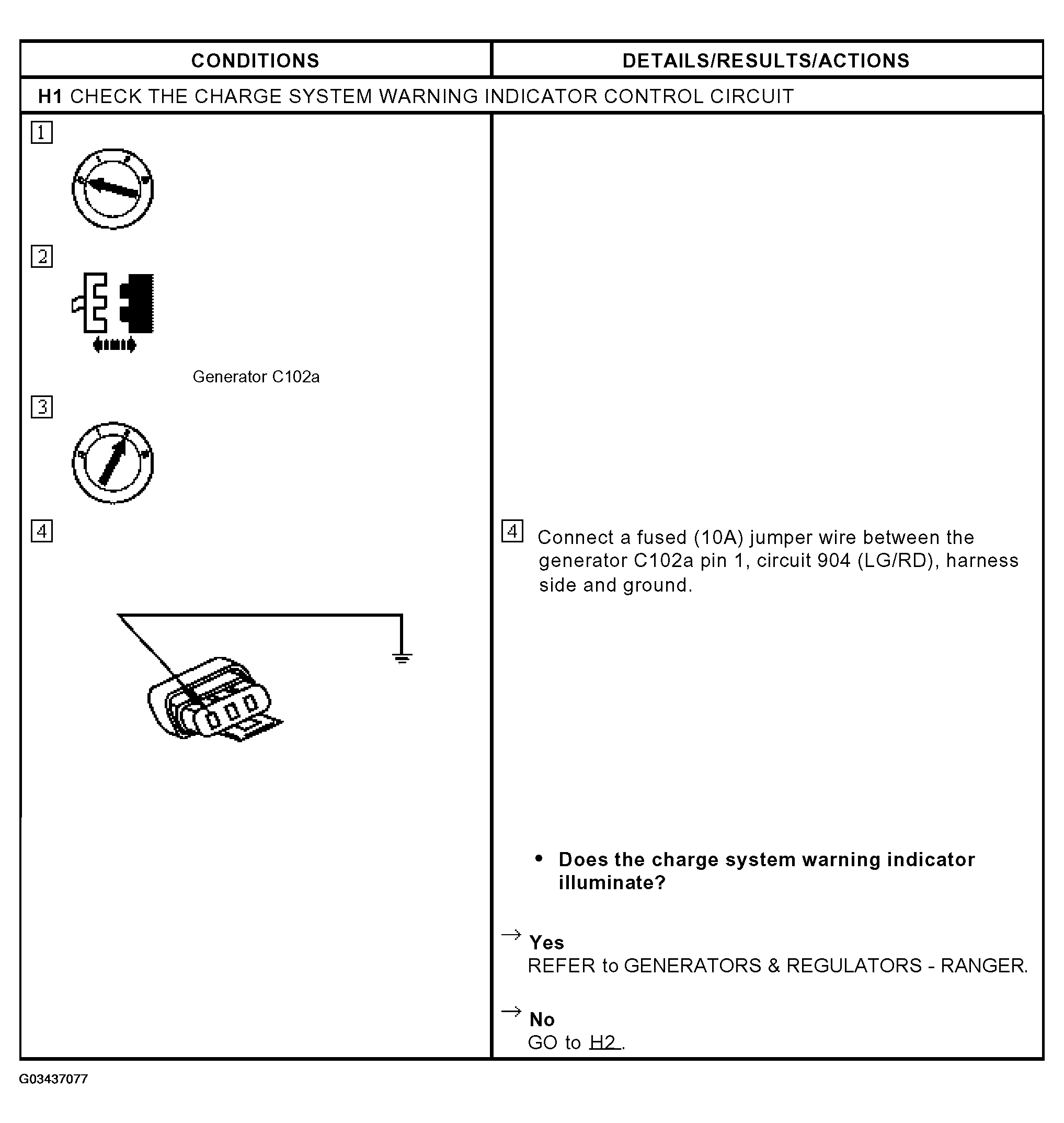

Fig 1: Pinpoint Test H: Charge System Warning Indicator Is Never On (H1)
Courtesy of FORD MOTOR CO.

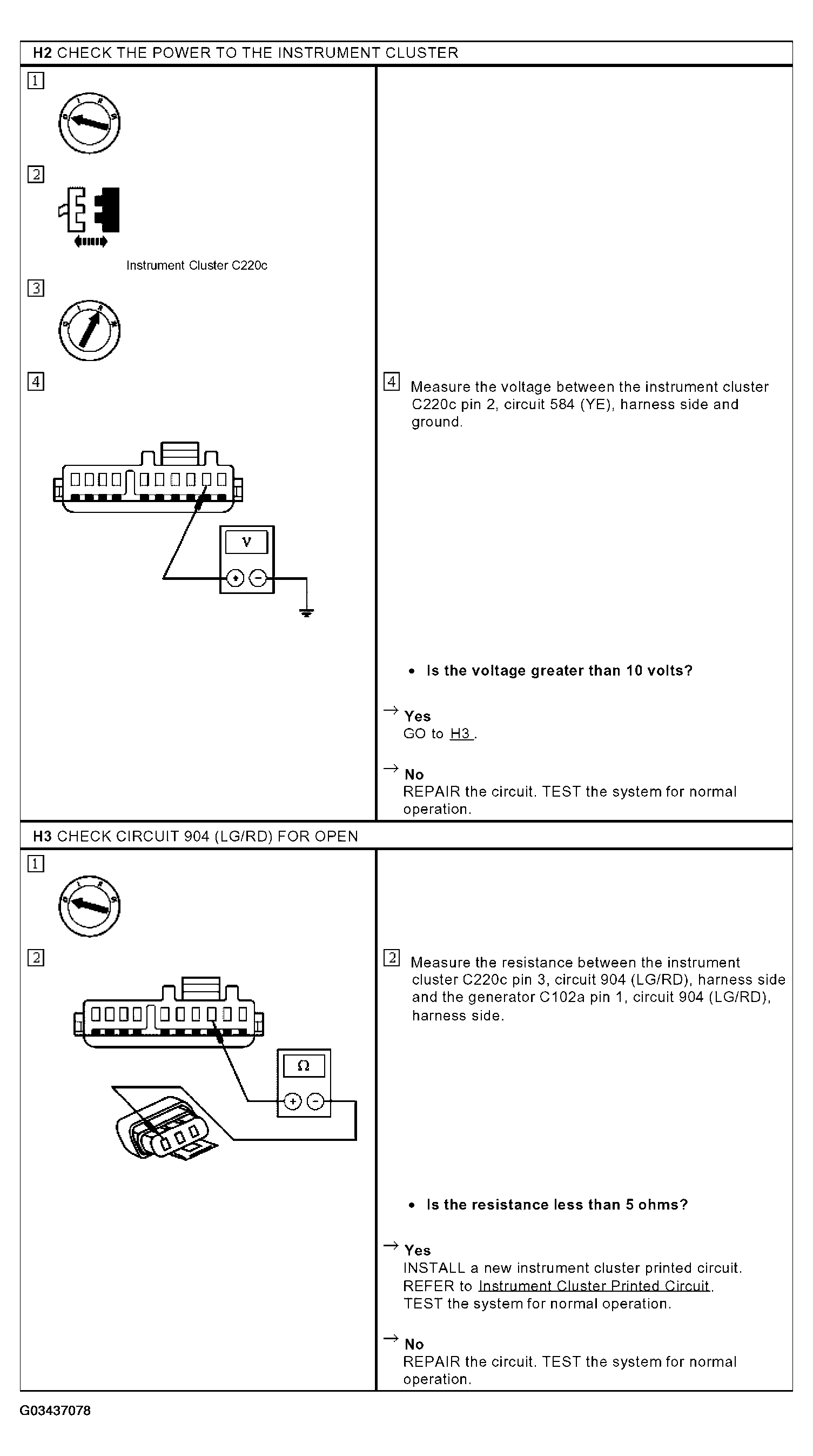

Fig 2: Pinpoint Test H: Charge System Warning Indicator Is Never On (H2-H3)
