Pinpoint Test E: The Speedometer/Odometer Is Inoperative

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

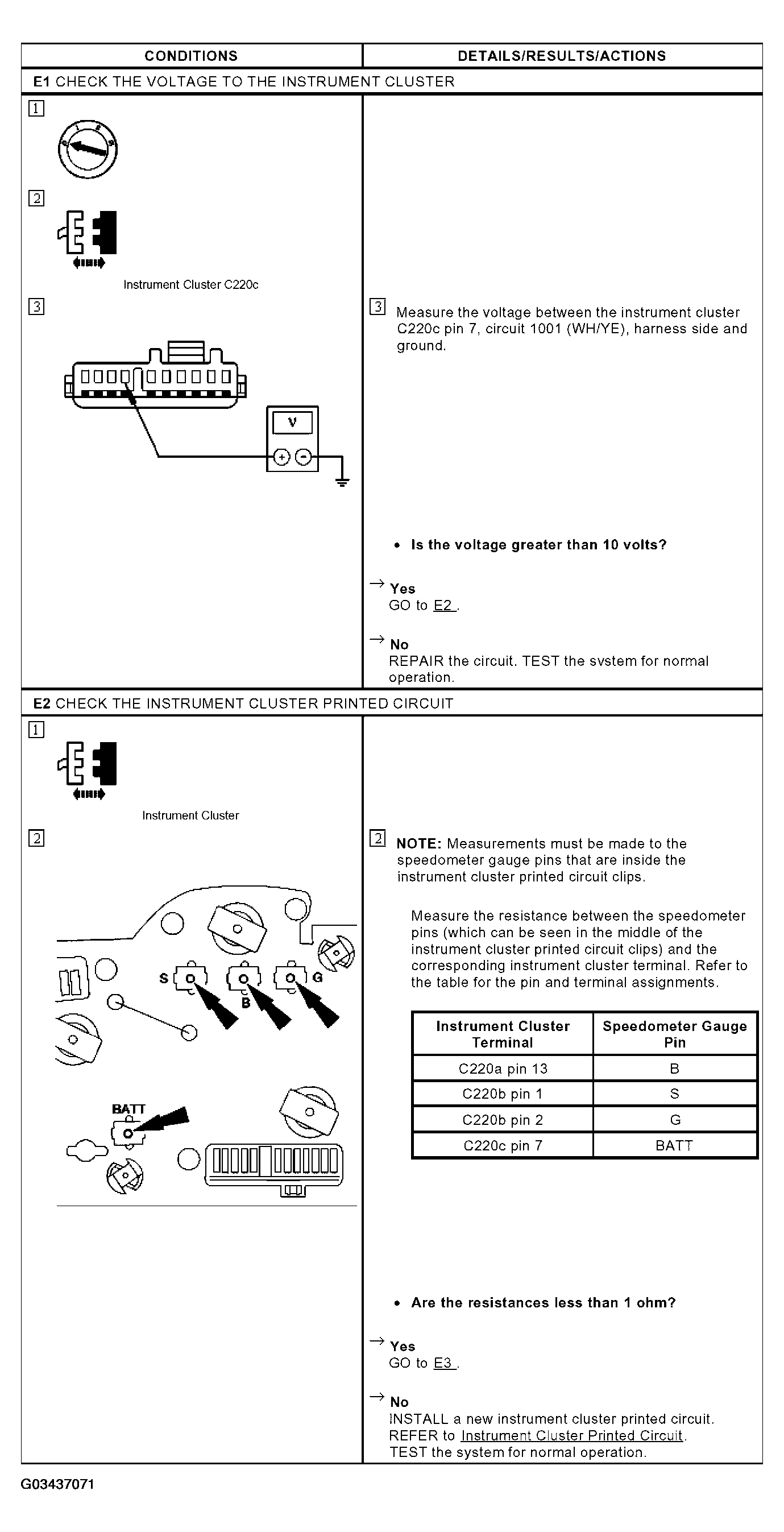

Fig 1: Pinpoint Test E: Speedometer/Odometer Is Inoperative (E1-E2)
G03437071Courtesy of FORD MOTOR CO.

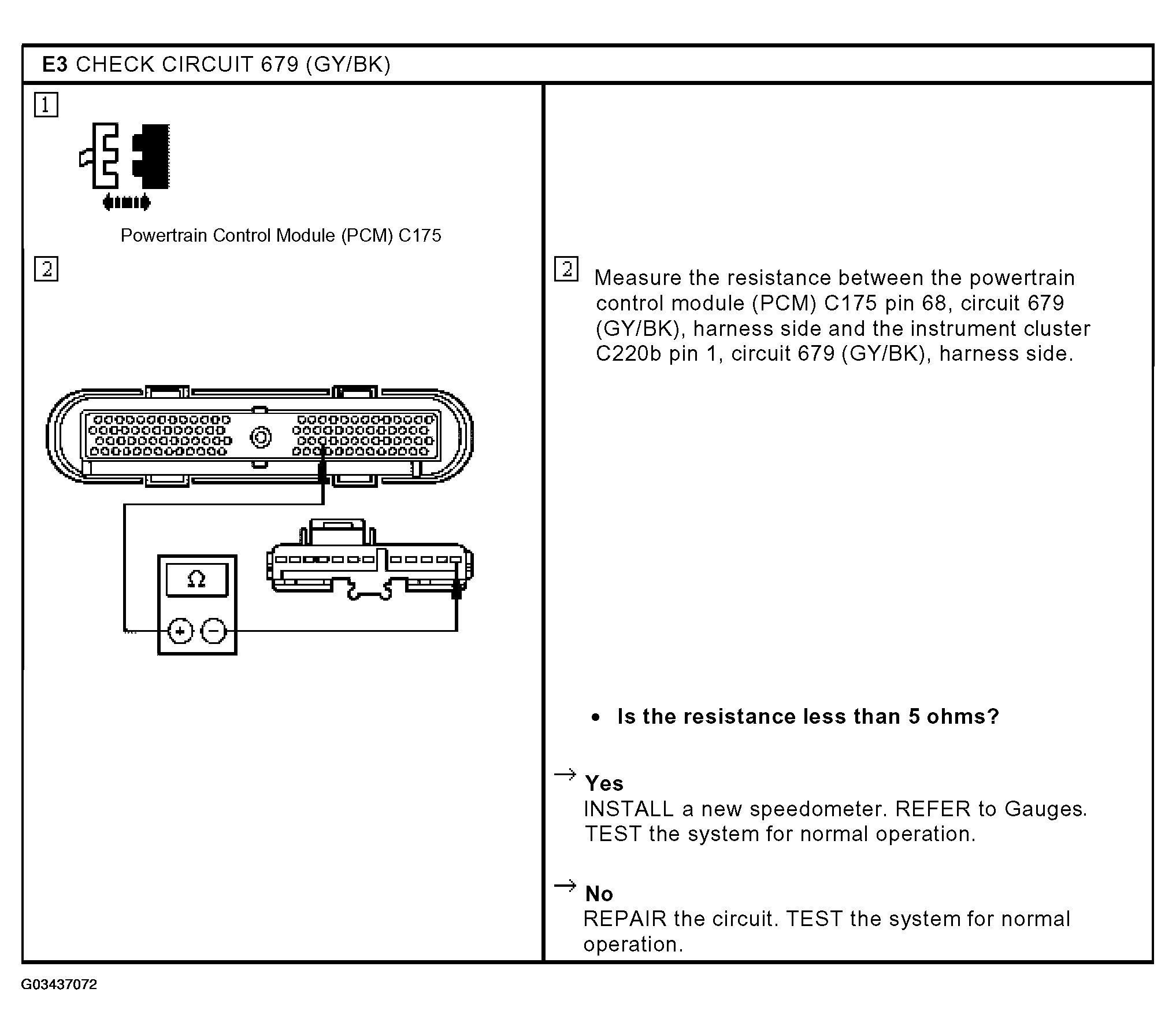

Fig 2: Pinpoint Test E: Speedometer/Odometer Is Inoperative (E3)
G03437072Courtesy of FORD MOTOR CO.
