Pinpoint Test C: Incorrect Oil Pressure Gauge Indication

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

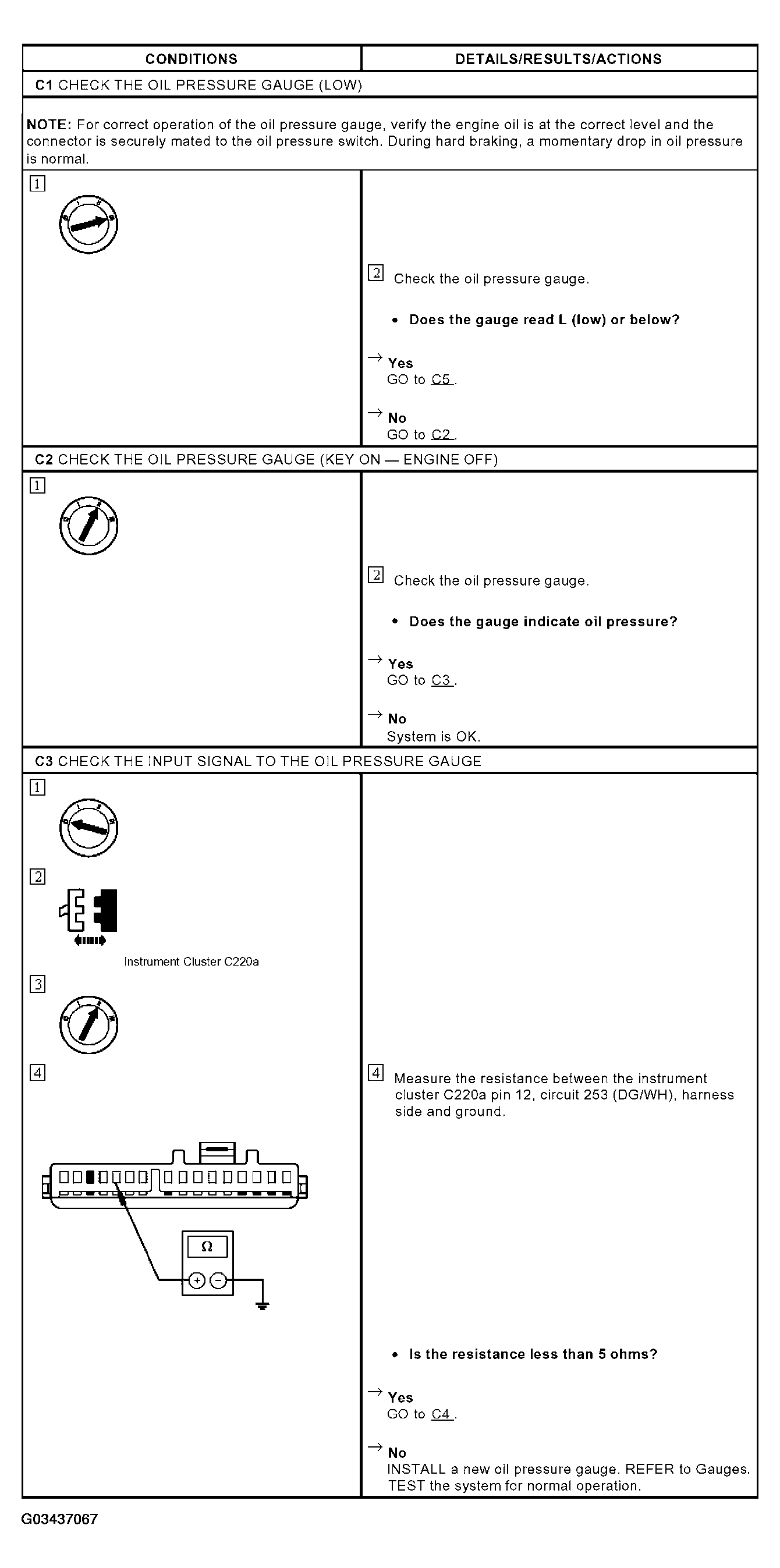

Fig 1: Pinpoint Test C: Incorrect Oil Pressure Gauge Indication (C1-C3)

Courtesy of FORD MOTOR CO.

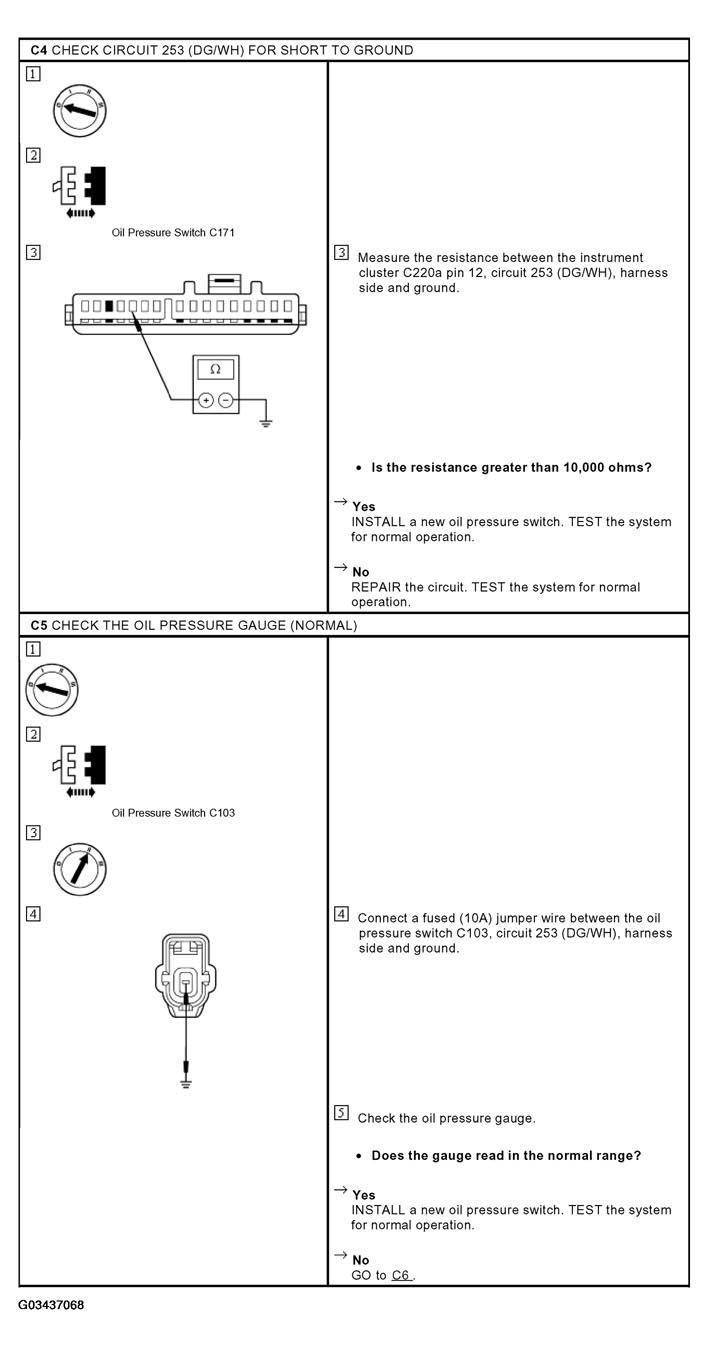

Fig 2: Pinpoint Test C: Incorrect Oil Pressure Gauge Indication (C4-C5)

Courtesy of FORD MOTOR CO.

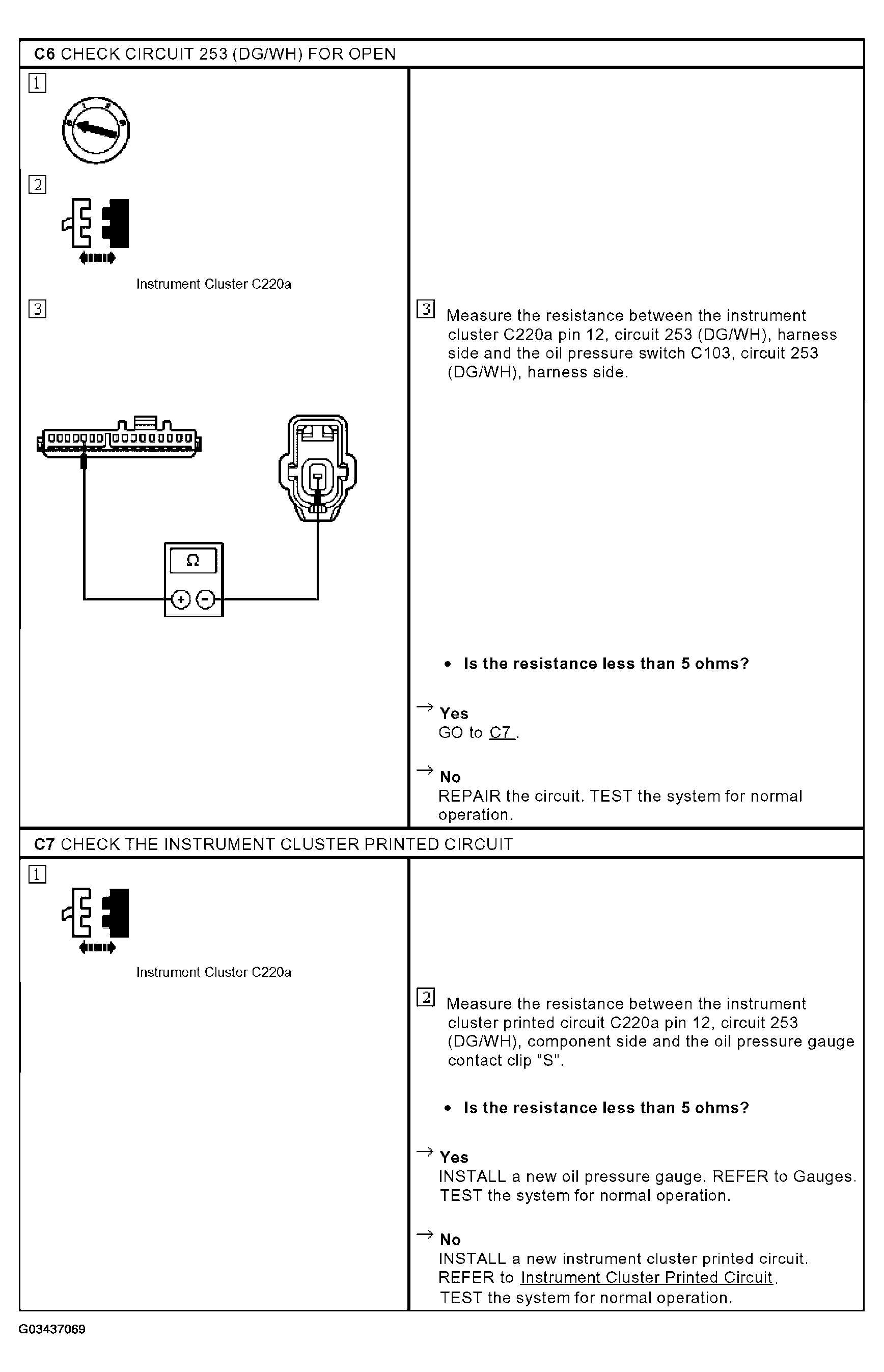

Fig 3: Pinpoint Test C: Incorrect Oil Pressure Gauge Indication (C6-C7)

Courtesy of FORD MOTOR CO.
