Pinpoint Test B: Incorrect Temperature Gauge Indication
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

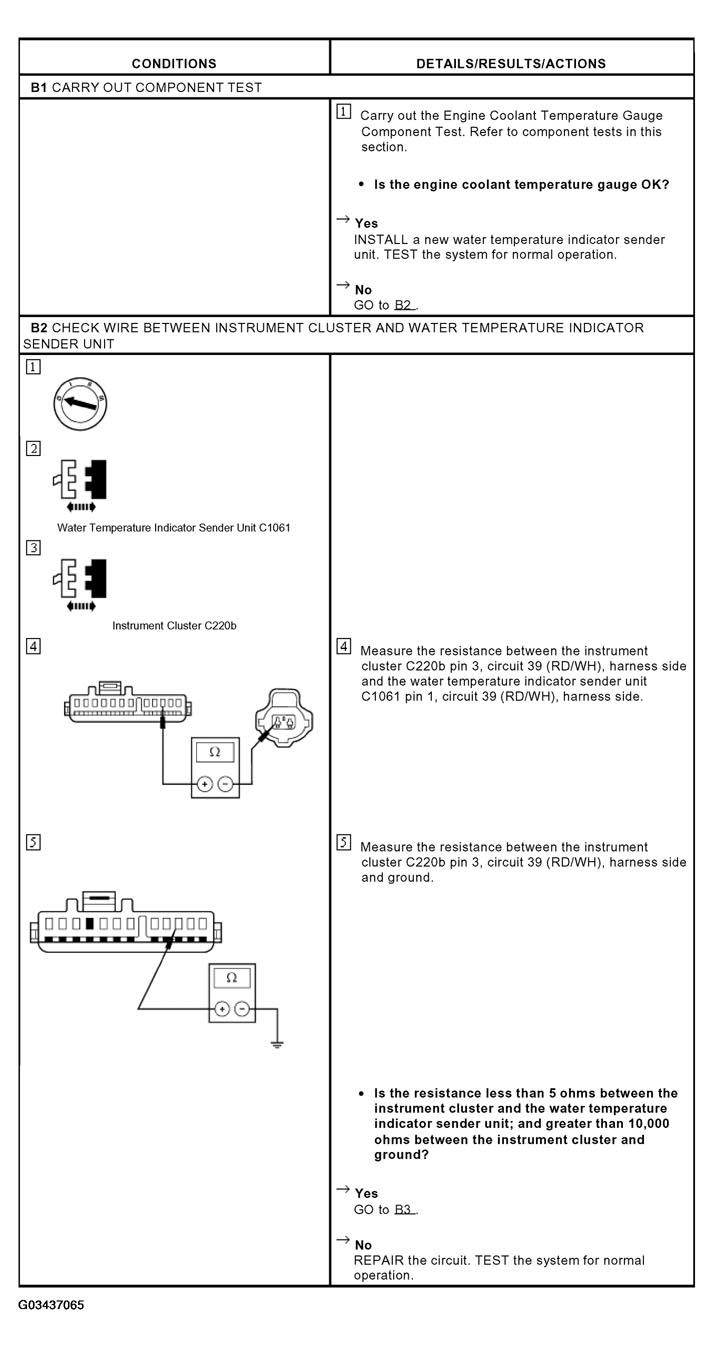

Fig 1: Pinpoint Test B: Incorrect Temperature Gauge Indication (B1-B2)
Courtesy of FORD MOTOR CO.

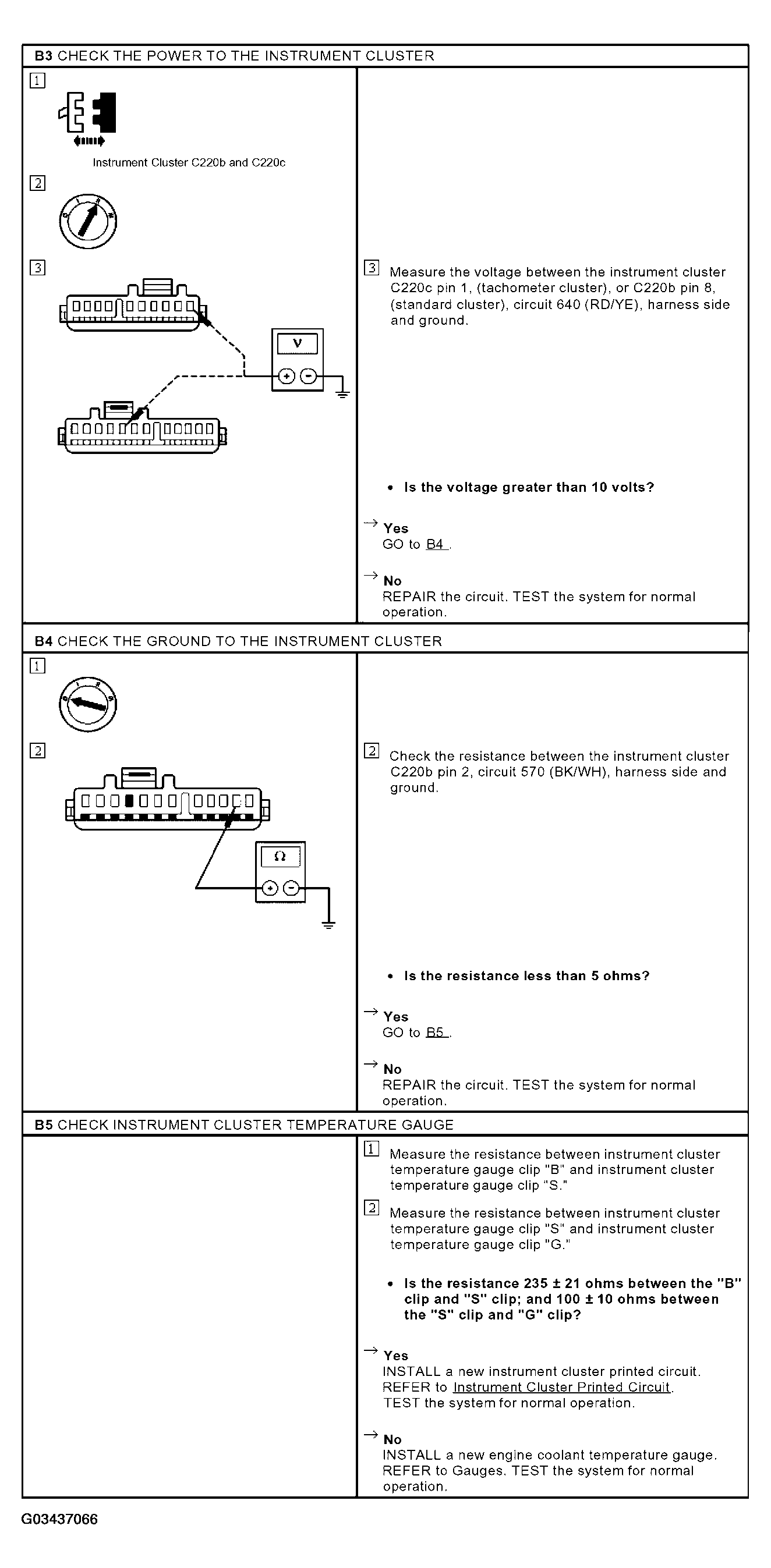

Fig 2: Pinpoint Test B: Incorrect Temperature Gauge Indication (B3-B5)
