Pinpoint Test A: The Control Illumination Is Inoperative
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

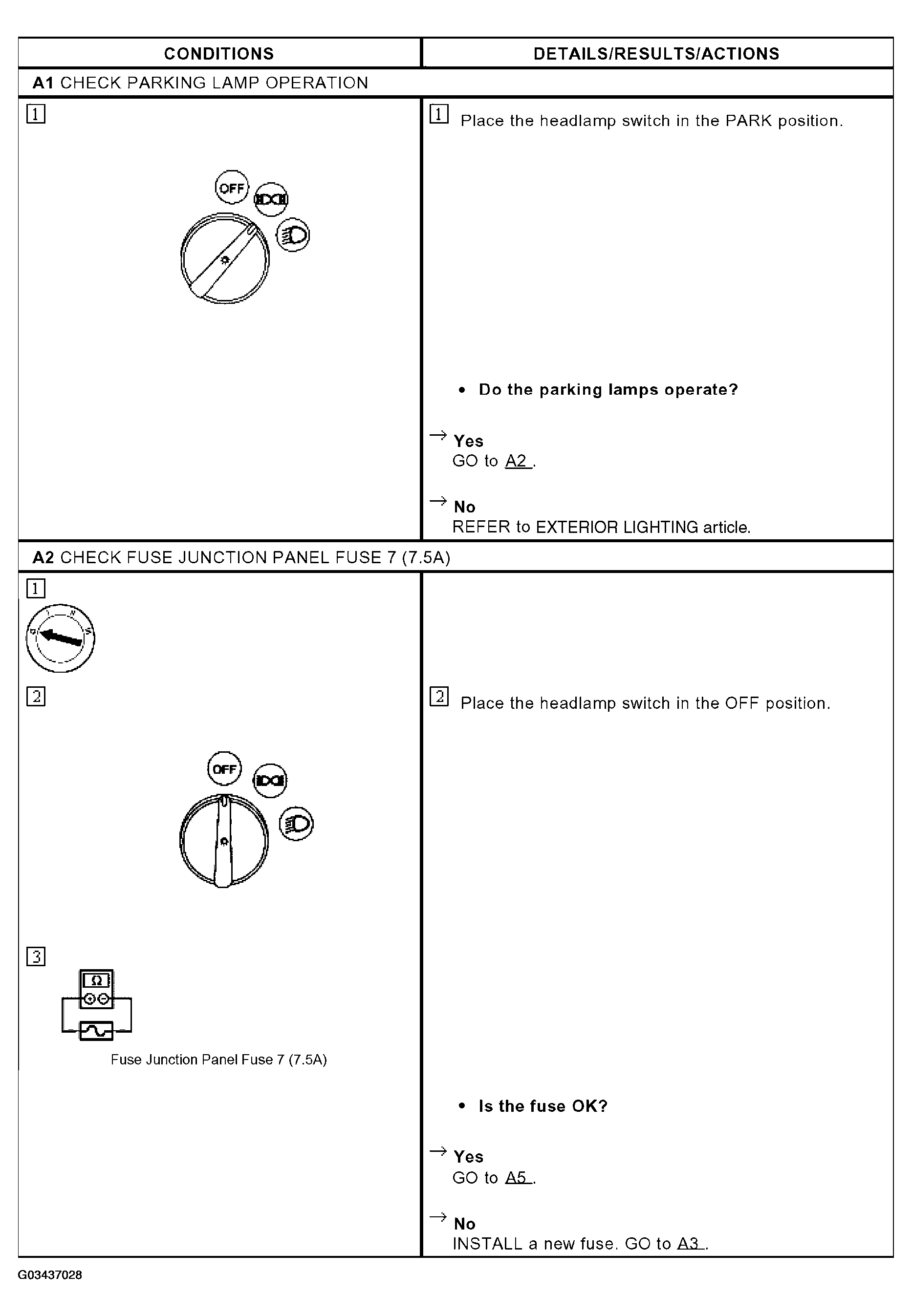

Fig 1: Pinpoint Test A: Control Illumination Is Inoperative (A1-A2)
Courtesy of FORD MOTOR CO.

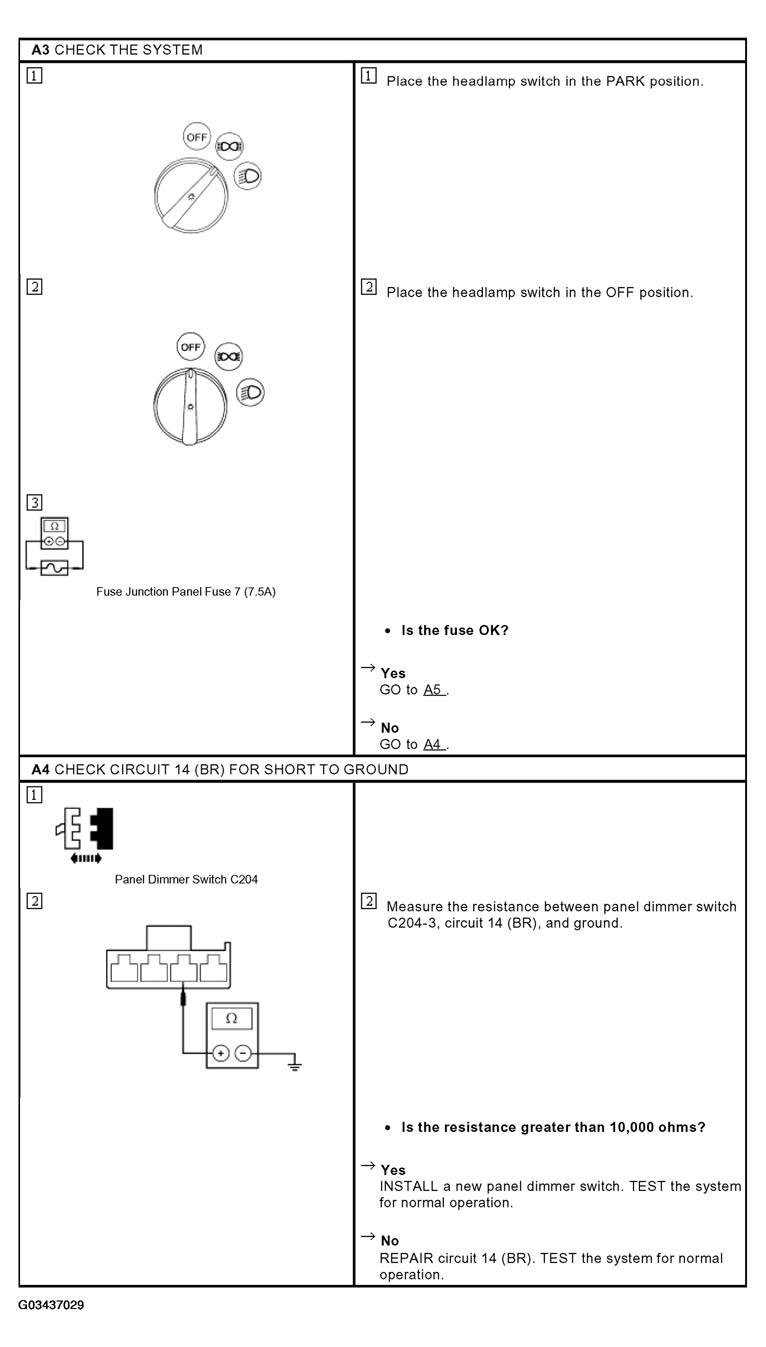

Fig 2: Pinpoint Test A: Control Illumination Is Inoperative (A3-A4)
Courtesy of FORD MOTOR CO.

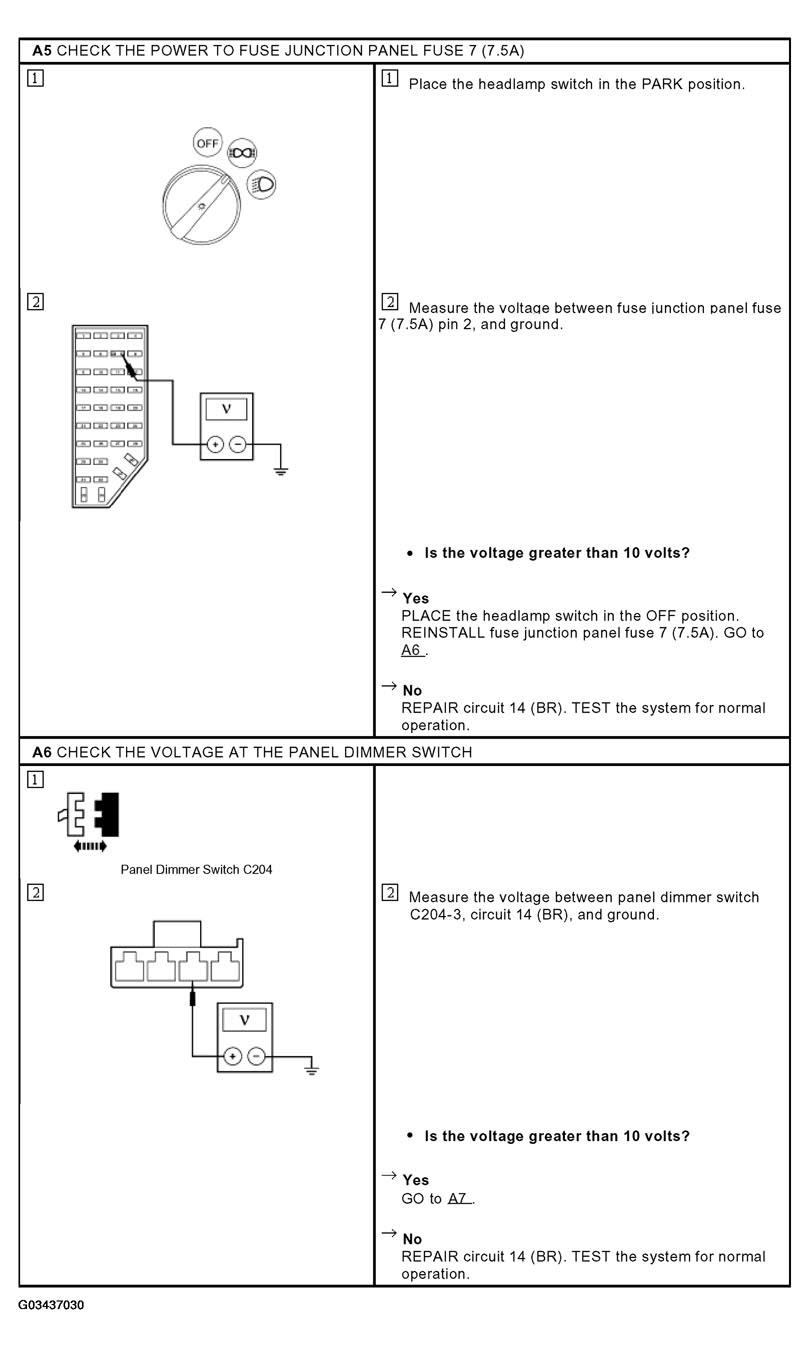

Fig 3: Pinpoint Test A: Control Illumination Is Inoperative (A5-A6)
Courtesy of FORD MOTOR CO.

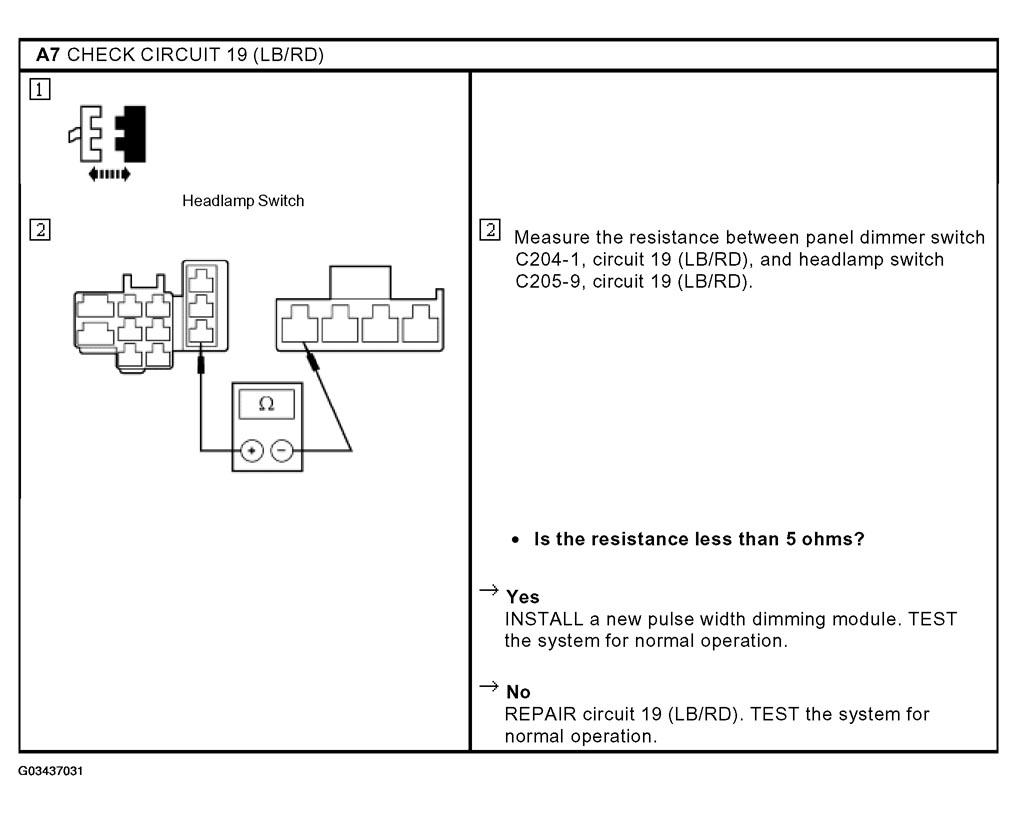

Fig 4: Pinpoint Test A: Control Illumination Is Inoperative (A7)
