Pinpoint Test I: The Speed Control Indicator Lamp Is Always On

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

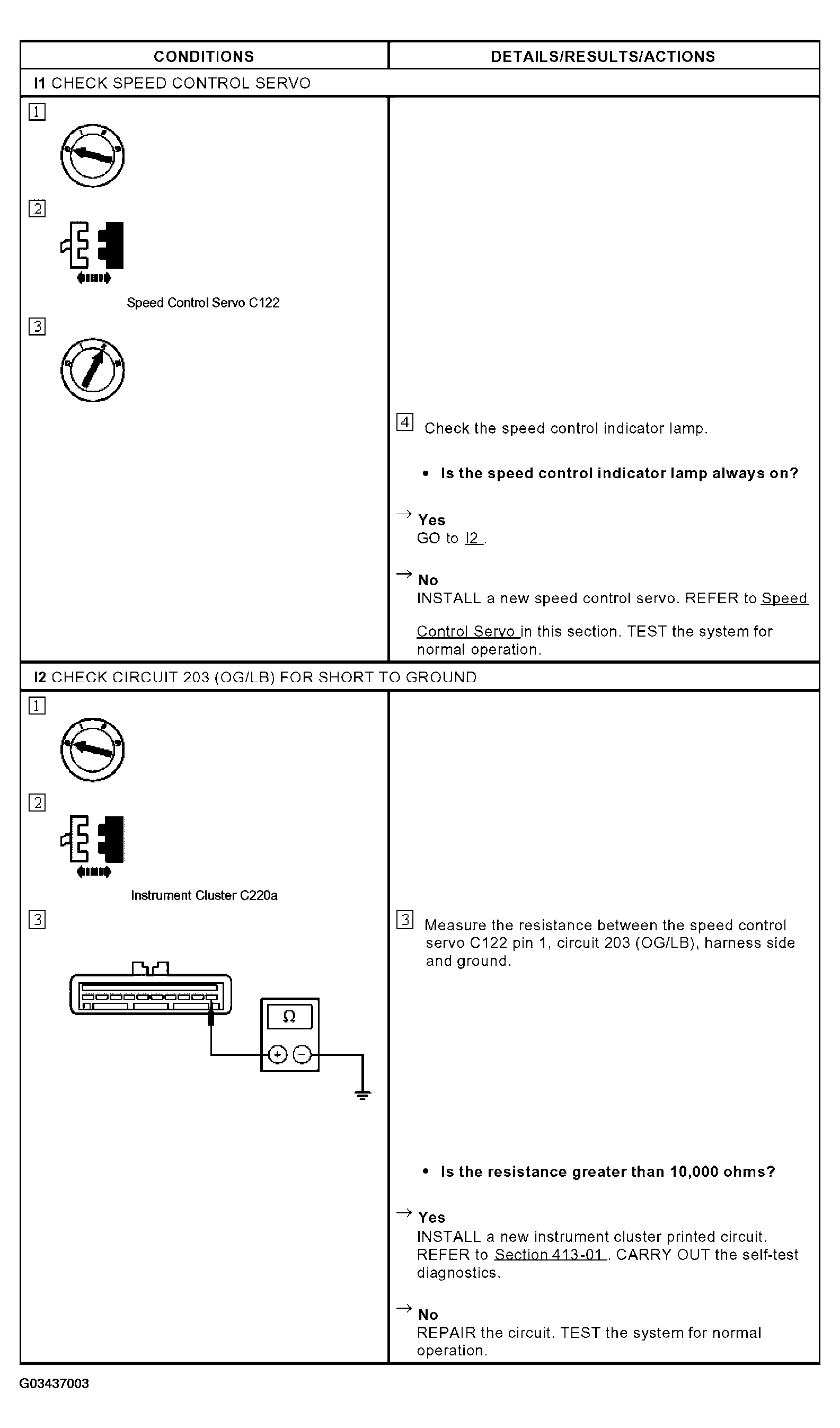

Fig 1: Pinpoint Test I: Speed Control Indicator Lamp Is Always On
G03437003Courtesy of FORD MOTOR CO.
