Pinpoint Test H: Flash Code 3 - Deactivator Switch Circuit Failure

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

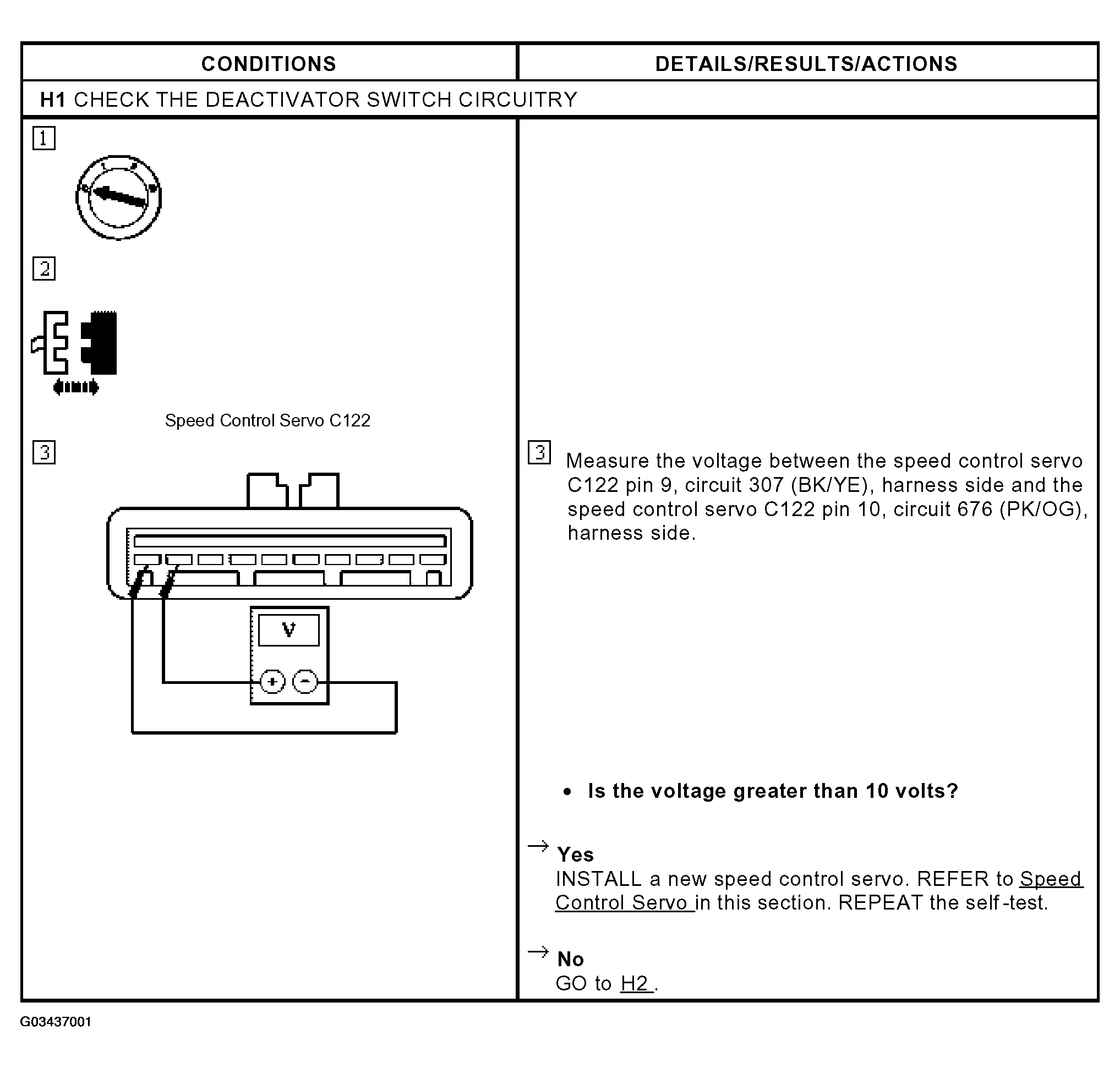

Fig 1: Pinpoint Test H: Flash Code 3 - Deactivator Switch Circuit Failure (H1)

Courtesy of FORD MOTOR CO.

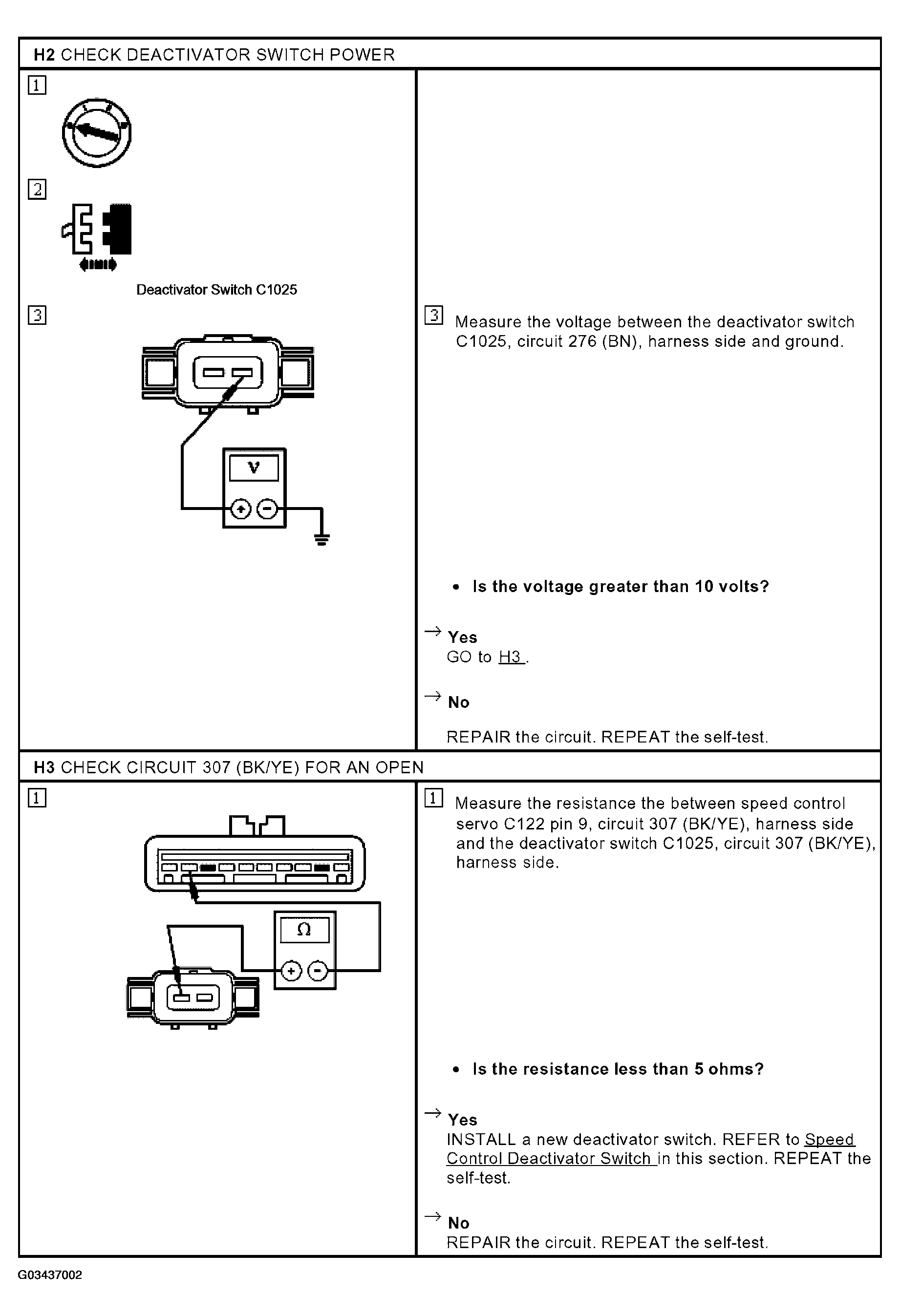

Fig 2: Pinpoint Test H: Flash Code 3 - Deactivator Switch Circuit Failure (H2-H3)

Courtesy of FORD MOTOR CO.
