Pinpoint Test C: The Speed Control Does Not Disengage When The Brakes Are Applied
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

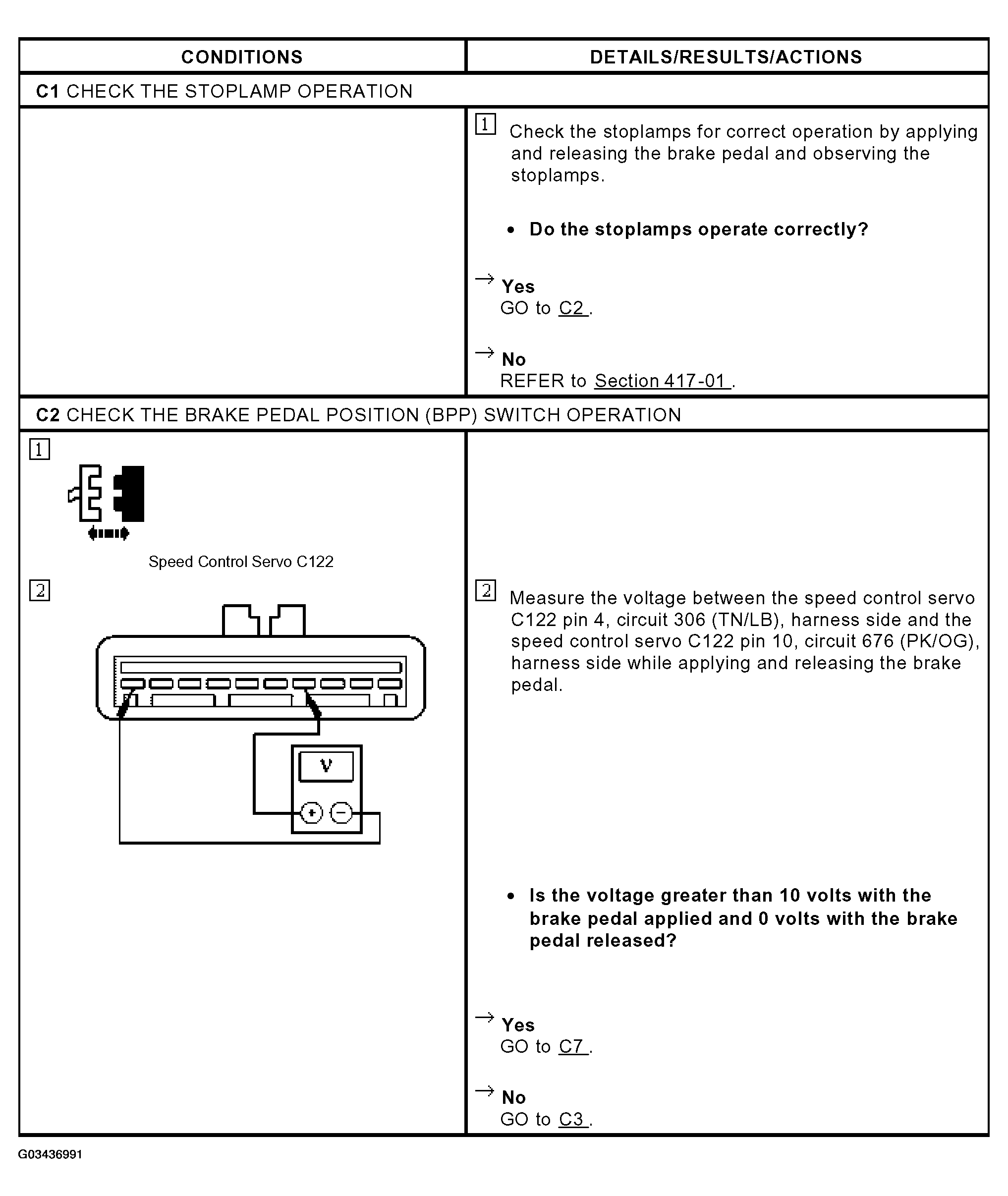

Fig 1: Pinpoint Test C: Speed Control Does Not Disengage When Brakes Are Applied (C1-C2)
Courtesy of FORD MOTOR CO.

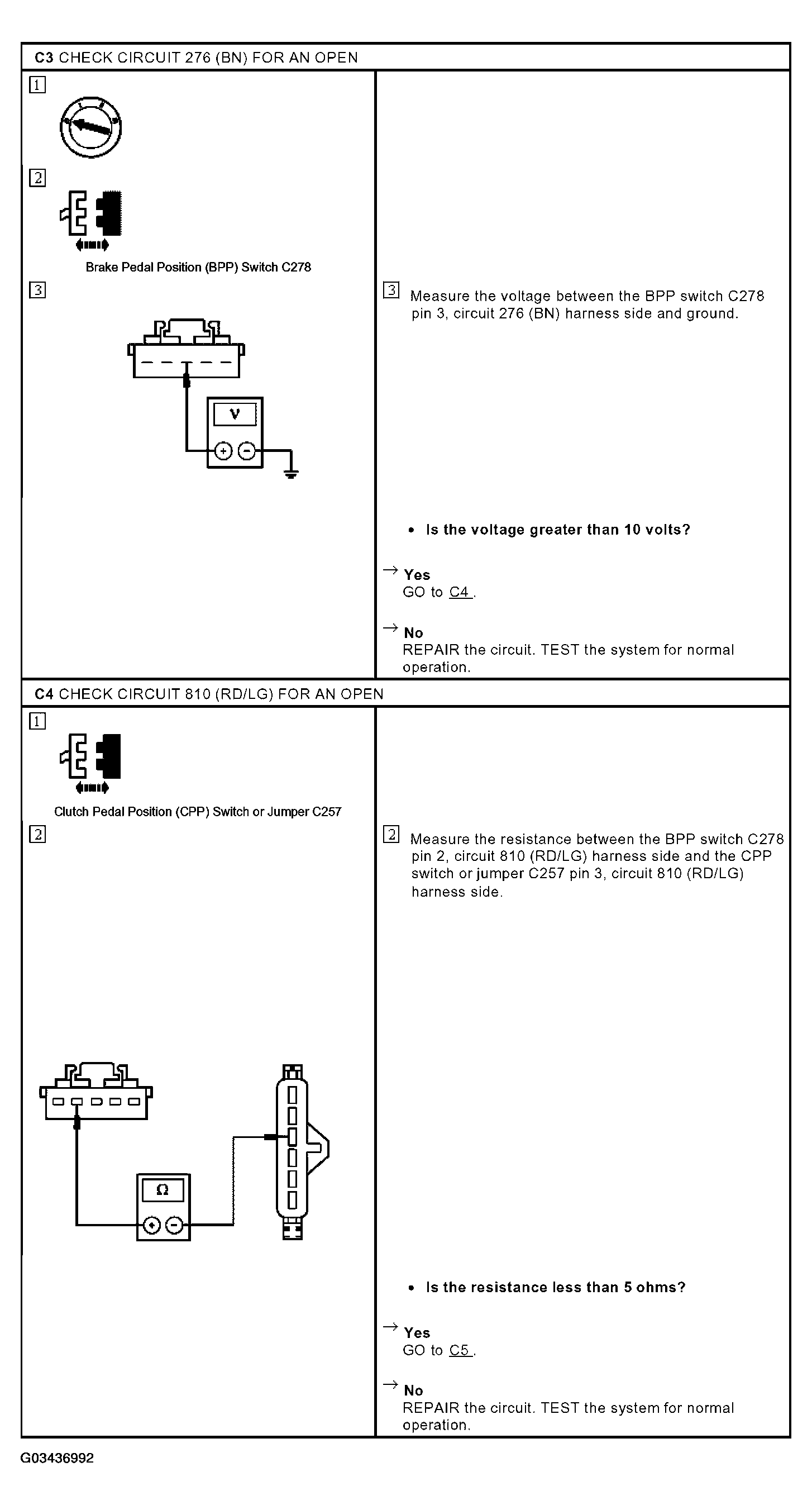

Fig 2: Pinpoint Test C: Speed Control Does Not Disengage When Brakes Are Applied (C3-C4)
Courtesy of FORD MOTOR CO.

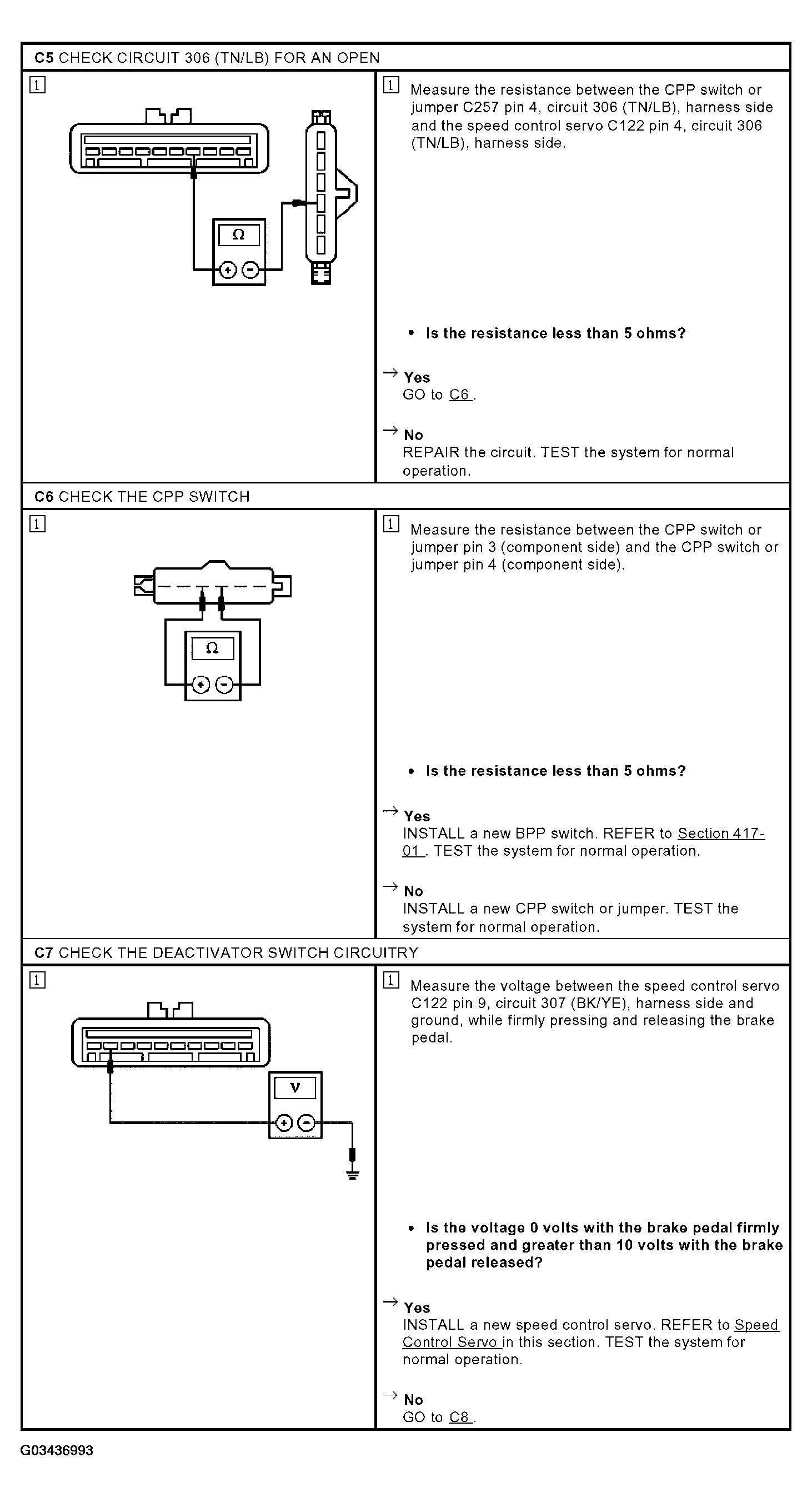

Fig 3: Pinpoint Test C: Speed Control Does Not Disengage When Brakes Are Applied (C5-C7)
Courtesy of FORD MOTOR CO.

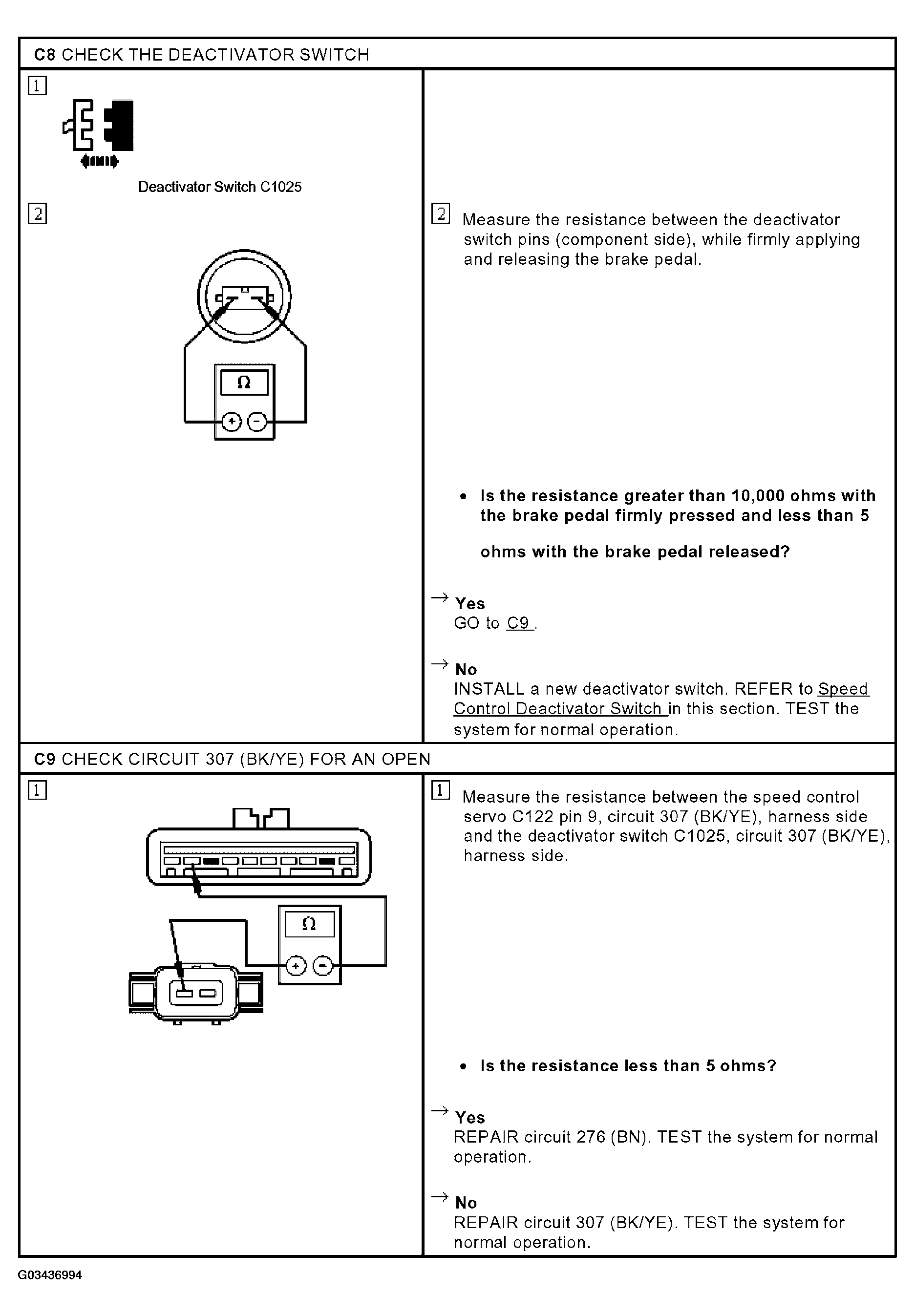

Fig 4: Pinpoint Test C: Speed Control Does Not Disengage When Brakes Are Applied (C8-C9)
