Pinpoint Test A: The Speed Control Is Inoperative - No Flash Codes
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

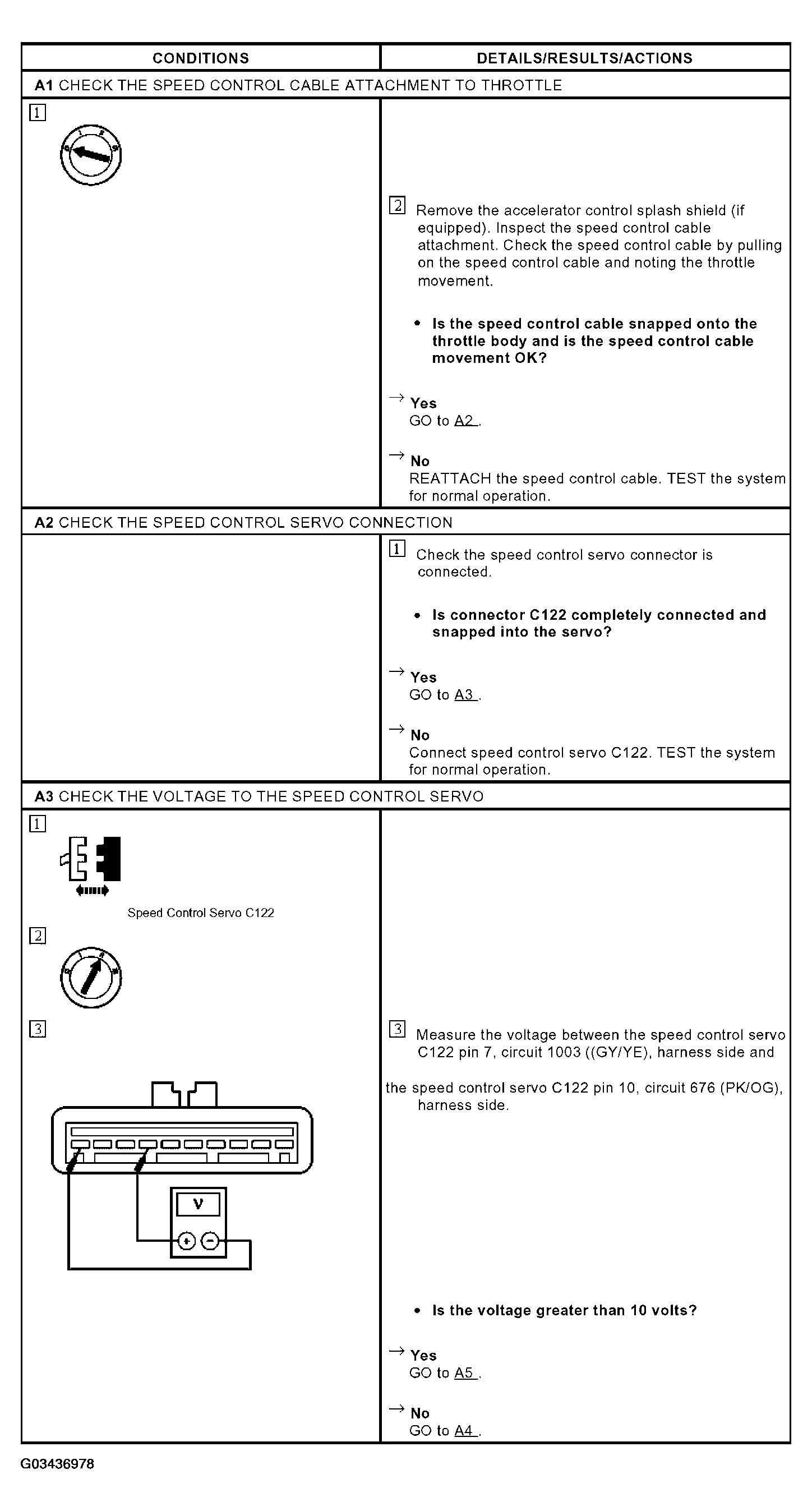

Fig 1: Pinpoint Test A: Speed Control Is Inoperative - No Flash Codes (A1-A3)
Courtesy of FORD MOTOR CO.

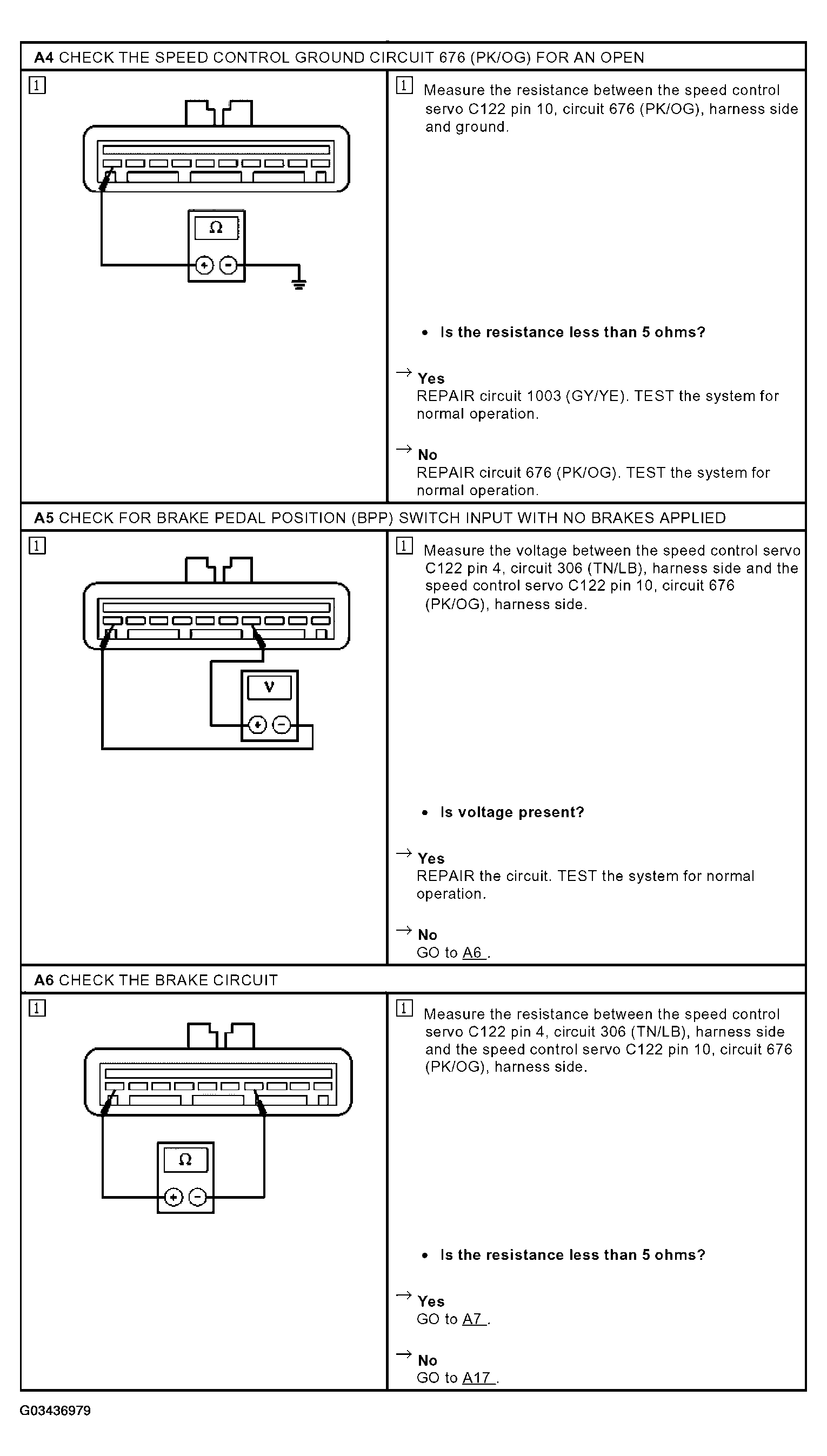

Fig 2: Pinpoint Test A: Speed Control Is Inoperative - No Flash Codes (A4-A6)
Courtesy of FORD MOTOR CO.

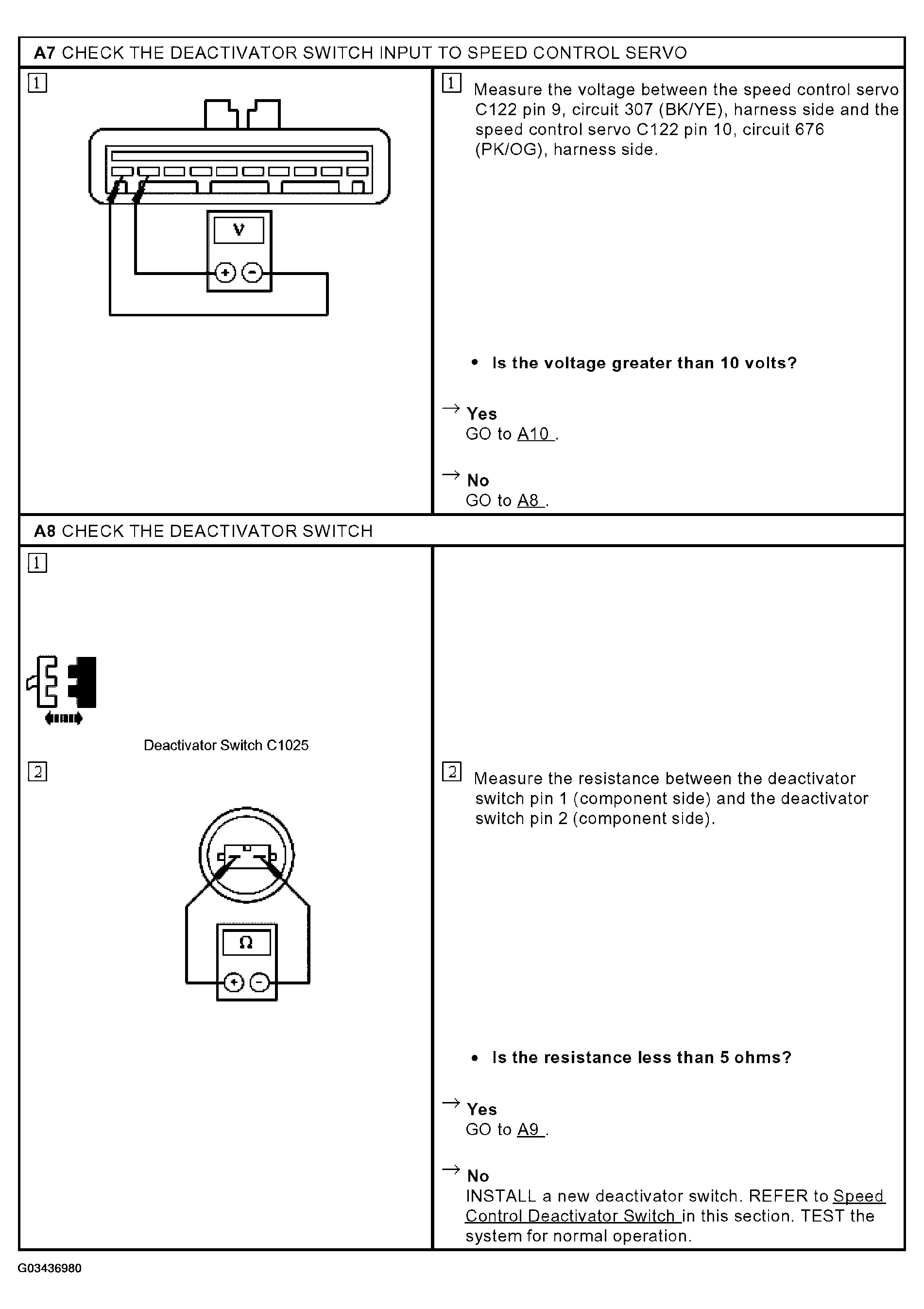

Fig 3: Pinpoint Test A: Speed Control Is Inoperative - No Flash Codes (A7-A8)
Courtesy of FORD MOTOR CO.

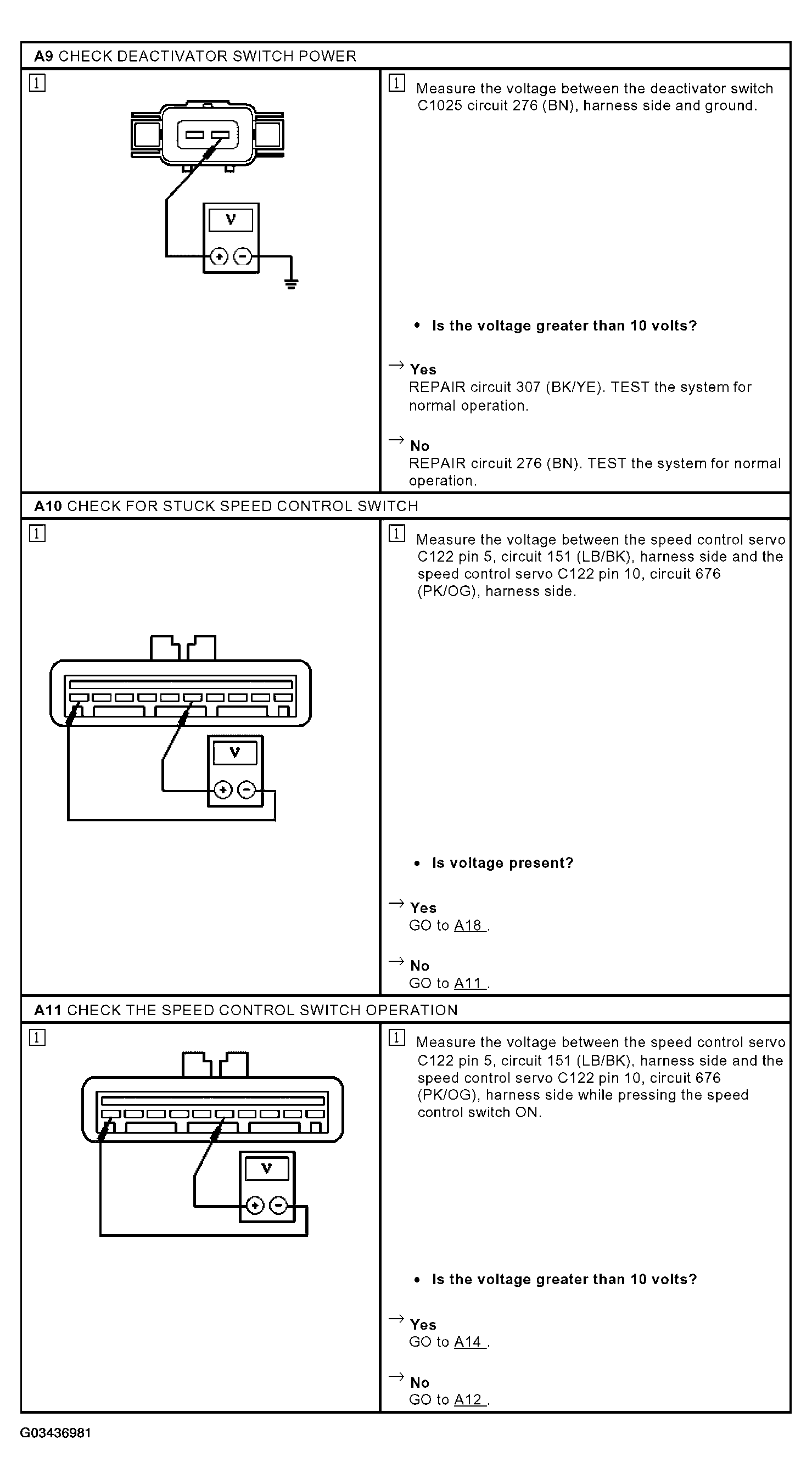

Fig 4: Pinpoint Test A: Speed Control Is Inoperative - No Flash Codes (A9-A11)
Courtesy of FORD MOTOR CO.

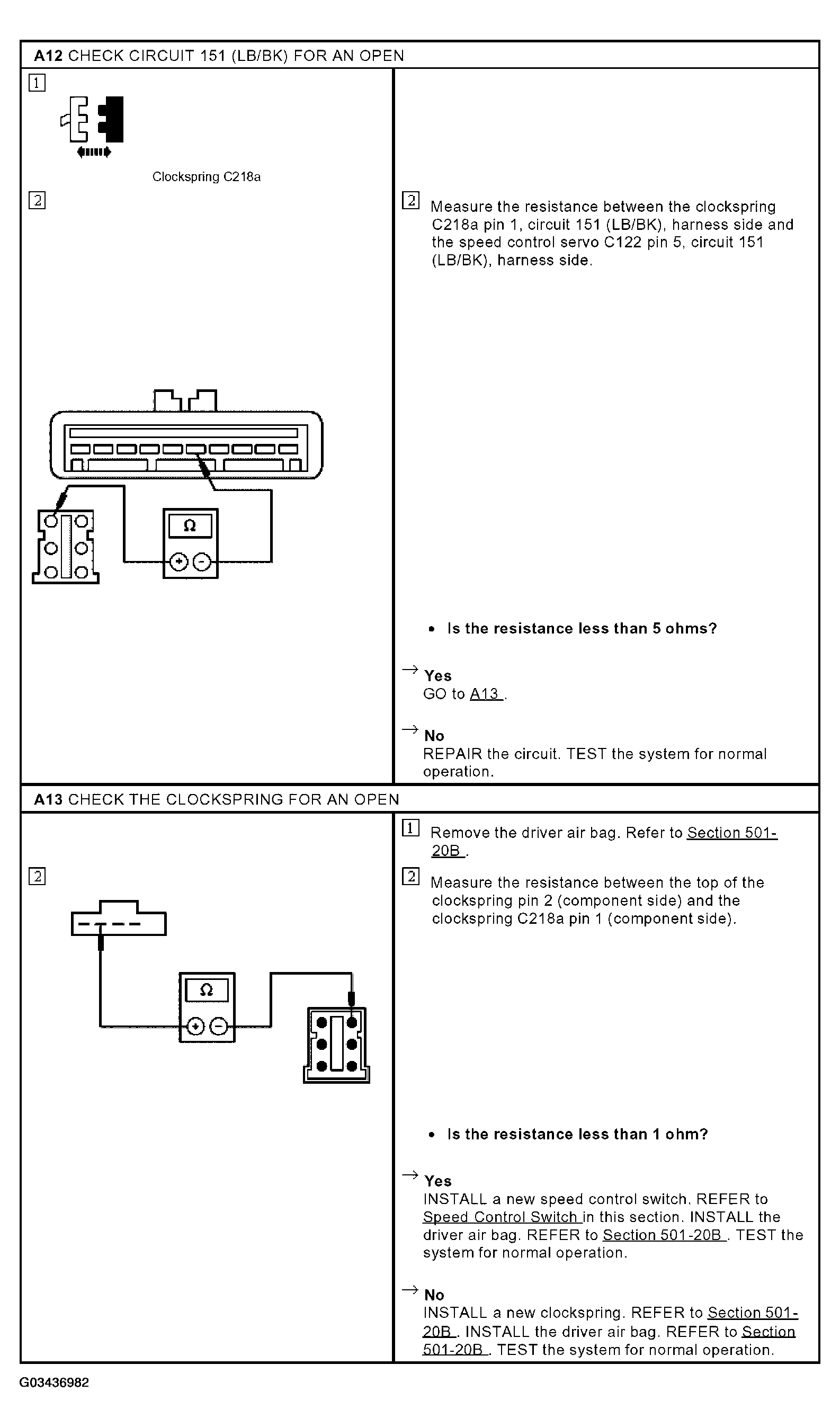

Fig 5: Pinpoint Test A: Speed Control Is Inoperative - No Flash Codes (A12-A13)
Courtesy of FORD MOTOR CO.

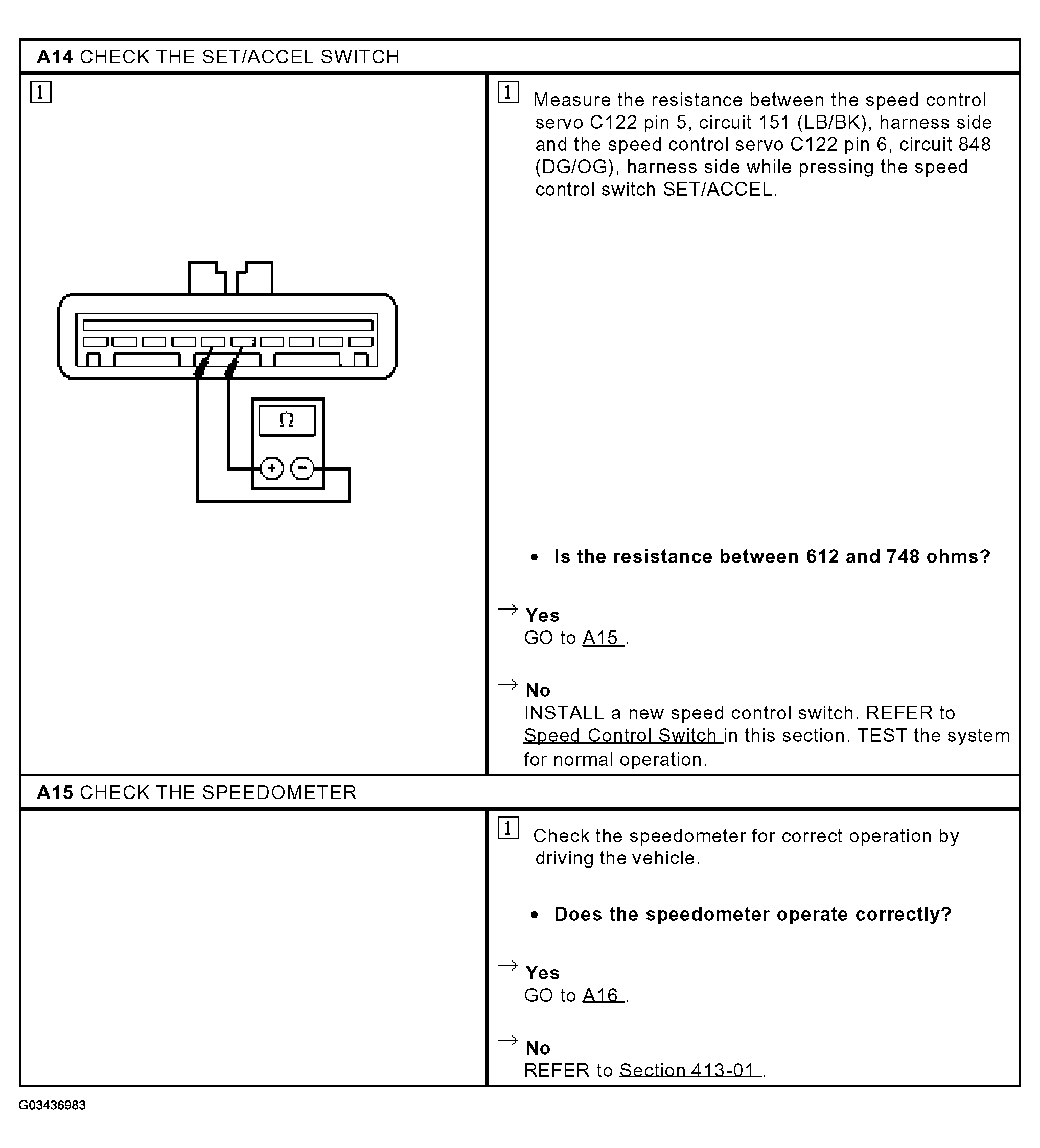

Fig 6: Pinpoint Test A: Speed Control Is Inoperative - No Flash Codes (A14-A15)
Courtesy of FORD MOTOR CO.

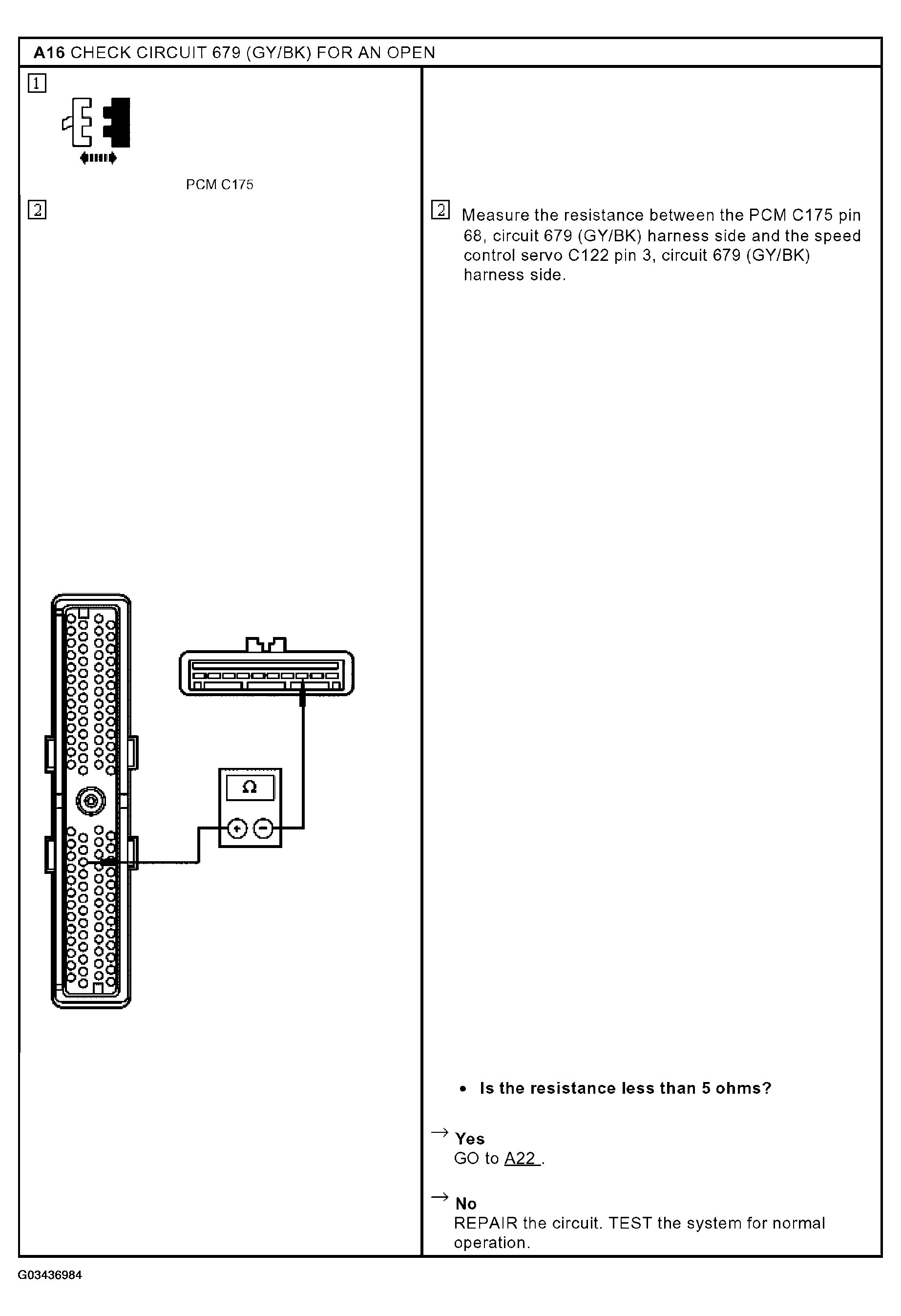

Fig 7: Pinpoint Test A: Speed Control Is Inoperative - No Flash Codes (A16)
Courtesy of FORD MOTOR CO.

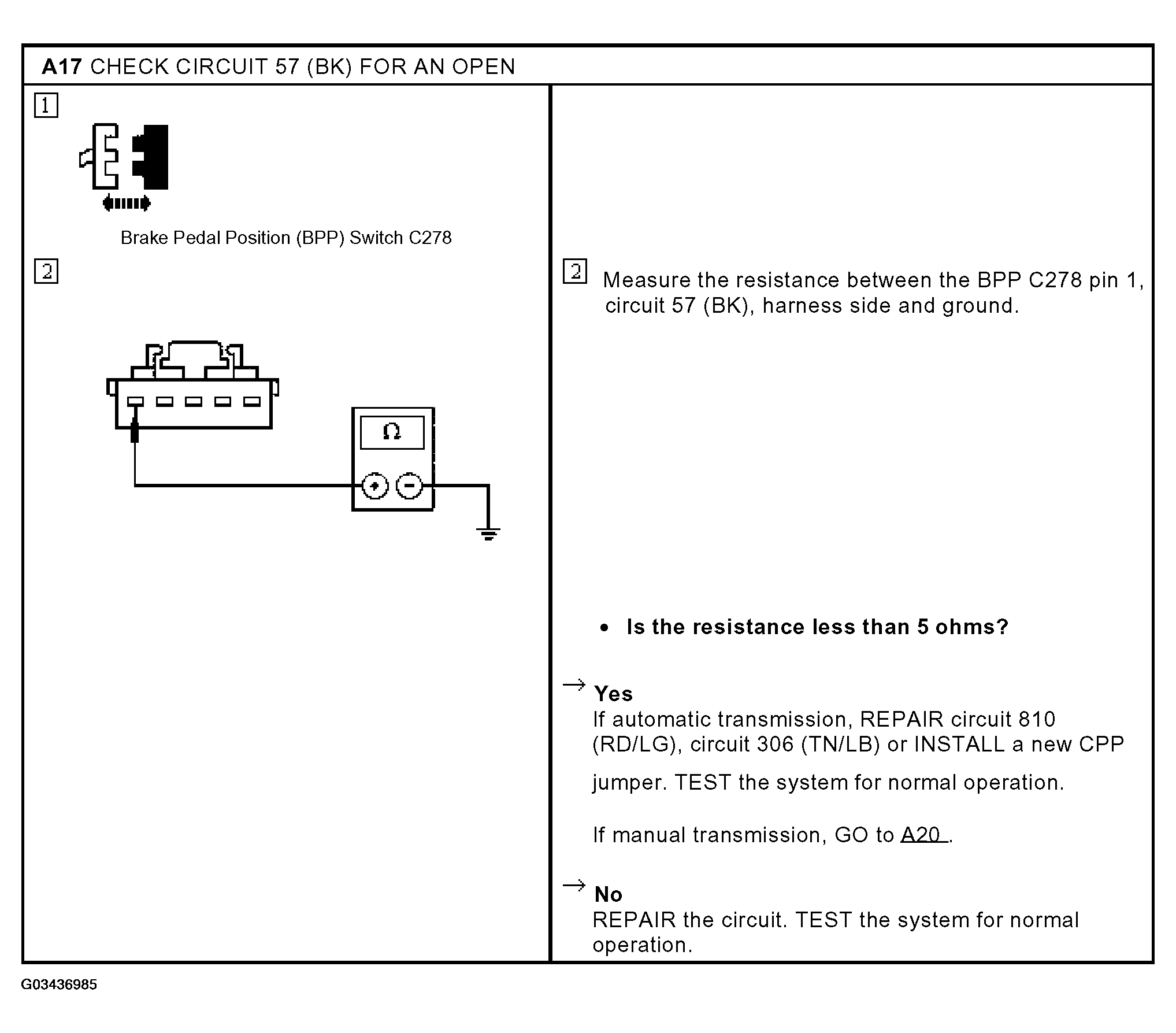

Fig 8: Pinpoint Test A: Speed Control Is Inoperative - No Flash Codes (A17)
Courtesy of FORD MOTOR CO.

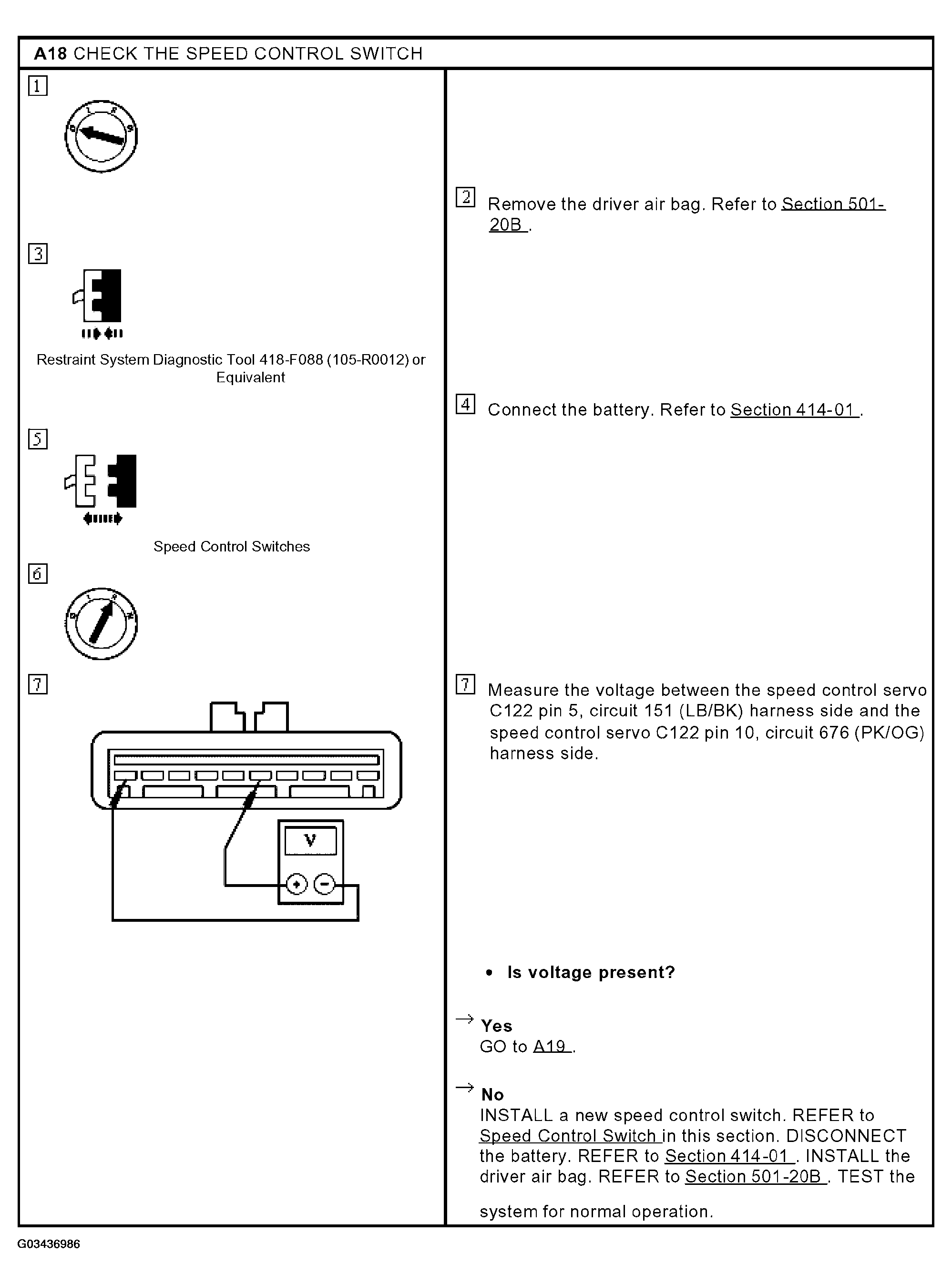

Fig 9: Pinpoint Test A: Speed Control Is Inoperative - No Flash Codes (A18)
Courtesy of FORD MOTOR CO.

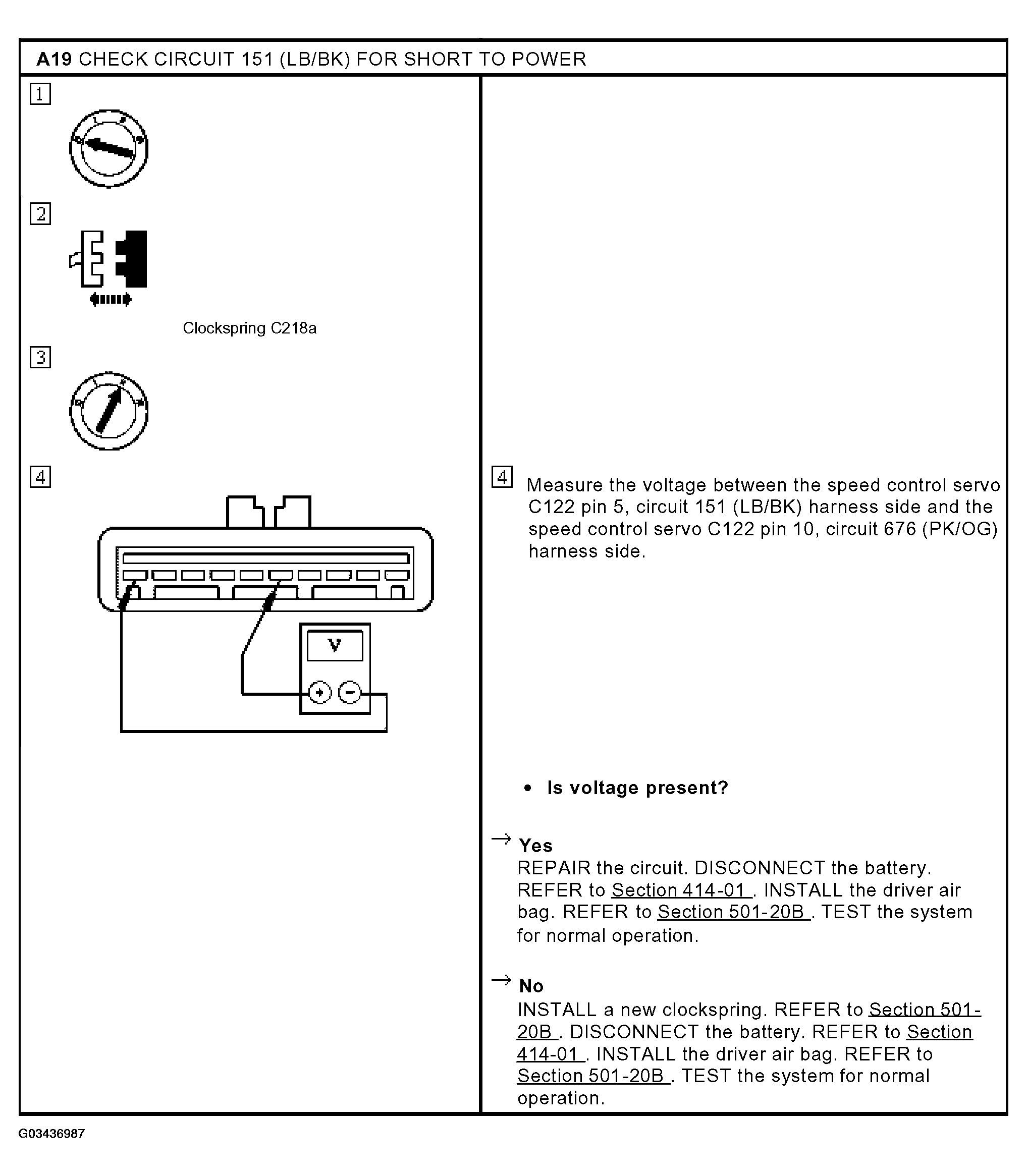

Fig 10: Pinpoint Test A: Speed Control Is Inoperative - No Flash Codes (A19)
Courtesy of FORD MOTOR CO.

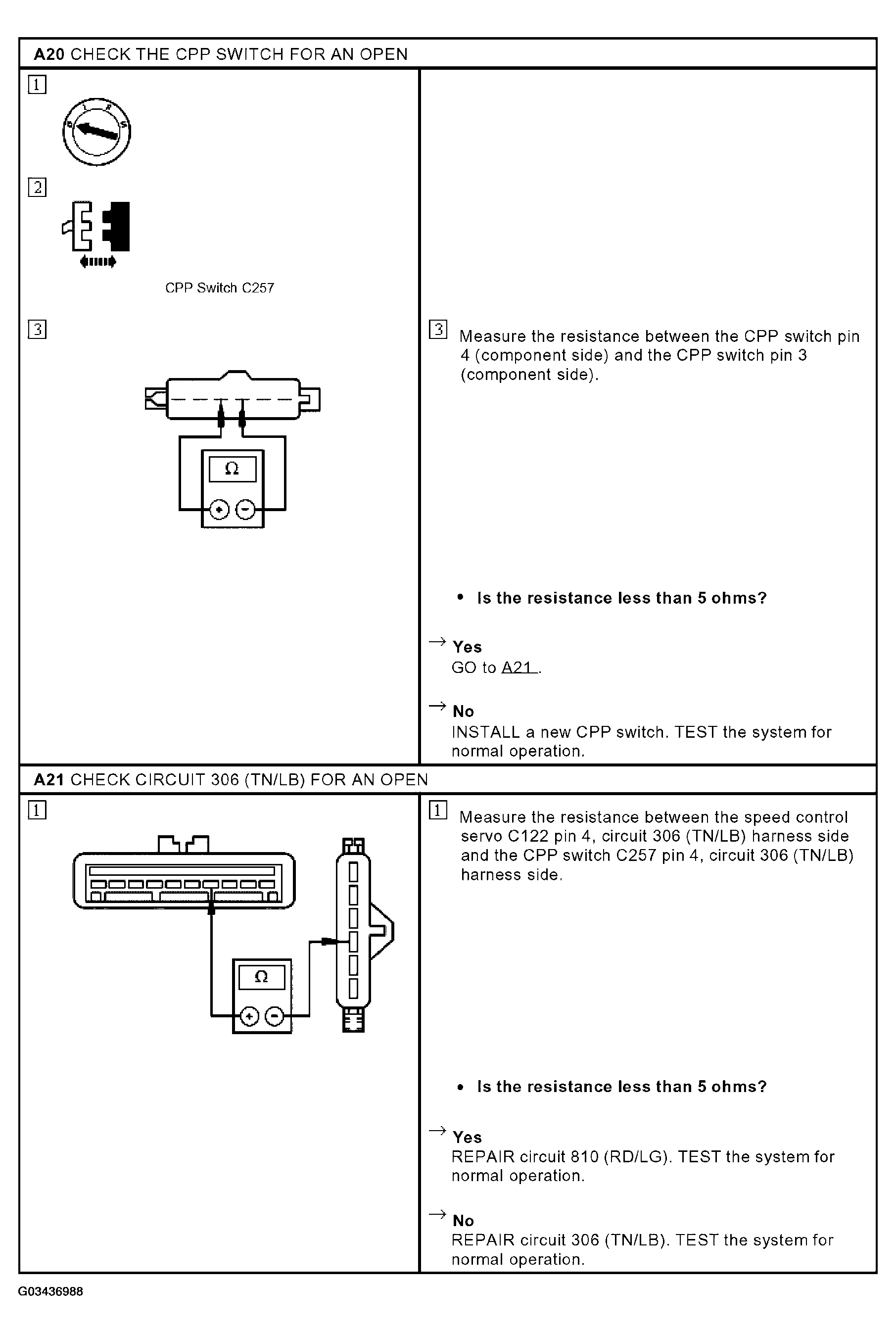

Fig 11: Pinpoint Test A: Speed Control Is Inoperative - No Flash Codes (A20-A21)
Courtesy of FORD MOTOR CO.

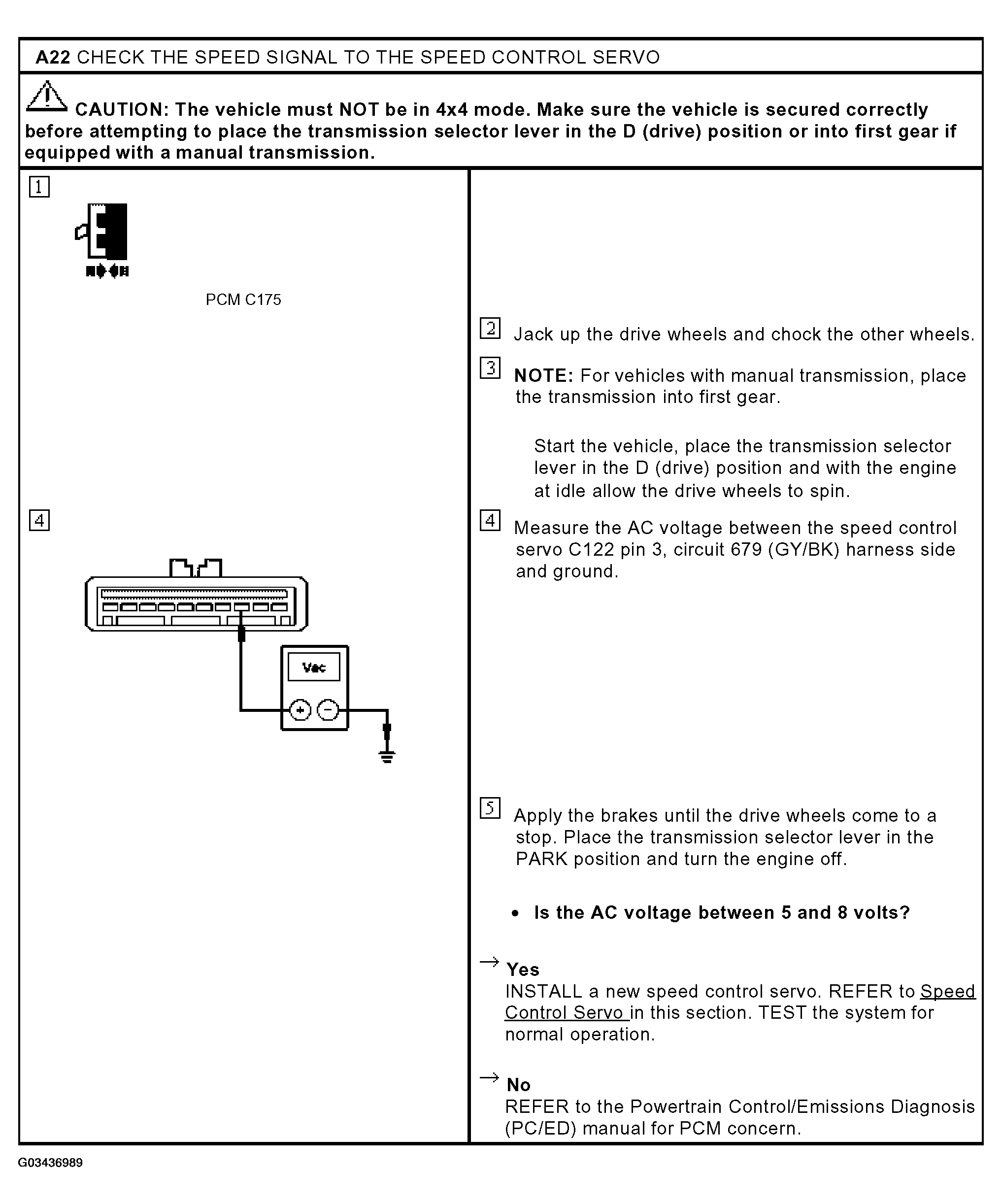

Fig 12: Pinpoint Test A: Speed Control Is Inoperative - No Flash Codes (A22)
