Pinpoint Test B: 4WD Will Not Engage

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

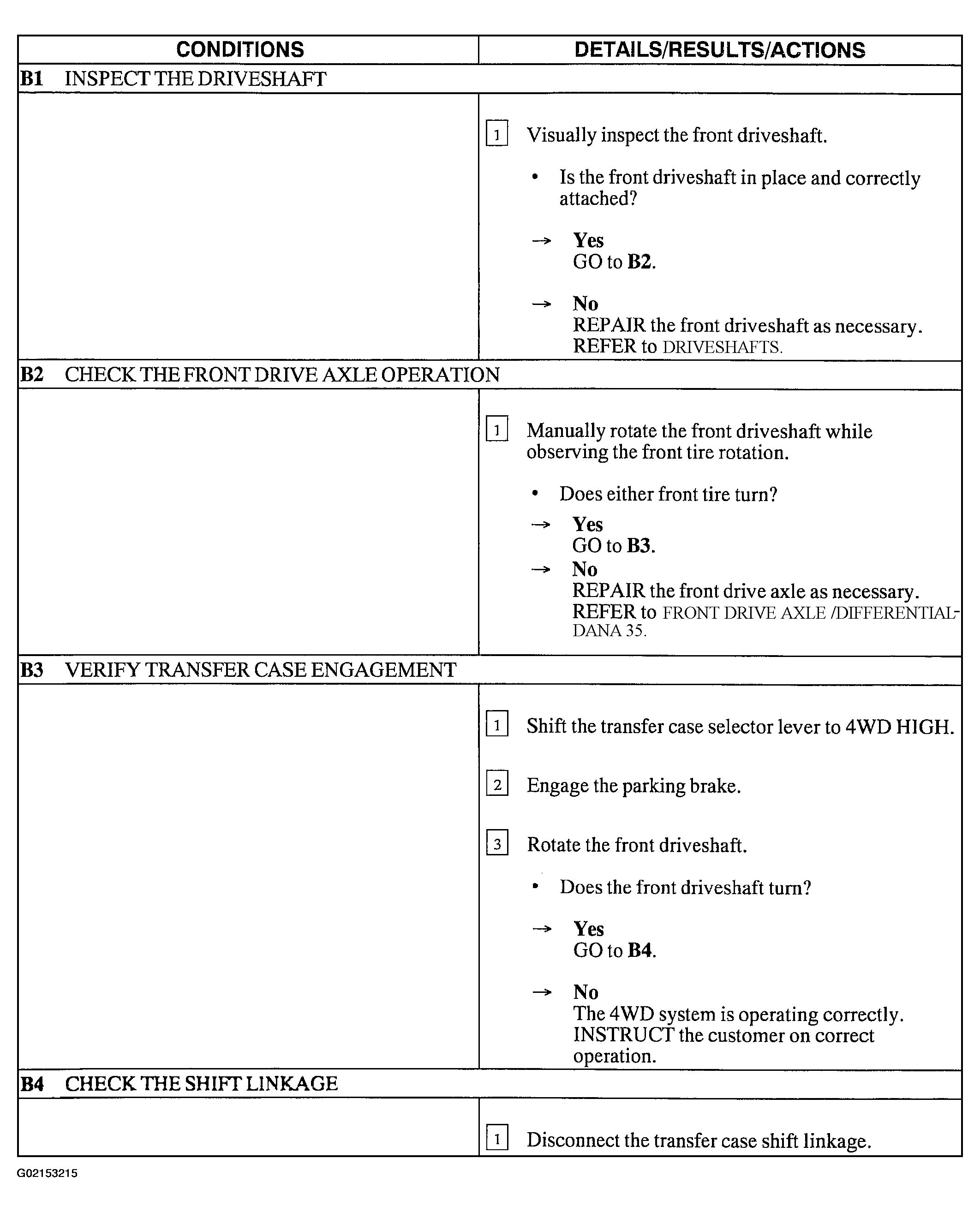

Fig 1: Pinpoint Test B: 4WD Will Not Engage (B1-B4)
G02153215Courtesy of FORD MOTOR CO.

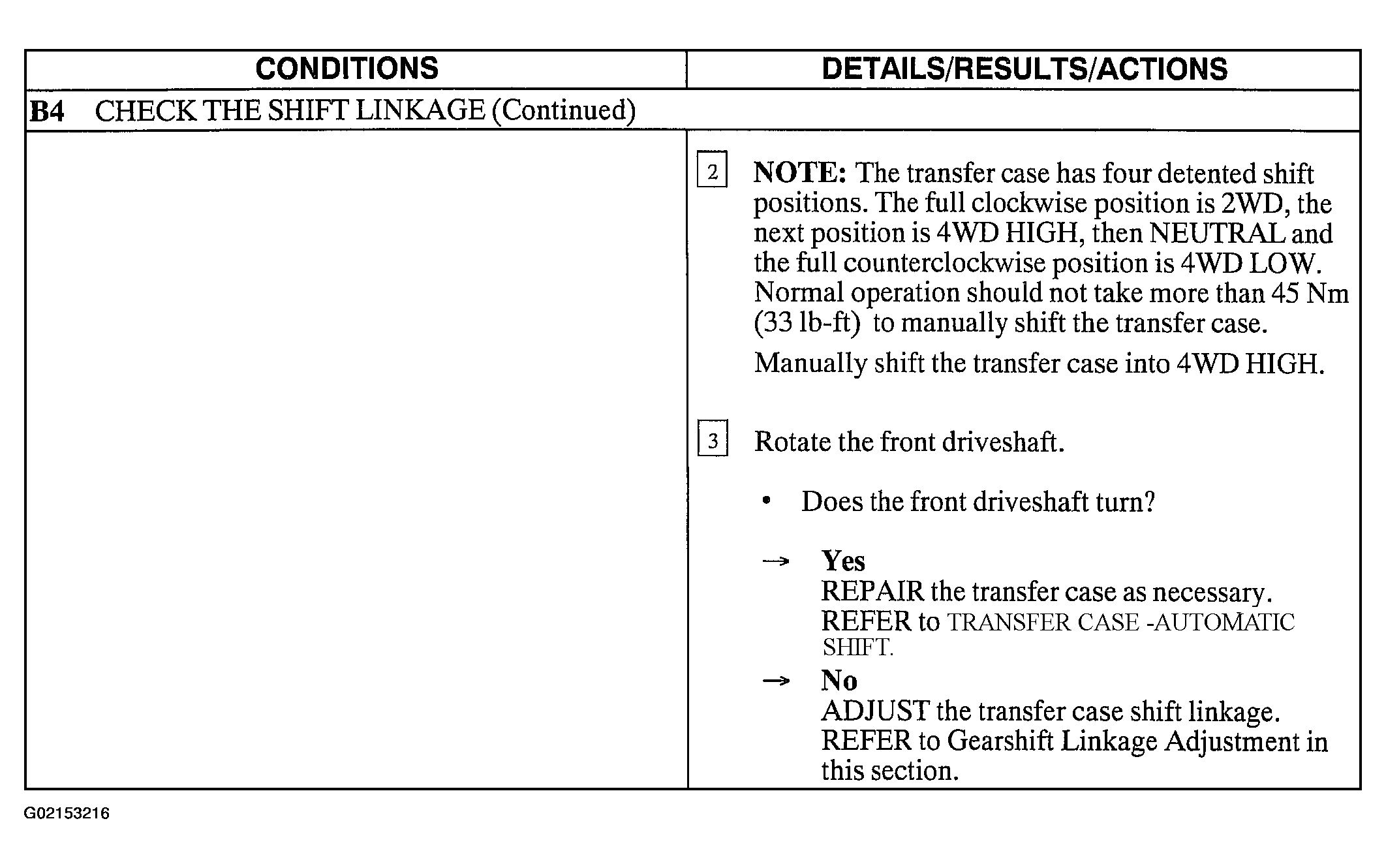

Fig 2: Pinpoint Test B: 4WD Will Not Engage (B4)
G02153216Courtesy of FORD MOTOR CO.
