Extension Housing: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, raise and support the vehicle.
Remove the drain plug and drain the transmission fluid.

Fig 1: Removing Drain Plug
Courtesy of FORD MOTOR CO.

NOTE: To maintain initial driveshaft balance, index-mark the driveshaft to the rear axle pinion flange so it can be installed in its original position.

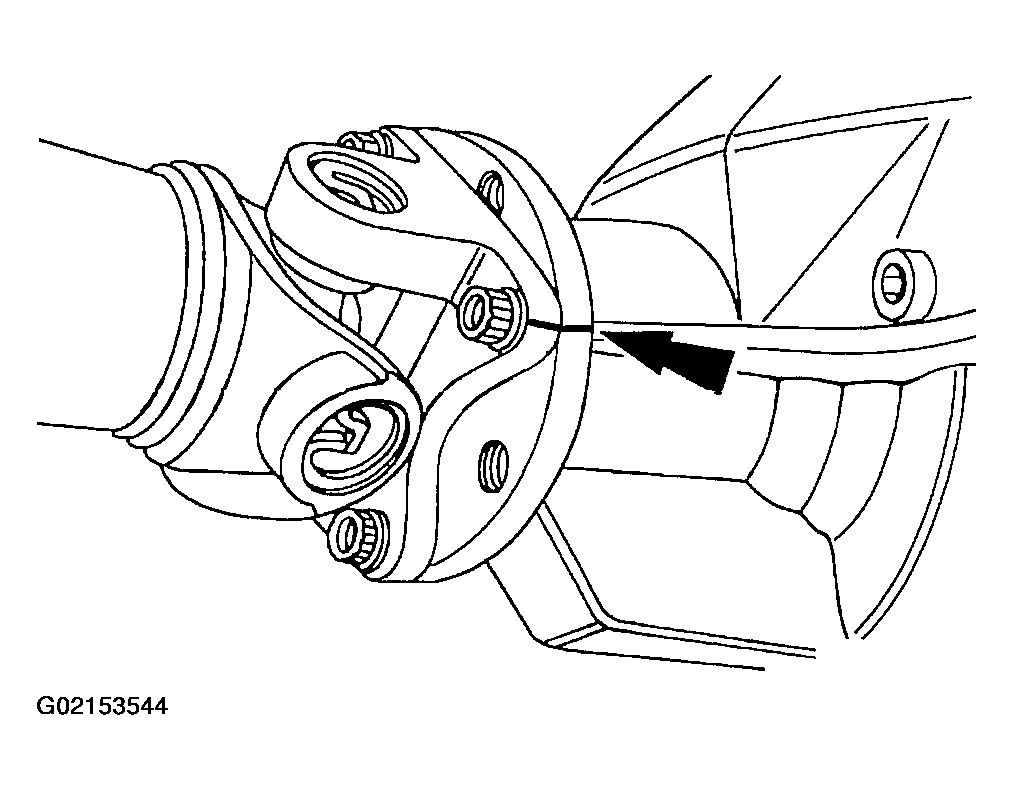

Fig 2: Index-Marking Driveshaft-To-Rear Axle Pinion Flange

Courtesy of FORD MOTOR CO.

Remove and support the rear driveshaft. For additional information, refer to DRIVE SHAFTS .
Remove the transfer case, if equipped. For additional information, refer to TRANSFER CASE - AUTOMATIC SHIFT .
Using the special tool, support the transmission.
- Secure the transmission with a strap.
Fig 3: Supporting Transmission
Courtesy of FORD MOTOR CO.
Remove the six crossmember bolts.

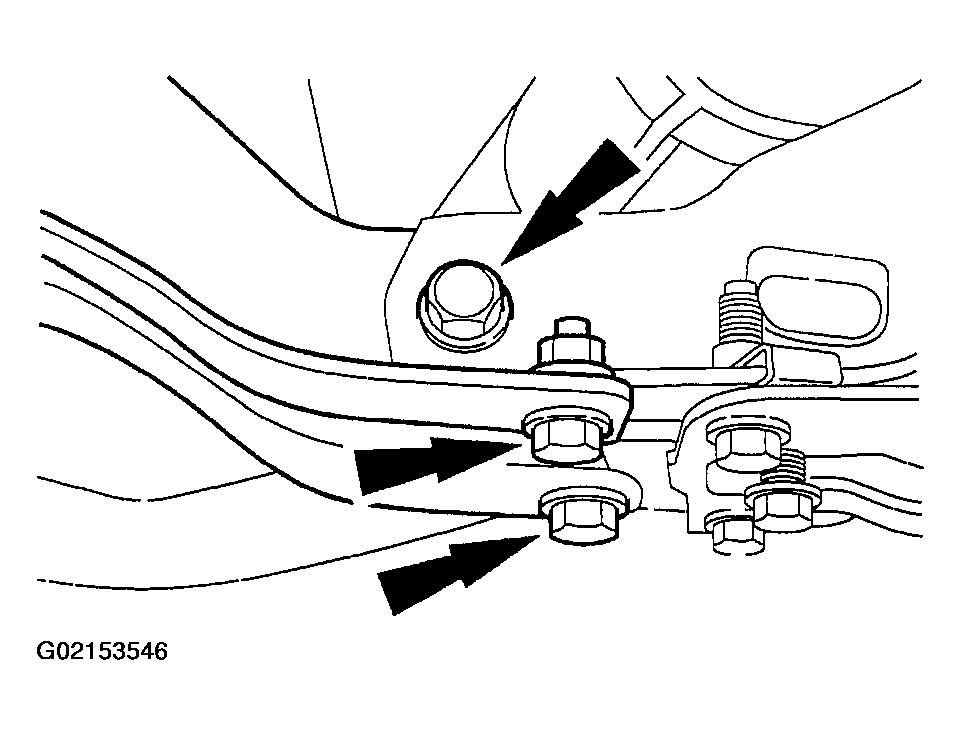

Fig 4: Removing Crossmember Bolts
Courtesy of FORD MOTOR CO.
Remove the nuts, then remove the crossmember.

Fig 5: Removing Crossmember
Courtesy of FORD MOTOR CO.
Remove the transmission mount.
1. Remove the bolts.
2. Reposition the exhaust mounting bracket.

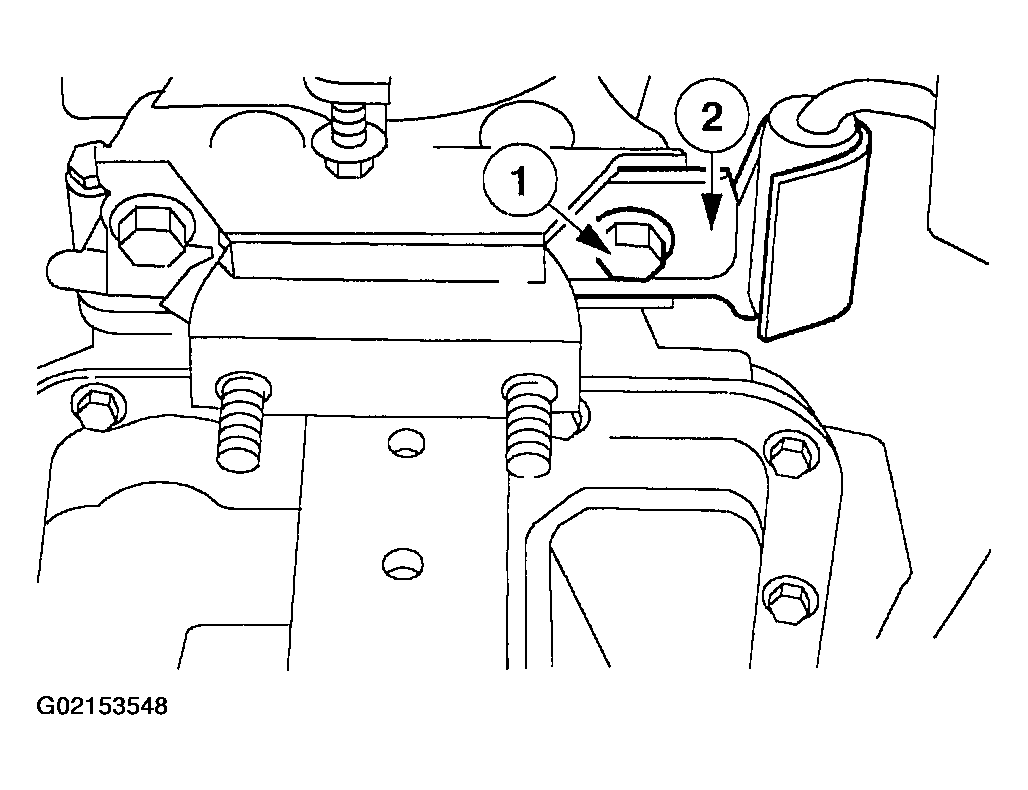

Fig 6: Removing Transmission Mount
Courtesy of FORD MOTOR CO.
Remove the extension housing.
- 4x2 shown, 4x4 similar.

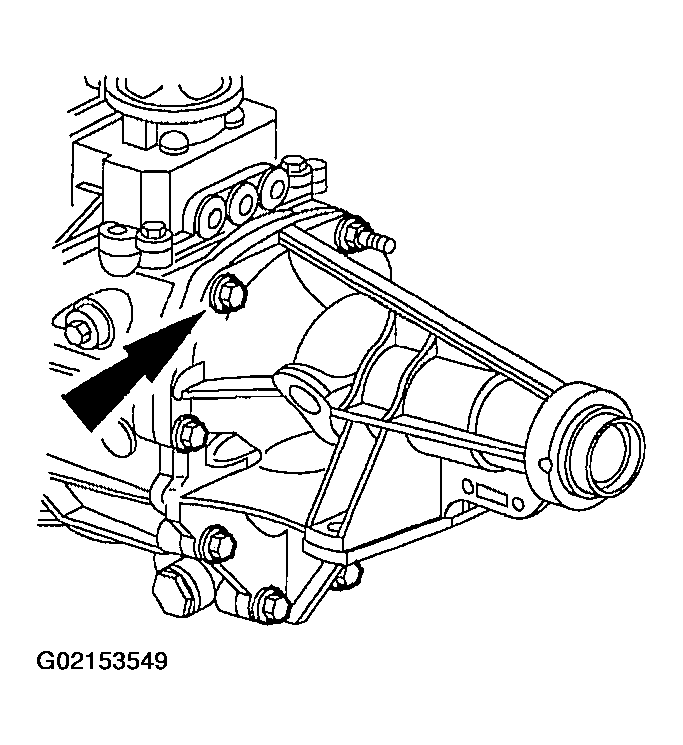

Fig 7: Removing Extension Housing
Courtesy of FORD MOTOR CO.
