Reverse Idler Gear: Assembly

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the reverse idler gear.
    1. Install the reverse idler gear thrust washer.
    2. Install the reverse idler gear bearing.
    3. Install the reverse idler gear.
    4. Install the spacer.
    5. Install the reverse idler gear retaining ring.
    Fig 1: Installing Reverse Idler Gear Thrust Washer
    G02153662Courtesy of FORD MOTOR CO.
  2. Measure the reverse idler gear end play.
    • If end play is not within specification, install a retaining ring of correct thickness.
    Fig 2: Measuring Reverse Idler Gear End Play
    G02153664Courtesy of FORD MOTOR CO.

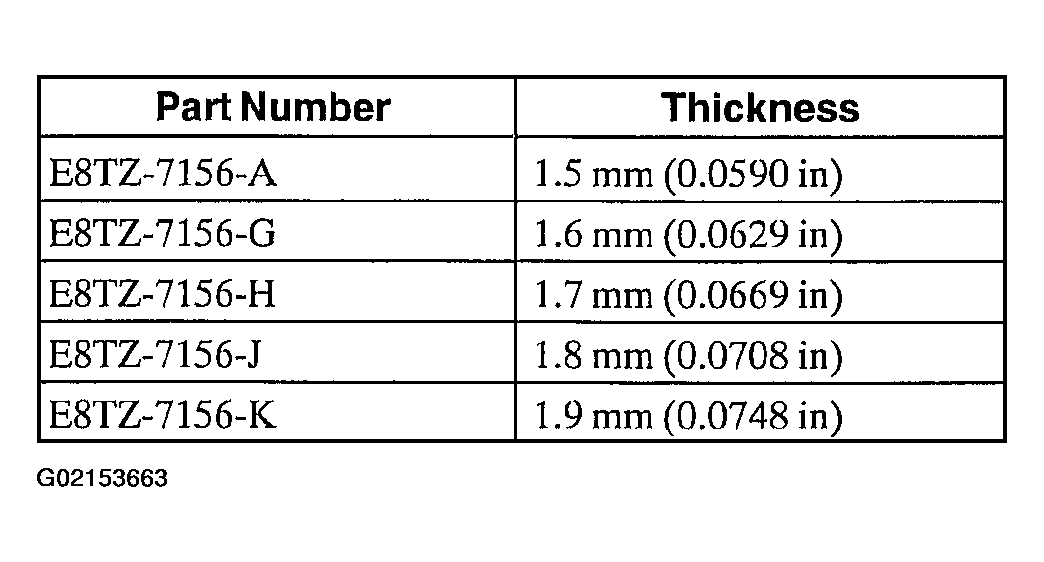

    Fig 3: Reverse Idler Gear Retaining Rings Select Chart
    G02153663Courtesy of FORD MOTOR CO.
