Input Shaft Bearing: Disassembly
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the input shaft bearing for wear or damage. For additional information, refer to BEARINGS .
- Inspect the input shaft for damage or wear. For additional information, Refer to MANUAL TRANSMISSION & CLUTCH - GENERAL INFORMATION .
- Remove and discard the front bearing oil scoop ring.

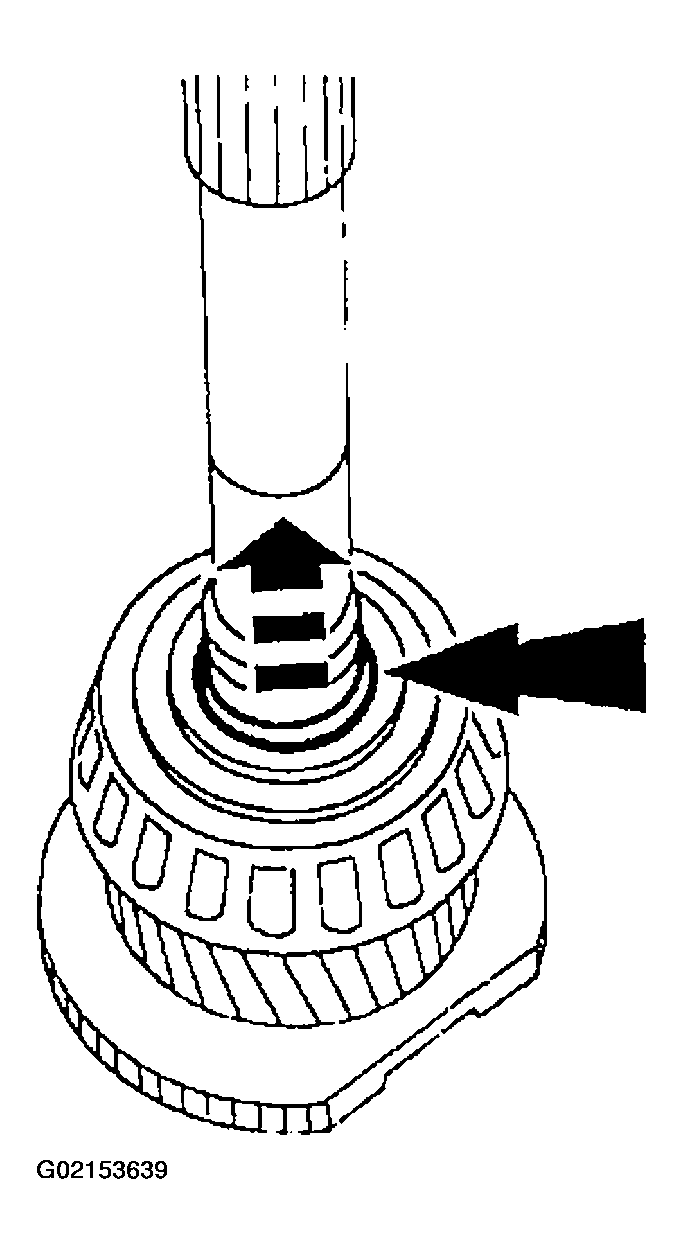

- Using the special tool, press the input shaft bearing from the input shaft.
CAUTION:
To prevent damage, inspect the surface of the input shaft in the area of the bearing race to make sure it is smooth and free of burrs.
CAUTION:
Hold the input shaft so it does not fall.
NOTE:
Remove the input shaft bearing only if installing a new one.
