Pinpoint Test G: Binding - Difficult Shift Lever Movement

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

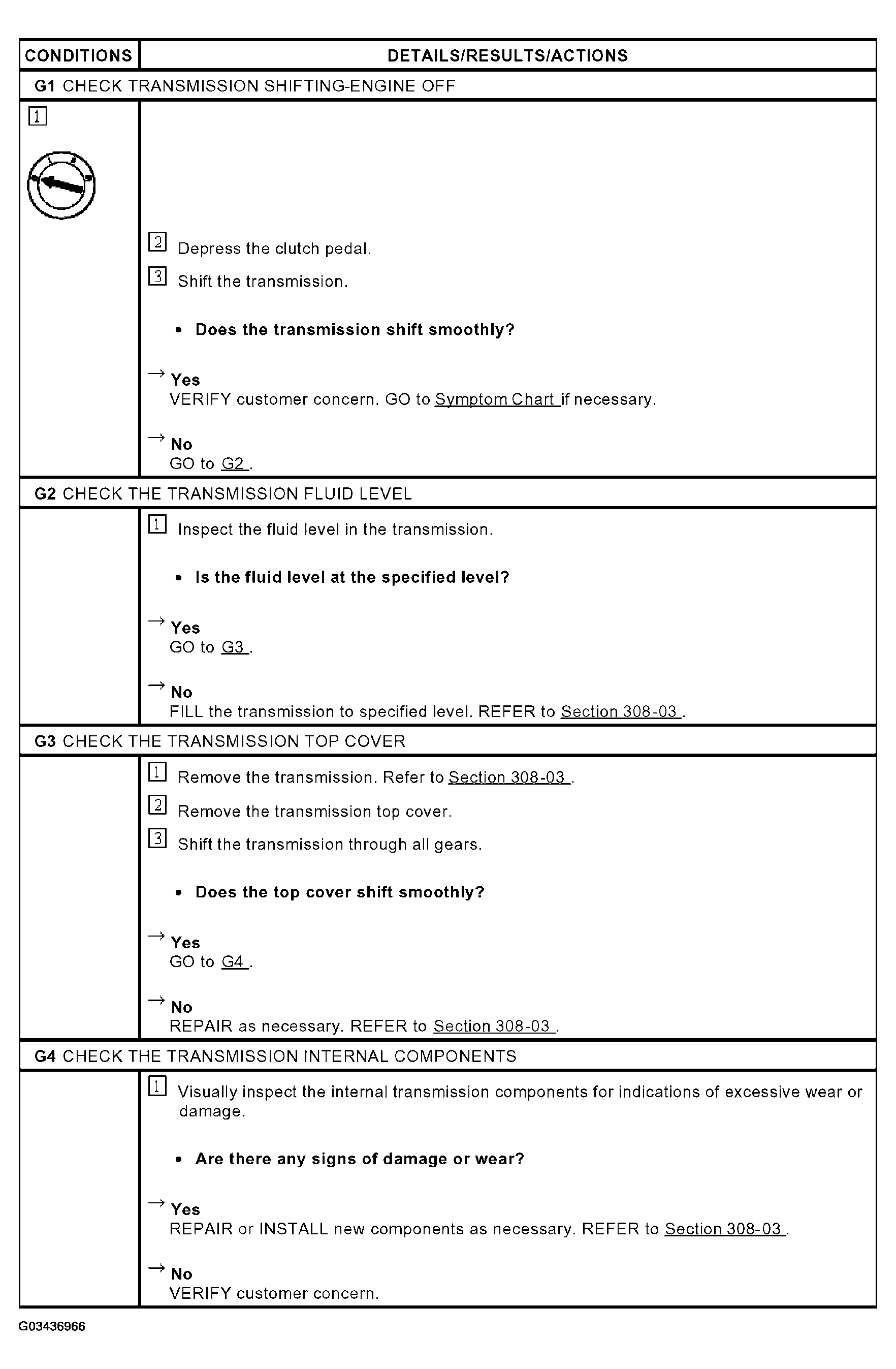

Fig 1: Pinpoint Test G: Binding - Difficult Shift Lever Movement
G03436966Courtesy of FORD MOTOR CO.
