Pinpoint Test D: Clutch Drag

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

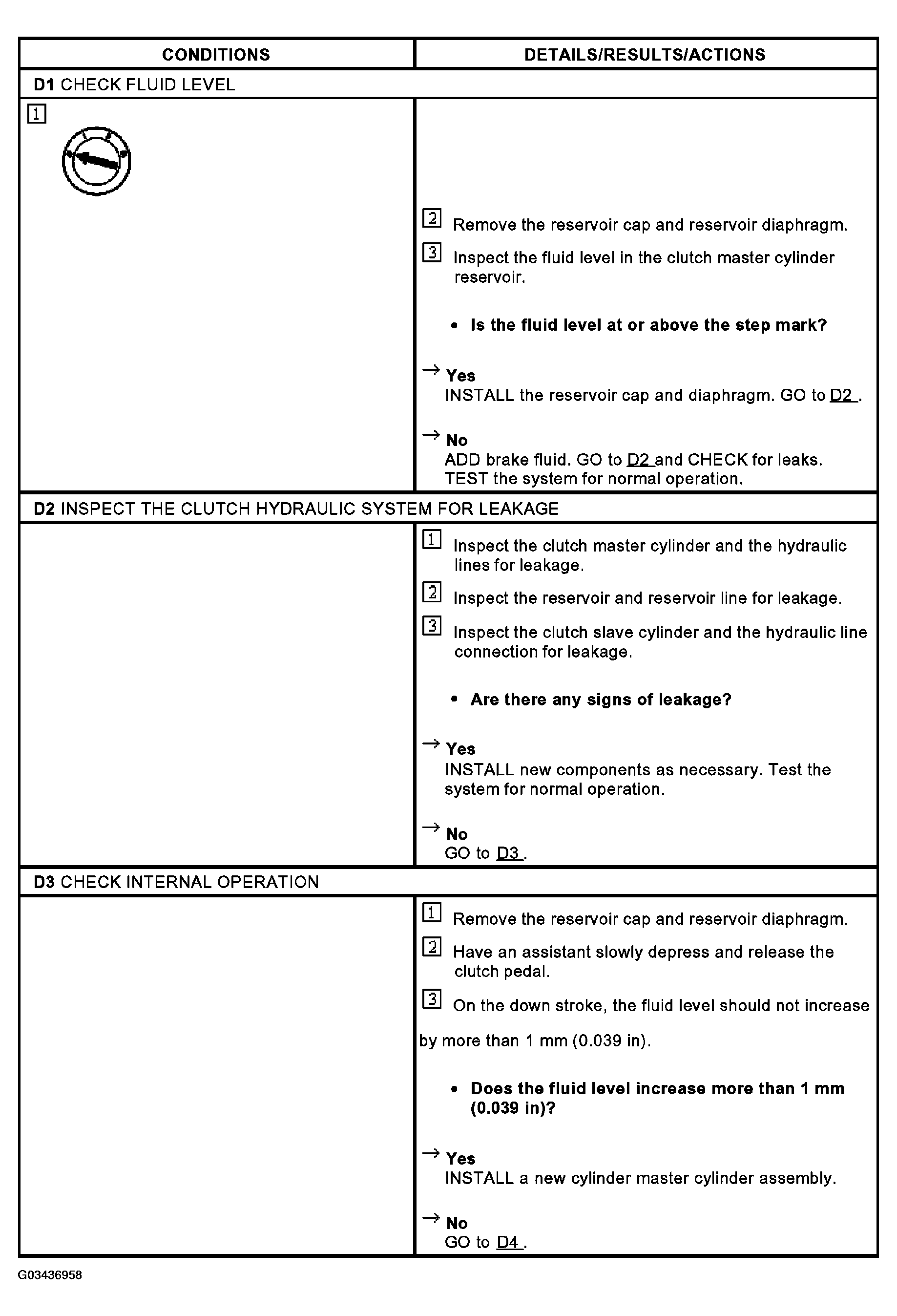

Fig 1: Pinpoint Test D: Clutch Drag (D1-D3)

Courtesy of FORD MOTOR CO.

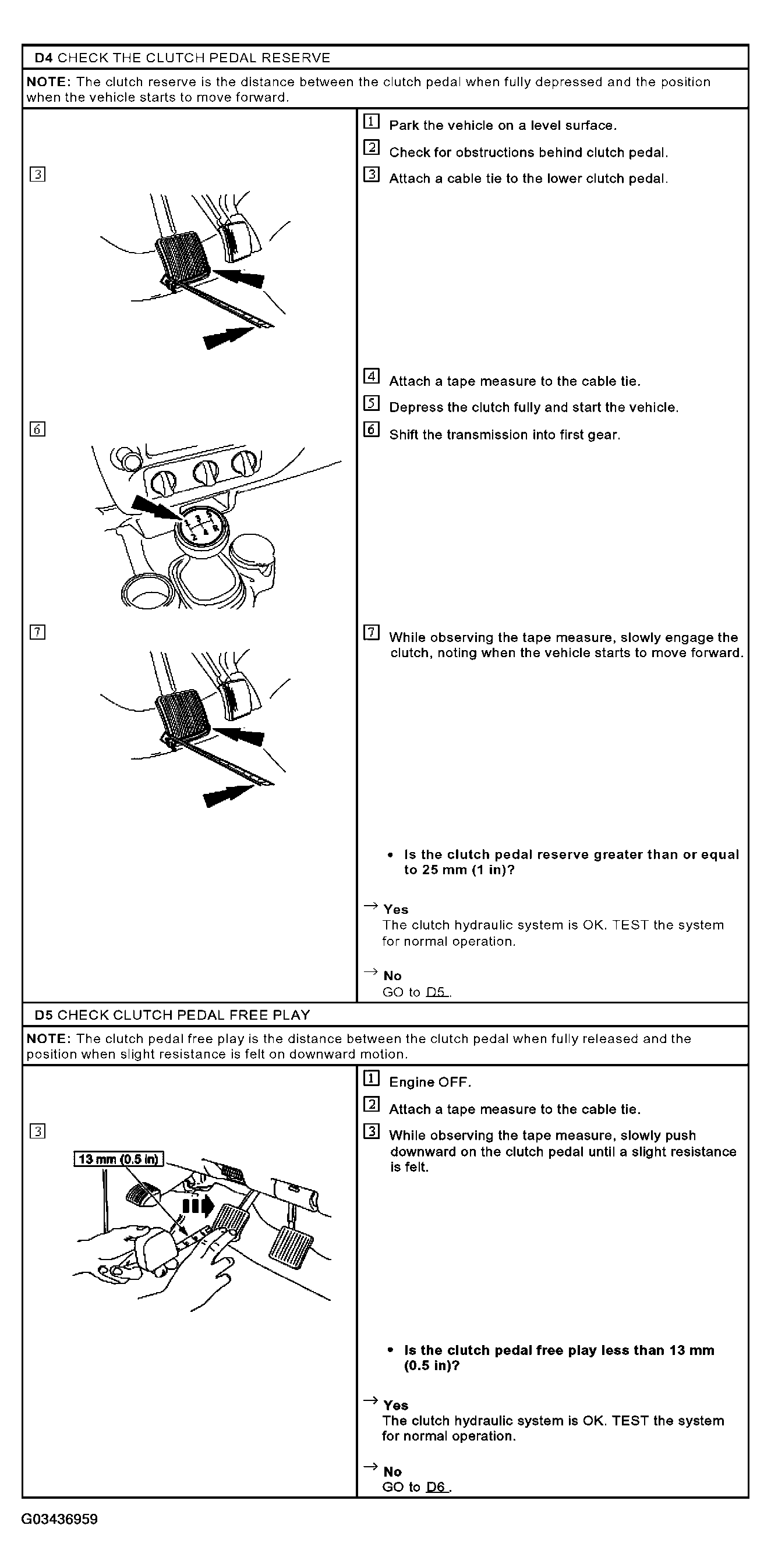

Fig 2: Pinpoint Test D: Clutch Drag (D4-D5)

Courtesy of FORD MOTOR CO.

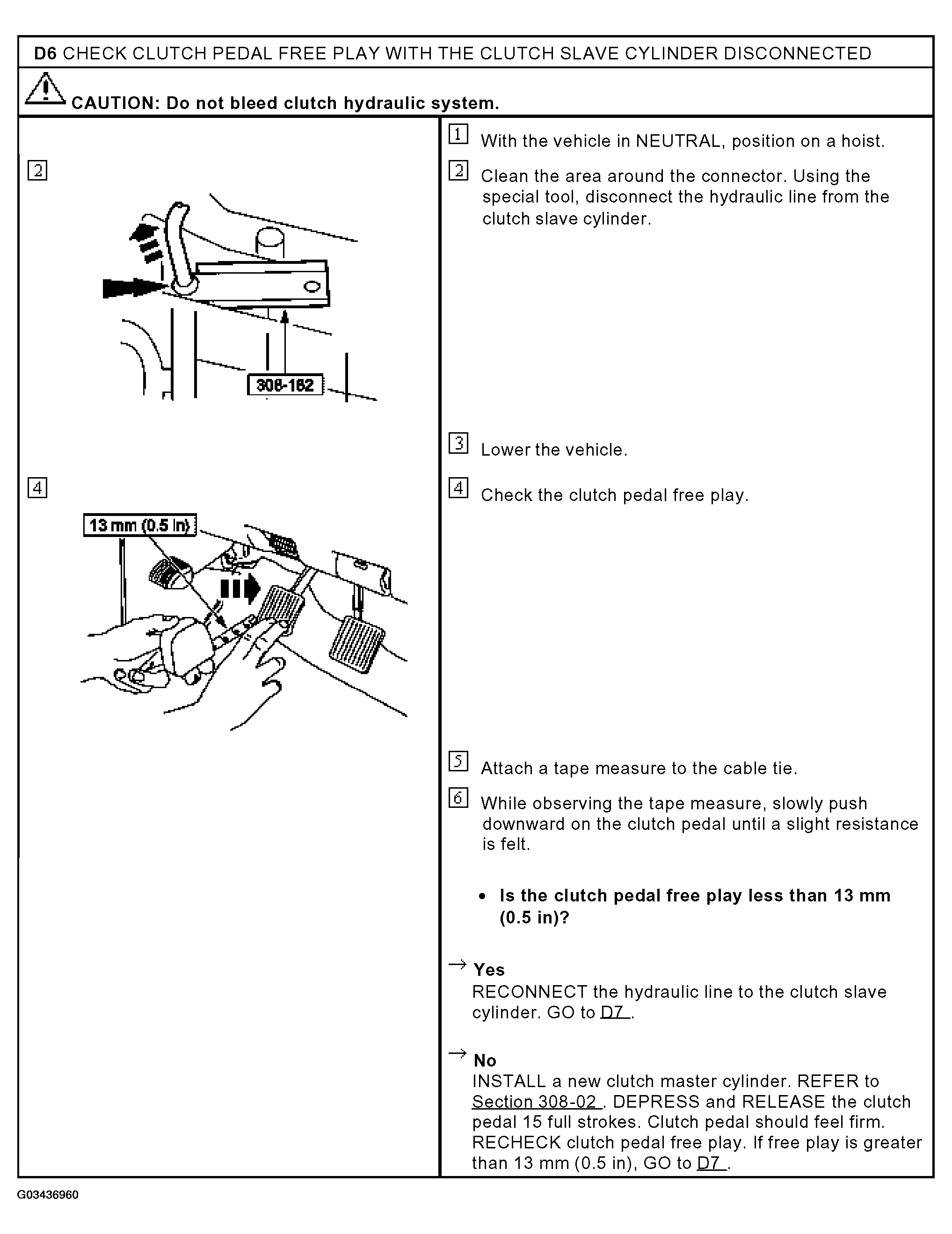

Fig 3: Pinpoint Test D: Clutch Drag (D6)

Courtesy of FORD MOTOR CO.

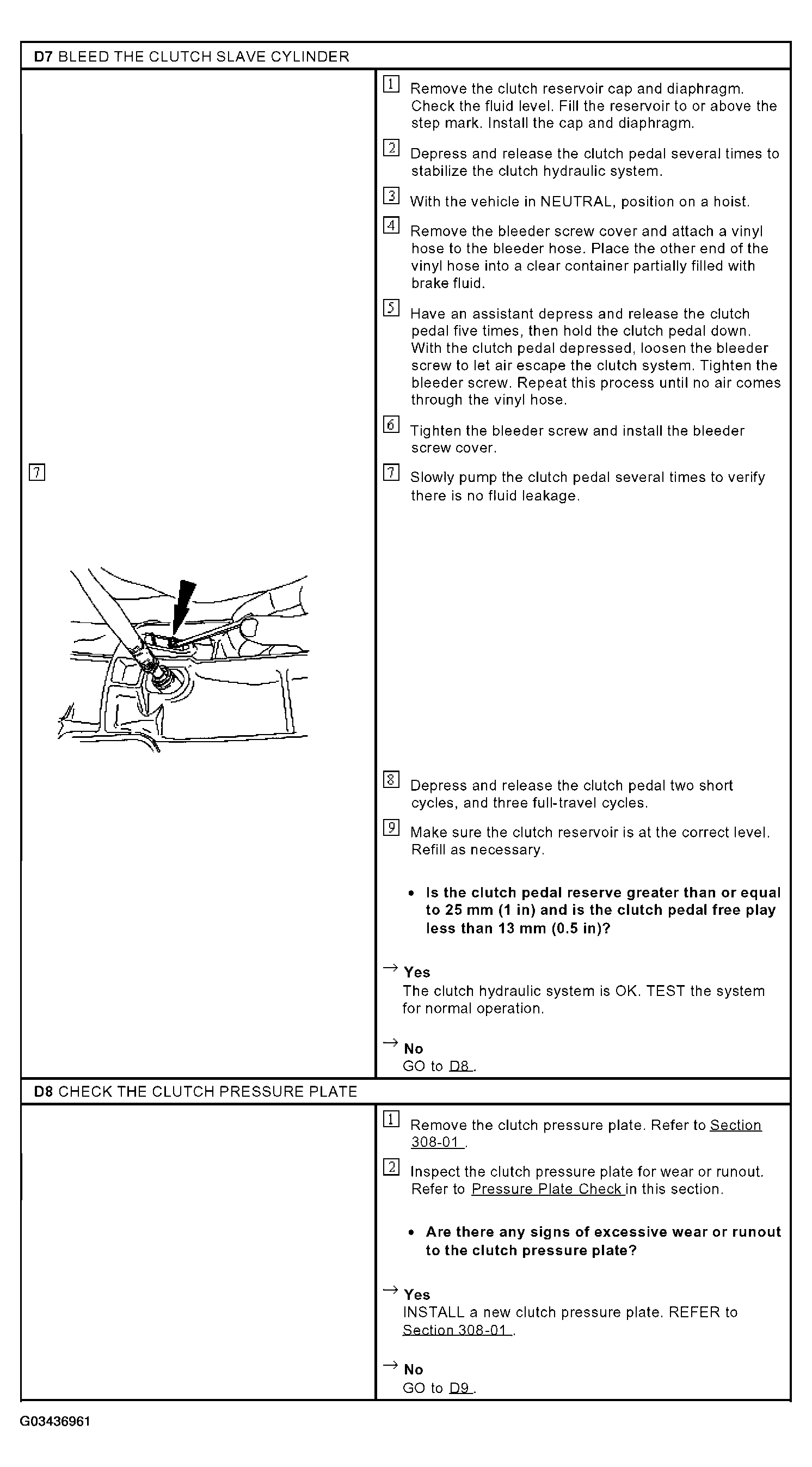

Fig 4: Pinpoint Test D: Clutch Drag (D7-D8)

Courtesy of FORD MOTOR CO.

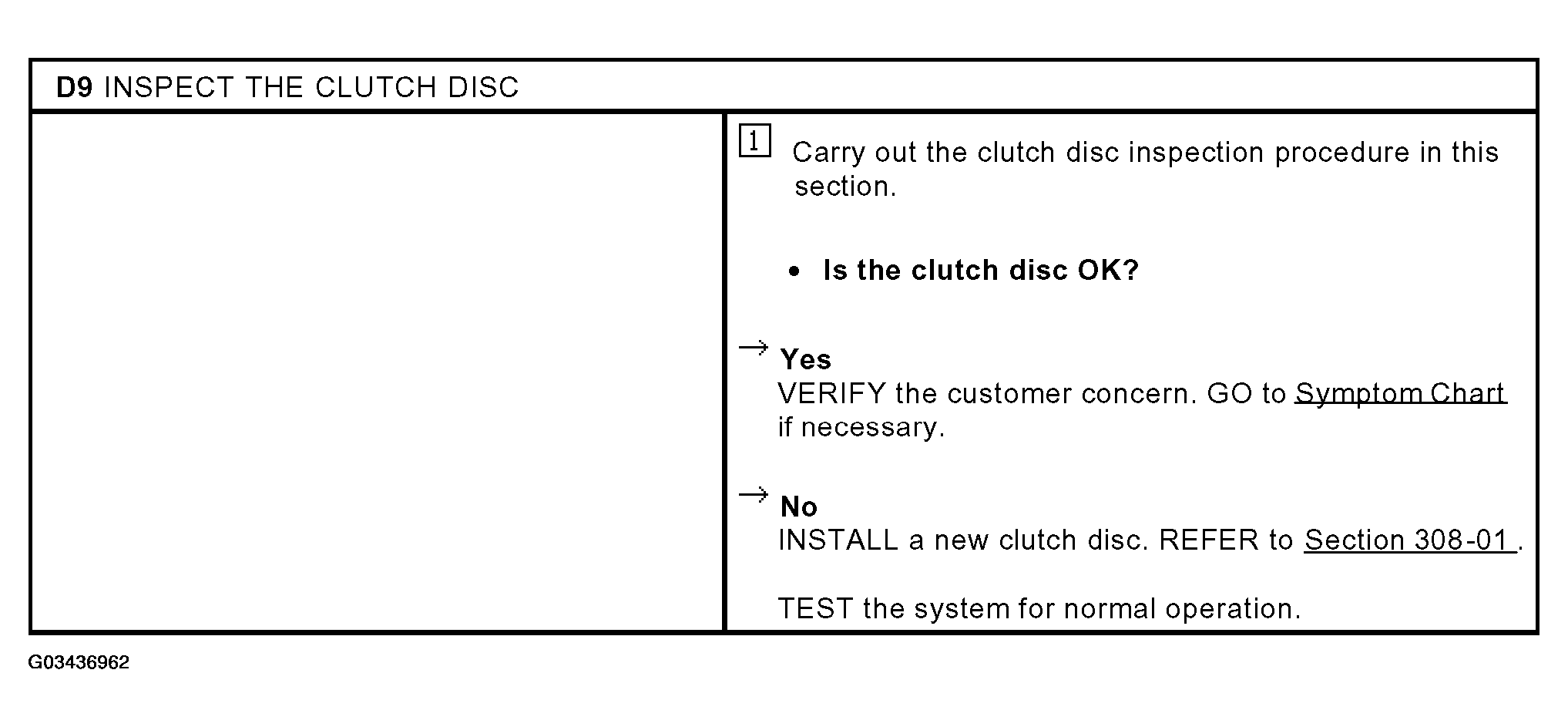

Fig 5: Pinpoint Test D: Clutch Drag (D9)

Courtesy of FORD MOTOR CO.
