Water Pump - 3.0L: Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump.

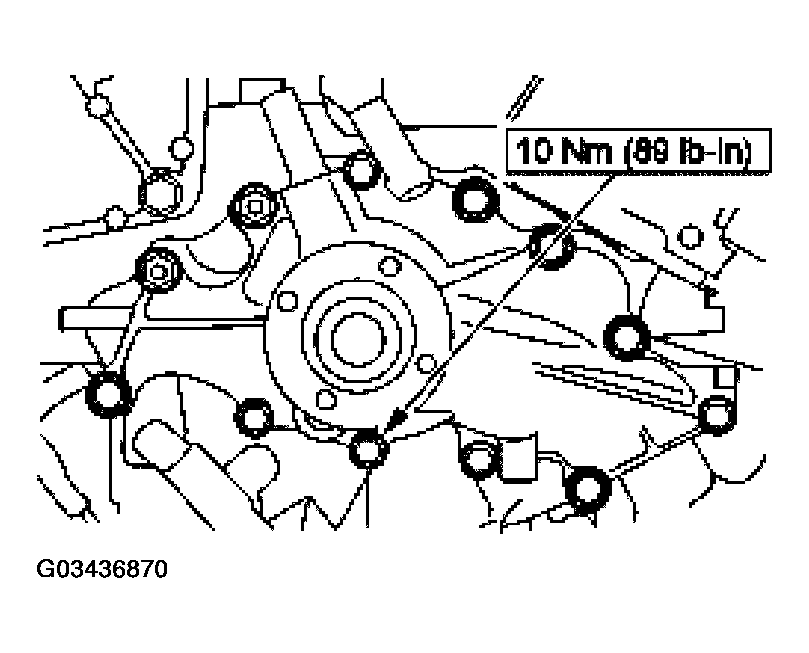

    Fig 1: Installing Water Pump
    G03436870Courtesy of FORD MOTOR CO.
  2. Install the A/C compressor mounting bracket.

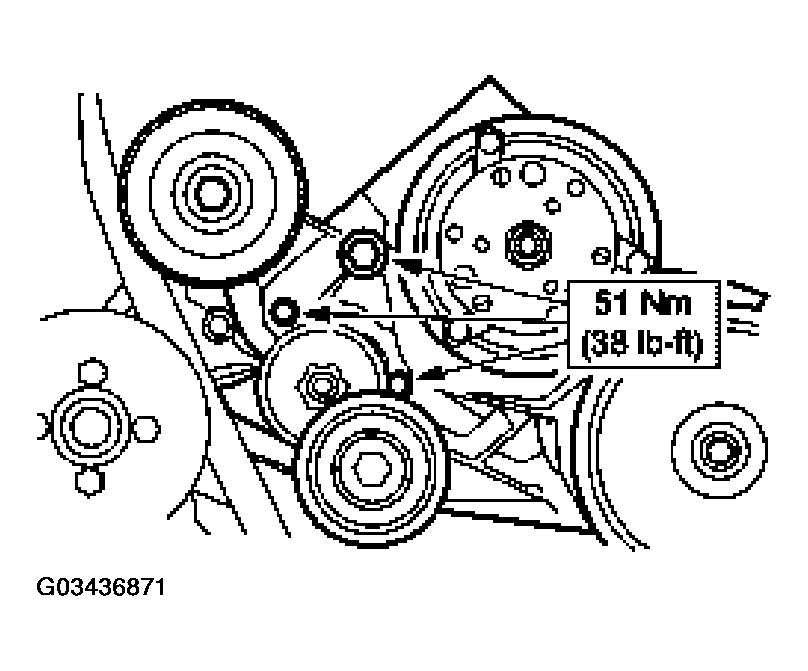

    Fig 2: Installing A/C Compressor Mounting Bracket
    G03436871Courtesy of FORD MOTOR CO.
  3. Install the A/C compressor.
    Fig 3: Installing A/C Compressor
    G03436872Courtesy of FORD MOTOR CO.
  4. Install the water pump pulley.
    Fig 4: Installing Water Pump Pulley
    G03436873Courtesy of FORD MOTOR CO.
  5. Install the accessory drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
  6. Connect the heater hose.

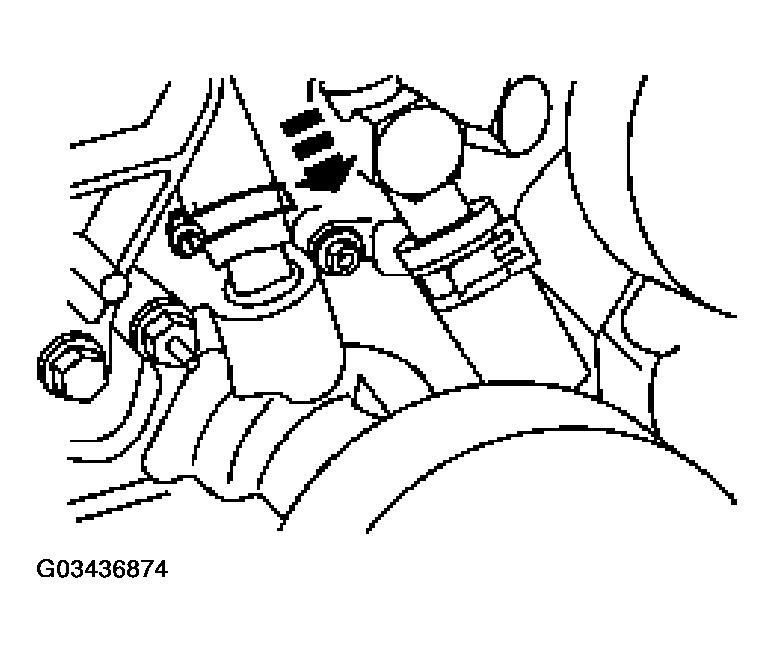

    Fig 5: Connecting Heater Hose
    G03436874Courtesy of FORD MOTOR CO.
  7. Connect the lower radiator hose.
    Fig 6: Connecting Lower Radiator Hose
    G03436875Courtesy of FORD MOTOR CO.
  8. Install the fan blade and fan shroud. For additional information, refer to SHROUD - 3.0L & 4.0L .
  9. Install the air cleaner outlet tube.
  10. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  11. Fill the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING & BLEEDING - 3.0L & 4.0L .
