Removal & Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The thermostat and thermostat housing are serviced as an assembly.

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING & BLEEDING - 2.3L .
Disconnect the hose and the electrical connector.

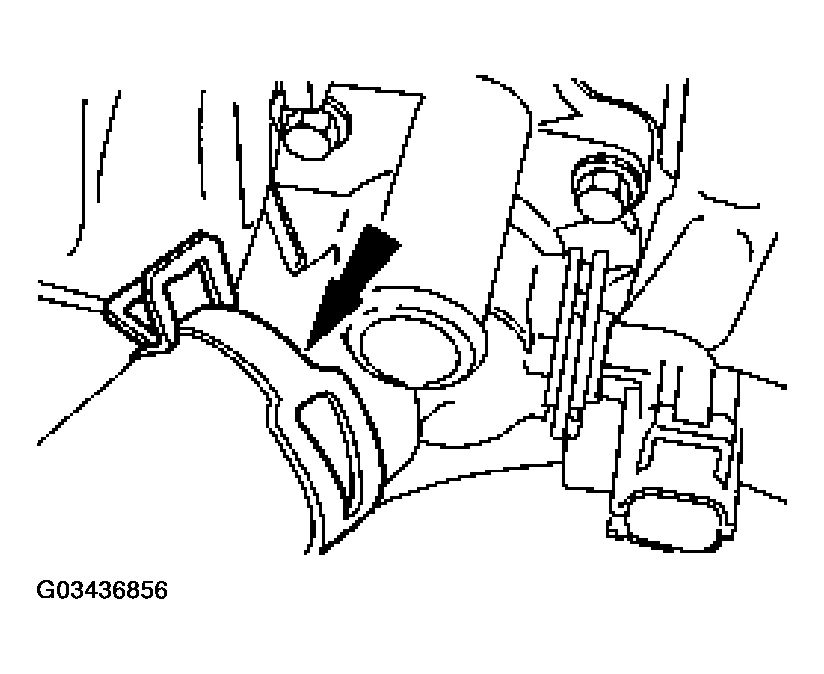

Fig 1: Disconnecting Hose & Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the radiator lower hose.

Fig 2: Disconnecting Radiator Lower Hose
Courtesy of FORD MOTOR CO.
Remove the bolts and the thermostat housing.

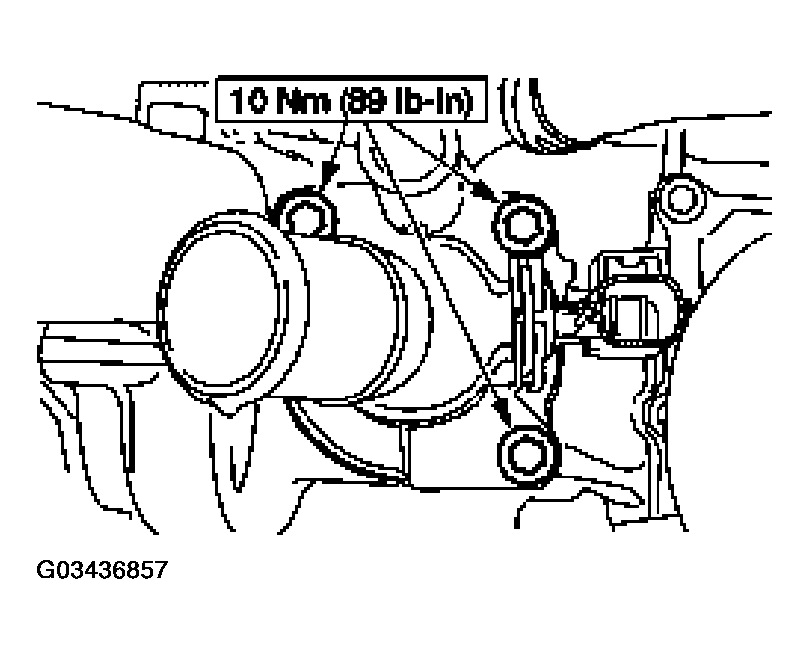

Fig 3: Removing Thermostat Housing Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
