Radiator - 2.3L: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING & BLEEDING - 2.3L .
Disconnect the coolant overflow hose from the radiator, position the hose away from the radiator.

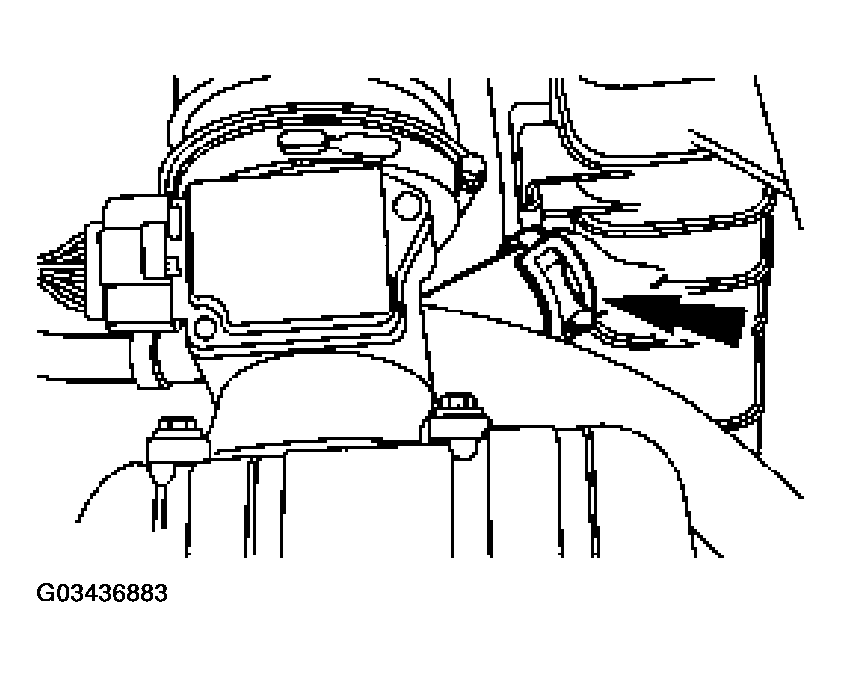

Fig 1: Disconnecting Coolant Overflow Hose From Radiator
Courtesy of FORD MOTOR CO.
Disconnect the upper radiator hose.

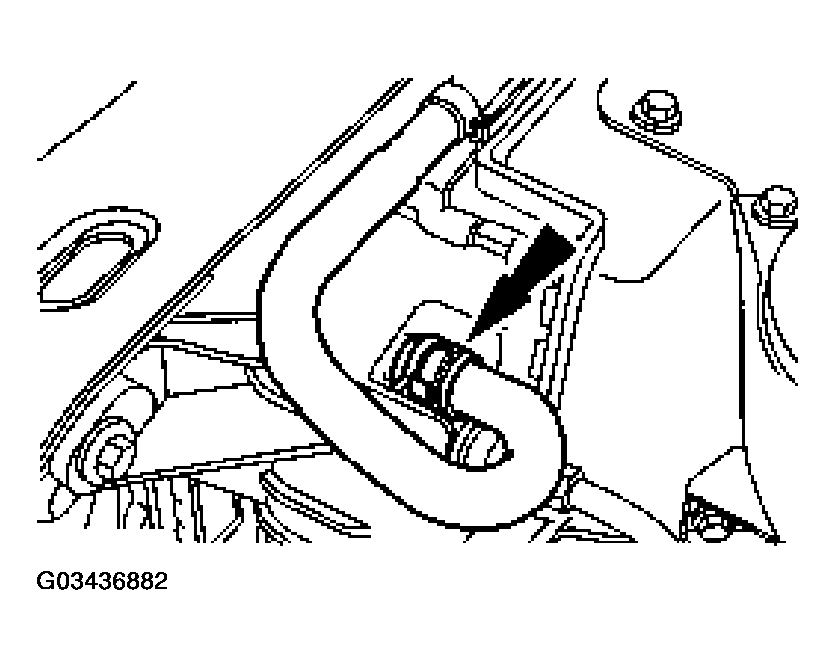

Fig 2: Disconnecting Upper Radiator Hose
Courtesy of FORD MOTOR CO.
Remove the cooling fan and shroud. For additional information, refer to COOLING FAN MOTOR & SHROUD - 2.3L .
Disconnect the lower radiator hose.

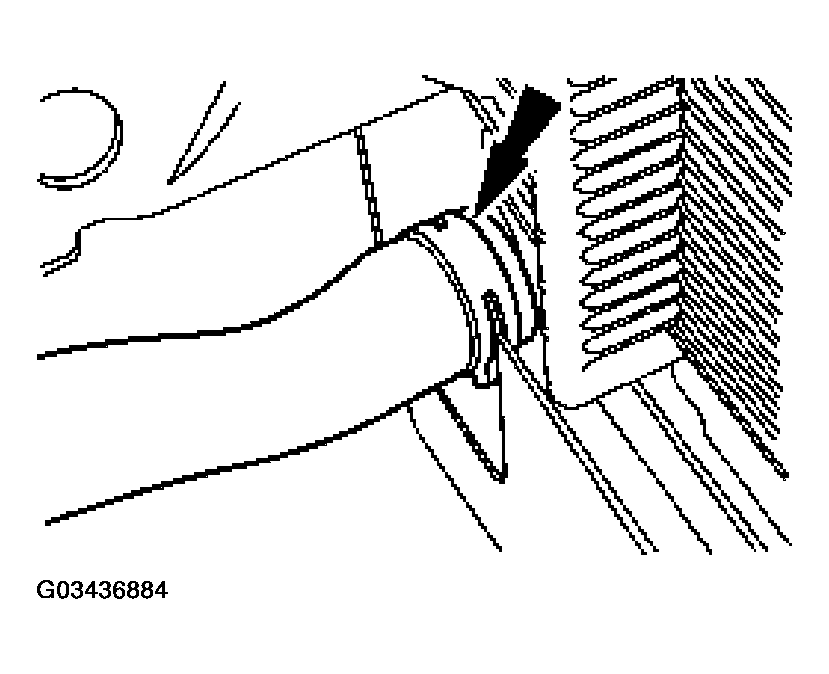

Fig 3: Disconnecting Lower Radiator Hose
Courtesy of FORD MOTOR CO.
Remove the bolts, tilt the radiator back and lift it directly upward.

Fig 4: Removing Radiator
Courtesy of FORD MOTOR CO.
Remove the three pushpins and the plastic cap from the top of the radiator channel.

Fig 5: Removing Plastic Cap From Top Of Radiator Channel
Courtesy of FORD MOTOR CO.
