Coolant Expansion Tank - 3.0L, 4.0L: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner outlet tube.
Disconnect the connector.

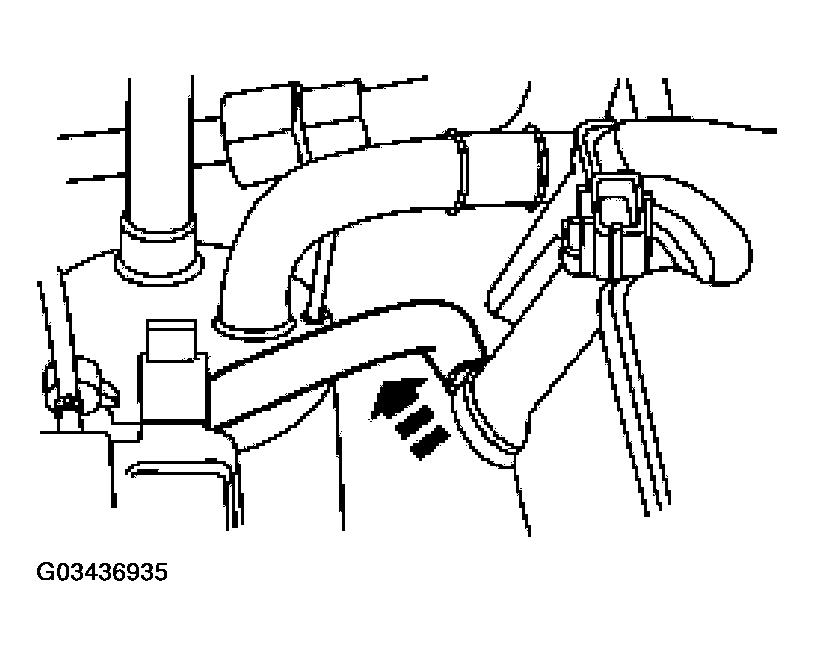

Fig 1: Disconnecting Connector
Courtesy of FORD MOTOR CO.
Disconnect the overflow hose at the radiator coolant recovery reservoir (8A080) and drain coolant from the radiator coolant recovery reservoir.

Fig 2: Disconnecting Radiator Coolant Recovery Reservoir Overflow Hose
Courtesy of FORD MOTOR CO.
Remove the two nuts and two bolts.

Fig 3: Removing Coolant Recovery Reservoir Nuts & Bolts
Courtesy of FORD MOTOR CO.
Disconnect the washer motor hose.

Fig 4: Disconnecting Washer Motor Hose
Courtesy of FORD MOTOR CO.
Remove the radiator coolant recovery reservoir.

Fig 5: Removing Radiator Coolant Recovery Reservoir
Courtesy of FORD MOTOR CO.
