Block Heater: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING & BLEEDING - 2.3L  or COOLING SYSTEM DRAINING, FILLING & BLEEDING - 3.0L & 4.0L .
  2. Raise and support the vehicle.
    3. NOTE: 2.3L block heater is the screw in type.

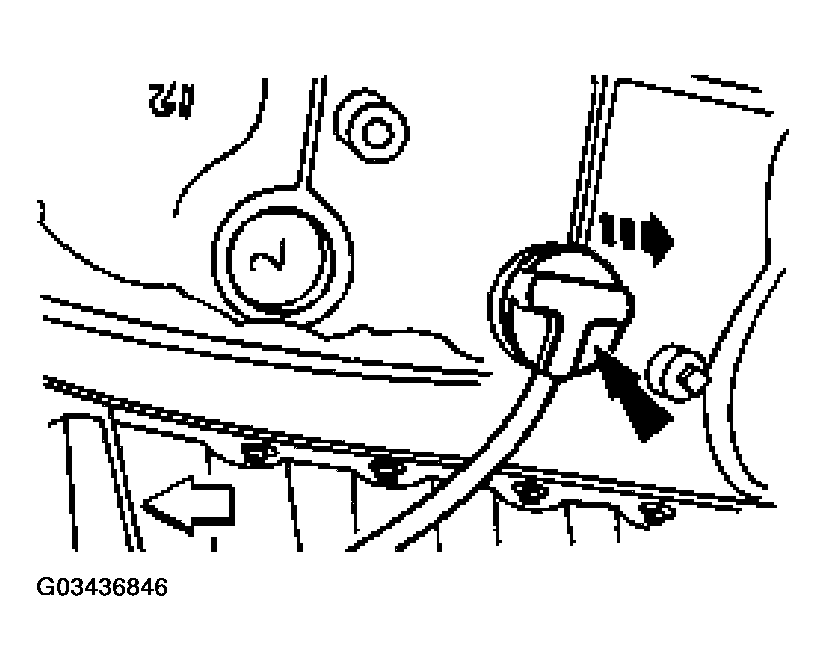

    Fig 1: Disconnecting Block Heater Connector
    G03436846Courtesy of FORD MOTOR CO.
  3. Disconnect the connector.
  4. Remove the block heater (6A051).
      NOTE: Do not loosen the screw more than necessary for removal.
    1. Loosen the screw.
    2. Twist and slide the block heater to release the retainer clip and discard the retainer clip.
    3. Remove the block heater.

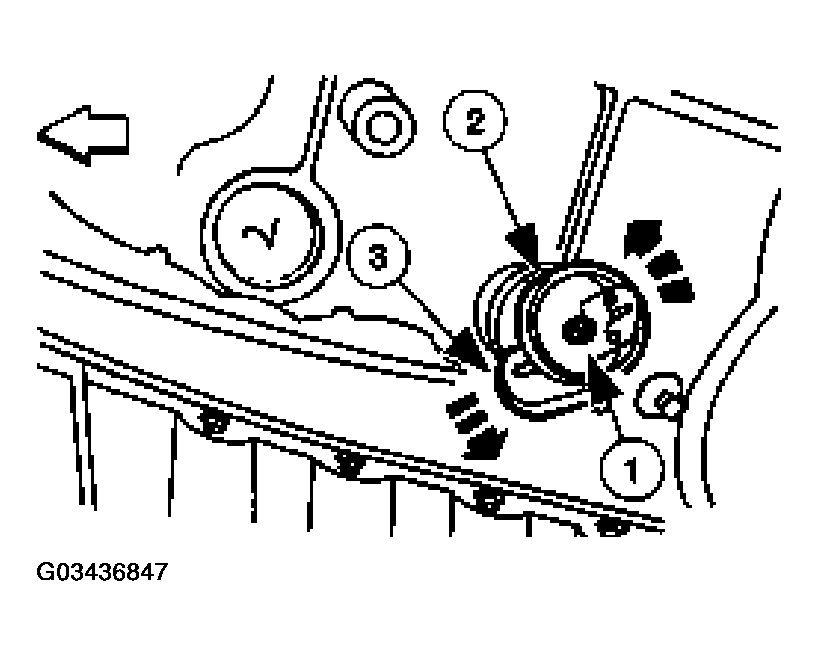

    Fig 2: Removing Block Heater
    G03436847Courtesy of FORD MOTOR CO.
