WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

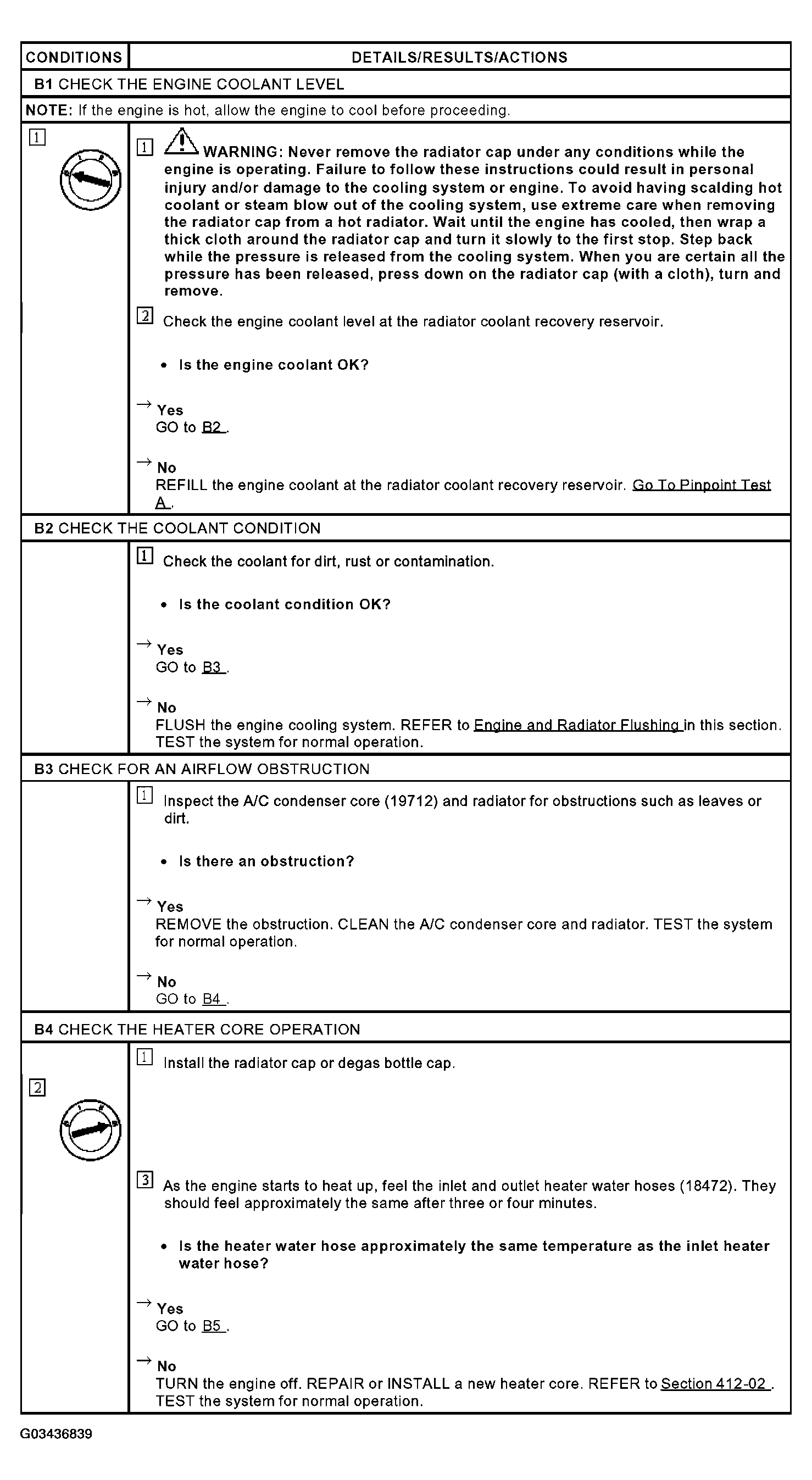

Fig 1: Pinpoint Test B: The Engine Overheats (1 Of 2)
Courtesy of FORD MOTOR CO.

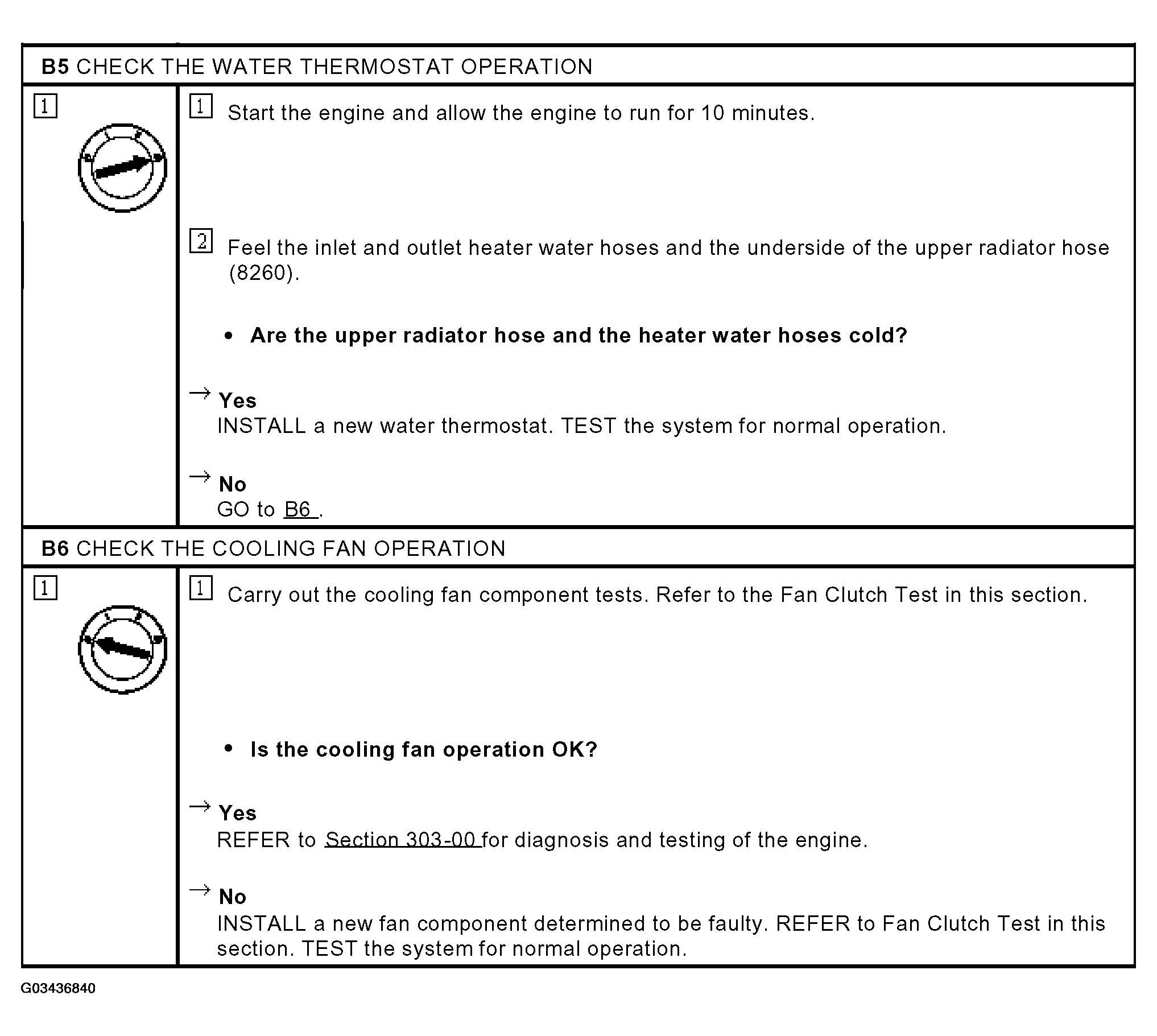

Fig 2: Pinpoint Test B: The Engine Overheats (2 Of 2)
