Pinpoint Test A: Loss Of Coolant

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

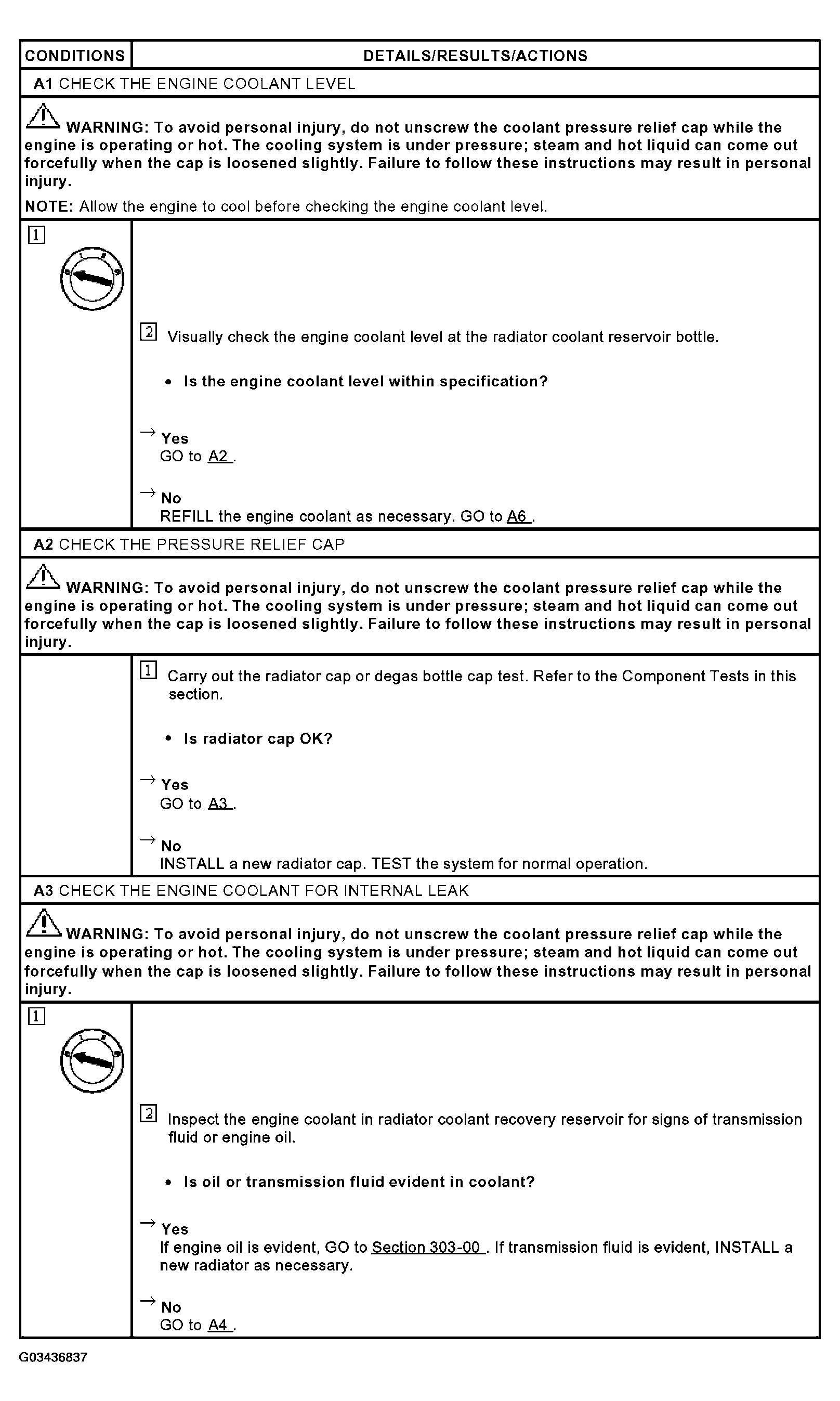

Fig 1: Pinpoint Test A: Loss Of Coolant (1 Of 2)
G03436837Courtesy of FORD MOTOR CO.

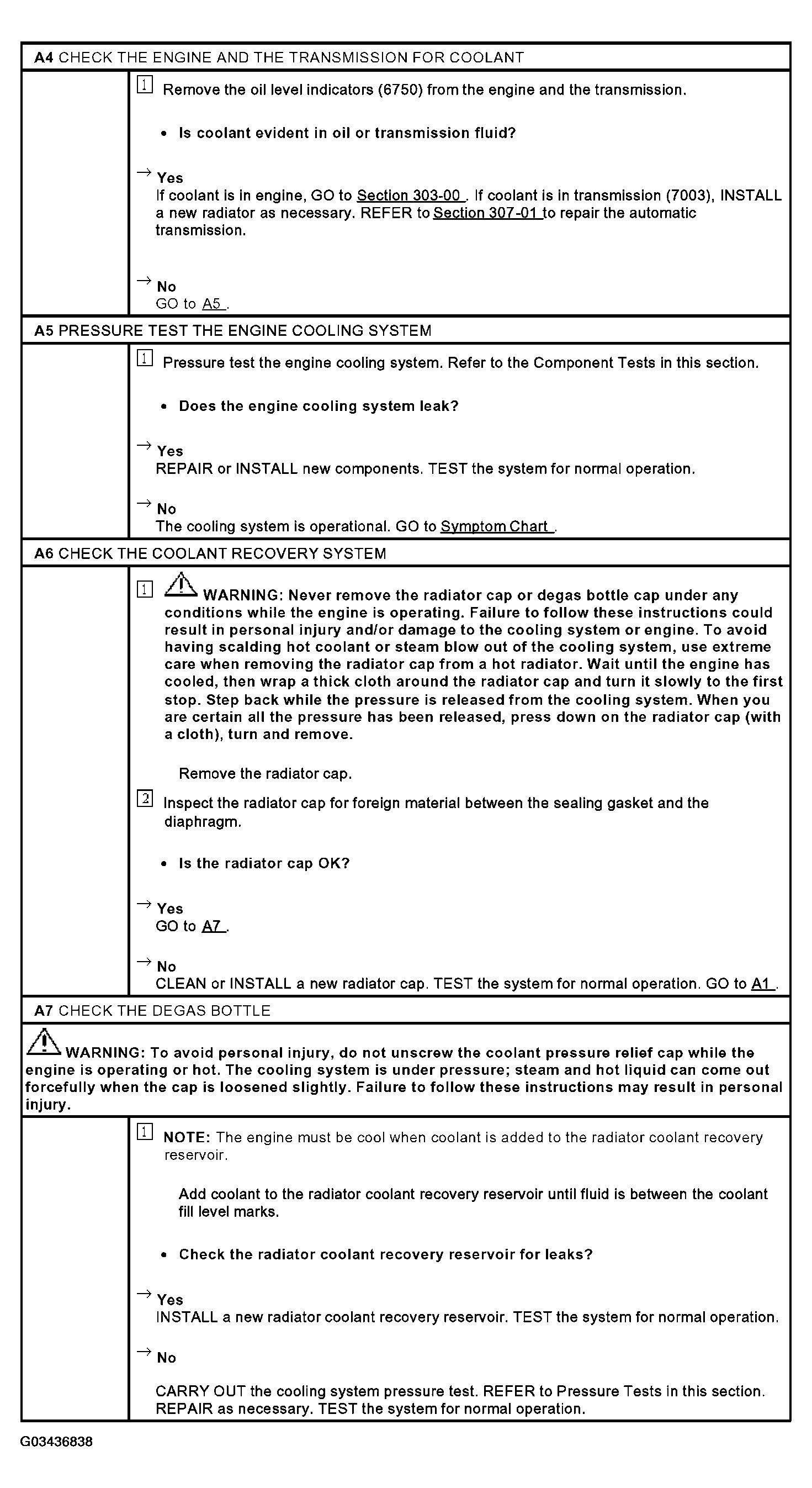

Fig 2: Pinpoint Test A: Loss Of Coolant (2 Of 2)
G03436838Courtesy of FORD MOTOR CO.
