Piston - Ring-To-Groove Clearance

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the piston for ring land damage or accelerated wear.
    Fig 1: Identifying Piston Ring Land
    G03435309Courtesy of FORD MOTOR CO.
  2. Measure the piston ring-to-groove clearance.
    • Refer to appropriate ENGINE article for the procedure.
    • If out of specification, install new components as necessary. Refer to appropriate ENGINE article for the procedure.

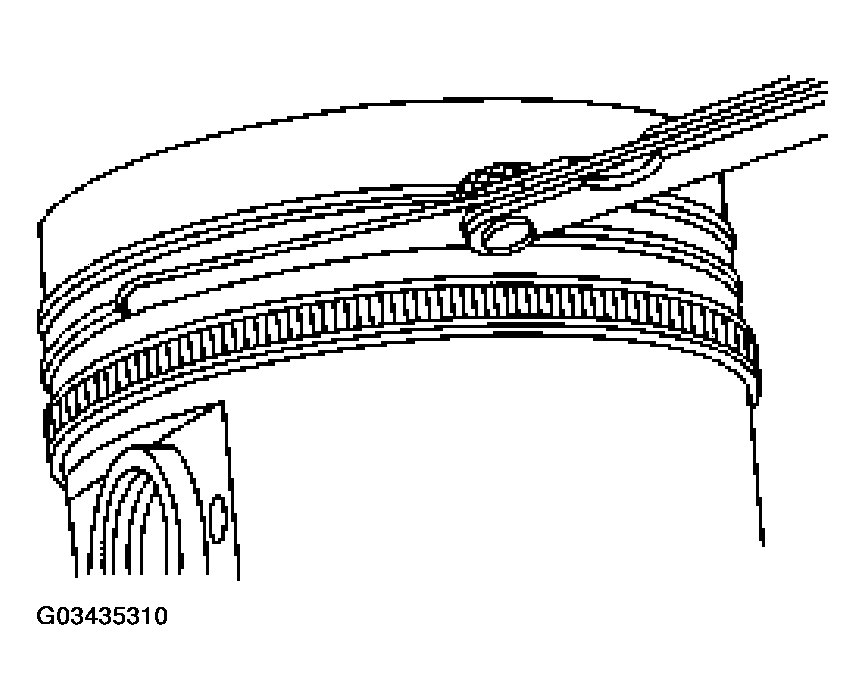

    Fig 2: Measuring Piston Ring-To-Groove Clearance
    G03435310Courtesy of FORD MOTOR CO.
