Crankshaft Main Bearing Journal - Diameter

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure each of the crankshaft main bearing journal diameters in at least two directions.
    • Refer to appropriate ENGINE article for the procedure.
    • If out of specification, install new components as necessary. Refer to appropriate ENGINE article for the procedure.

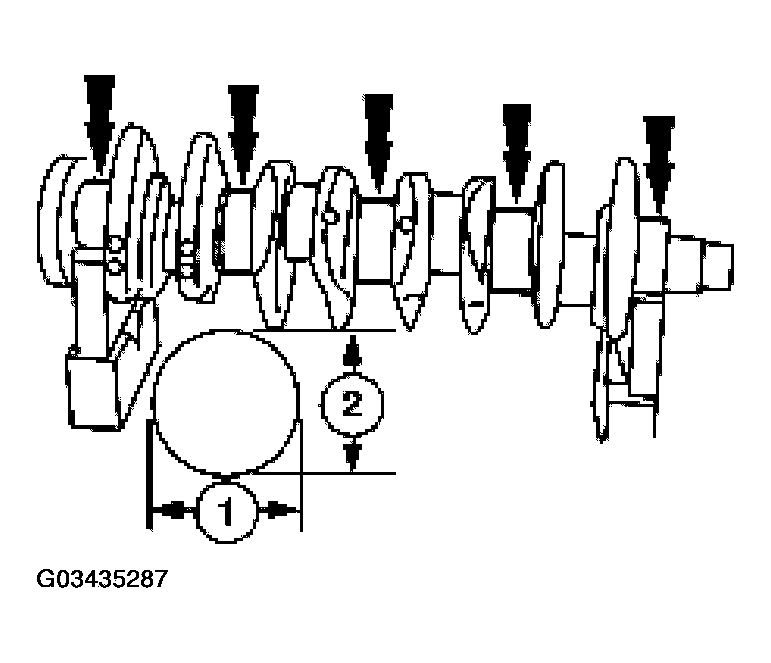

    Fig 1: Measuring Crankshaft Main Bearing Journal Diameter
    G03435287Courtesy of FORD MOTOR CO.
