Connecting Rod - Twist

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the connecting rod twist on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the measurement is within specification.
    • Refer to appropriate ENGINE article for the procedure.
    • If out of specification, install new components as necessary. Refer to appropriate ENGINE article for the procedure.

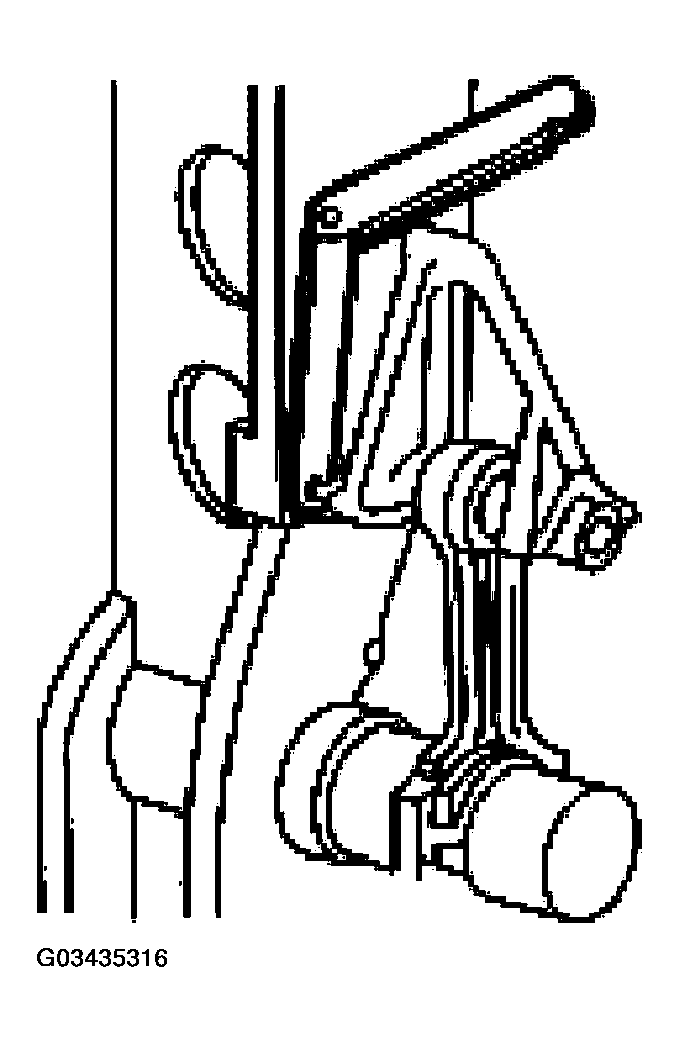

    Fig 1: Measuring Connecting Rod Twist On Alignment Fixture
    G03435316Courtesy of FORD MOTOR CO.
