Connecting Rod - Side Clearance

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the clearance between the connecting rod and the crankshaft. Verify the measurement is within specification.
    • Refer to appropriate ENGINE article for the procedure.
    • If out of specification, install new components as necessary. Refer to appropriate ENGINE article for the procedure.

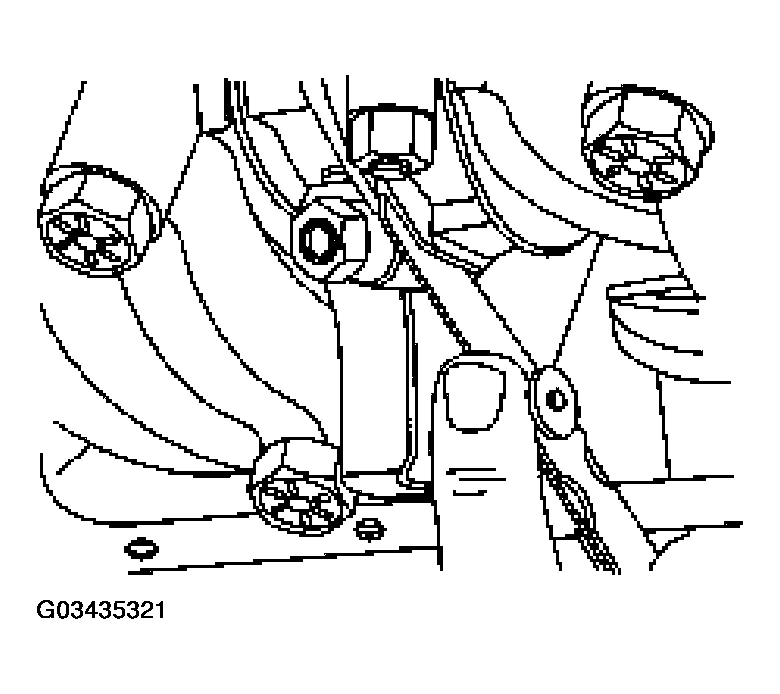

    Fig 1: Measuring Connecting Rod Side Clearance
    G03435321Courtesy of FORD MOTOR CO.
