Special Tool(s)

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Special Tool(s)
G03435278Courtesy of FORD MOTOR CO.
  1. Remove the valve tappets. Refer to appropriate ENGINE article for the procedure.
  2. Use a Dial Indicator Gauge with Holding Fixture to measure camshaft end play.
  3. Position the camshaft to the rear of the cylinder block.
  4. Zero the indicator.
  5. Move the camshaft to the front of the cylinder block. Note and record the camshaft end play.
    • If the camshaft end play exceeds specifications, install a new camshaft thrust plate. Refer to appropriate ENGINE article for the procedure.

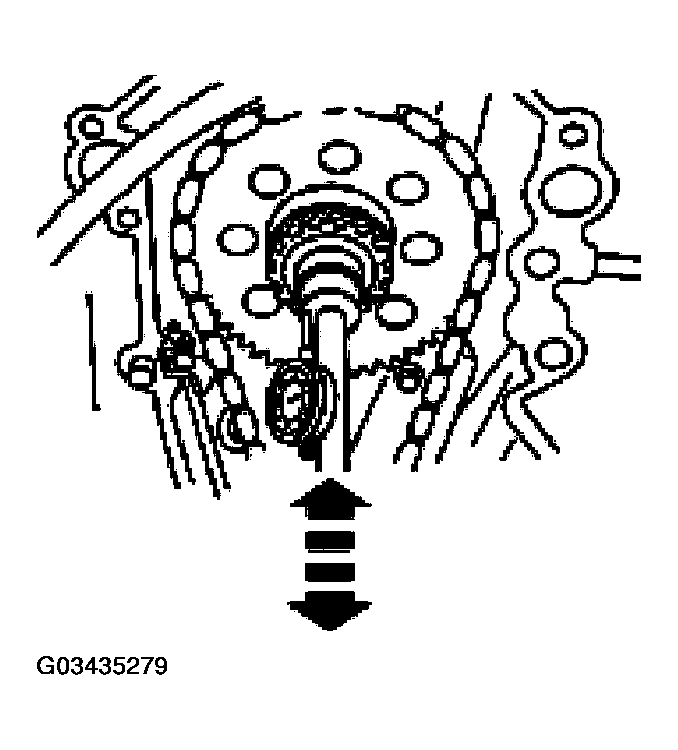

    Fig 2: Checking Camshaft End Play (Push Rod Engines)
    G03435279Courtesy of FORD MOTOR CO.
