Special Tool(s)

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Special Tool(s)
G03435280Courtesy of FORD MOTOR CO.
  1. Use a Dial Indicator Gauge with Holding Fixture to measure camshaft end play.
  2. Position the camshaft to the rear of the cylinder head.
  3. Zero the indicator.
  4. Move the camshaft to the front of the cylinder head. Note and record the camshaft end play.
    • If camshaft end play exceeds specifications, install new camshaft and recheck end play. Refer to appropriate ENGINE article for the procedure.
    • If camshaft end play exceeds specification after camshaft installation, install a new cylinder head. Refer to appropriate ENGINE article for the procedure.

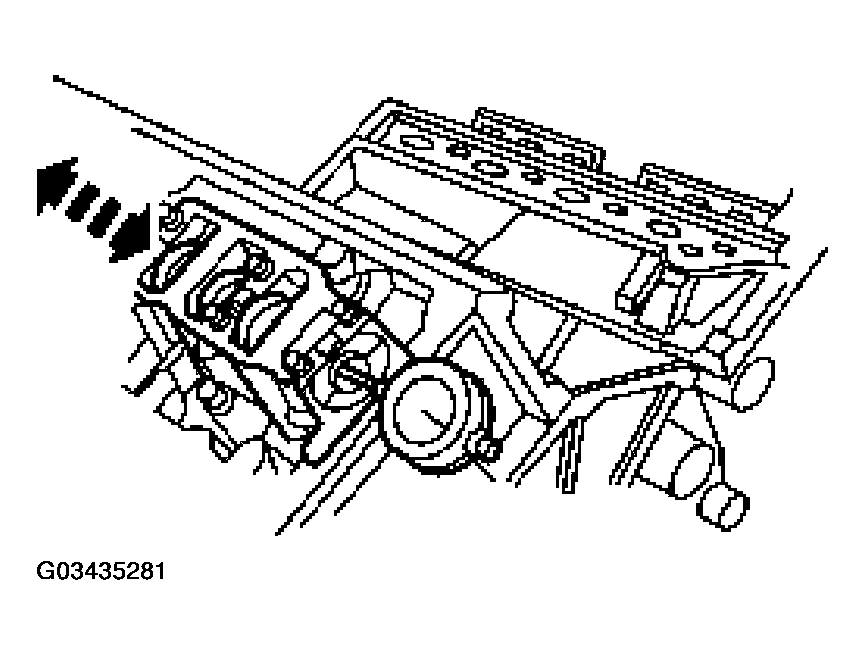

    Fig 2: Checking Camshaft End Play - OHC Engines
    G03435281Courtesy of FORD MOTOR CO.
