Pinpoint Test E: The Ignition Key Is Hard To Turn

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

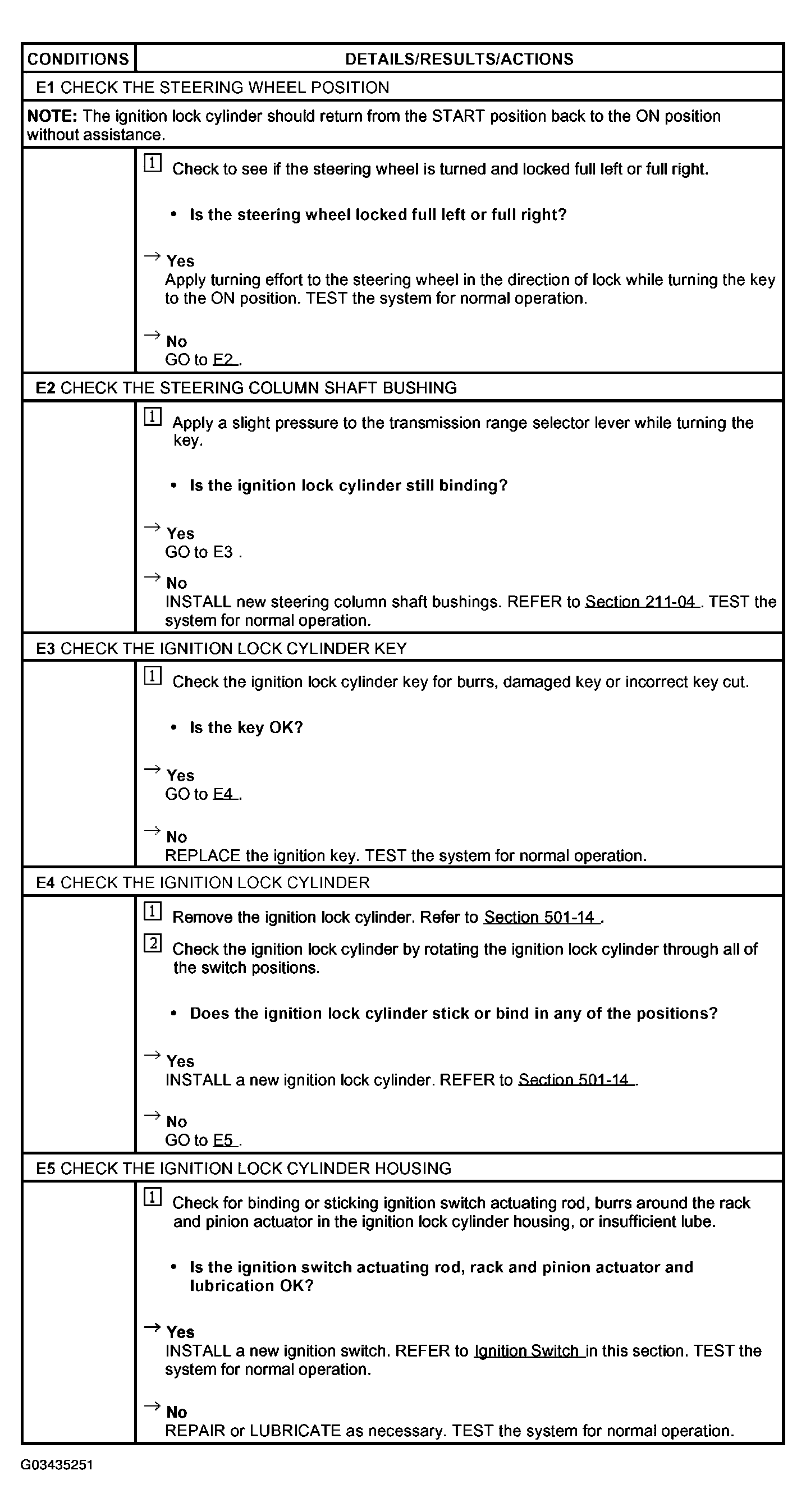

Fig 1: Pinpoint Test E: Ignition Key Is Hard To Turn
G03435251Courtesy of FORD MOTOR CO.
