Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosing procedure, see Fig 1-Fig 5 .

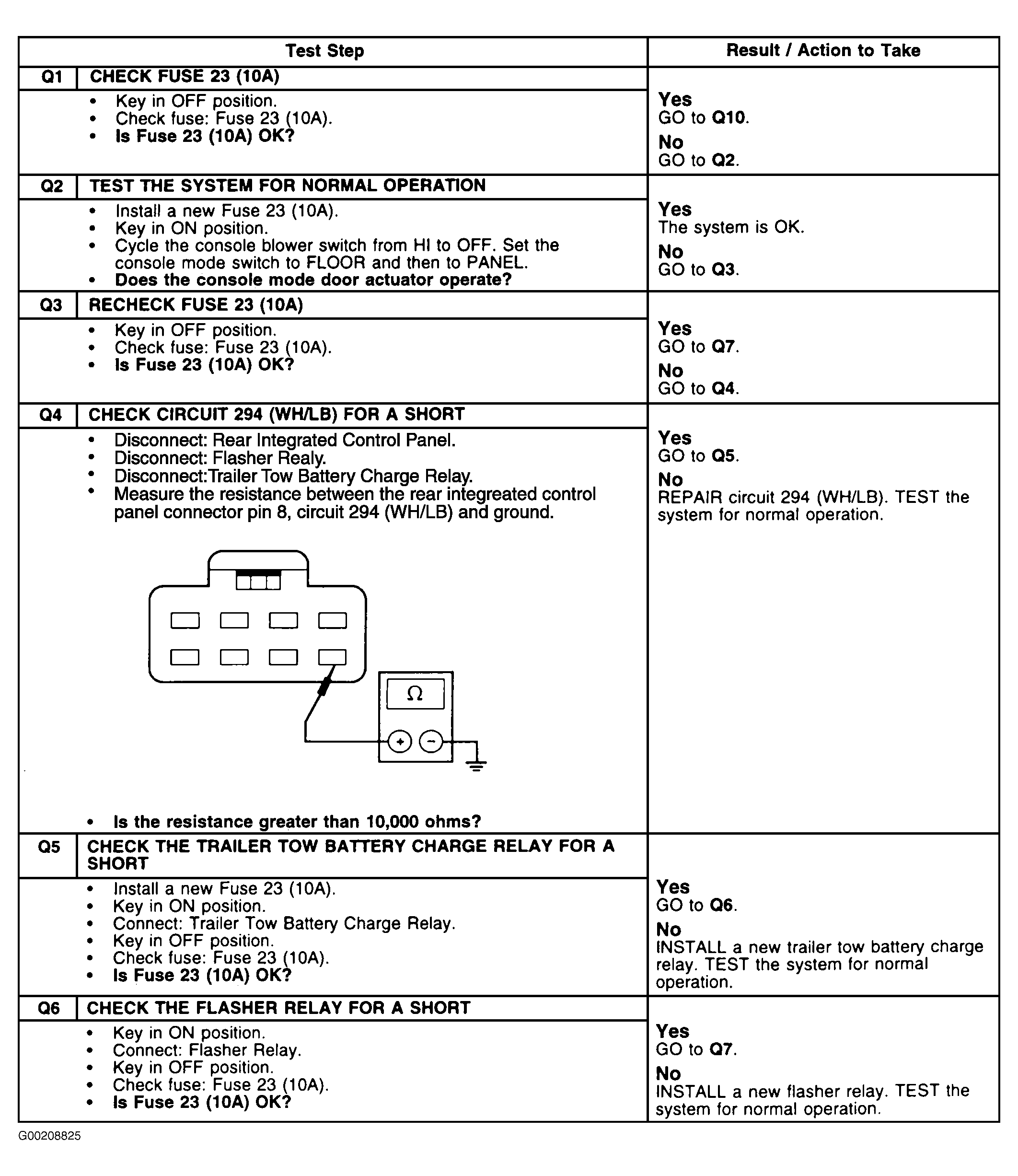

Fig 1: Test Q (1 Of 5 - Step - Steps Q1-Q6)

Courtesy of FORD MOTOR CO.

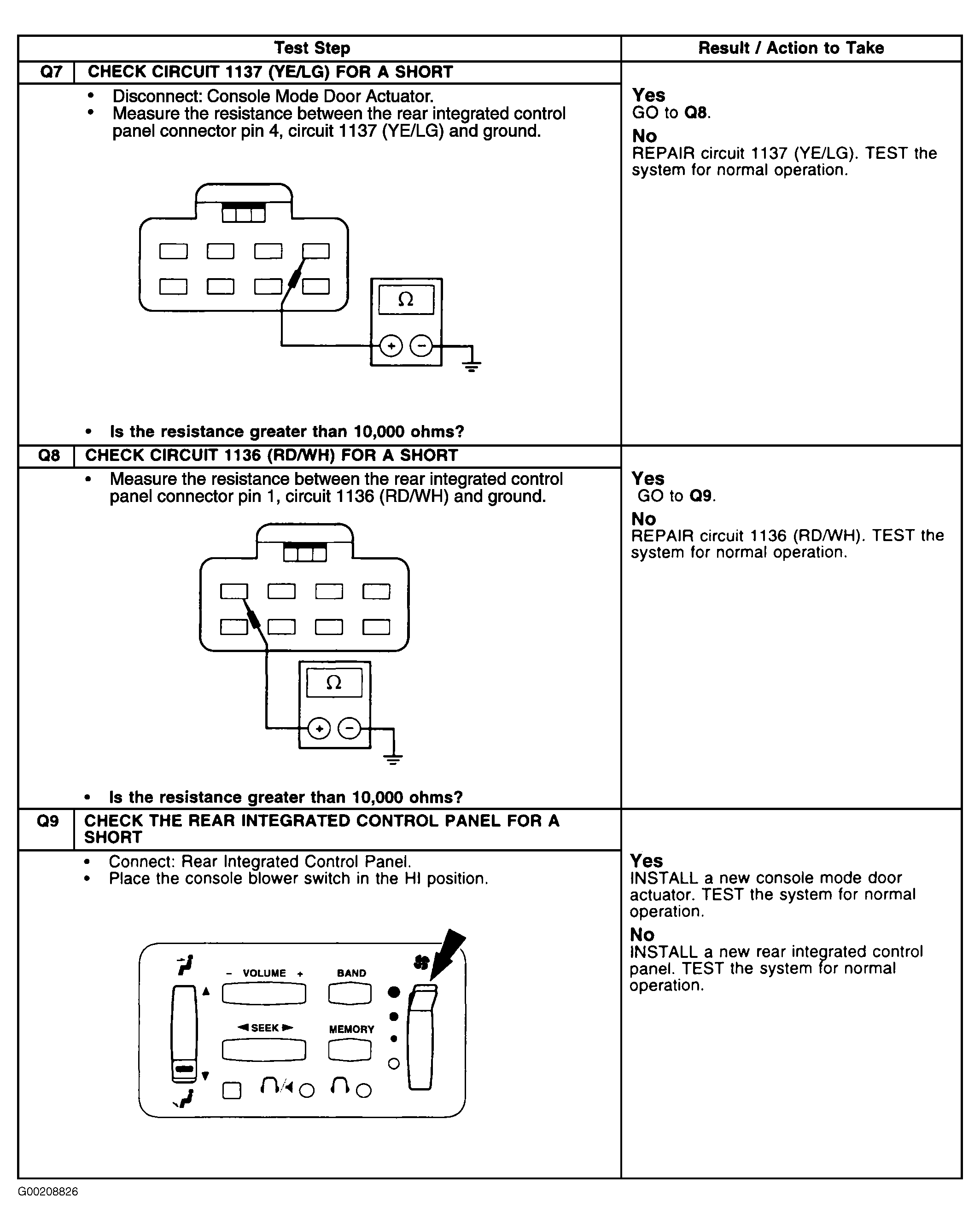

Fig 2: Test Q (2 Of 5 - Steps Q7-Q9)

Courtesy of FORD MOTOR CO.

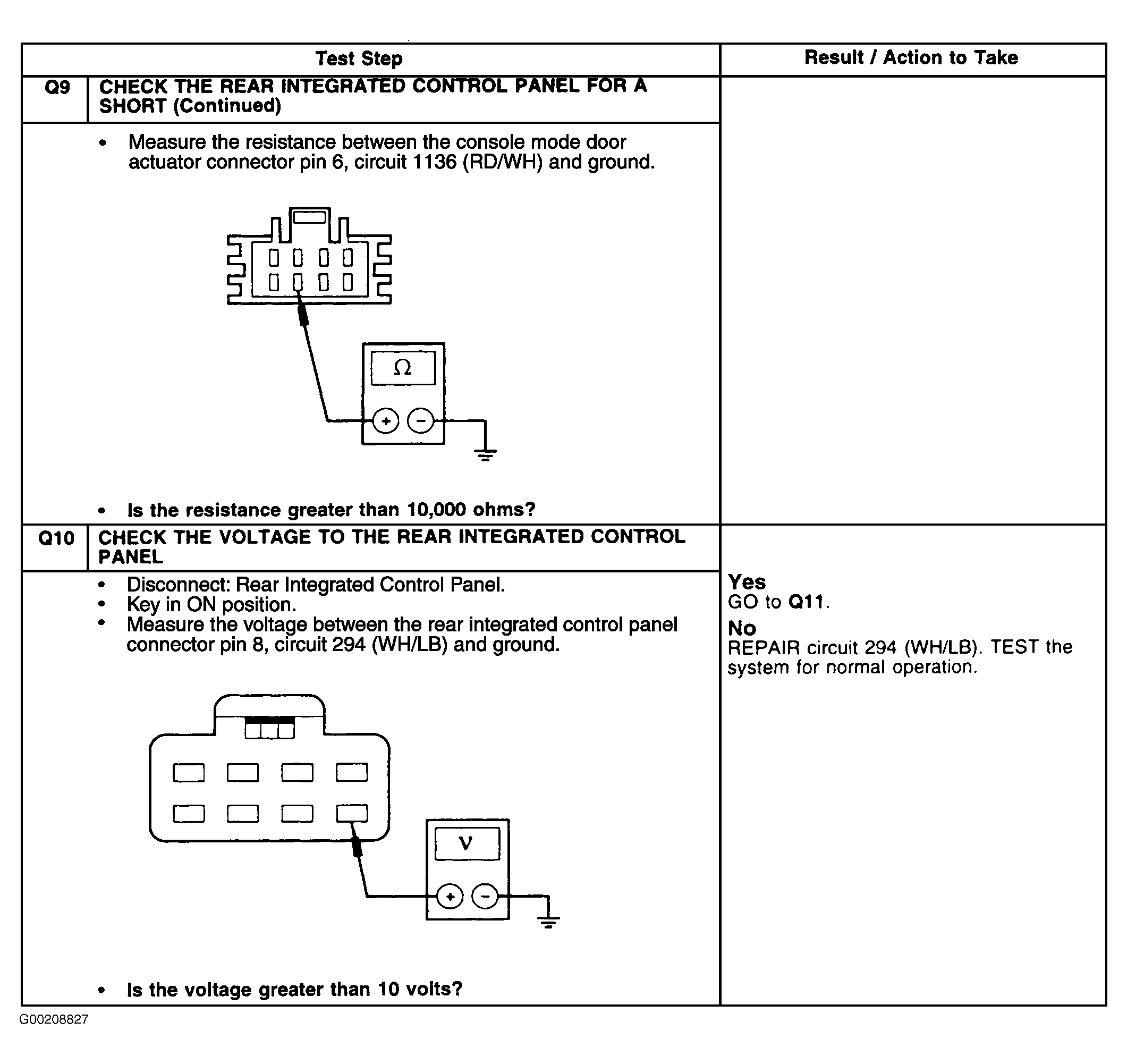

Fig 3: Test Q (3 Of 5 - Steps Q9 Cont.-Q10)

Courtesy of FORD MOTOR CO.

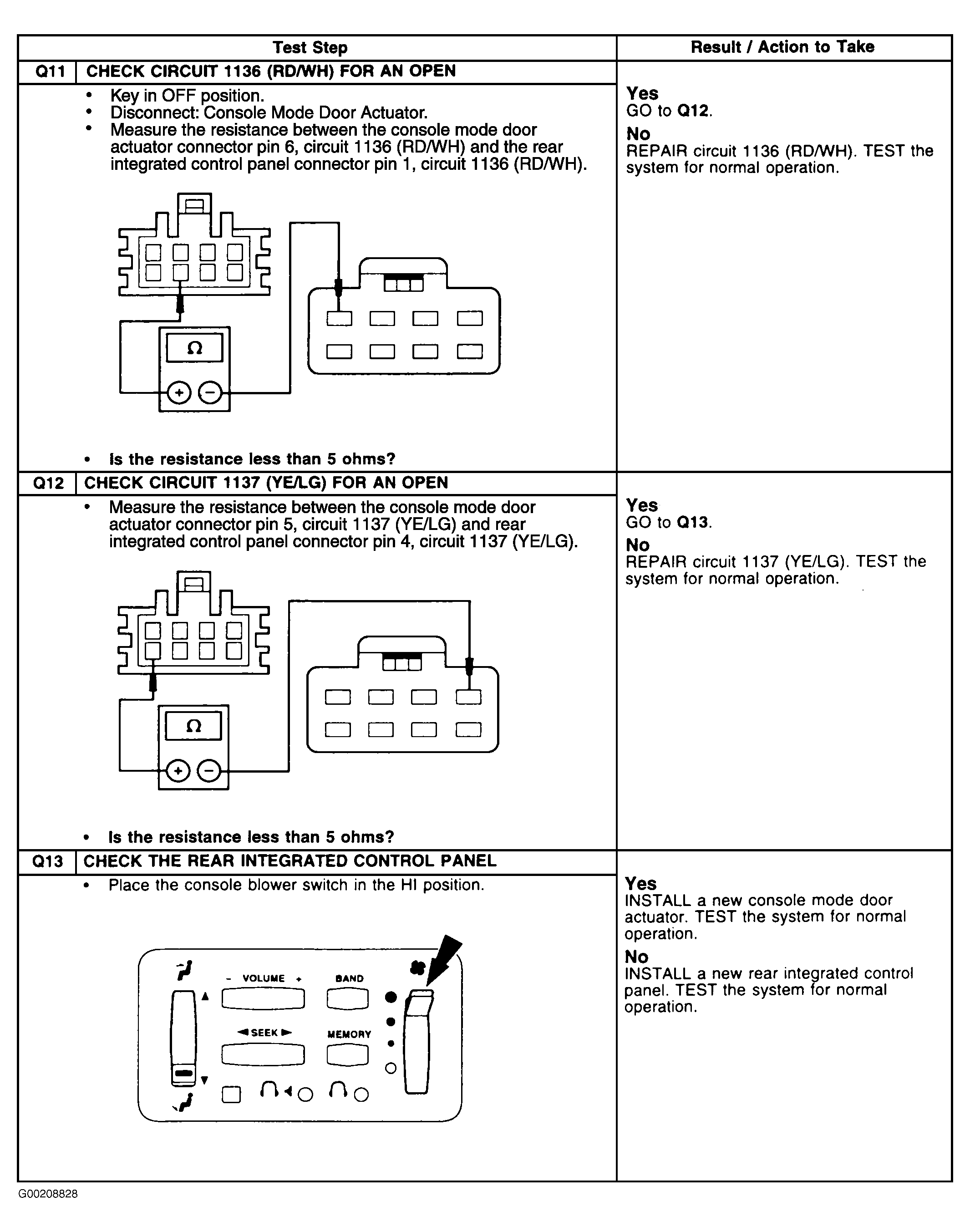

Fig 4: Test Q (4 Of 5 - Steps Q11-Q13)

Courtesy of FORD MOTOR CO.

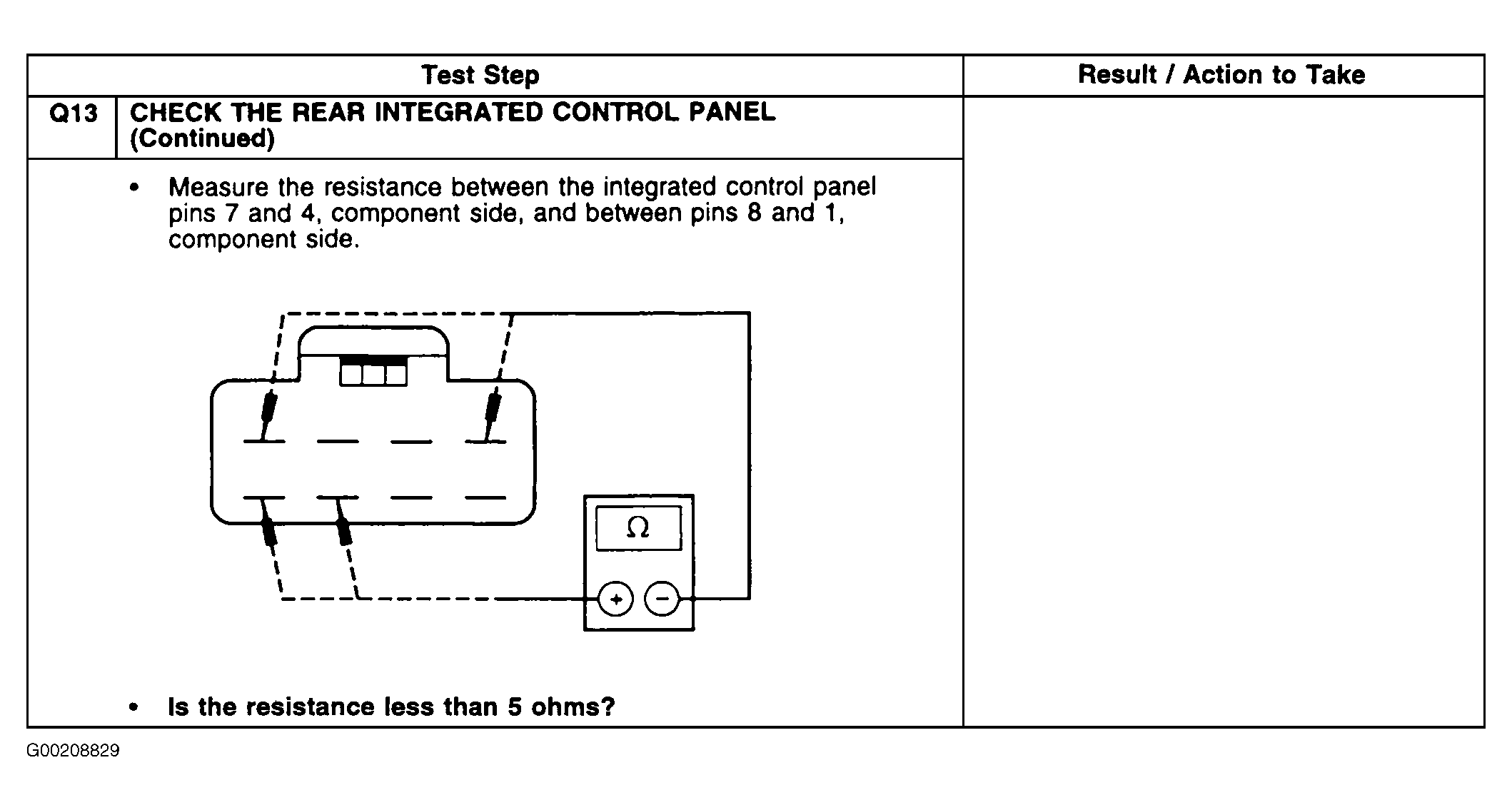

Fig 5: Test Q (5 Of 5 - Step Q13 Cont.)

Courtesy of FORD MOTOR CO.
