Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosing procedure, see Fig 1-Fig 4 .

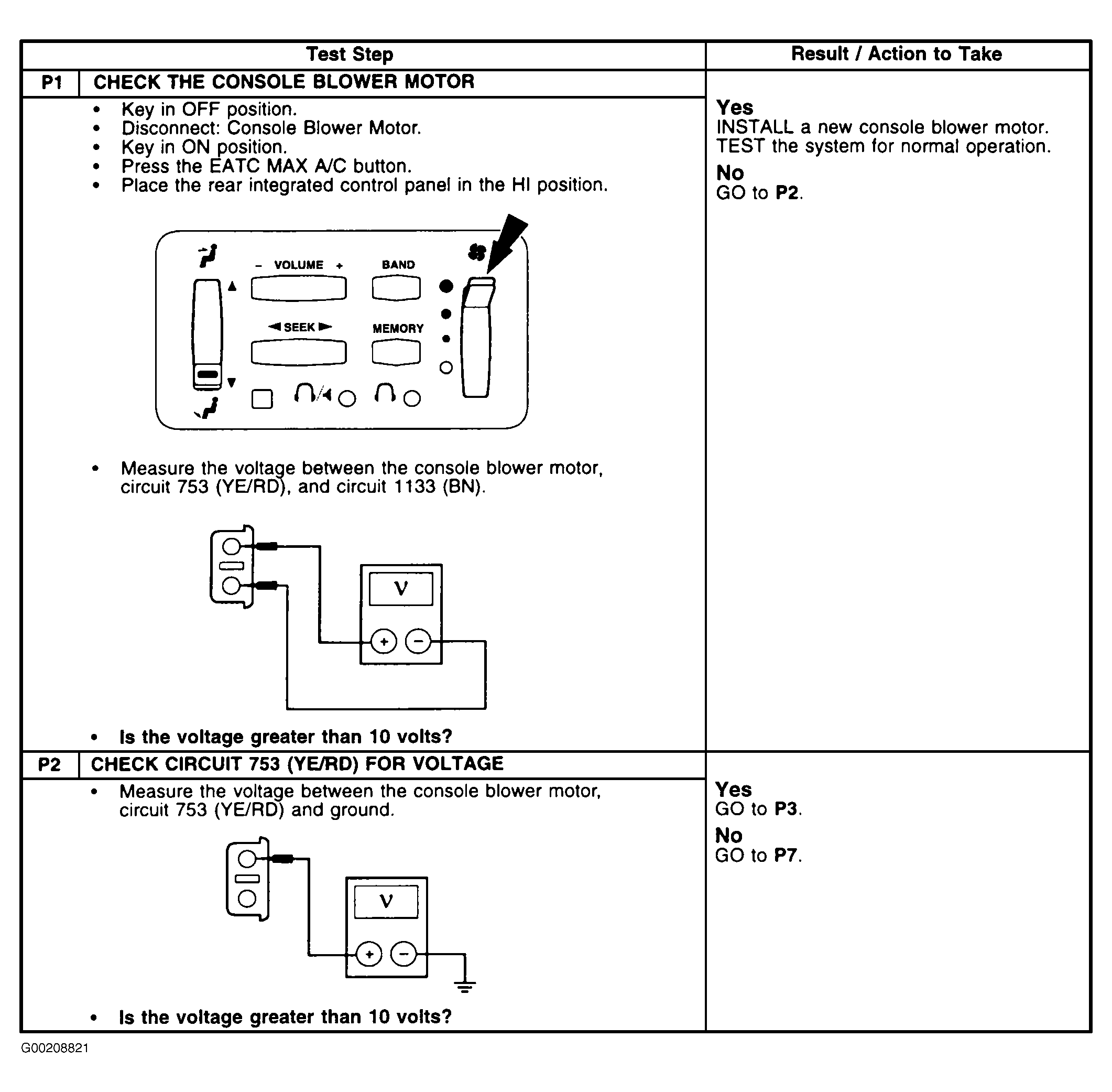

Fig 1: Test P (1 Of 4 - Steps P1-P2)

Courtesy of FORD MOTOR CO.

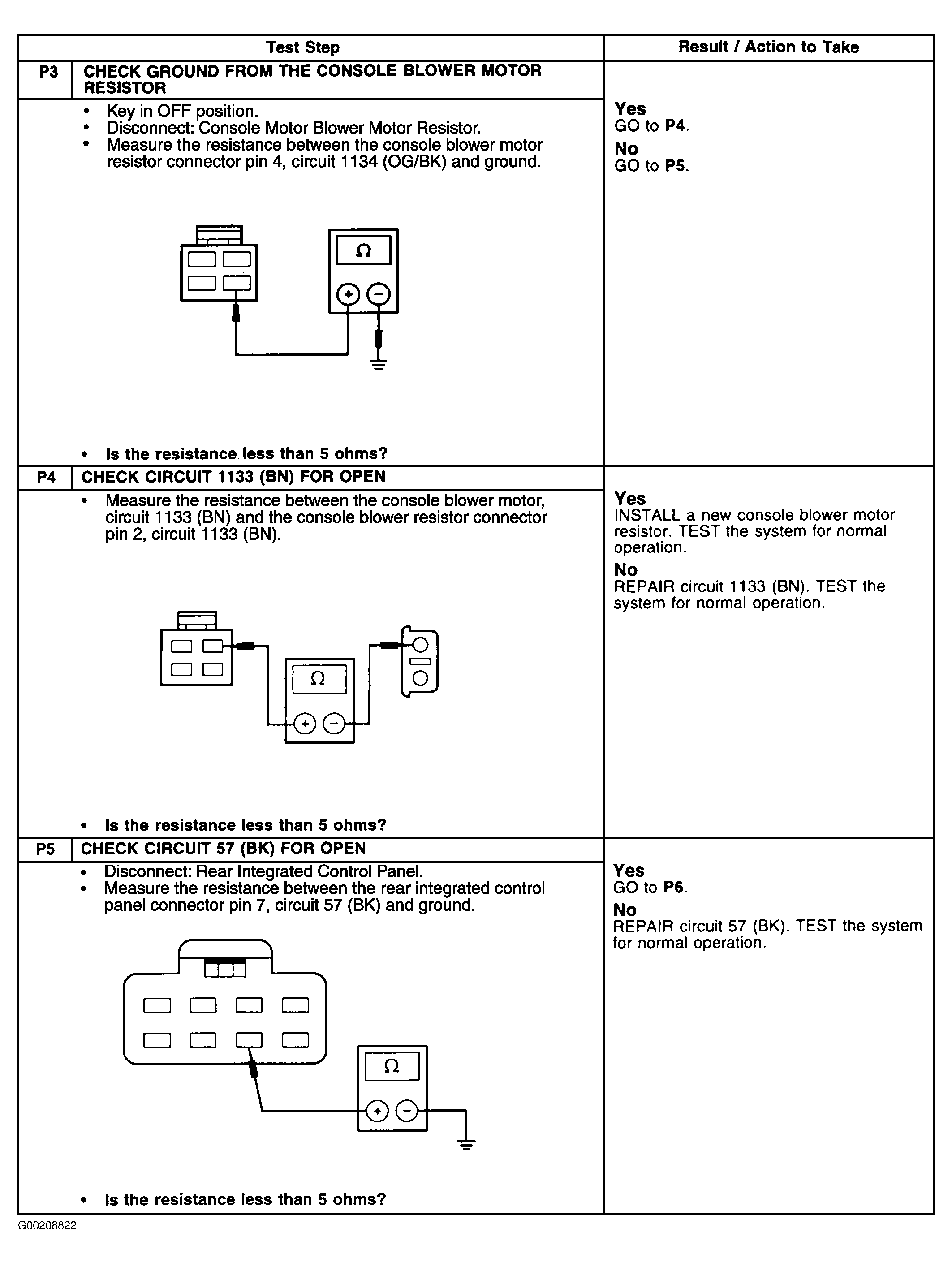

Fig 2: Test P (2 Of 4 - Steps P3-P5)

Courtesy of FORD MOTOR CO.

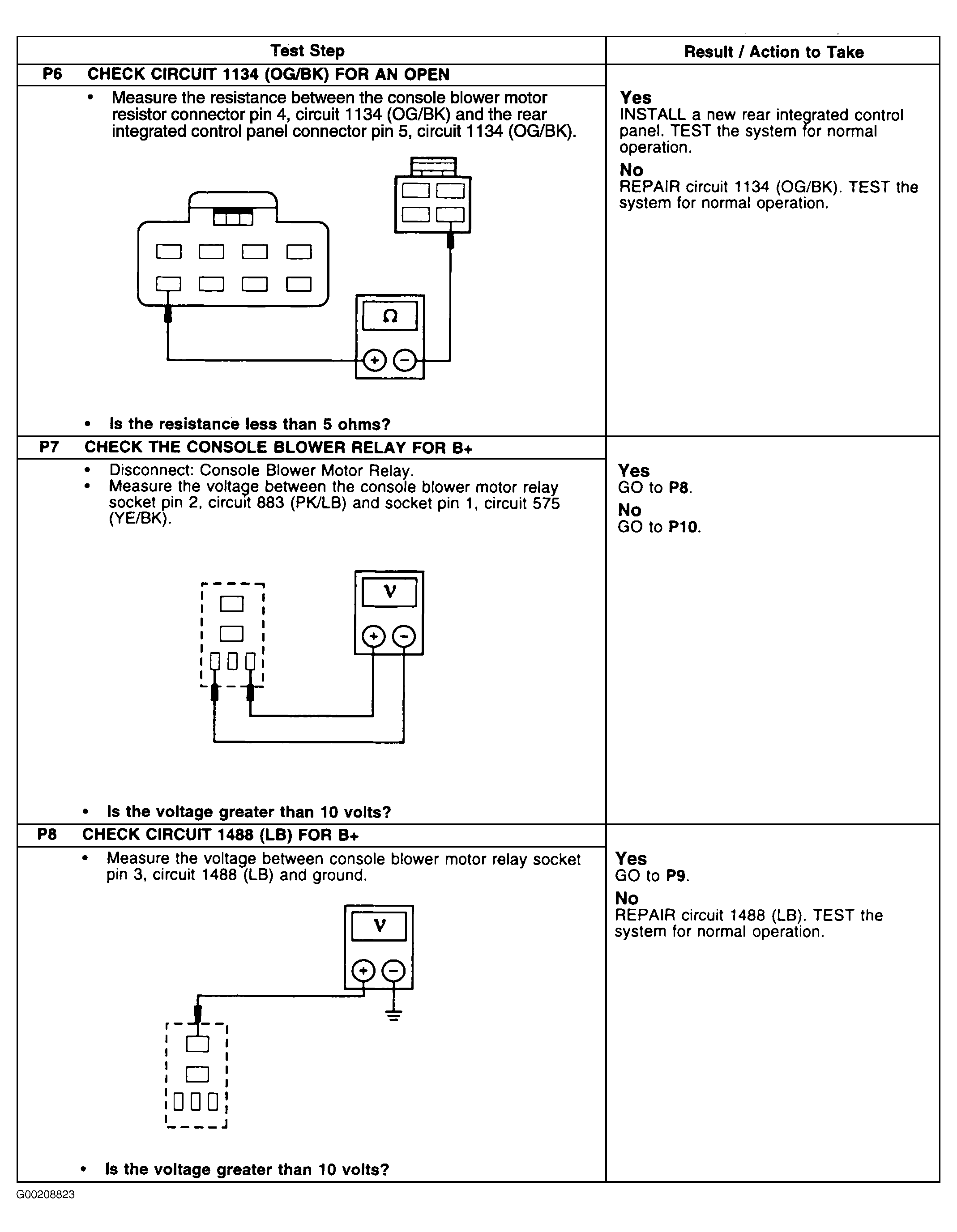

Fig 3: Test P (3 Of 4 - Steps P6-P8)

Courtesy of FORD MOTOR CO.

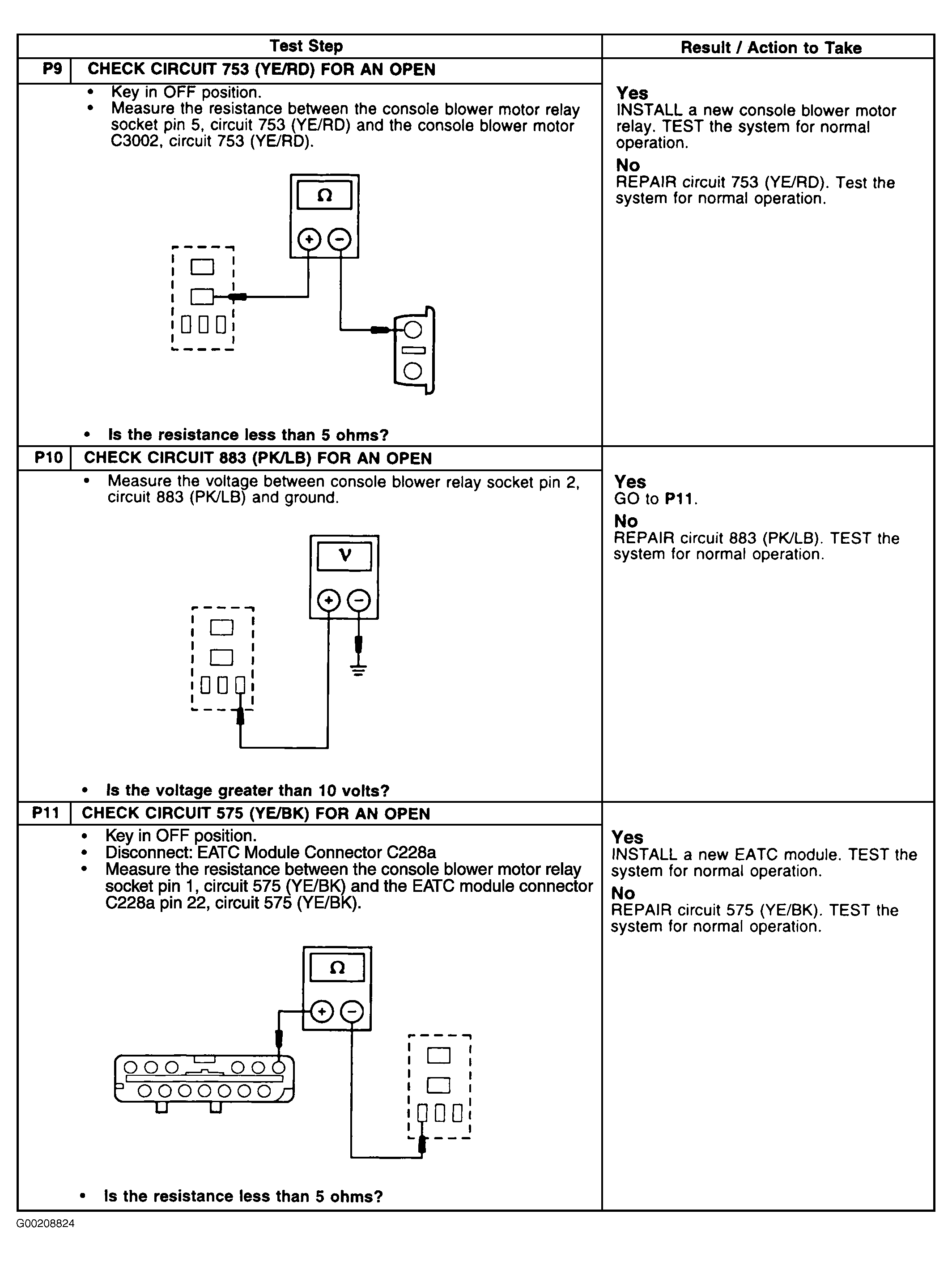

Fig 4: Test P (4 Of 4 - Steps P9-P11)

Courtesy of FORD MOTOR CO.
