Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosing procedure, see Fig 1-Fig 3 .

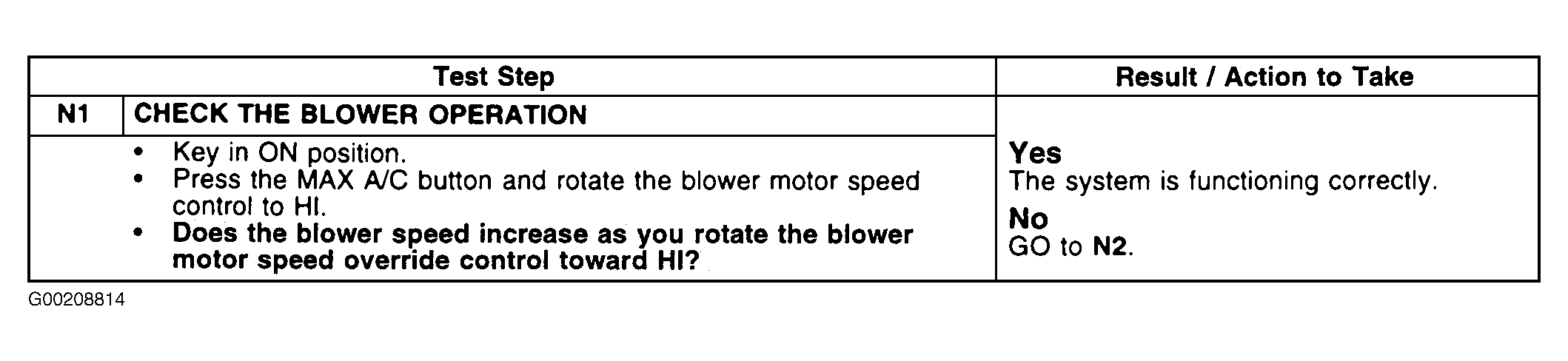

Fig 1: Test N (1 Of 3 - Step N1)

Courtesy of FORD MOTOR CO.

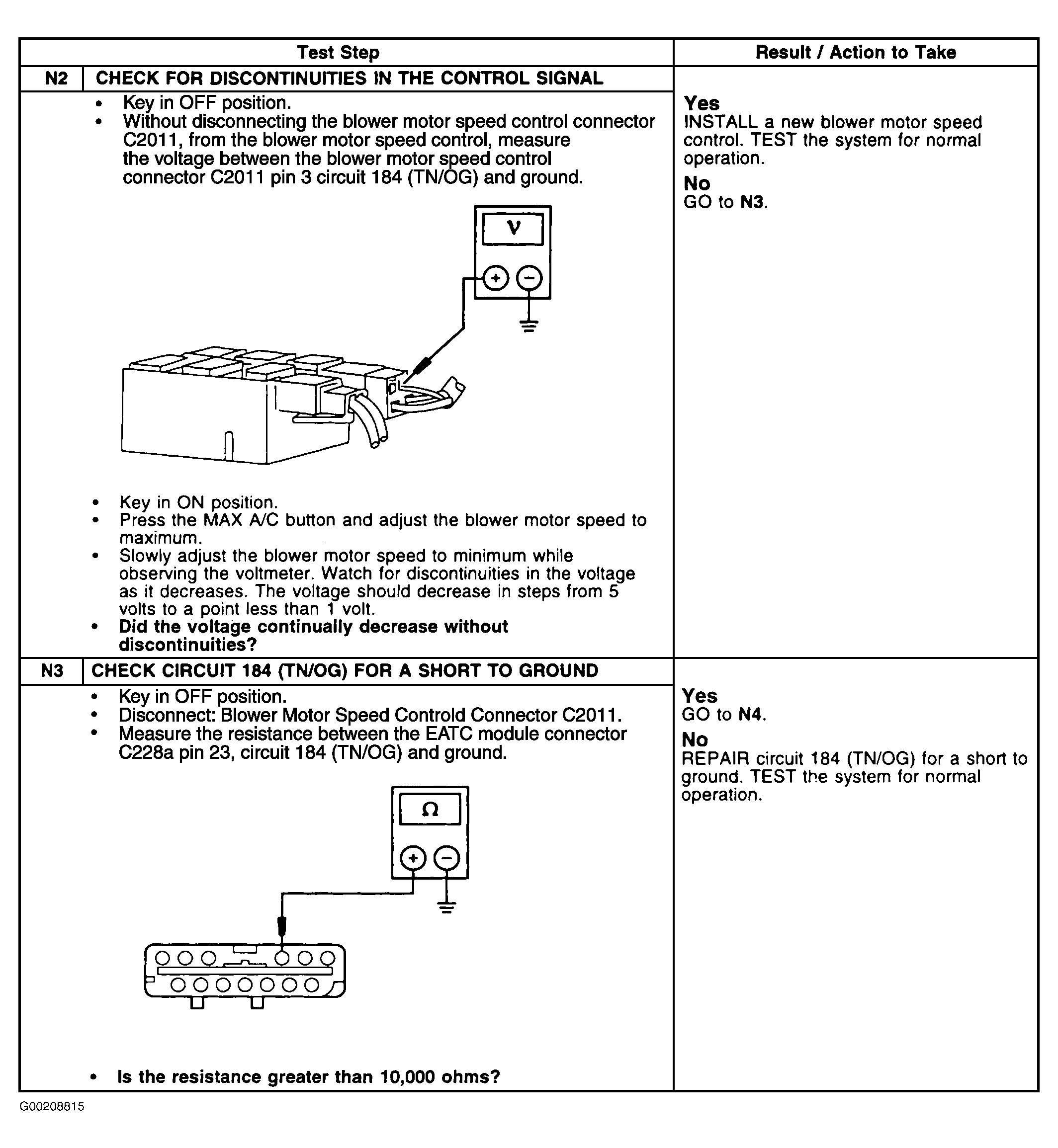

Fig 2: Test N (2 Of 3 - Steps N2-N3)

Courtesy of FORD MOTOR CO.

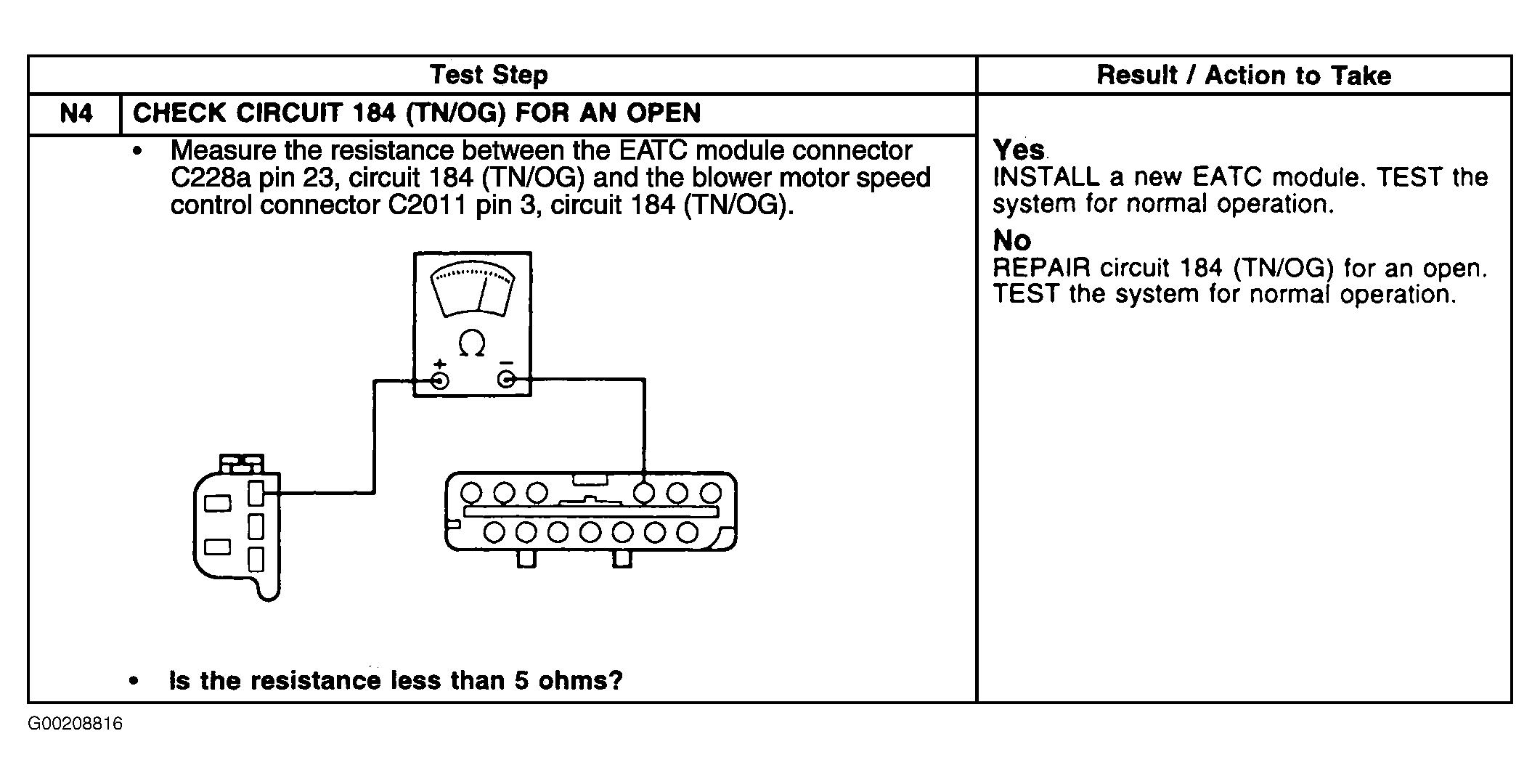

Fig 3: Test N (3 Of 3 - Step N4)

Courtesy of FORD MOTOR CO.
