Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosing procedure, see Fig 1-Fig 5 .

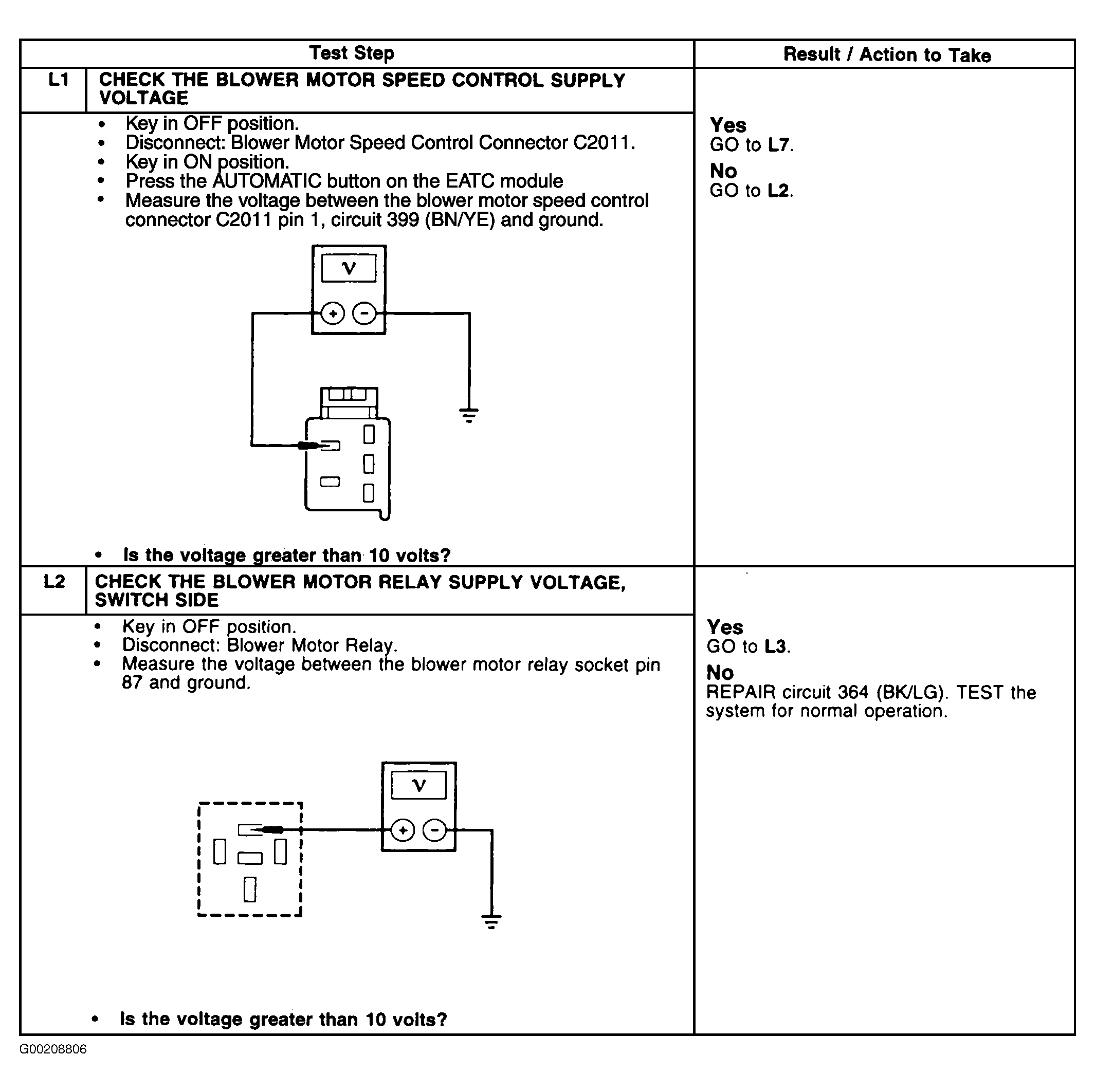

Fig 1: Test L (1 Of 5 - Steps L1-L2)

Courtesy of FORD MOTOR CO.

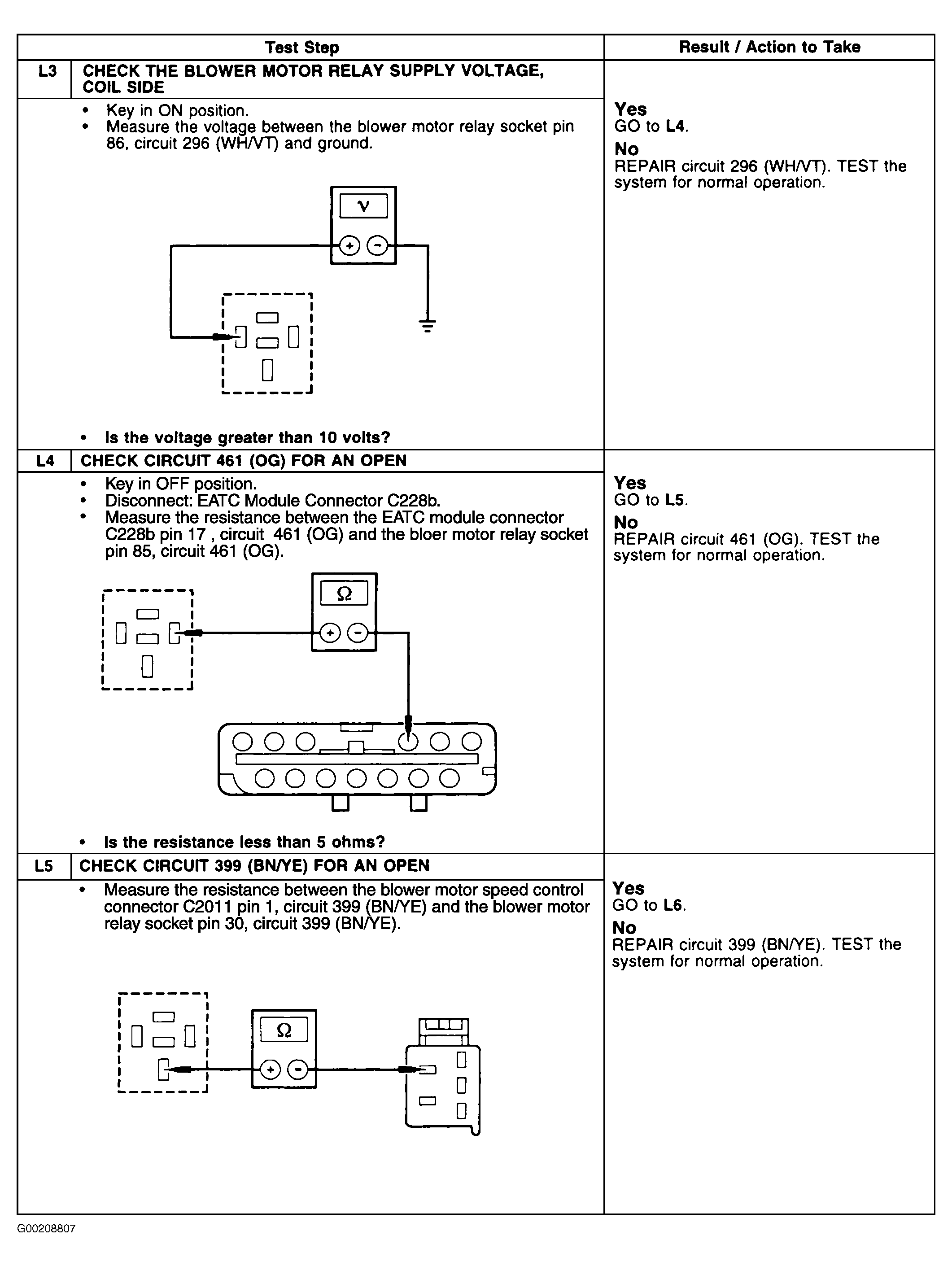

Fig 2: Test L (2 Of 5 - Steps L3-L5)

Courtesy of FORD MOTOR CO.

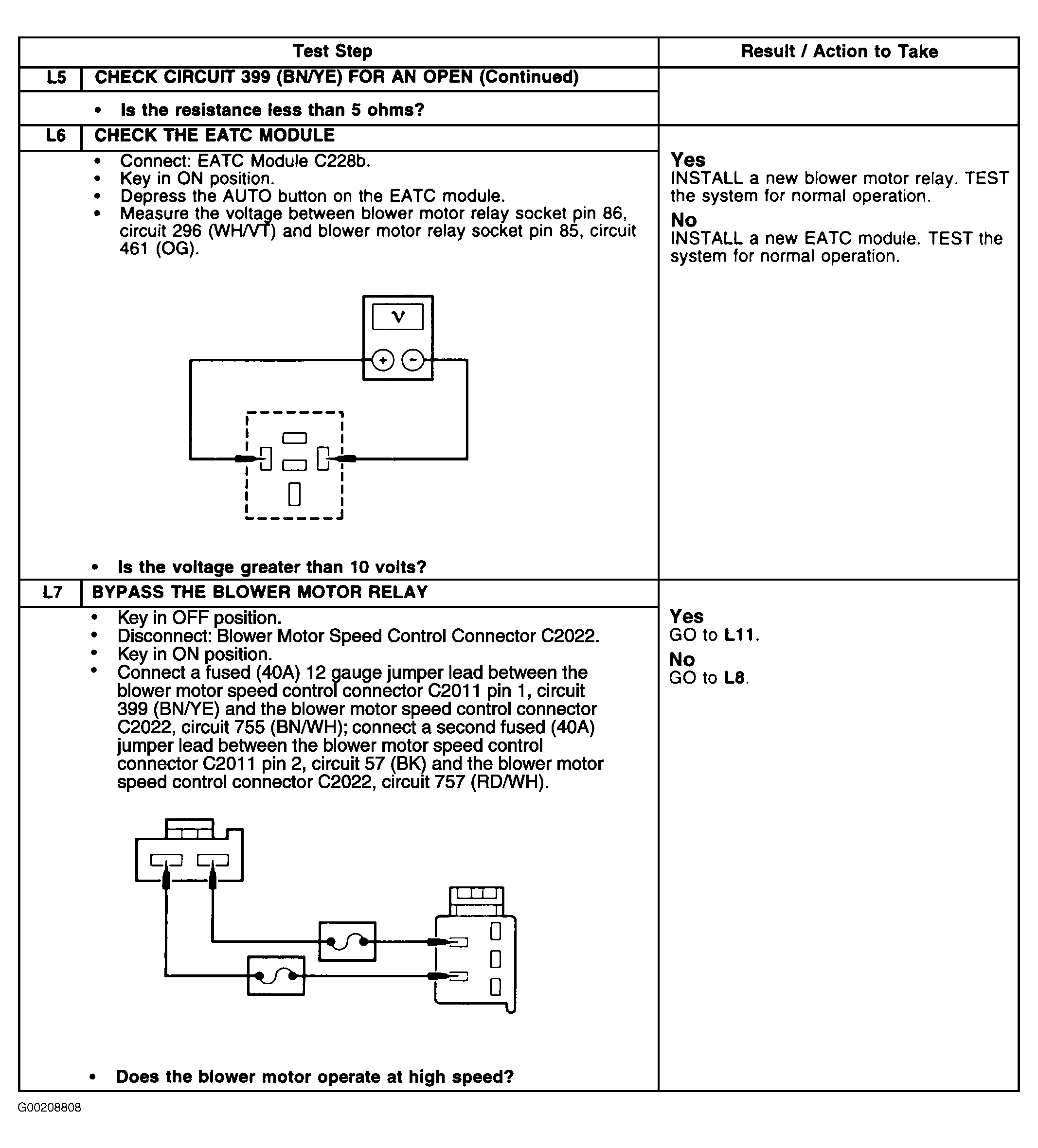

Fig 3: Test L (3 Of 5 - Steps L5 Cont.-L7)

Courtesy of FORD MOTOR CO.

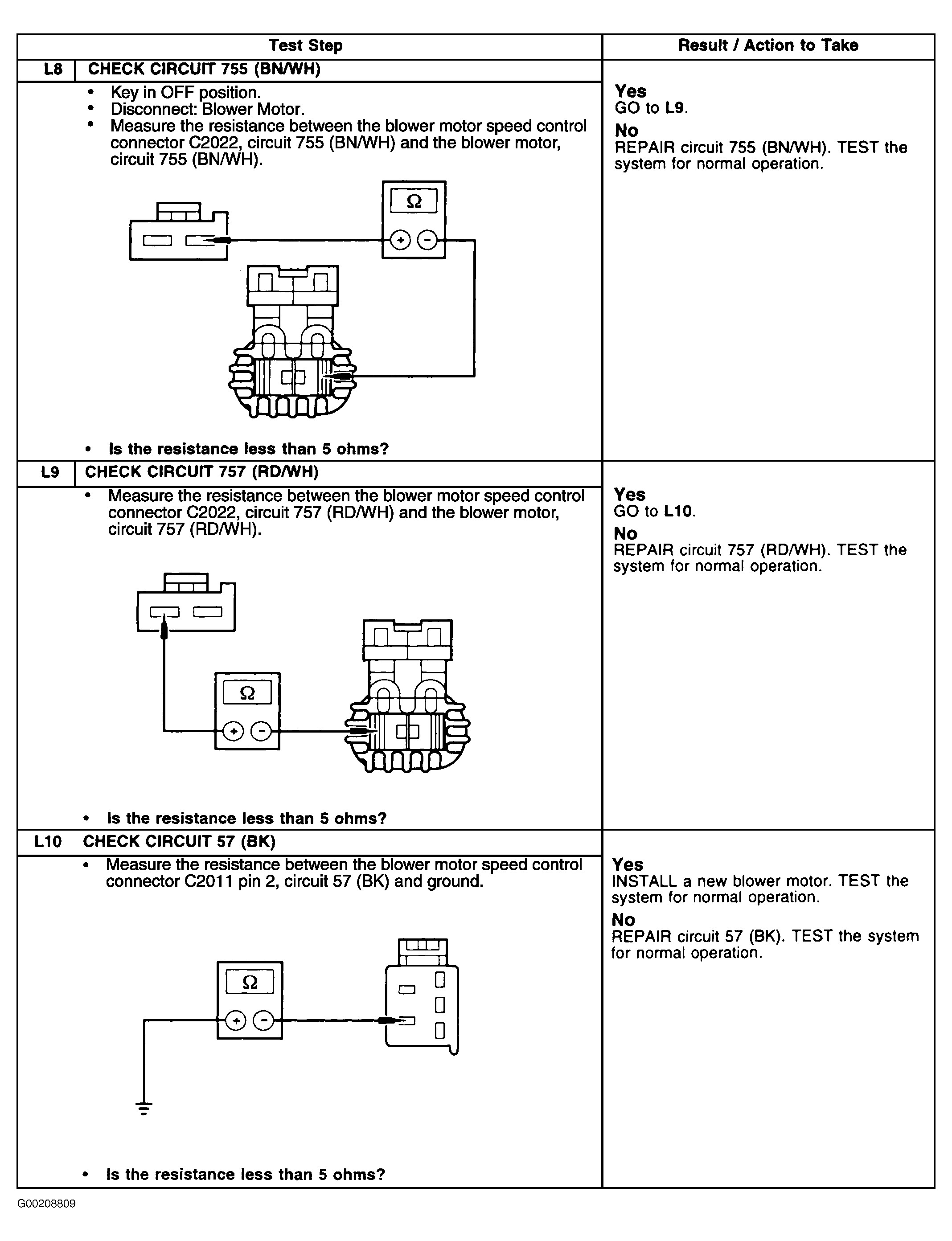

Fig 4: Test L (4 Of 5 - Steps L8-L10)

Courtesy of FORD MOTOR CO.

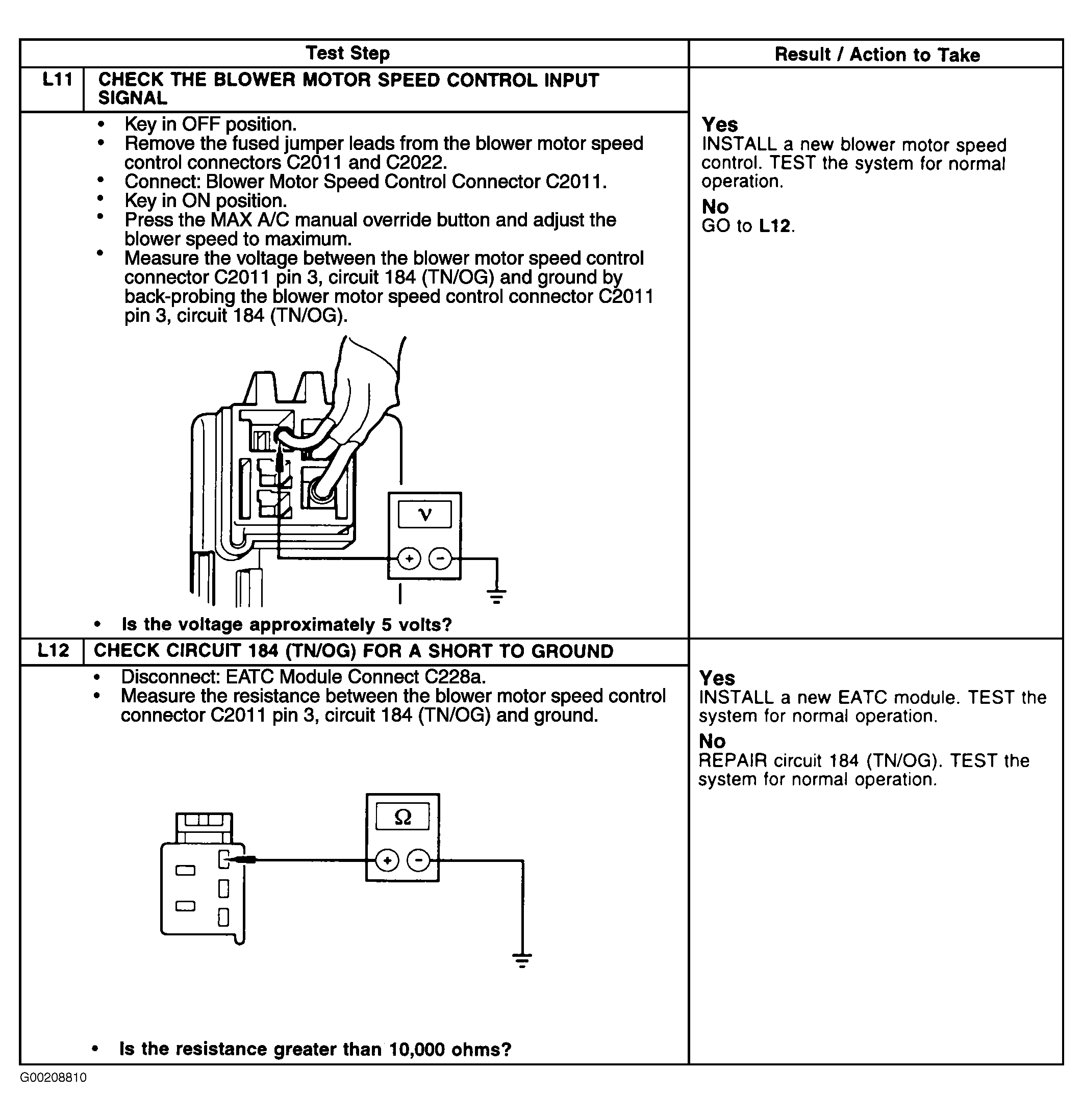

Fig 5: Test L (5 Of 5 - Steps L11-L12)

Courtesy of FORD MOTOR CO.
