Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosing procedure, see Fig 1-Fig 8 .

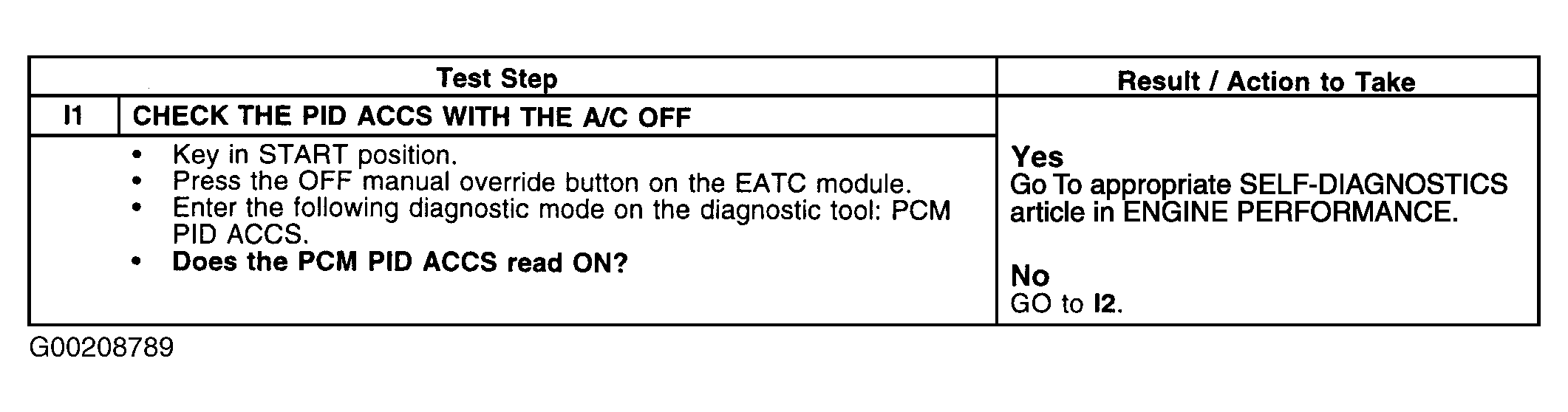

Fig 1: Test I (1 Of 8 - Step I1)

Courtesy of FORD MOTOR CO.

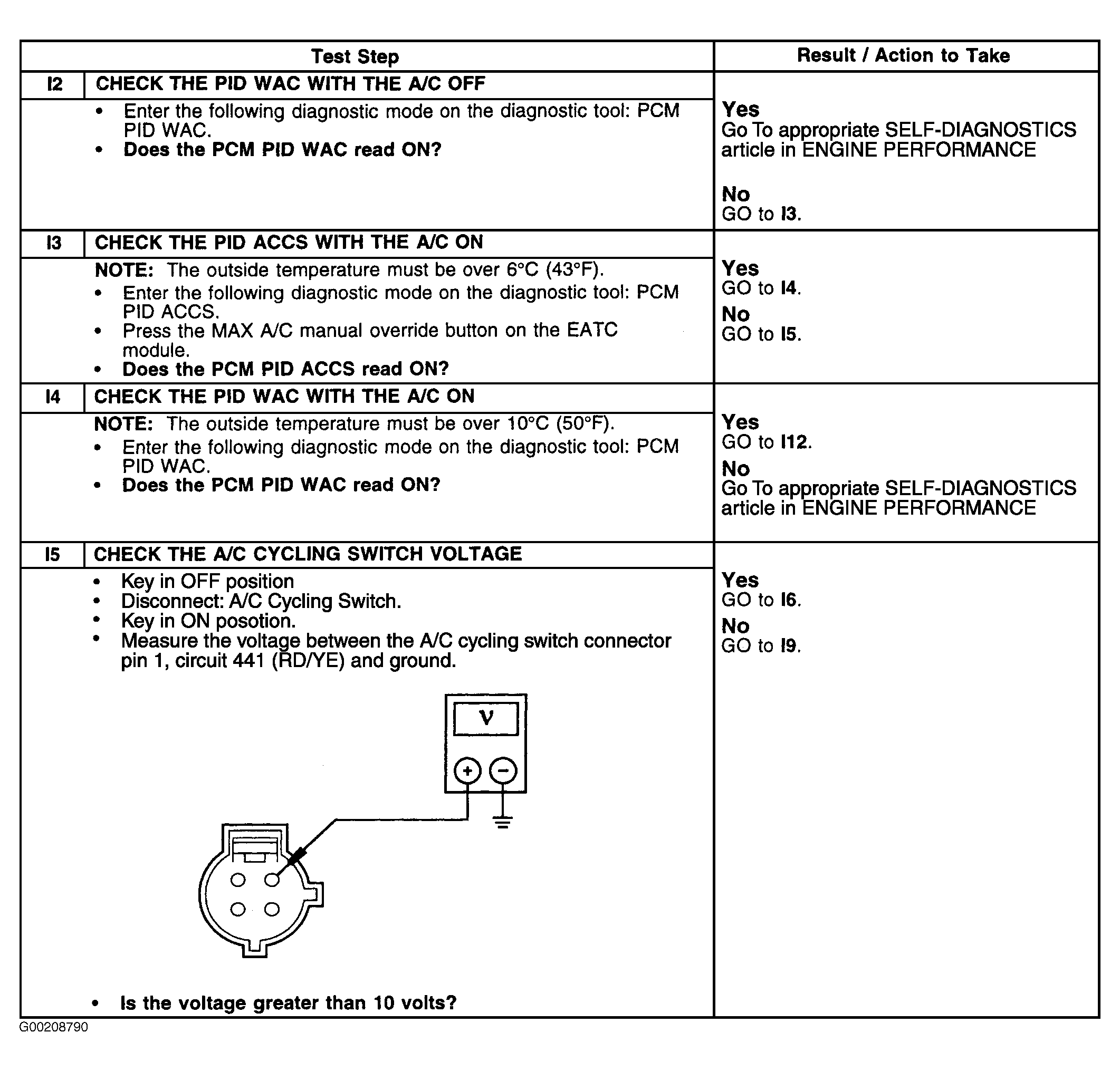

Fig 2: Test I (2 Of 8 - Steps I2-I5)

Courtesy of FORD MOTOR CO.

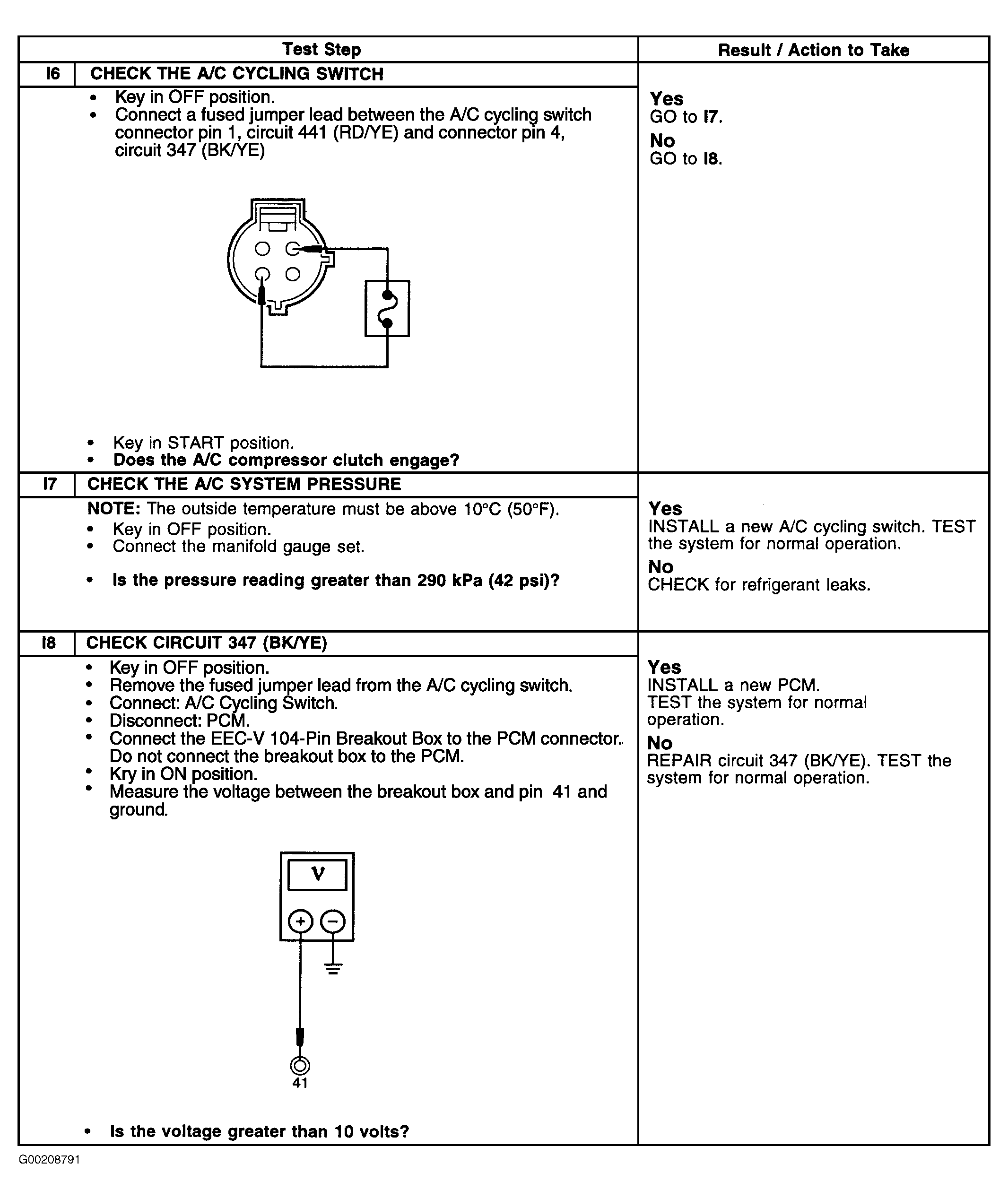

Fig 3: Test I (3 Of 8 - Steps I6-I8)

Courtesy of FORD MOTOR CO.

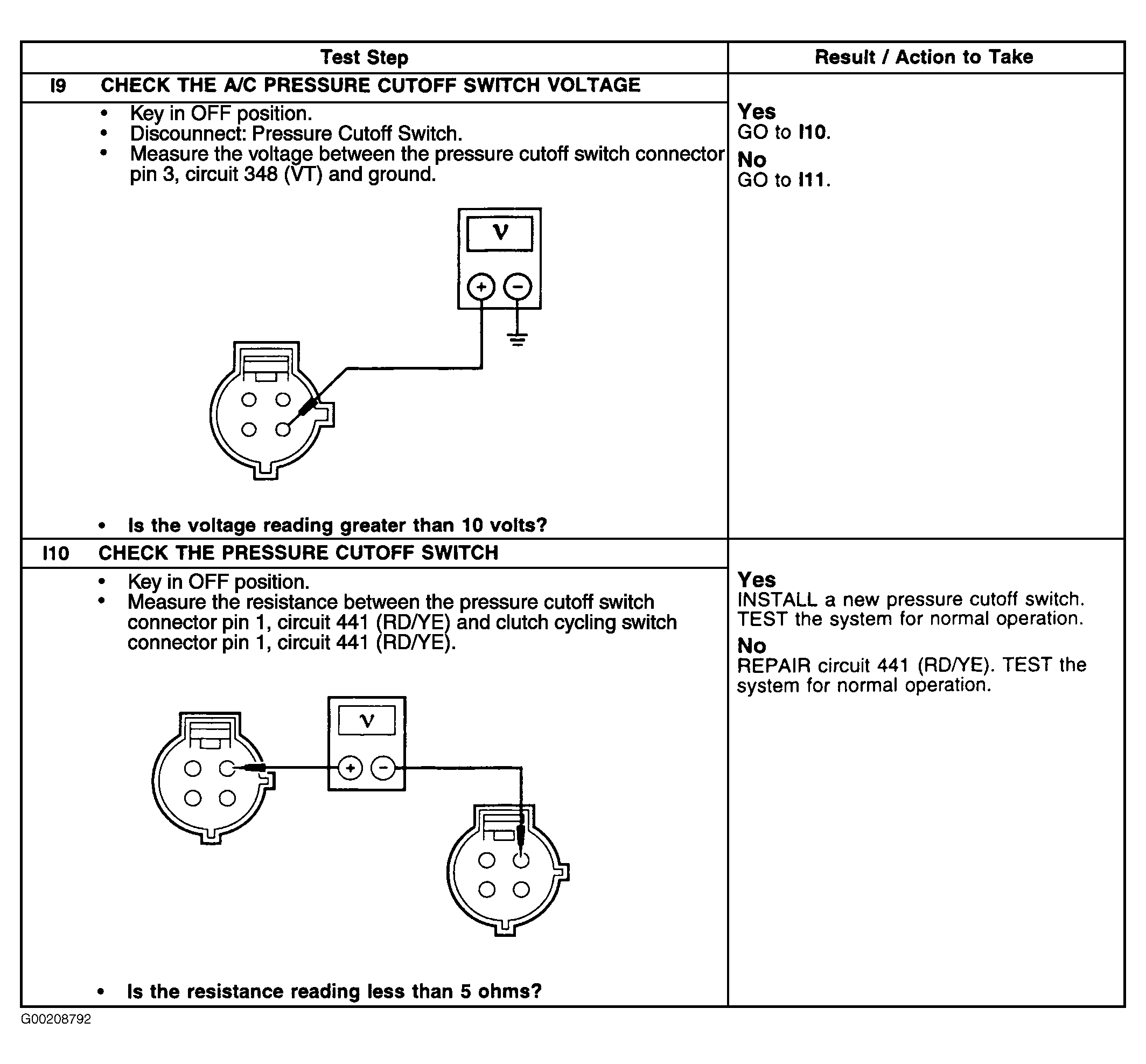

Fig 4: Test I (4 Of 8 - Steps I9-I10)

Courtesy of FORD MOTOR CO.

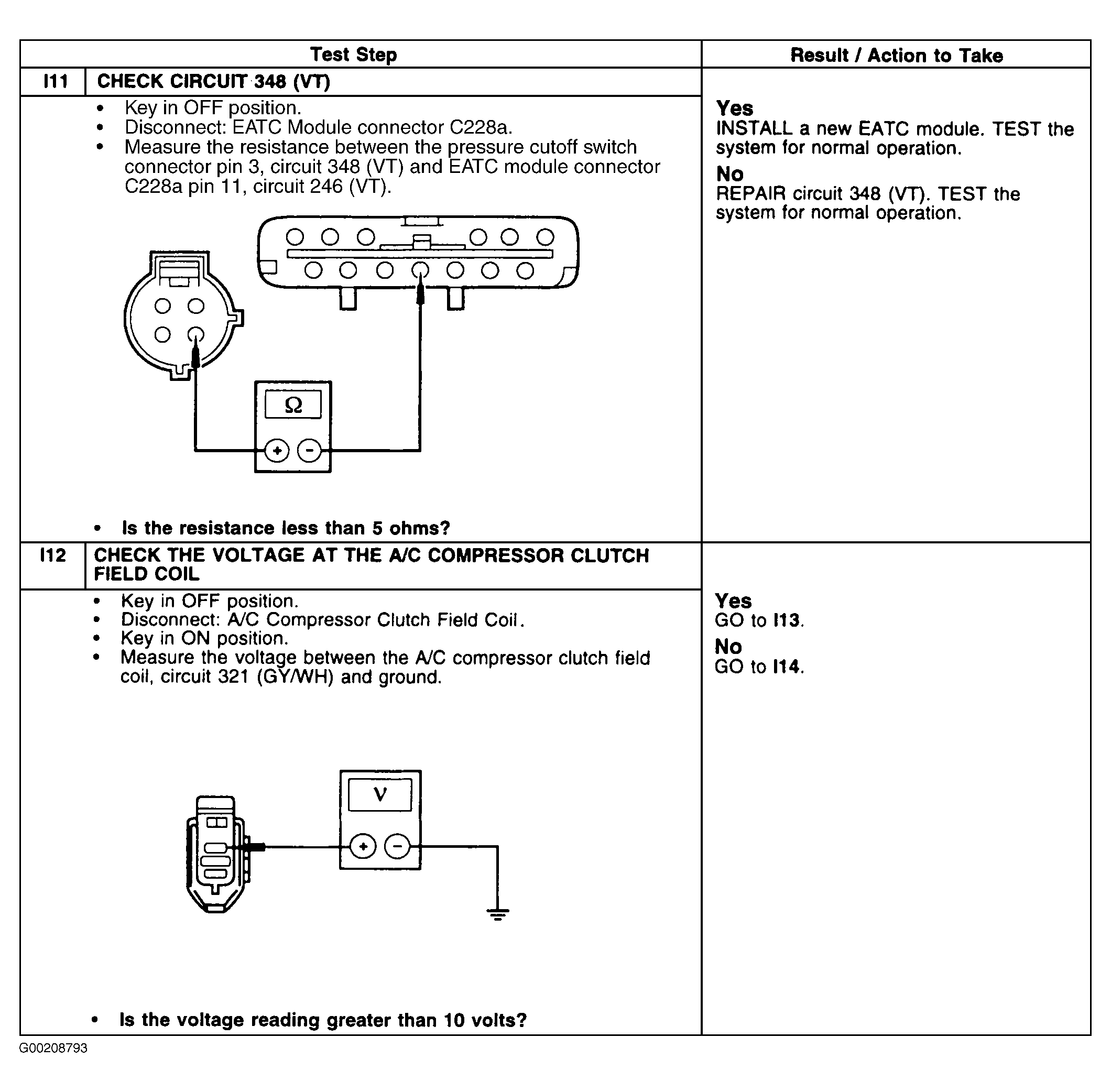

Fig 5: Test I (5 Of 8 - Steps I11-I12)

Courtesy of FORD MOTOR CO.

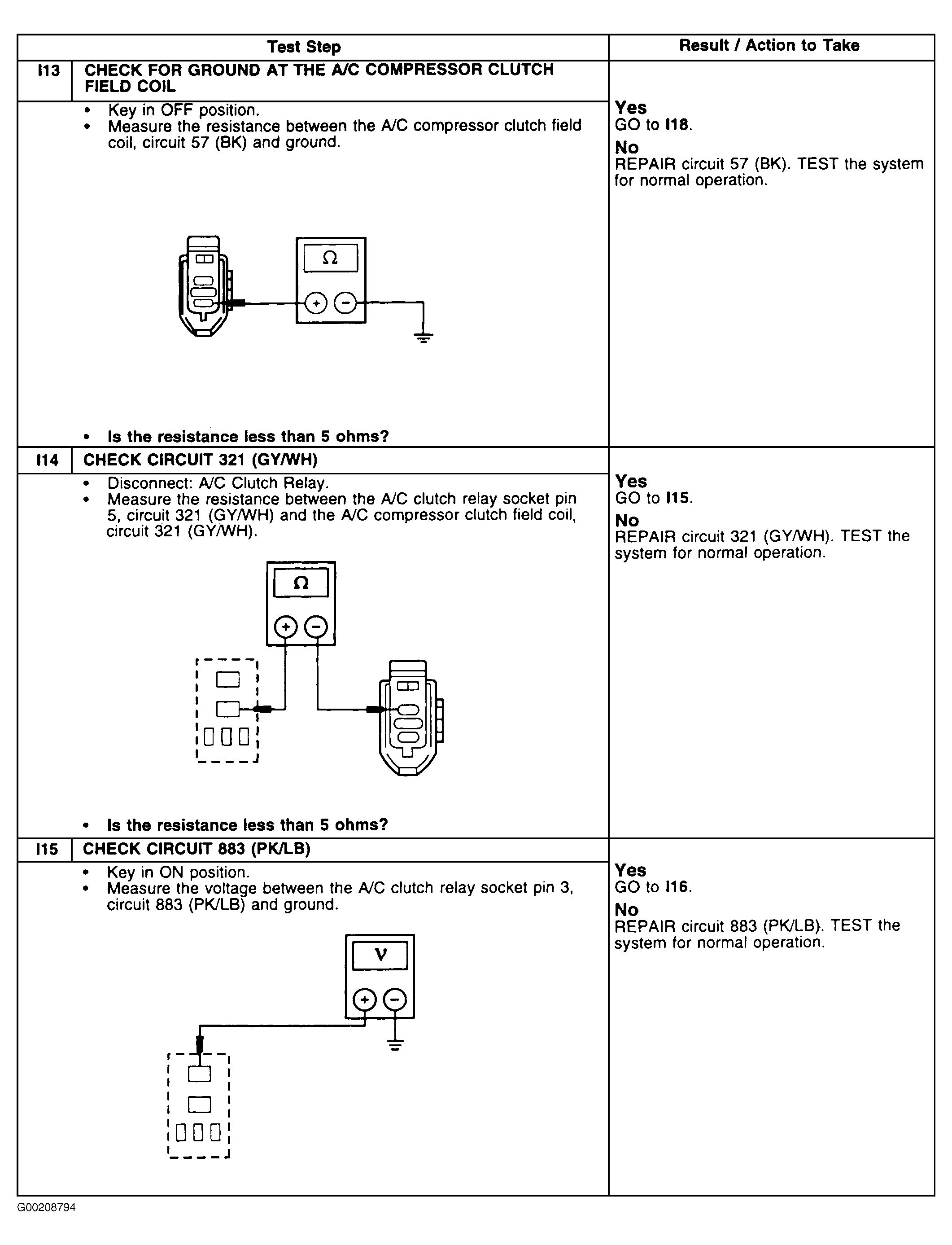

Fig 6: Test I (6 Of 8 - Steps I13-I15)

Courtesy of FORD MOTOR CO.

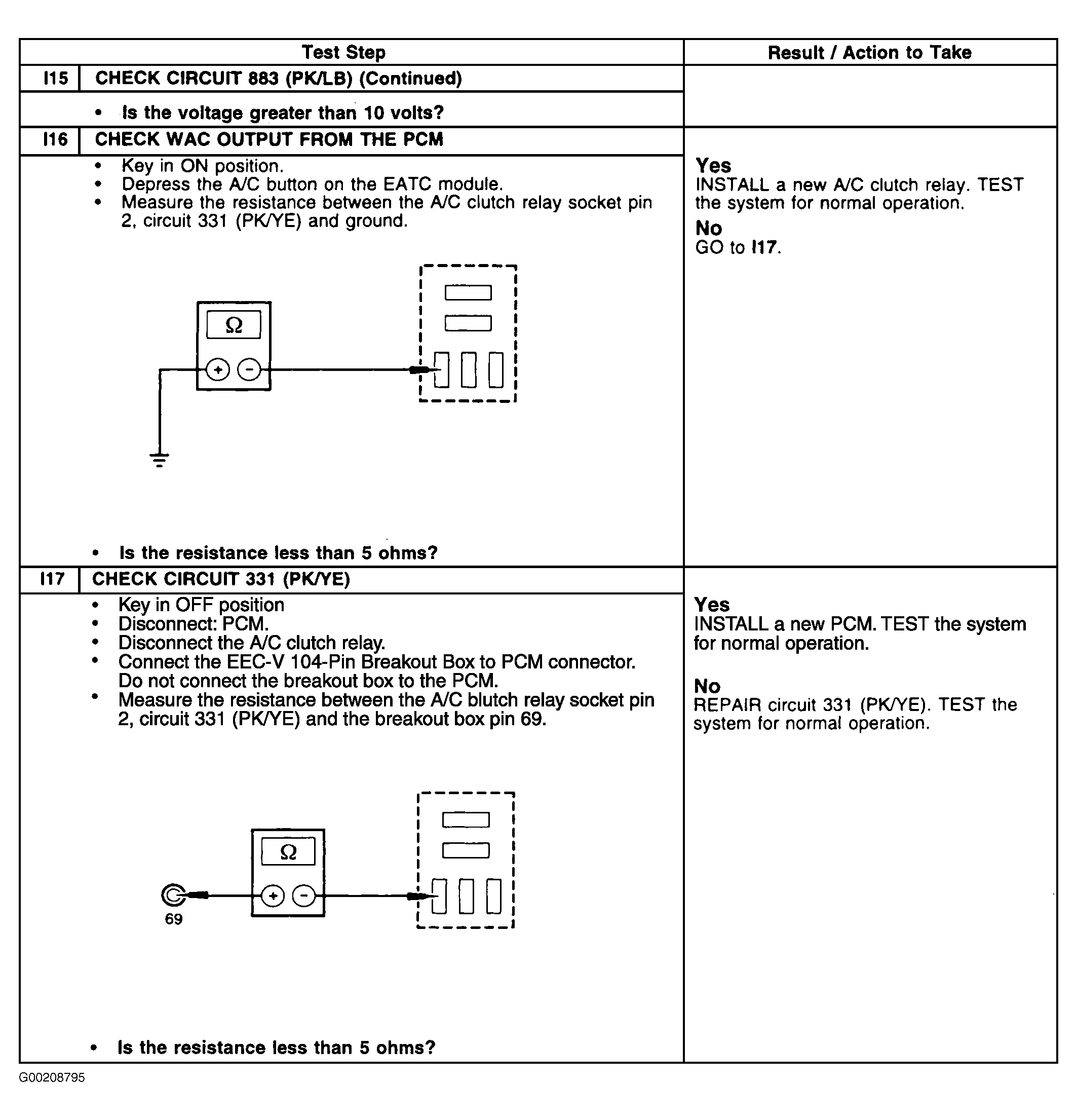

Fig 7: Test I (7 Of 8 - Steps I15 Cont.-I17)

Courtesy of FORD MOTOR CO.

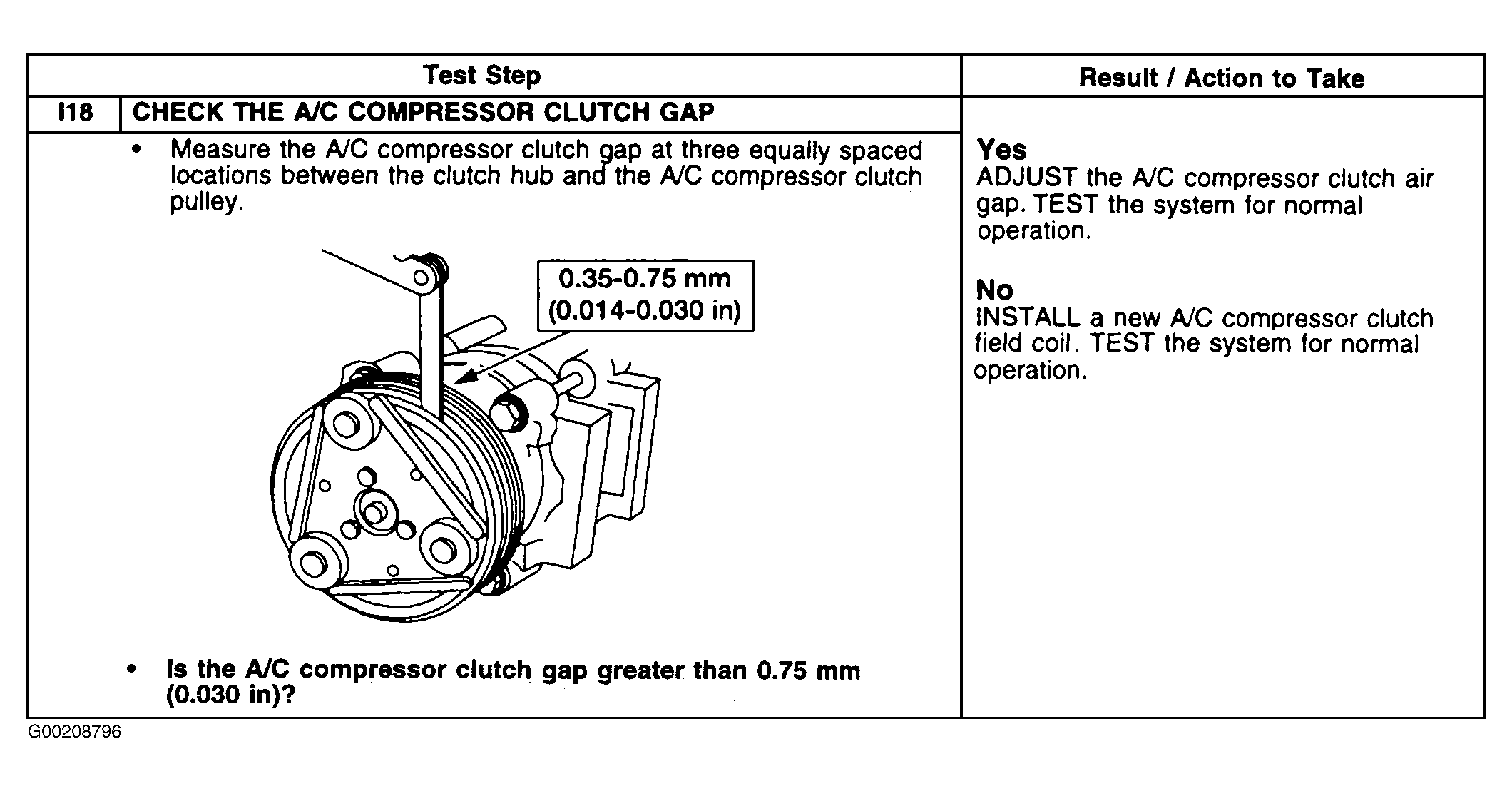

Fig 8: Test I (8 Of 8 - Step I18)

Courtesy of FORD MOTOR CO.
