Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosing procedure, see Fig 1-Fig 8 .

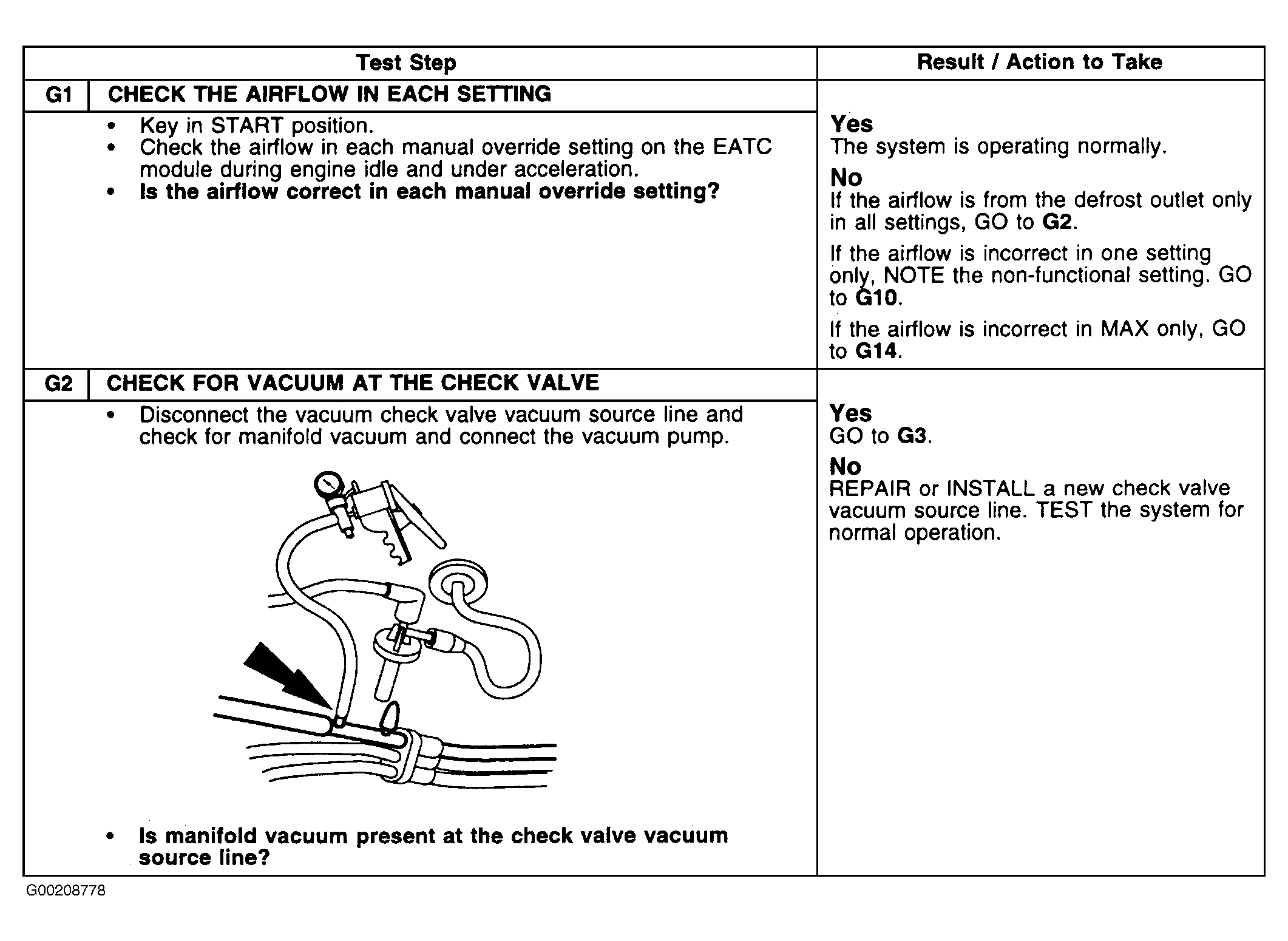

Fig 1: Test G (1 Of 8 - Steps G1-G2)

Courtesy of FORD MOTOR CO.

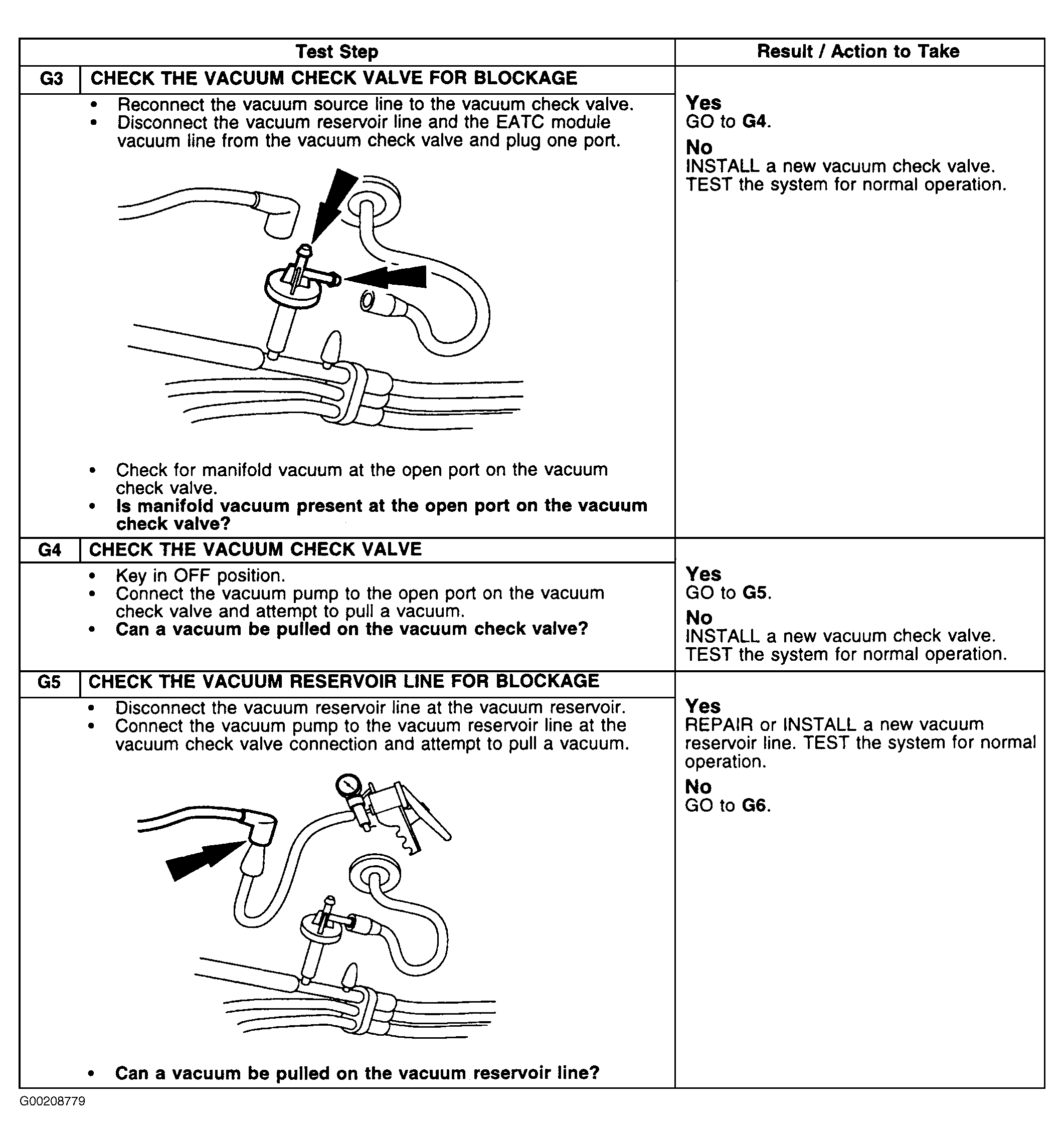

Fig 2: Test G (2 Of 8 - Steps G3-G5)

Courtesy of FORD MOTOR CO.

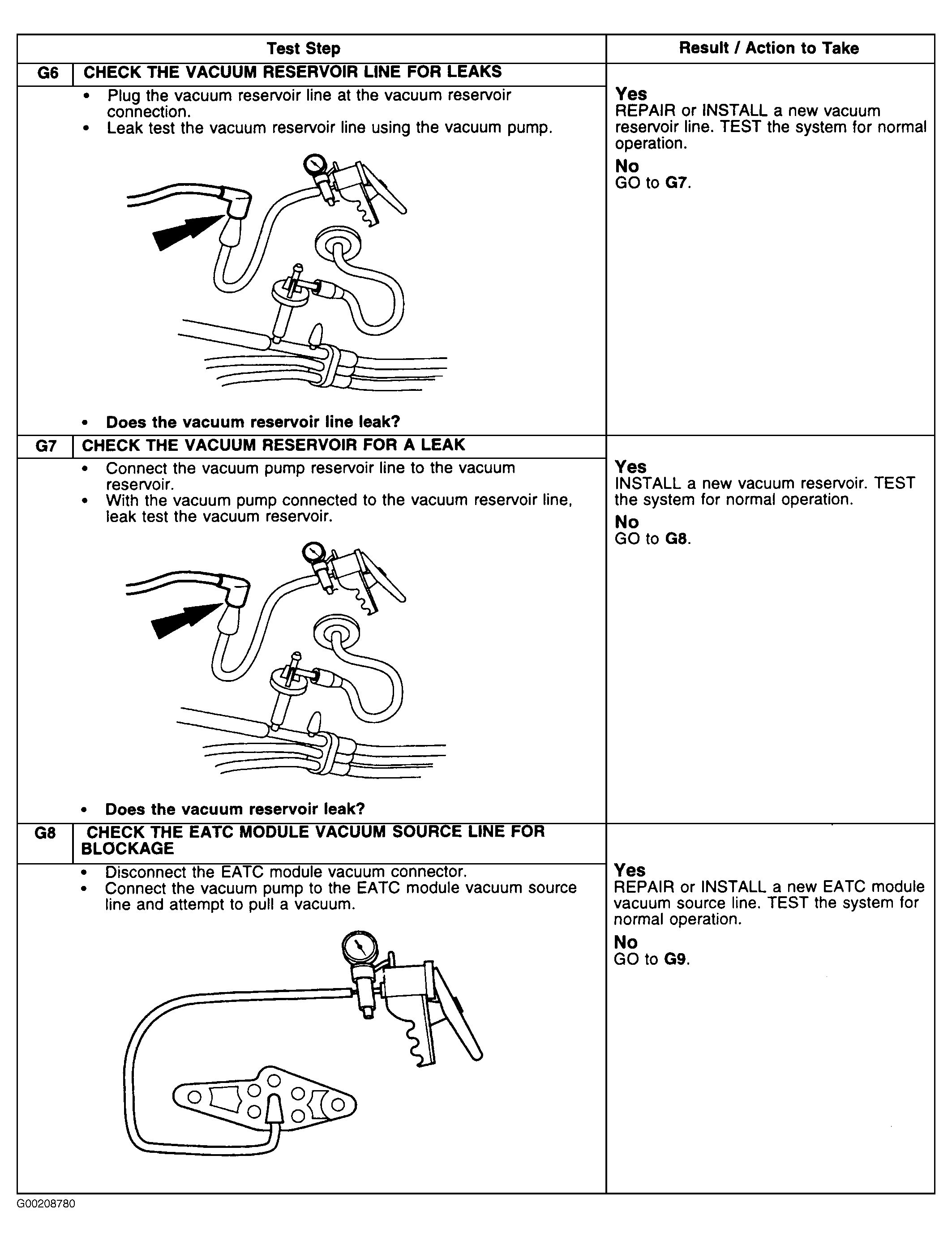

Fig 3: Test G (3 Of 8 - Steps G6-G8)

Courtesy of FORD MOTOR CO.

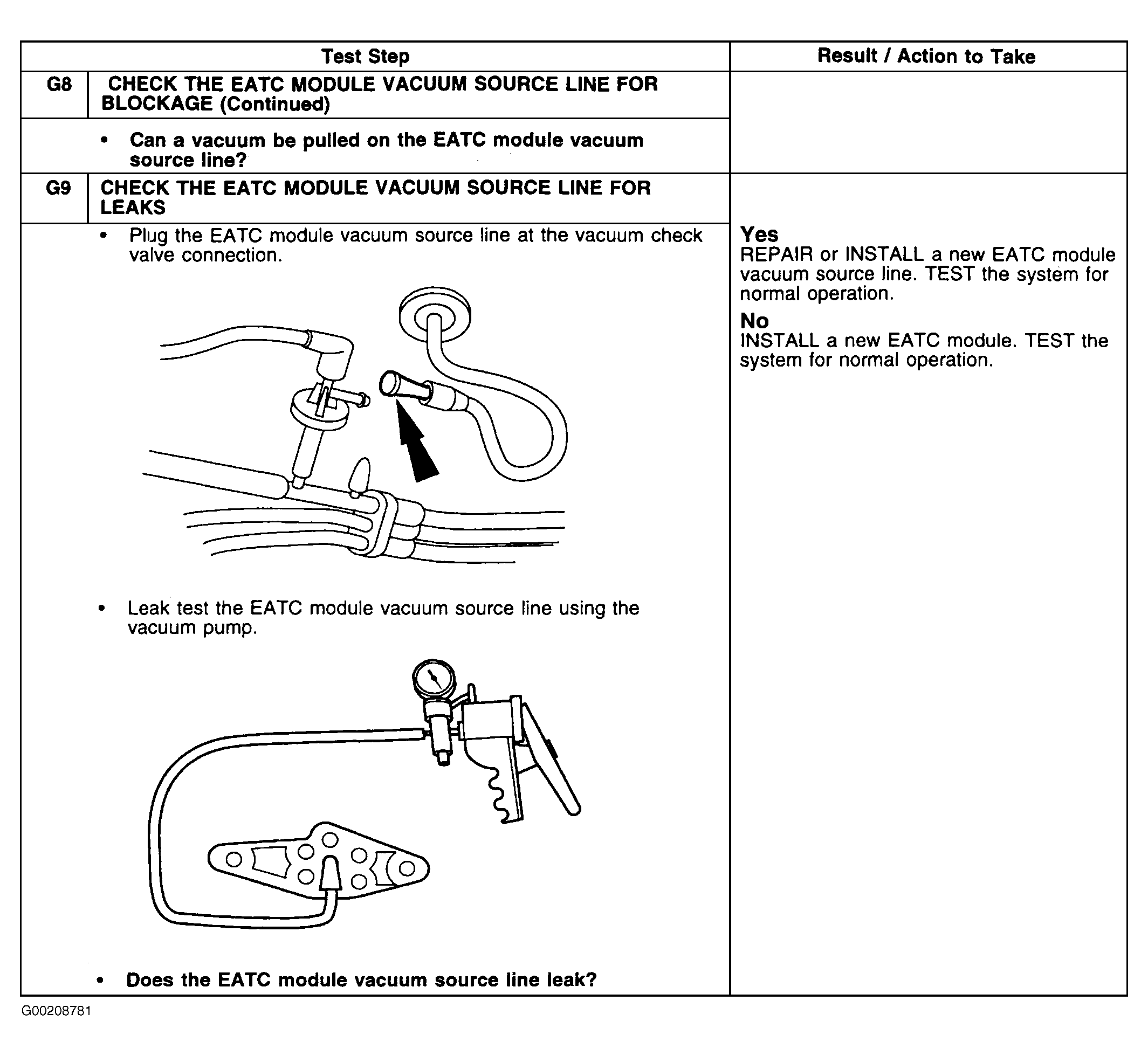

Fig 4: Test G (4 Of 8 - Steps G8 Cont.-G9)

Courtesy of FORD MOTOR CO.

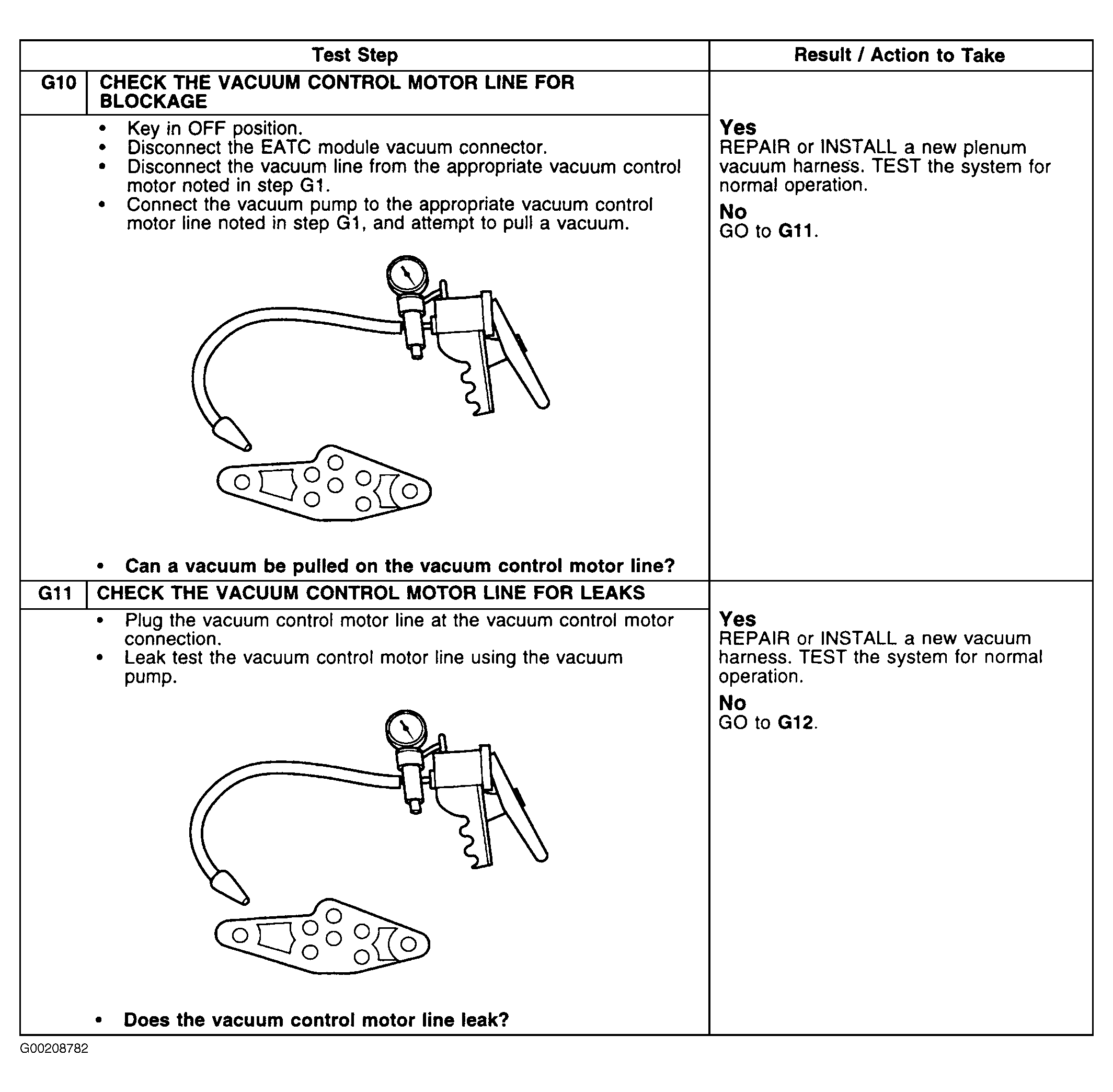

Fig 5: Test G (5 Of 8 - Steps G10-G11)

Courtesy of FORD MOTOR CO.

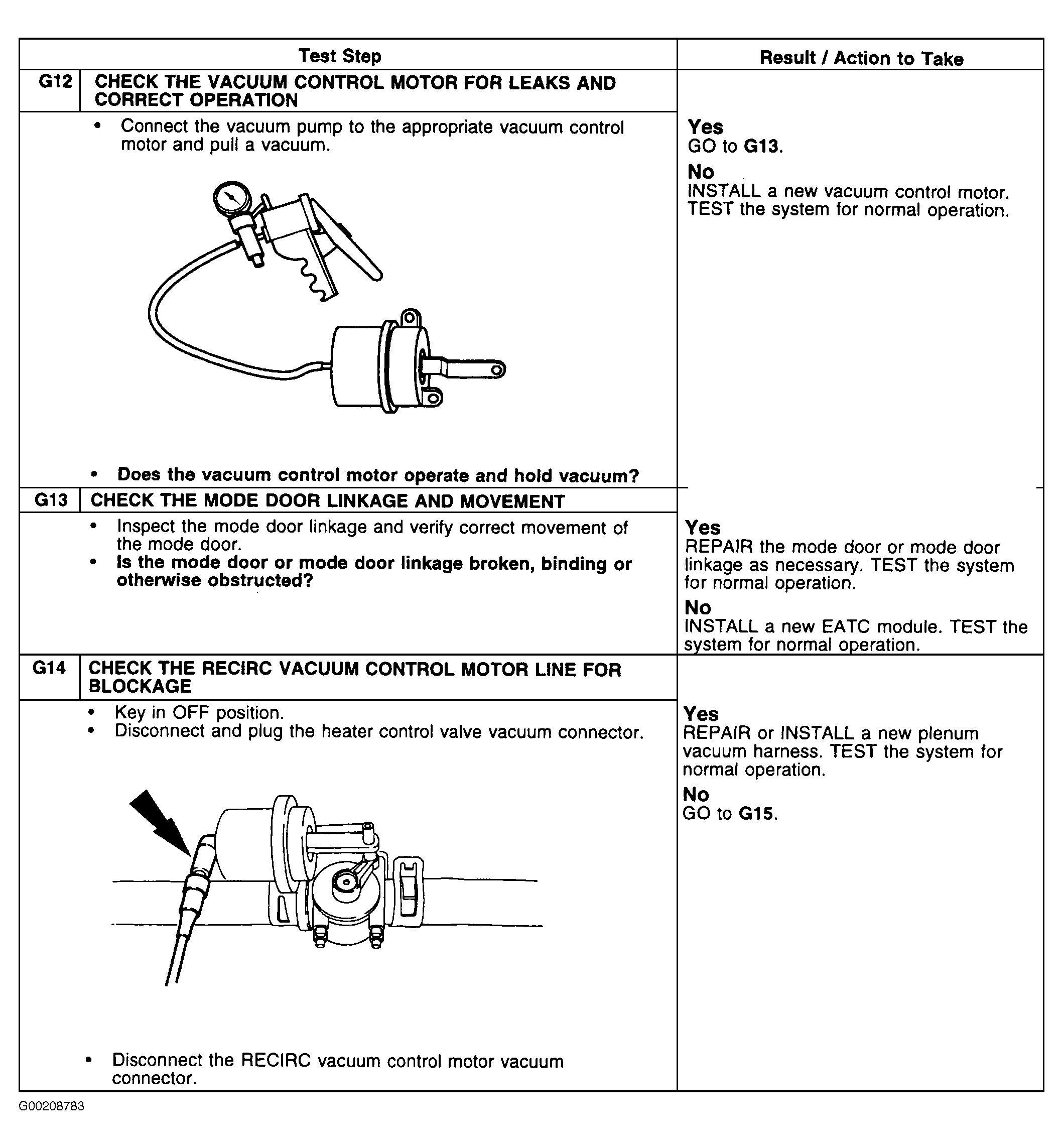

Fig 6: Test G (6 Of 8 - Steps G12-G14)

Courtesy of FORD MOTOR CO.

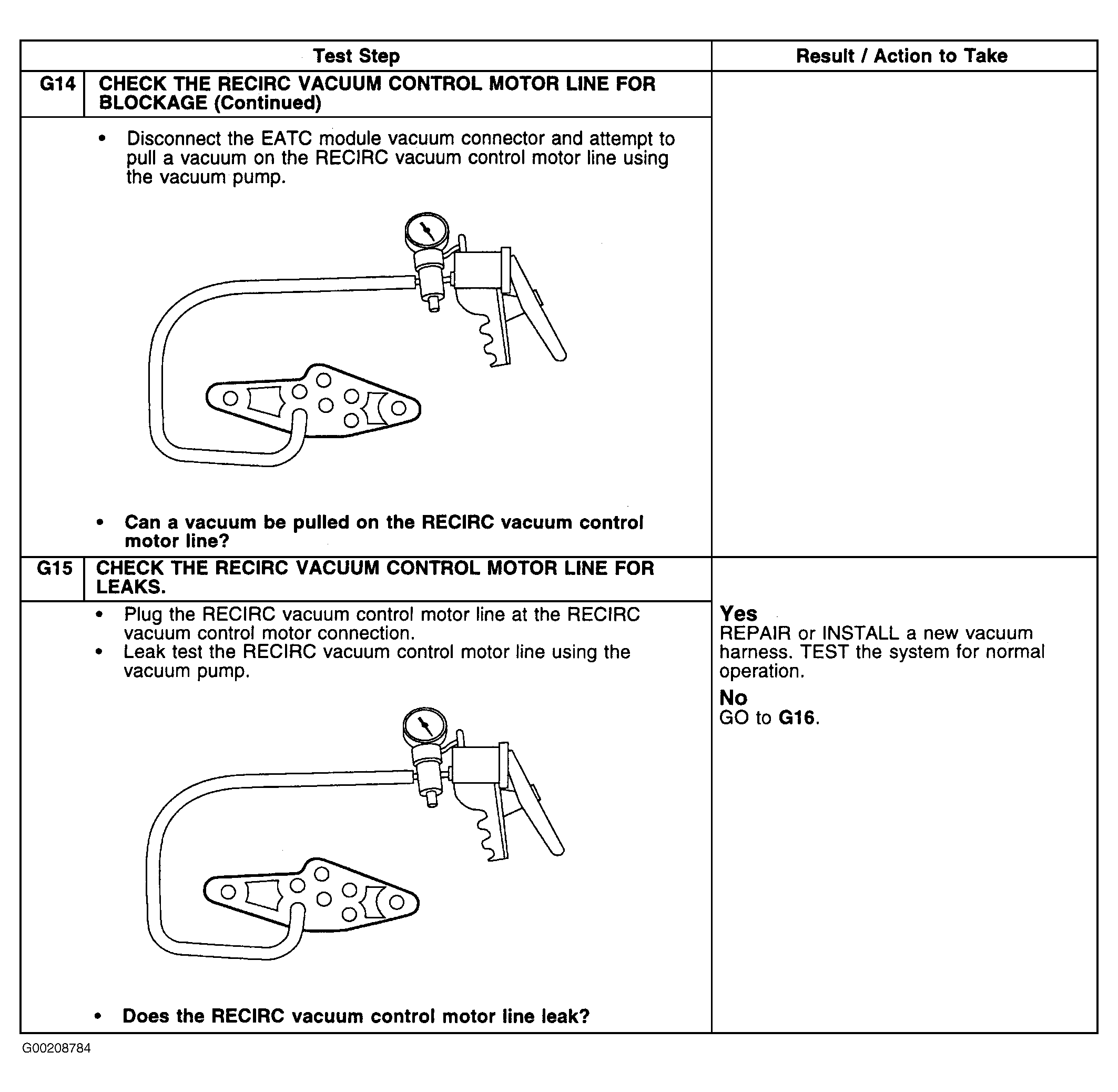

Fig 7: Test G (7 Of 8 - Steps G14 Cont.-G15)

Courtesy of FORD MOTOR CO.

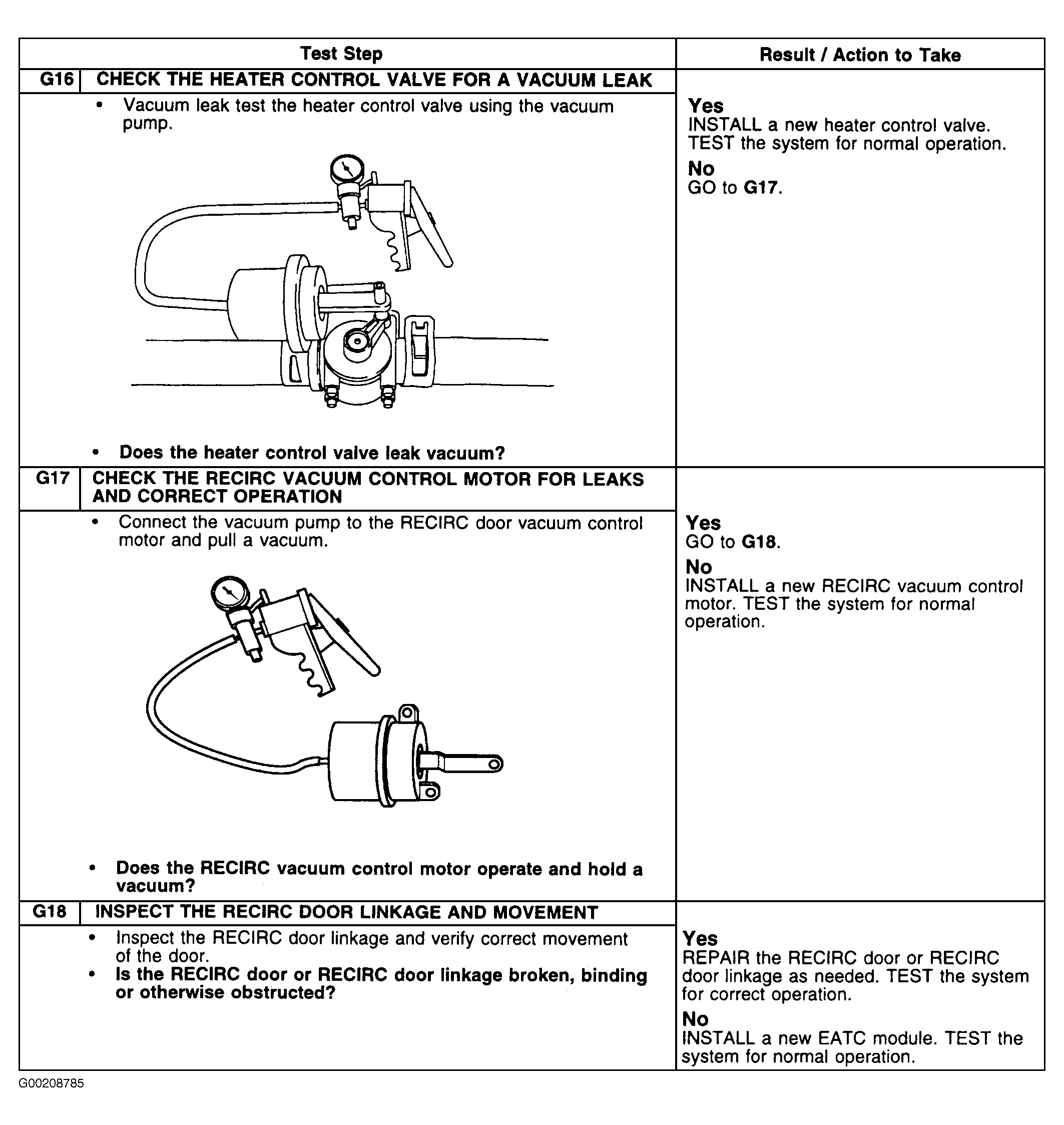

Fig 8: Test G (8 Of 8 - Steps G16-G18)

Courtesy of FORD MOTOR CO.
