Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosing procedure, see Fig 1-Fig 3 .

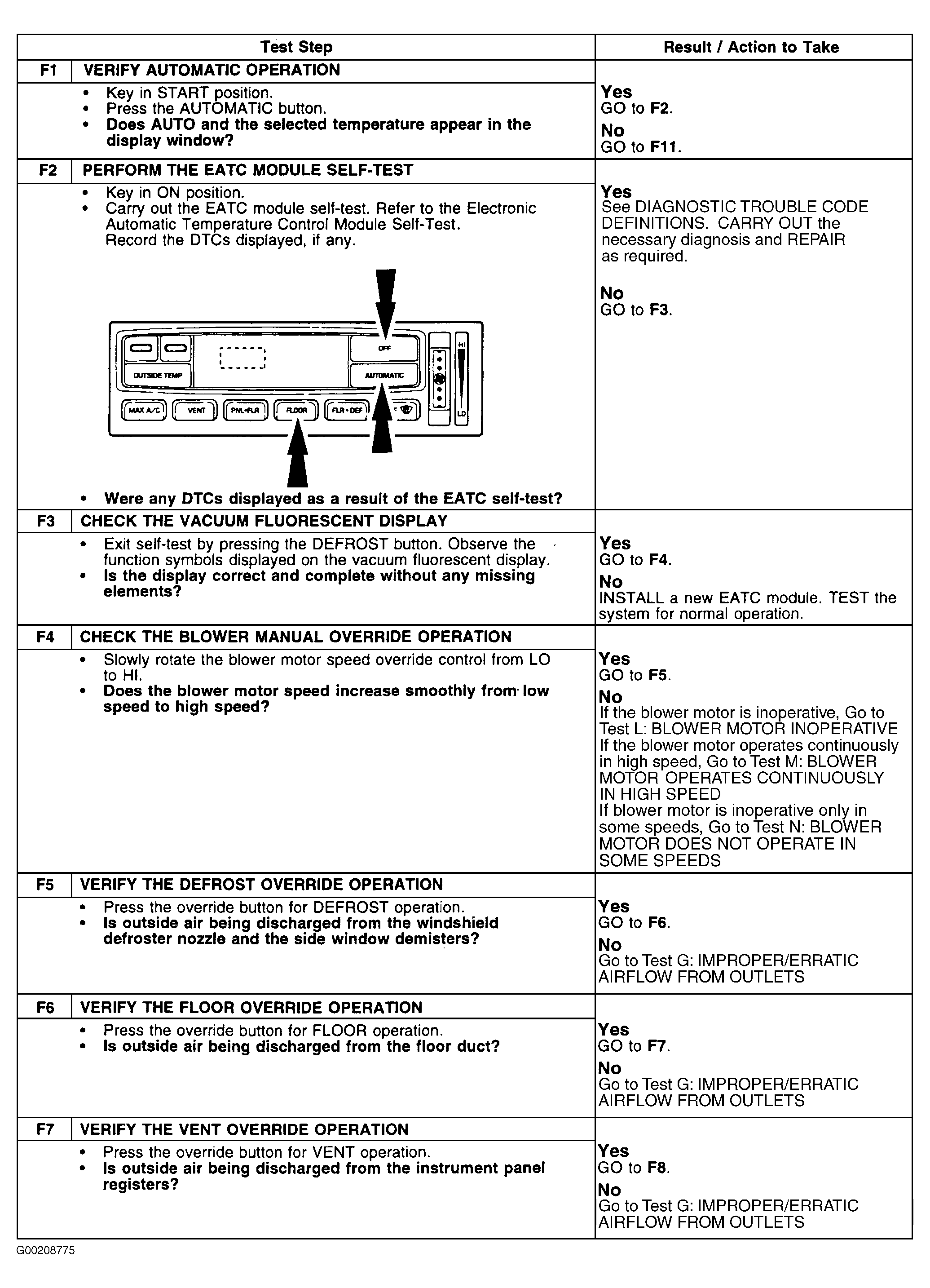

Fig 1: Test F (1 Of 3 - Steps F1-F7)

Courtesy of FORD MOTOR CO.

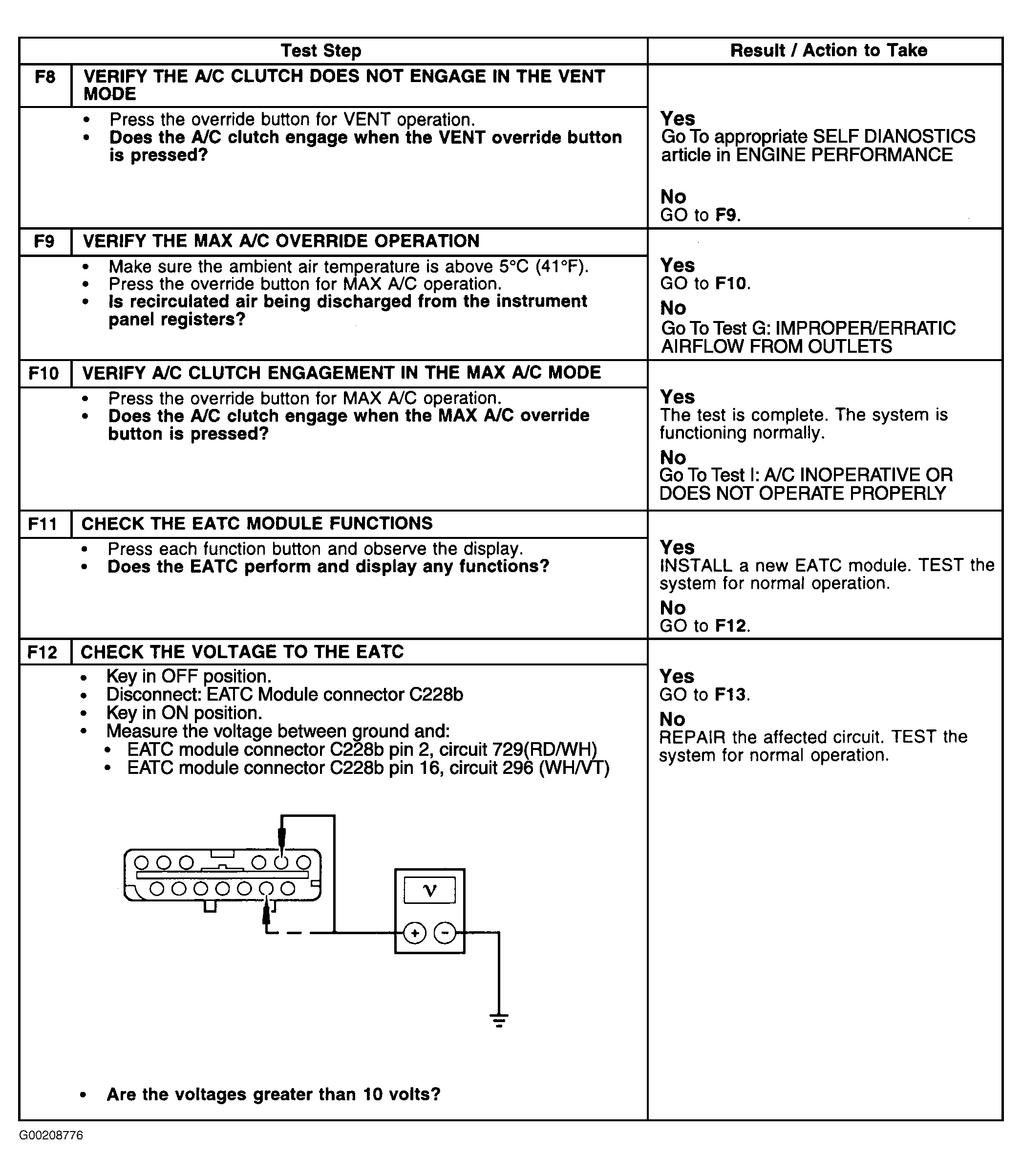

Fig 2: Test F (2 Of 3 - Steps F8-F12)

Courtesy of FORD MOTOR CO.

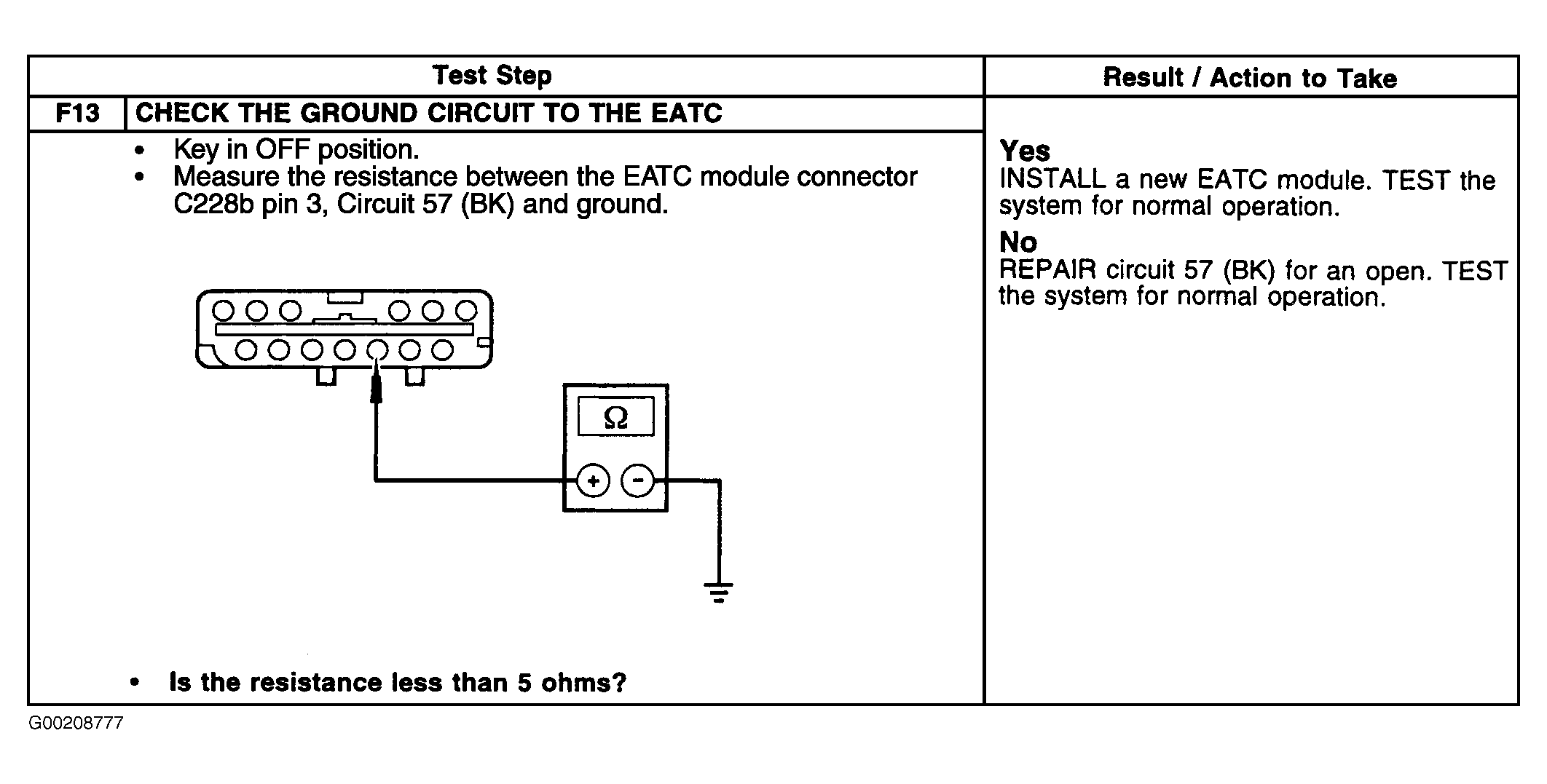

Fig 3: Test F (3 Of 3 - Step F13)

Courtesy of FORD MOTOR CO.
