Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosing procedure, see Fig 1.

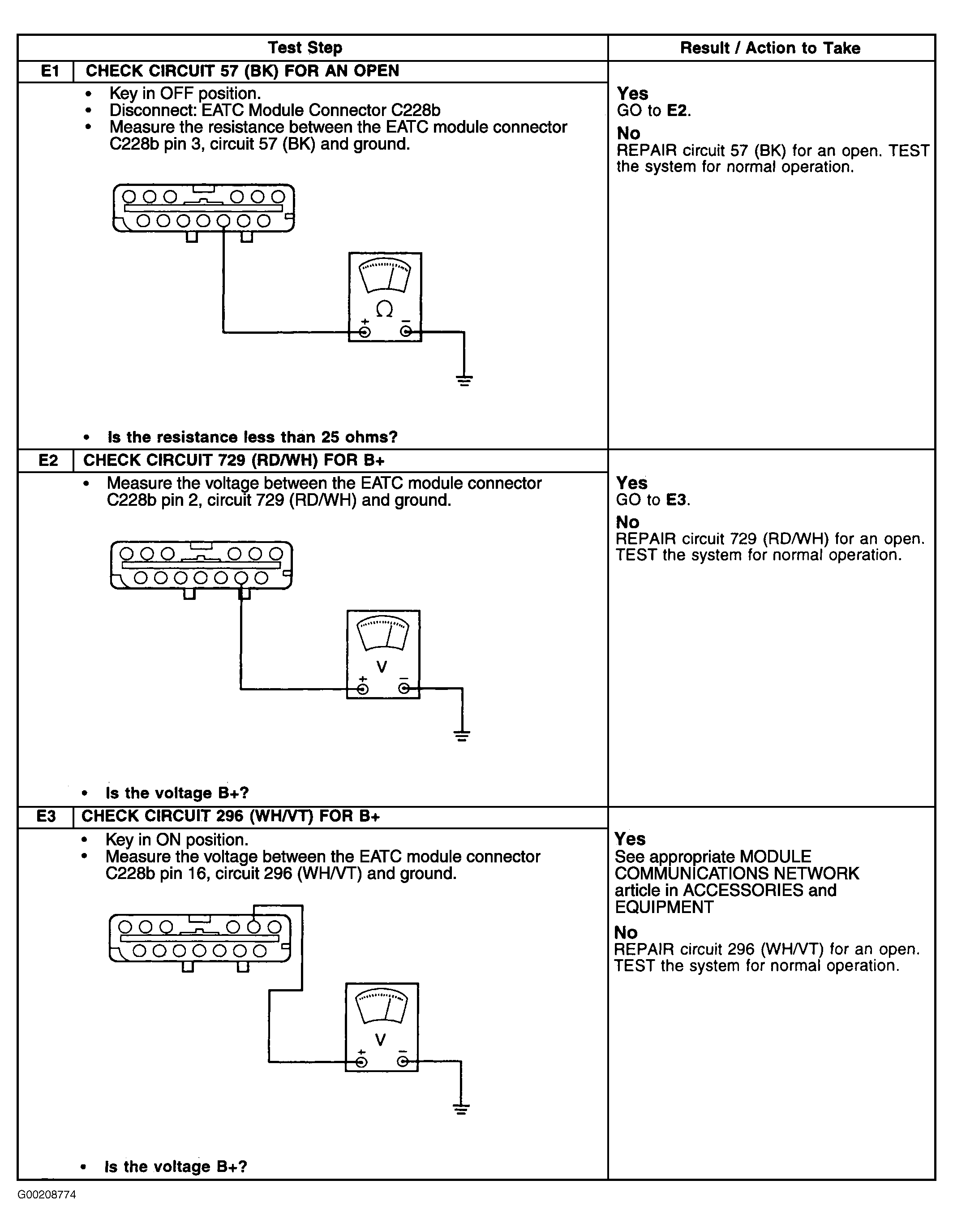

Fig 1: Test E
G00208774Courtesy of FORD MOTOR CO.
