Removal & Installation

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove lower right instrument panel insulator. See Fig 1. If equipped, remove air filter and brackets. Remove passenger side scuff plate. See Fig 2. Position passenger side weatherstrip aside. See Fig 3. Remove passenger side kick panel.
  2. Pull back carpet. See Fig 5. Disconnect aspirator tube and remove screw. See Fig 6. Remove screws and aspirator tube extension. See Fig 7. Disconnect electrical connector from blower motor. See Fig 8. Remove screws and remove blower motor. See Fig 9. Remove clip. Remove blower wheel. See Fig 10.
  3. To install, reverse removal procedure. Check system for proper operation.
Fig 1: Removing & Installing Instrument Panel Insulator
G00192249Courtesy of FORD MOTOR CO.

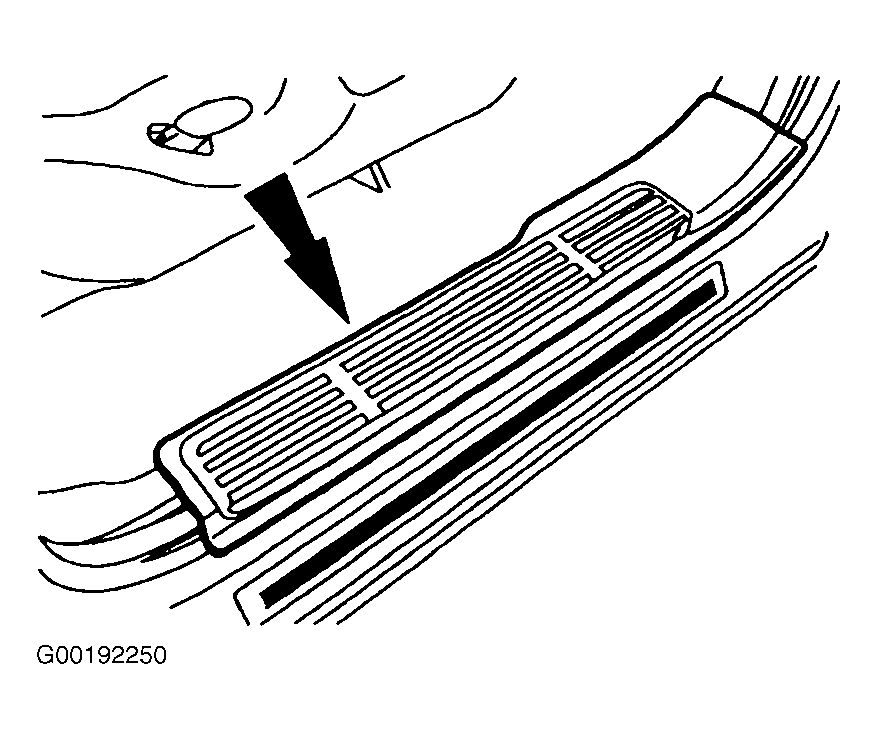

Fig 2: Removing & Installing Passenger Side Scuff Plate
G00192250Courtesy of FORD MOTOR CO.

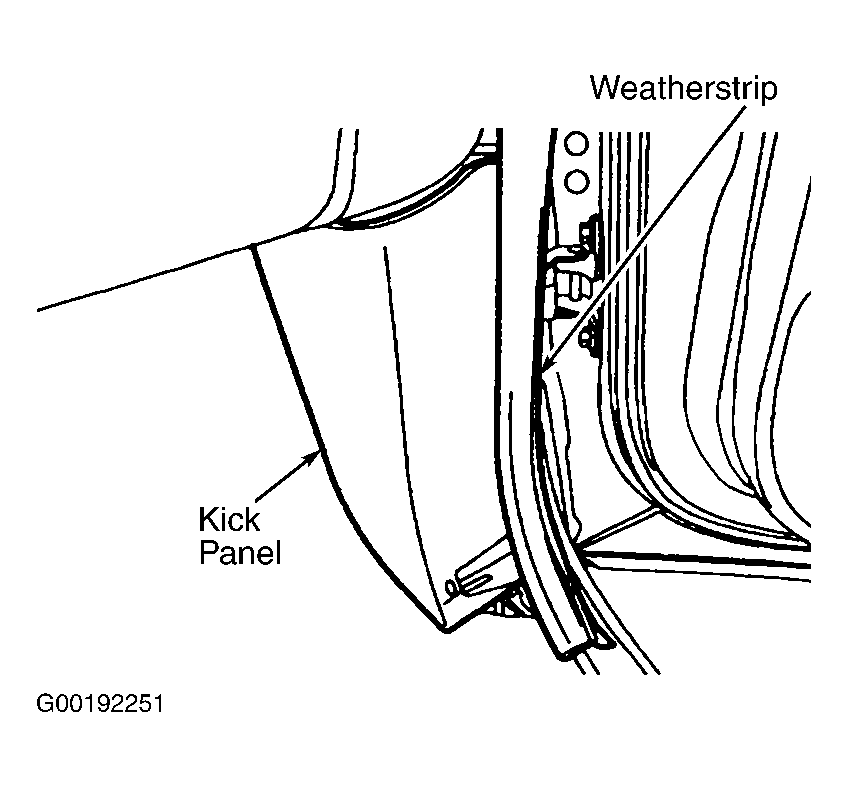

Fig 3: Removing & Installing Passenger Side Kick Panel
G00192251Courtesy of FORD MOTOR CO.

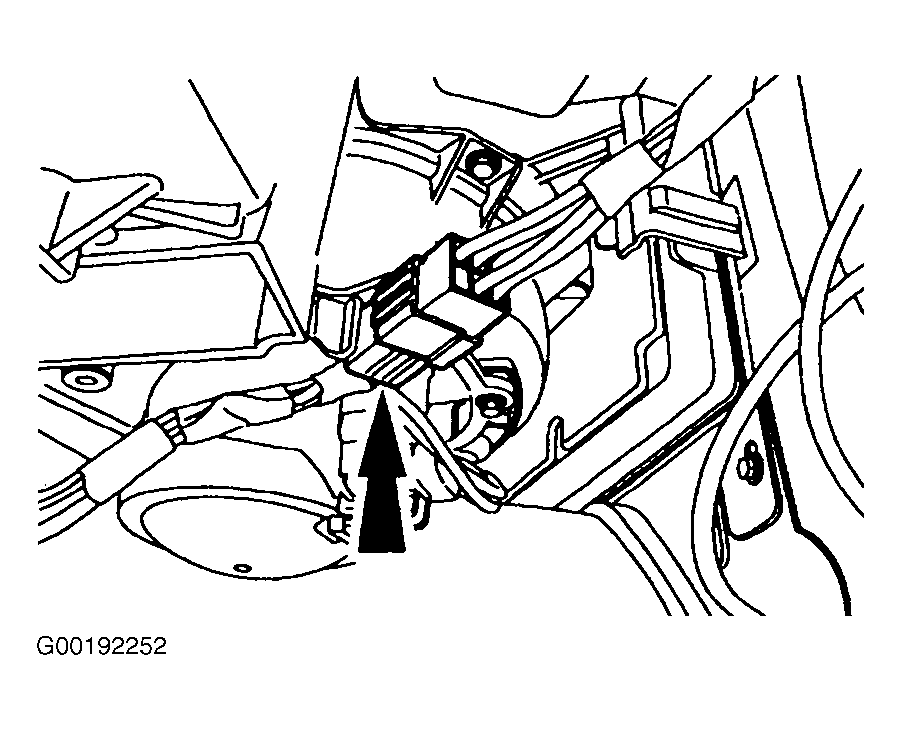

Fig 4: Disconnecting In line Connector
G00192252Courtesy of FORD MOTOR CO.

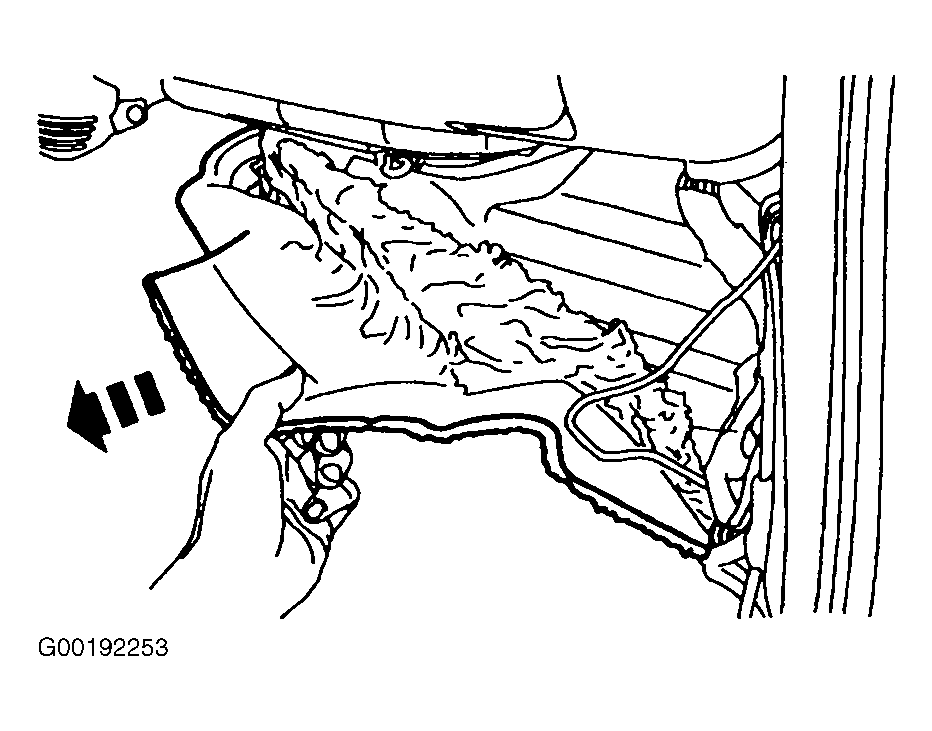

Fig 5: Positioning Back Carpet
G00192253Courtesy of FORD MOTOR CO.

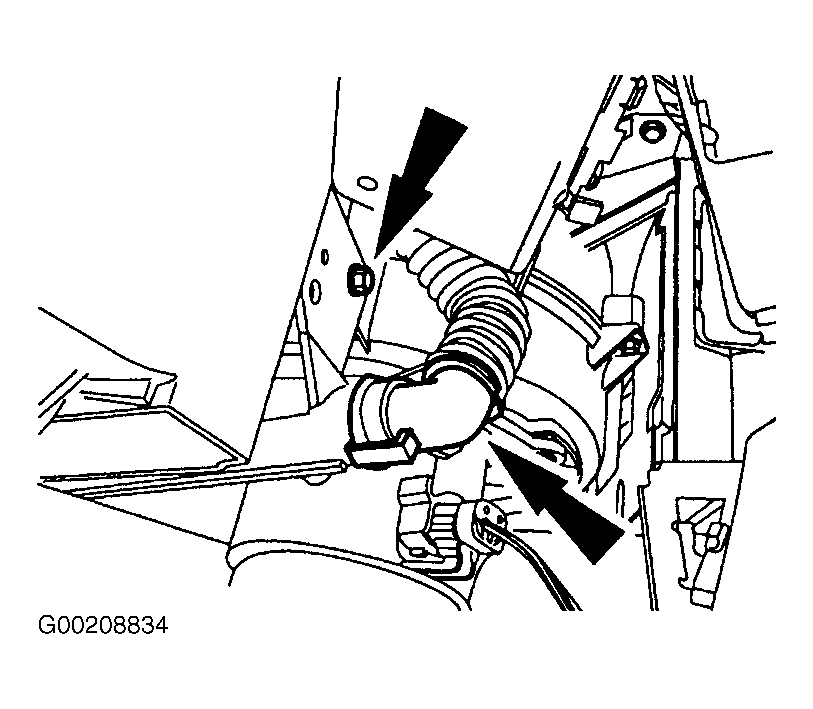

Fig 6: Removing & Installing Aspirator Tube
G00208834Courtesy of FORD MOTOR CO.

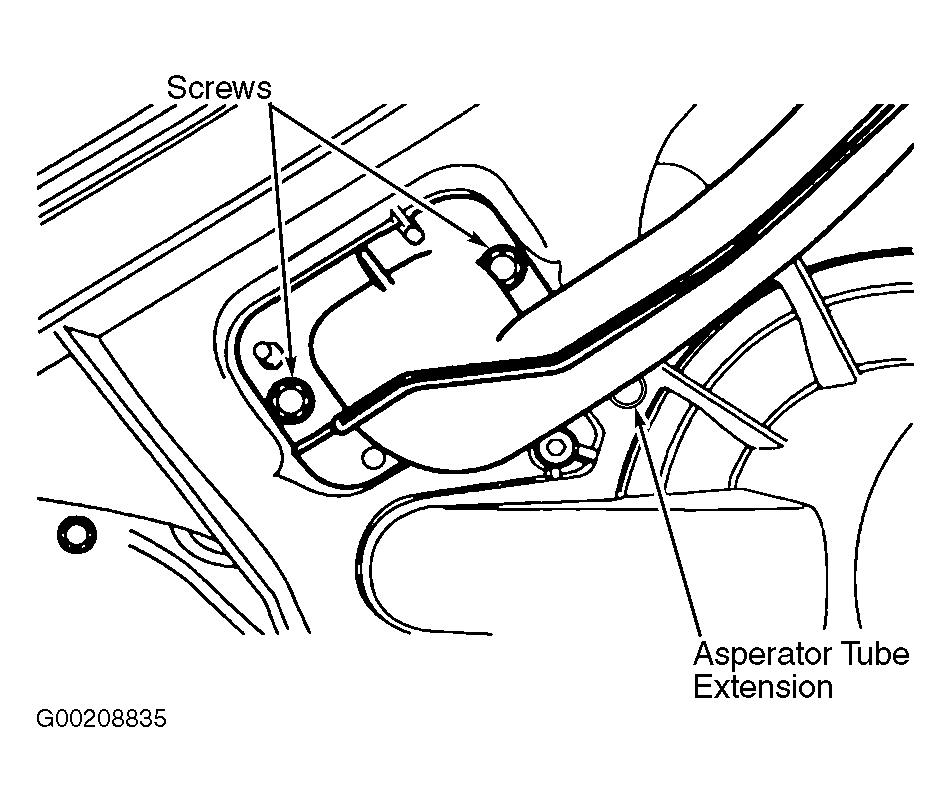

Fig 7: Removing & Installing Aspirator Tube Extension
G00208835Courtesy of FORD MOTOR CO.
Fig 8: Disconnecting Blower Motor Connector
G00192254Courtesy of FORD MOTOR CO.

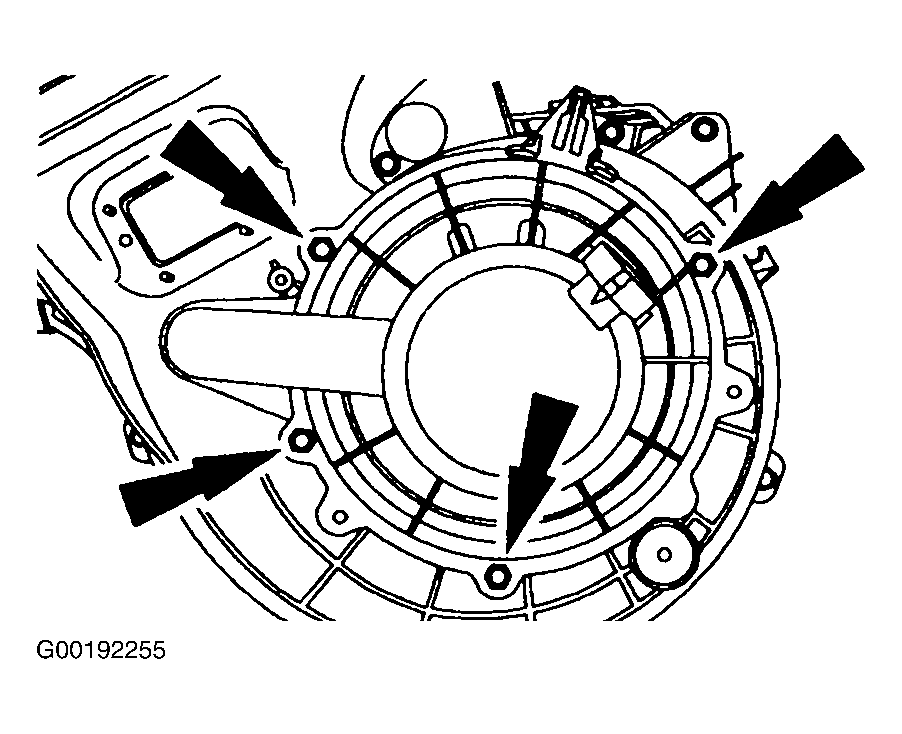

Fig 9: Removing & Installing Blower Motor
G00192255Courtesy of FORD MOTOR CO.

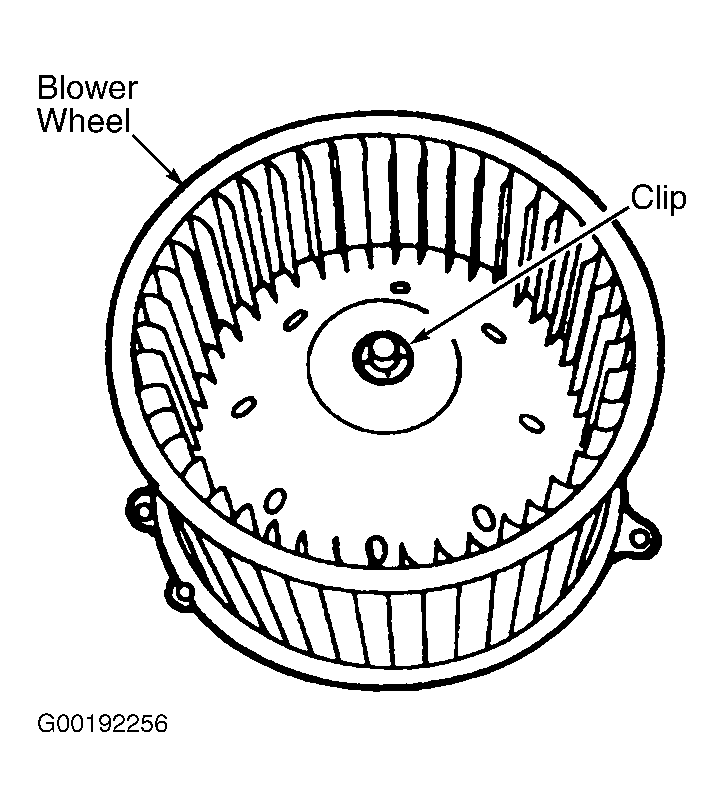

Fig 10: Removing & Installing Blower Motor Wheel
G00192256Courtesy of FORD MOTOR CO.
