Electronic Automatic Temperature Control (EATC) System Response
WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

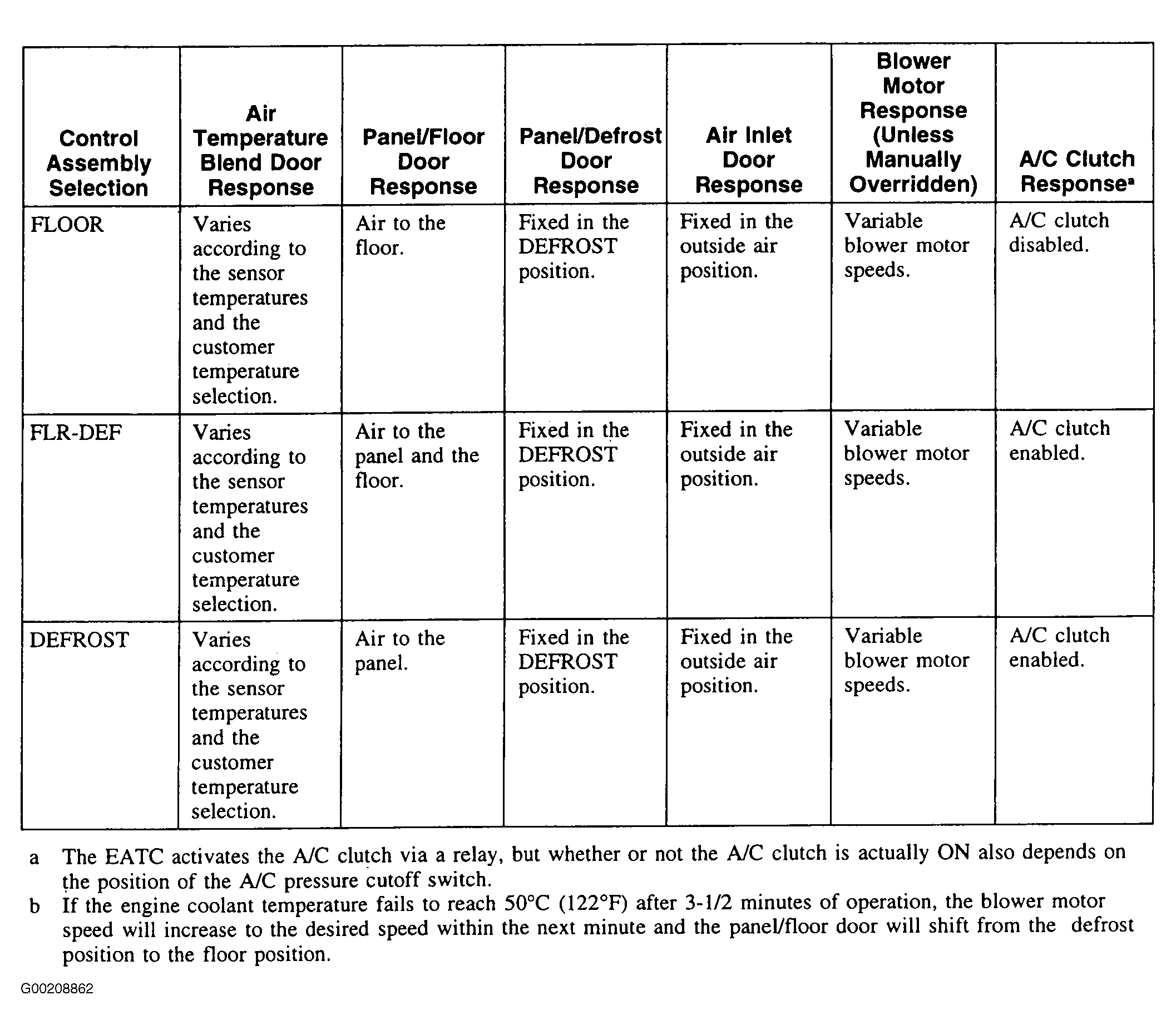

Fig 1: Electronic Automatic Temperature Control System Response (1 Of 2)
Courtesy of FORD MOTOR CO.

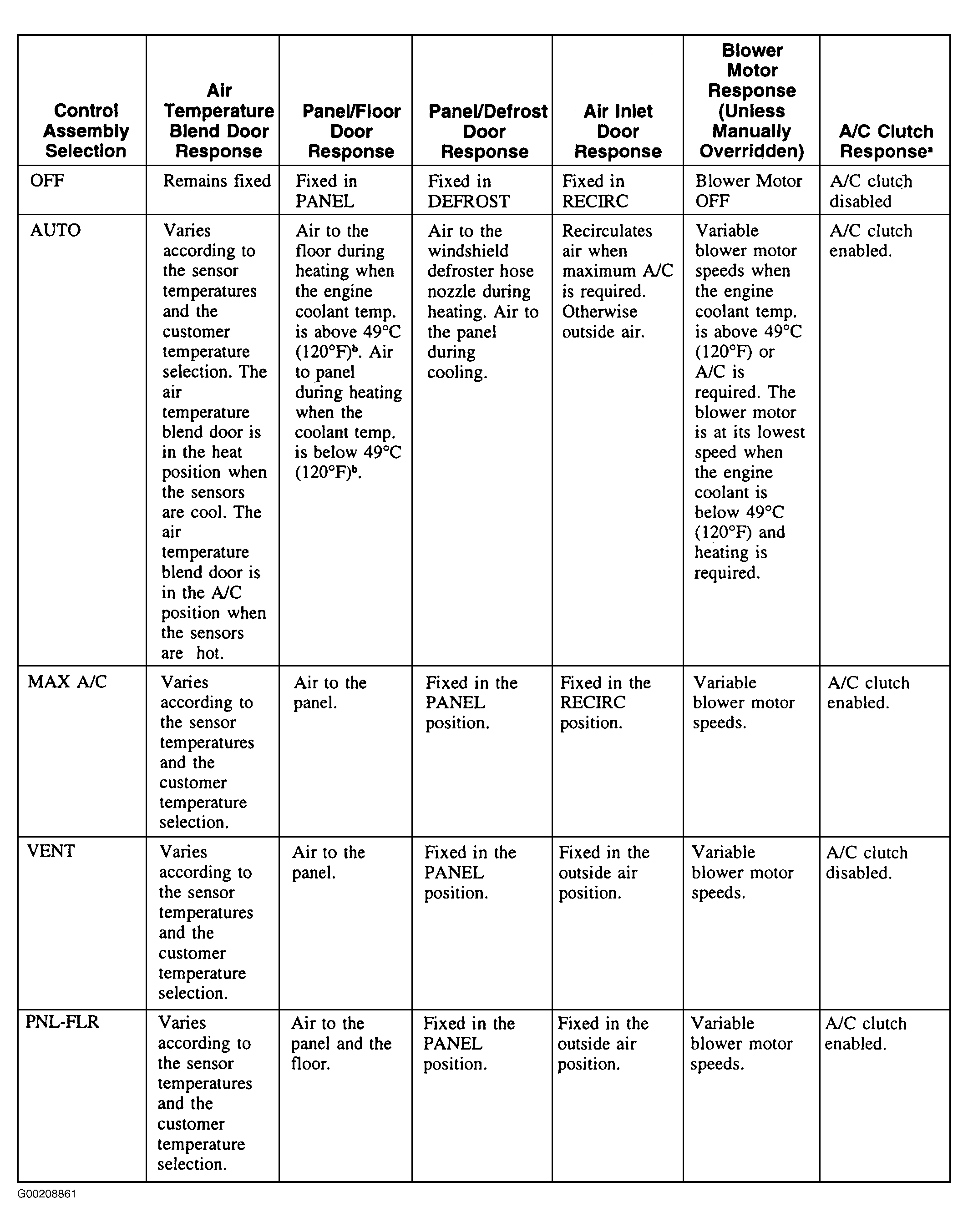

Fig 2: Electronic Automatic Temperature Control System Response (2 Of 2)
