DTC B1261: SUNLOAD Sensor Circuit Short To Ground

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For circuit reference, see WIRING DIAGRAMS .

For testing procedure, see Fig 1 and Fig 2 .

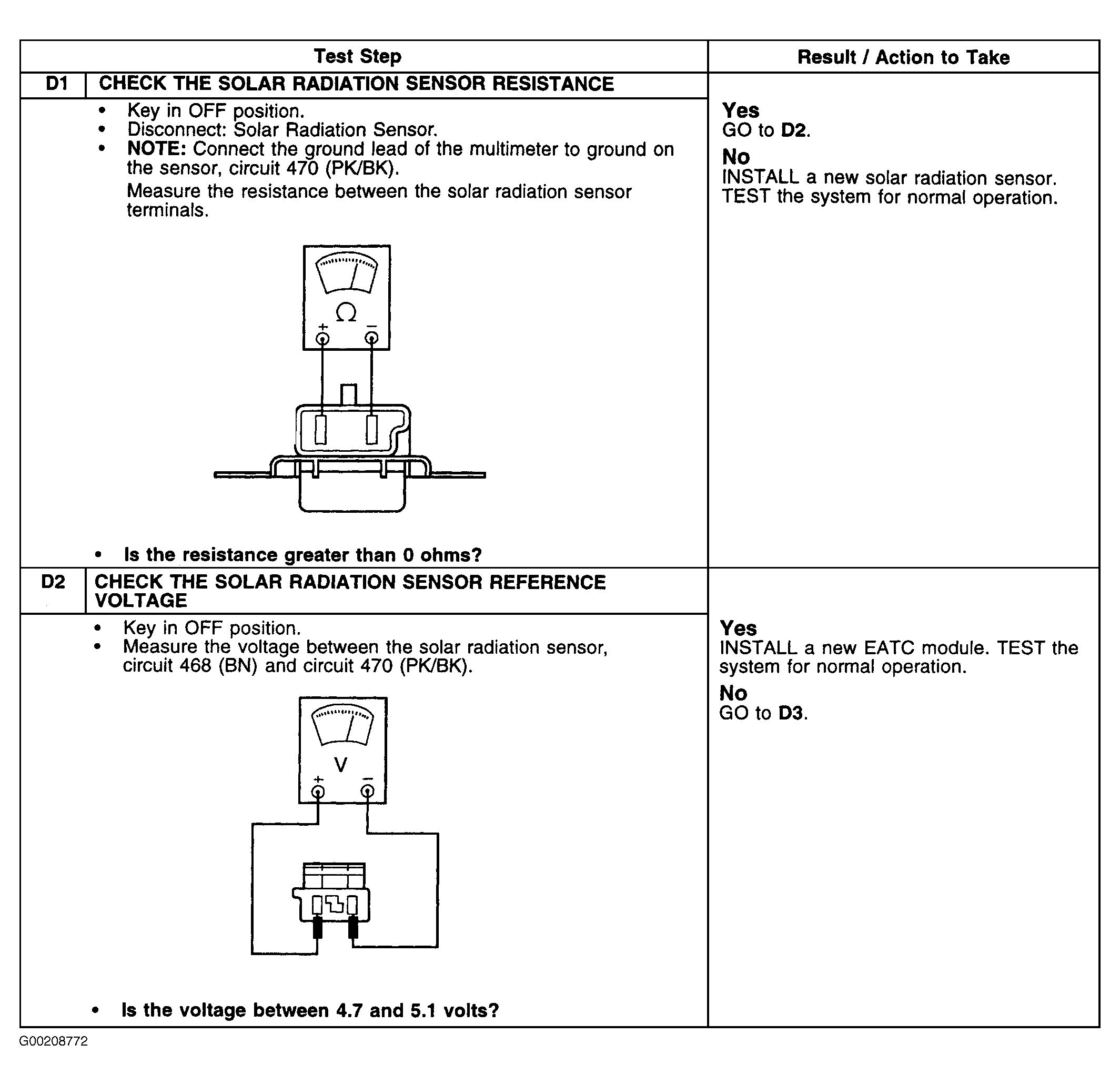

Fig 1: DTC B1261: Sunload Sensor Circuit Short To Ground (1 Of 2 - Steps D1-D2)

Courtesy of FORD MOTOR CO.

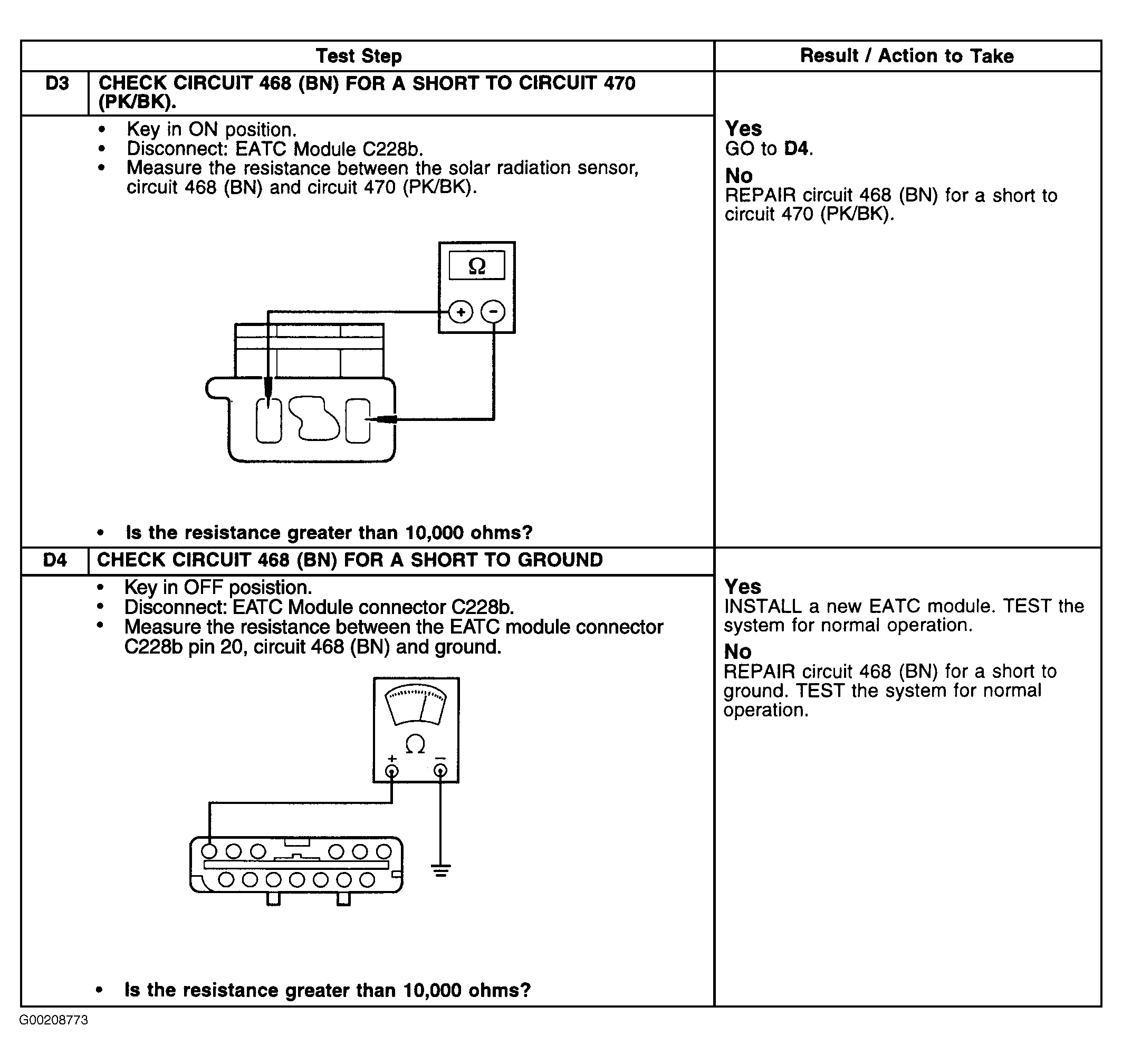

Fig 2: DTC B1261: Sunload Sensor Circuit Short To Ground (2 Of 2 - Steps D3-D4)

Courtesy of FORD MOTOR CO.
