DTC B1255/B1257: Ambient Temperature Sensor Circuit Open Or Short To Ground

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For circuit reference, see WIRING DIAGRAMS .

For testing procedure, see Fig 1-Fig 3 .

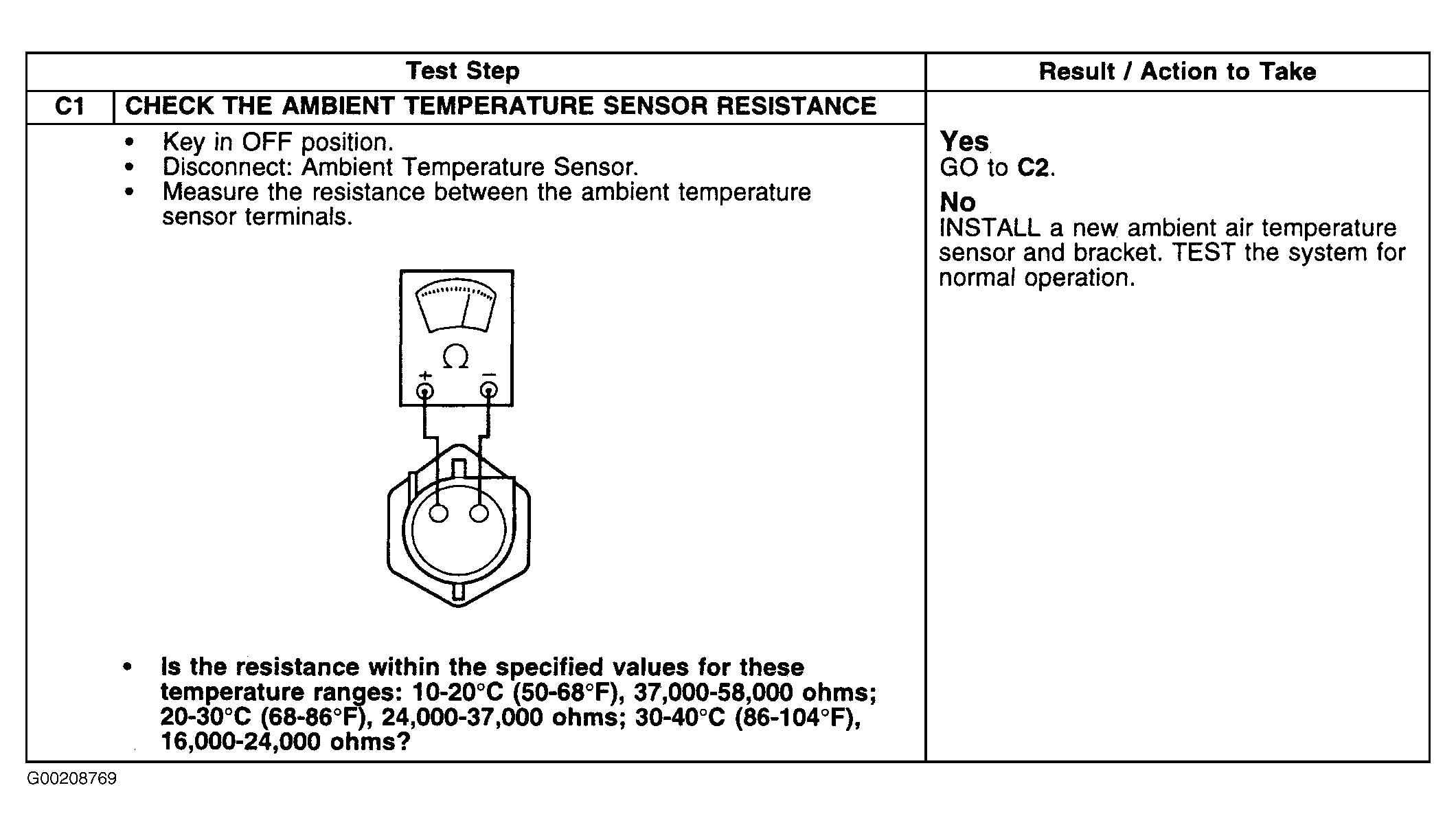

Fig 1: DTC B1255/B1257: Ambient Temperature Sensor Circuit Open Or Short To Ground (1 Of 3 - Step C1)

Courtesy of FORD MOTOR CO.

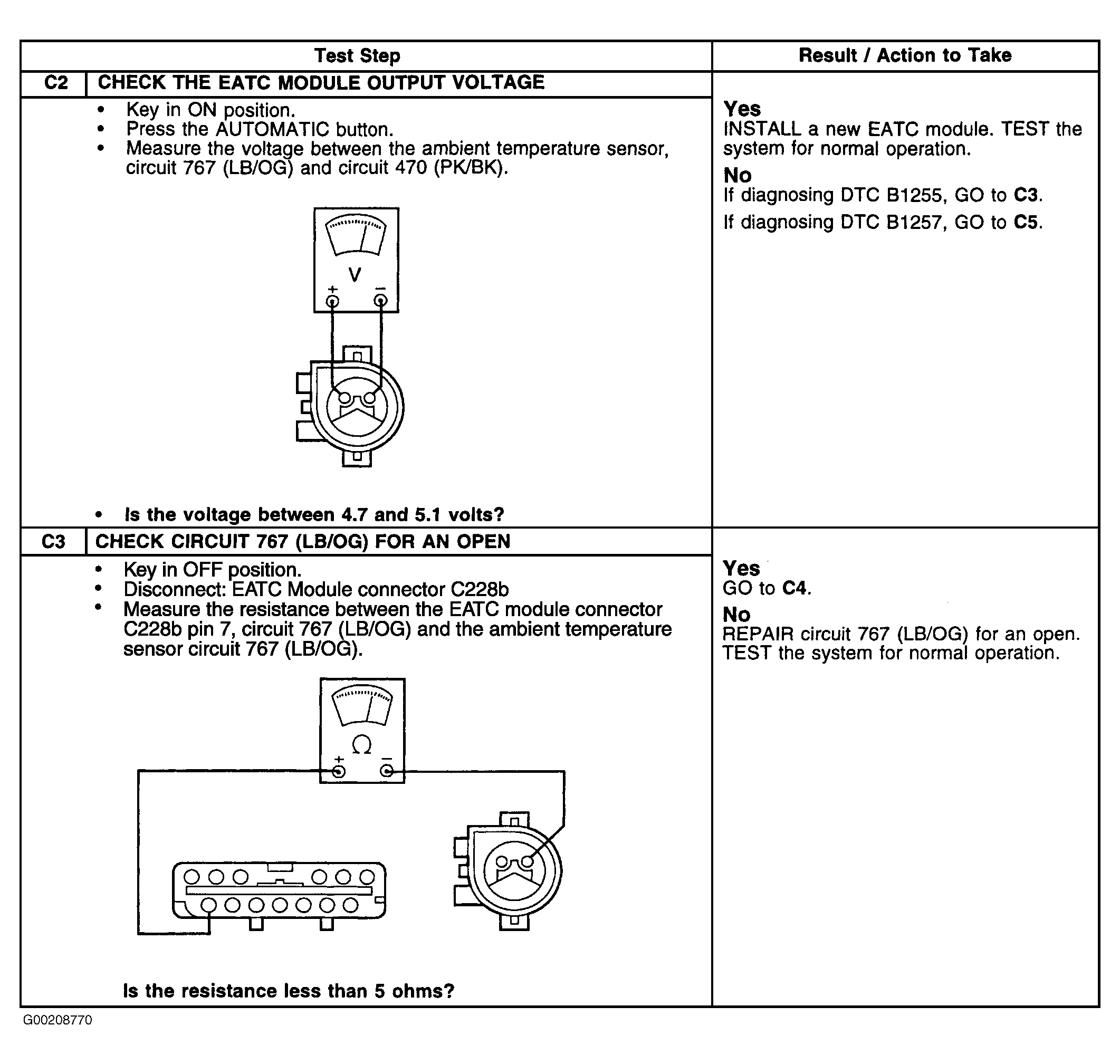

Fig 2: DTC B1255/B1257: Ambient Temperature Sensor Circuit Open Or Short To Ground (2 Of 3 - Steps C2-C3)

Courtesy of FORD MOTOR CO.

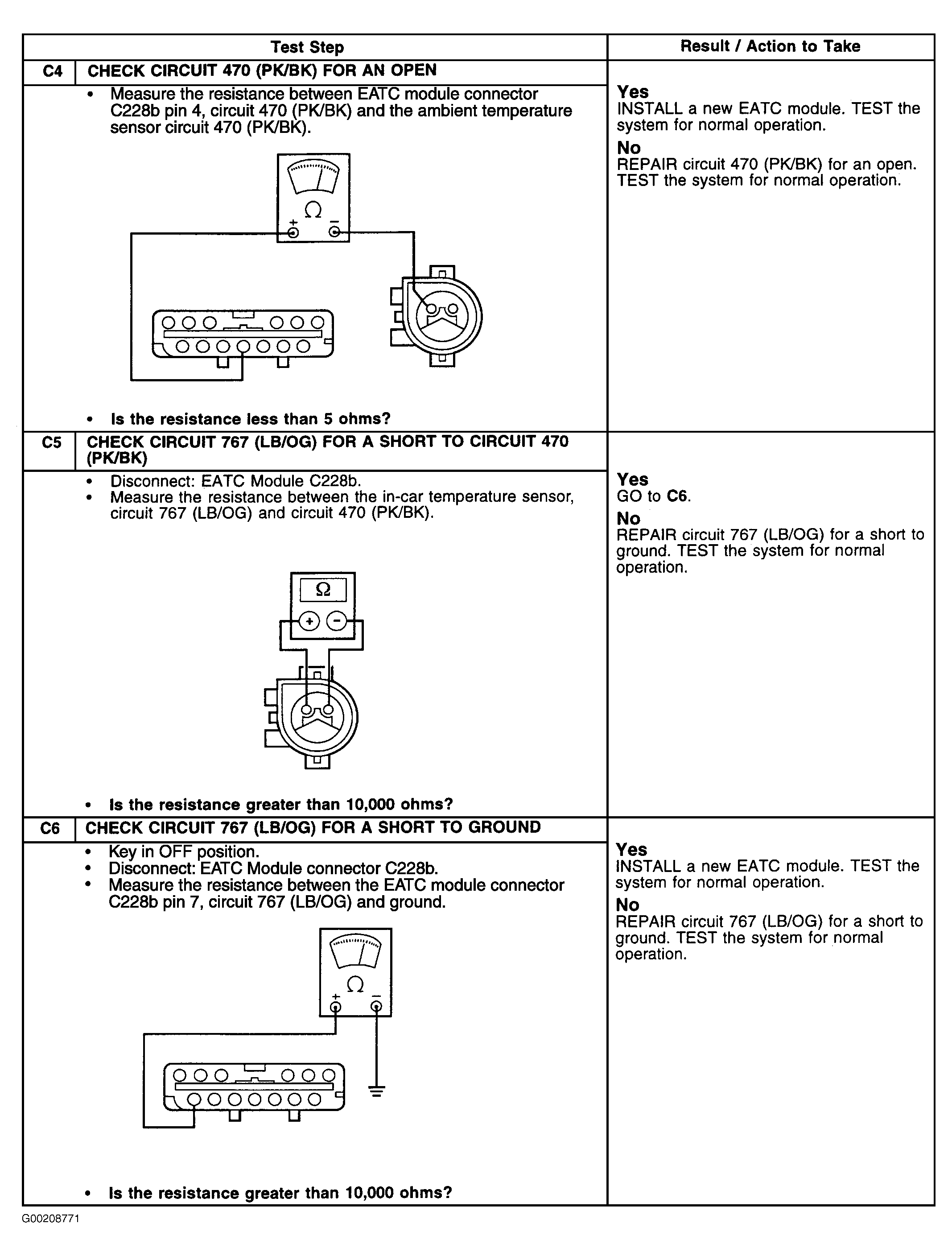

Fig 3: DTC B1255/B1257: Ambient Temperature Sensor Circuit Open Or Short To Ground (3 Of 3 - Steps C4-C6)

Courtesy of FORD MOTOR CO.
