Power Steering Pump Pulley - 2.3L & 3.0L: Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

3.0L Engine

Using the special tool, install the power steering pump pulley.

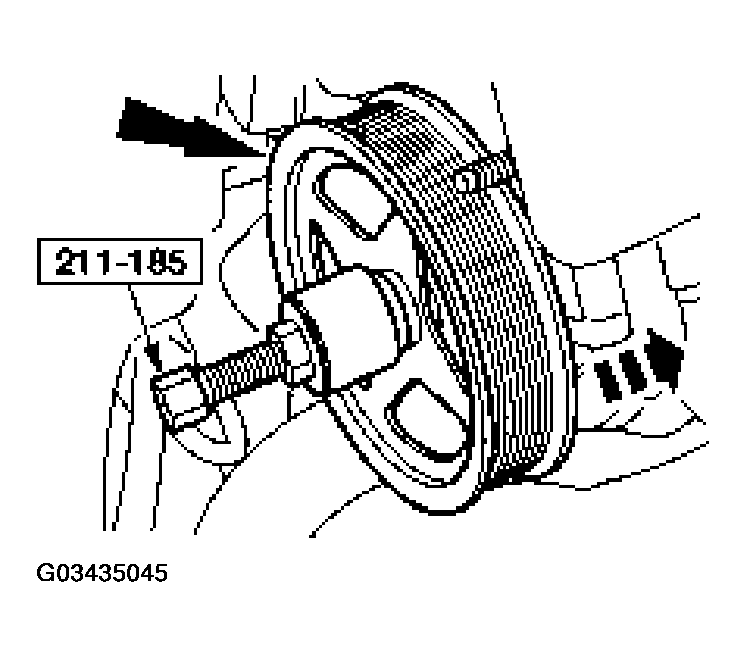

Fig 1: Installing Power Steering Pump Pulley
Courtesy of FORD MOTOR CO.

2.3L Engine
Using the special tool, install the power steering pump pulley.

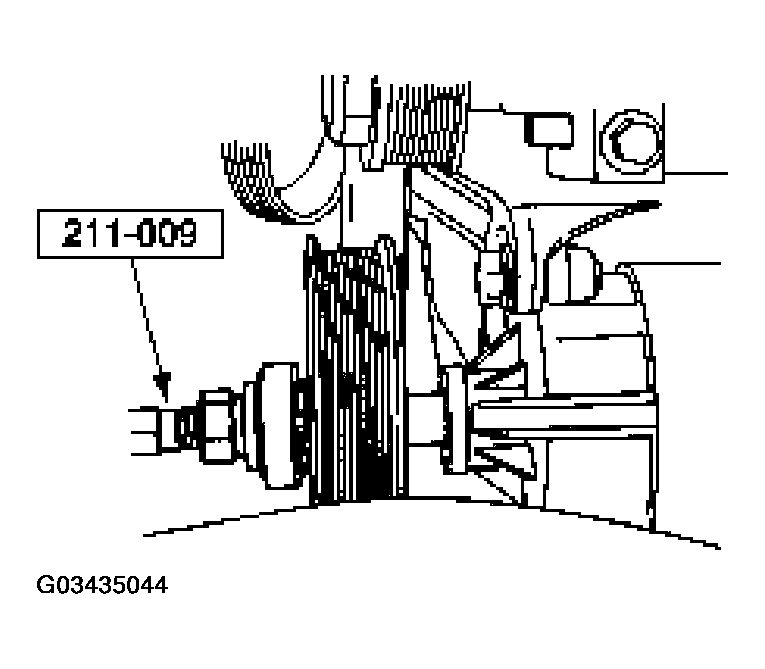

Fig 2: Installing Power Steering Pump Pulley
Courtesy of FORD MOTOR CO.

All Vehicles

NOTE: 2.3L engine shown, 3.0L engine similar.

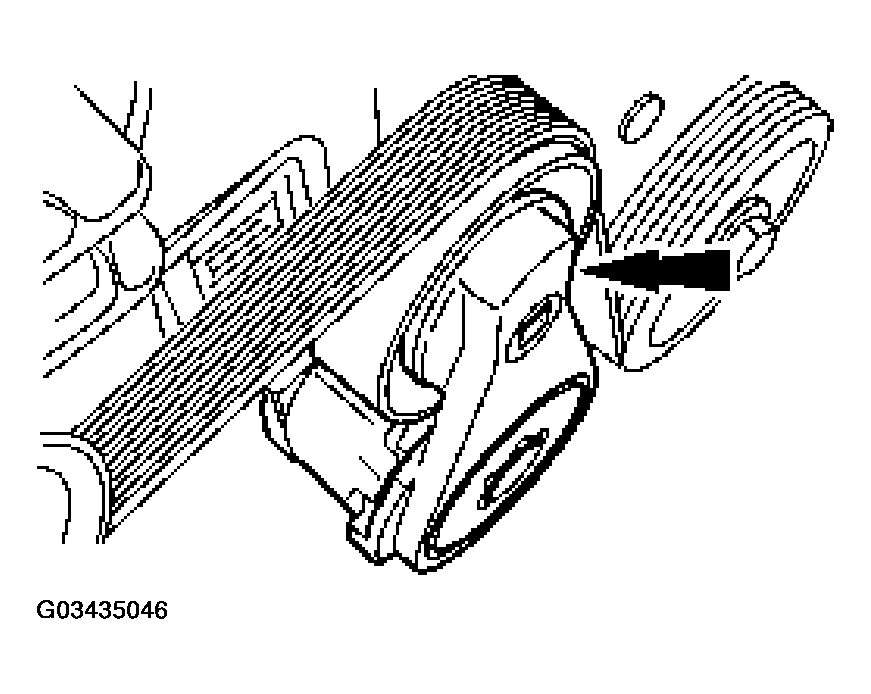

Fig 3: Rotating Tensioner Clockwise On 2.3L Engines, Or Counterclockwise On 3.0L Engines

Courtesy of FORD MOTOR CO.

Rotate the tensioner clockwise on 2.3L engines, or counterclockwise on 3.0L engines, and install the belt to the power steering pump pulley.
2.3L Engine
Install the air cleaner outlet pipe.
