Pinpoint Test D: Steering System Drift/Pull/Wander

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

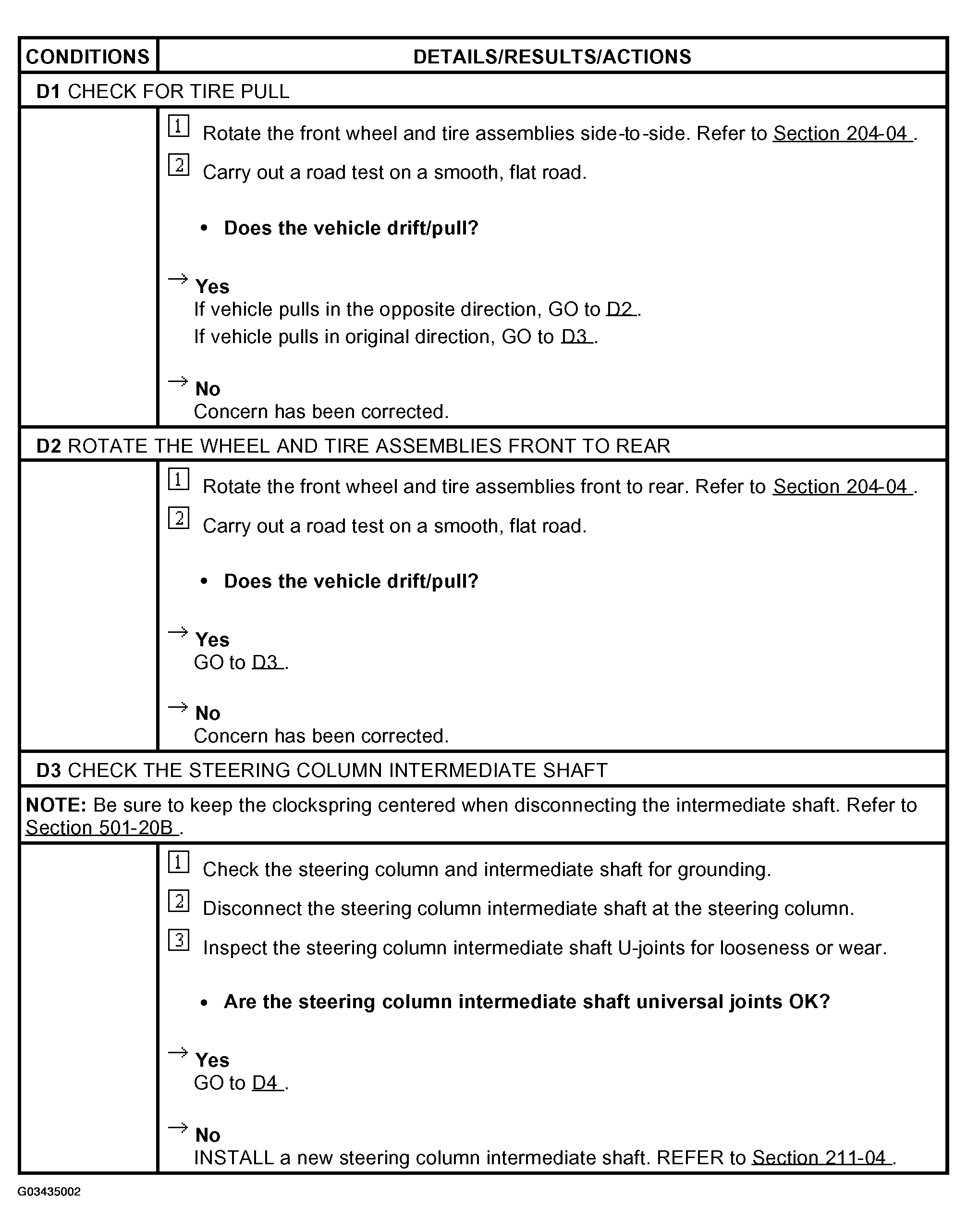

Fig 1: Pinpoint Test D: Steering System Drift/Pull/Wander (D1-D3)
G03435002Courtesy of FORD MOTOR CO.

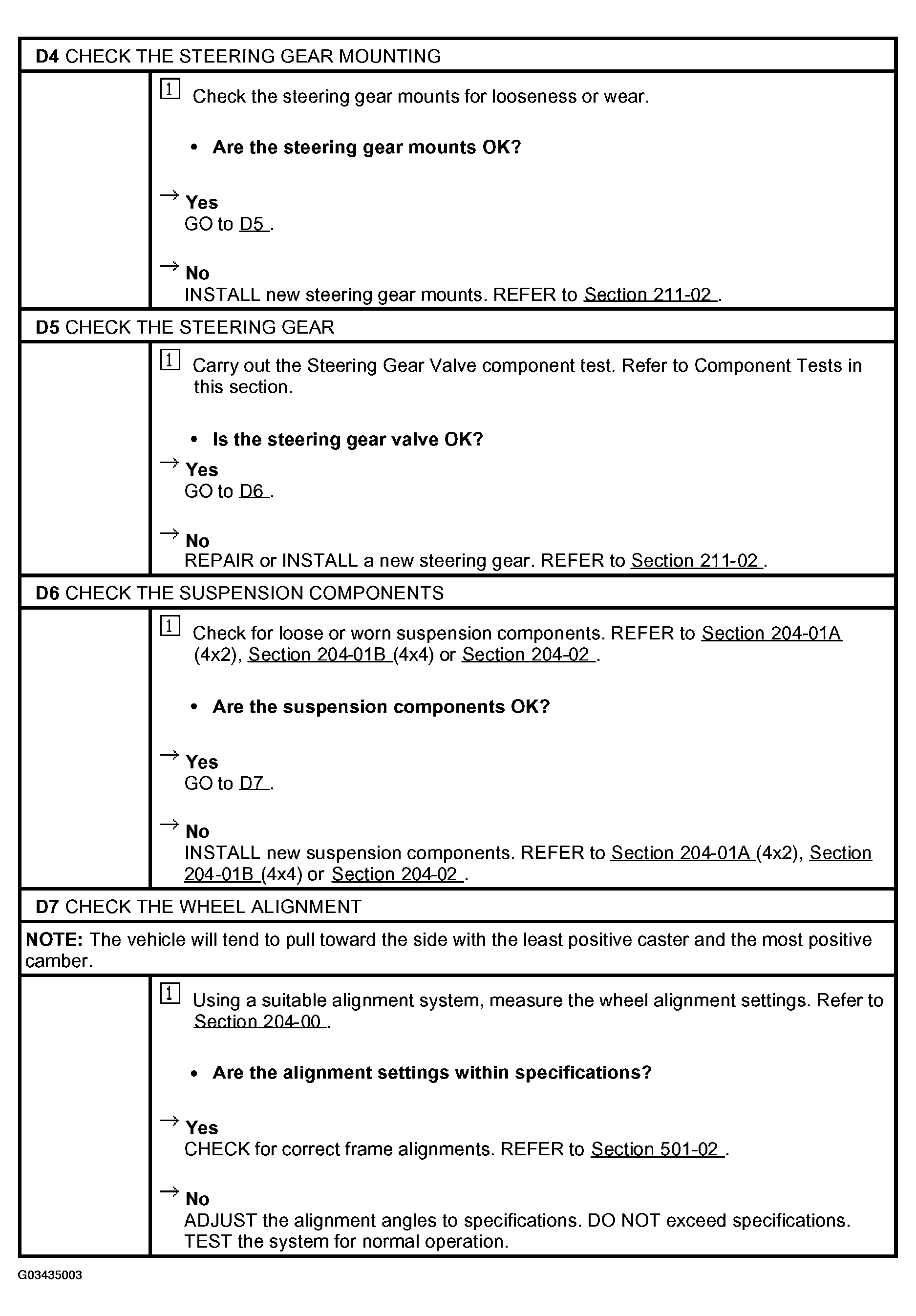

Fig 2: Pinpoint Test D: Steering System Drift/Pull/Wander (D4-D7)
G03435003Courtesy of FORD MOTOR CO.
